Controller WLED

Location: Permanent Lights

Gallery

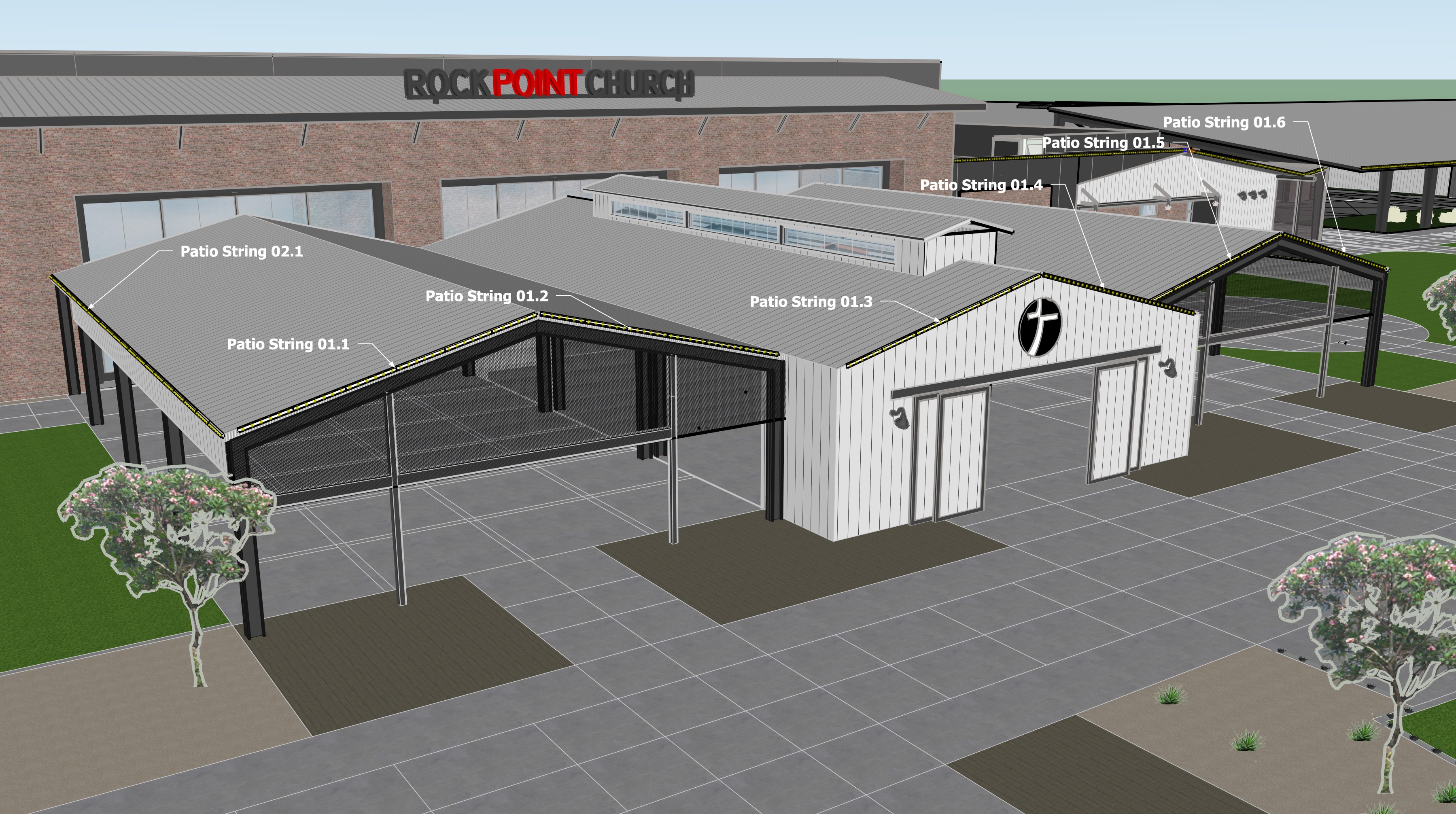

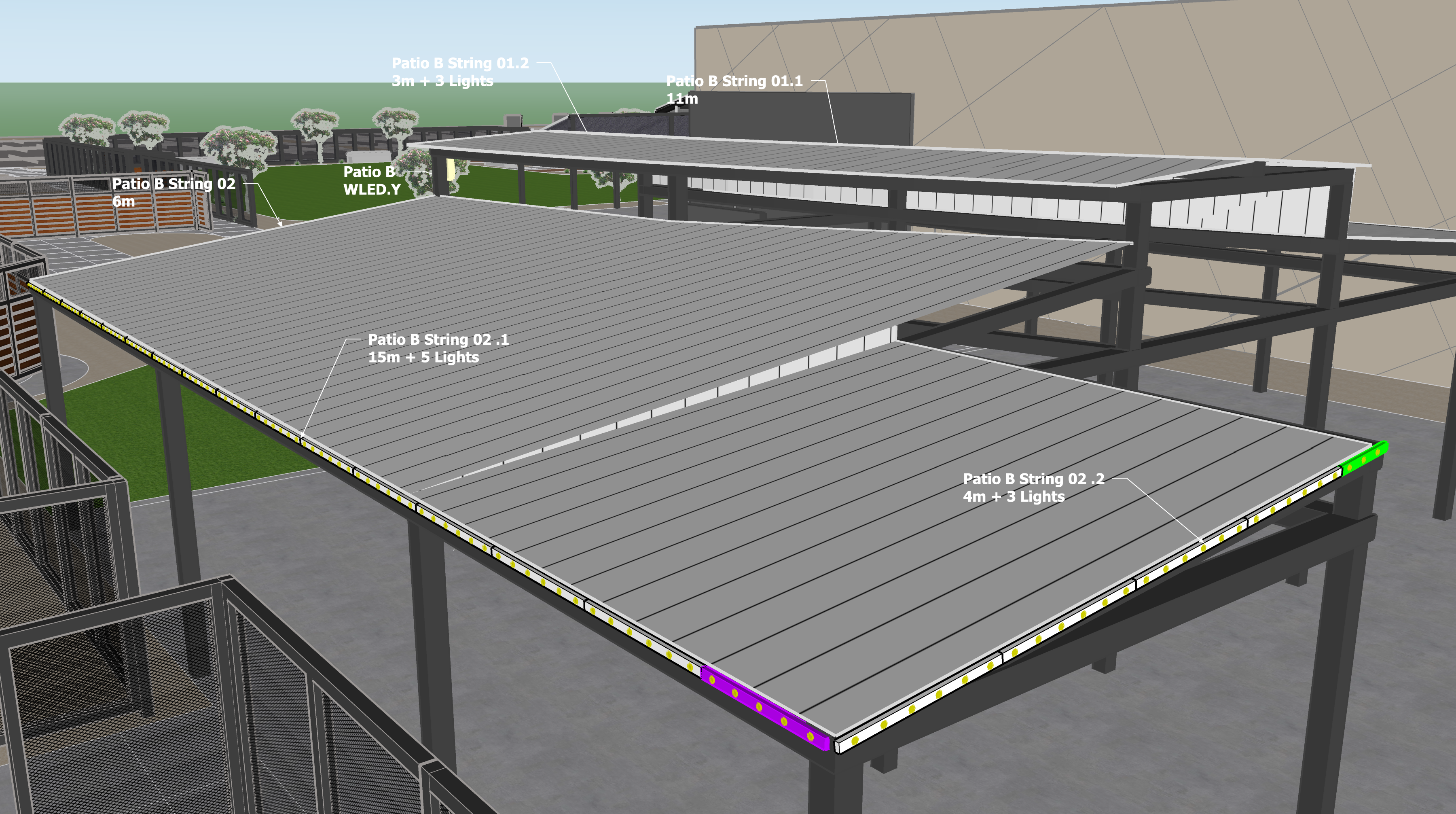

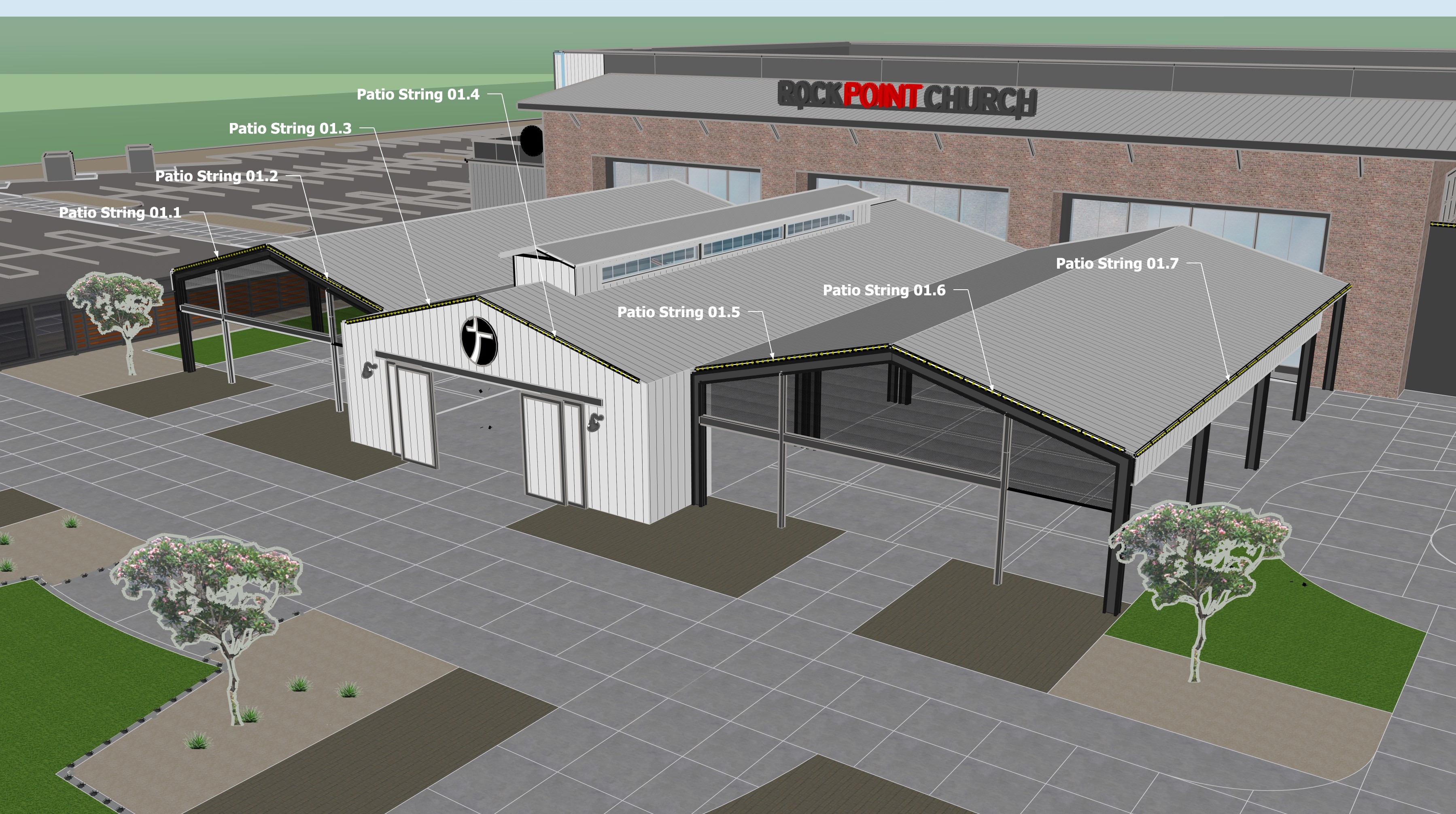

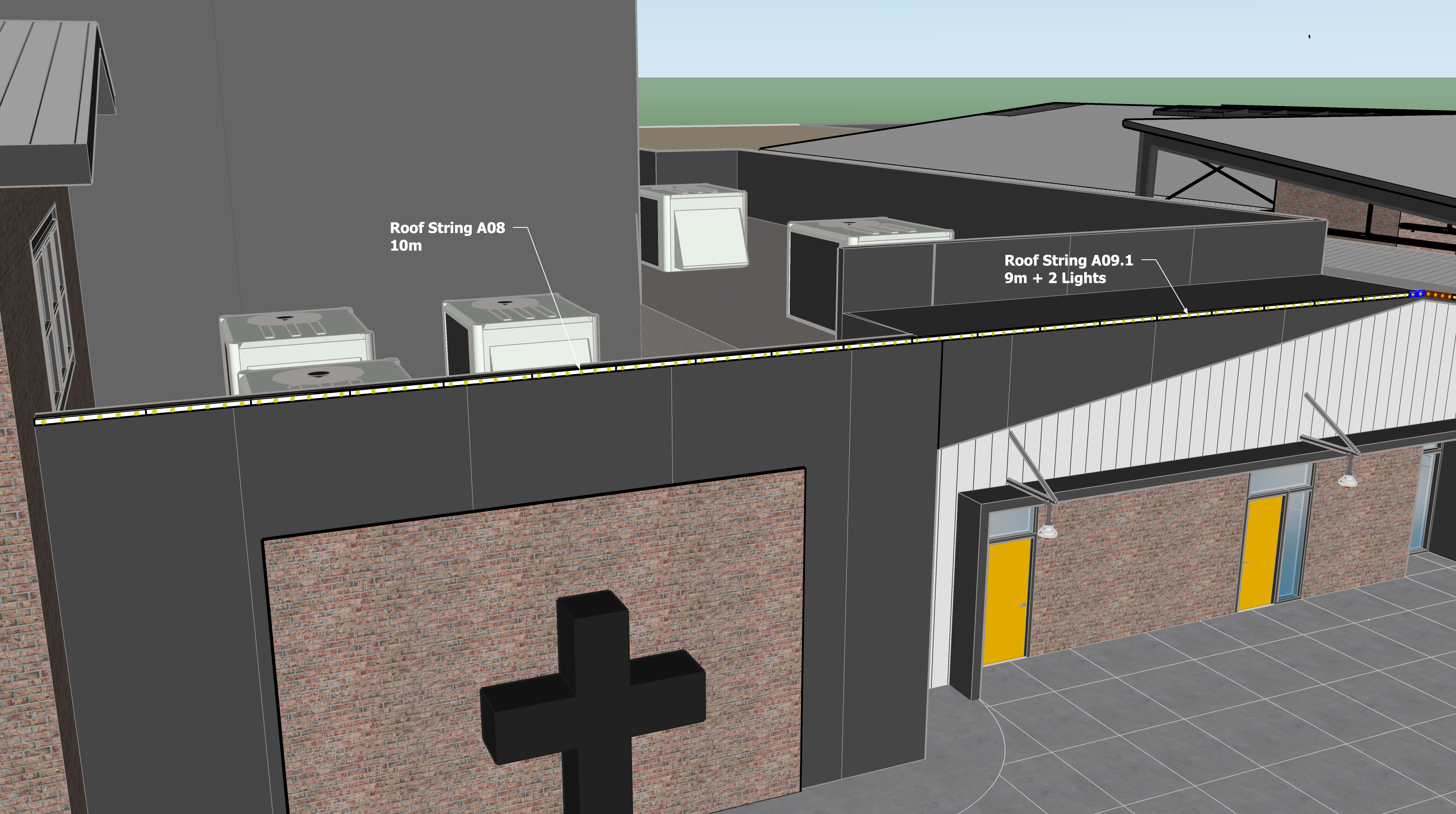

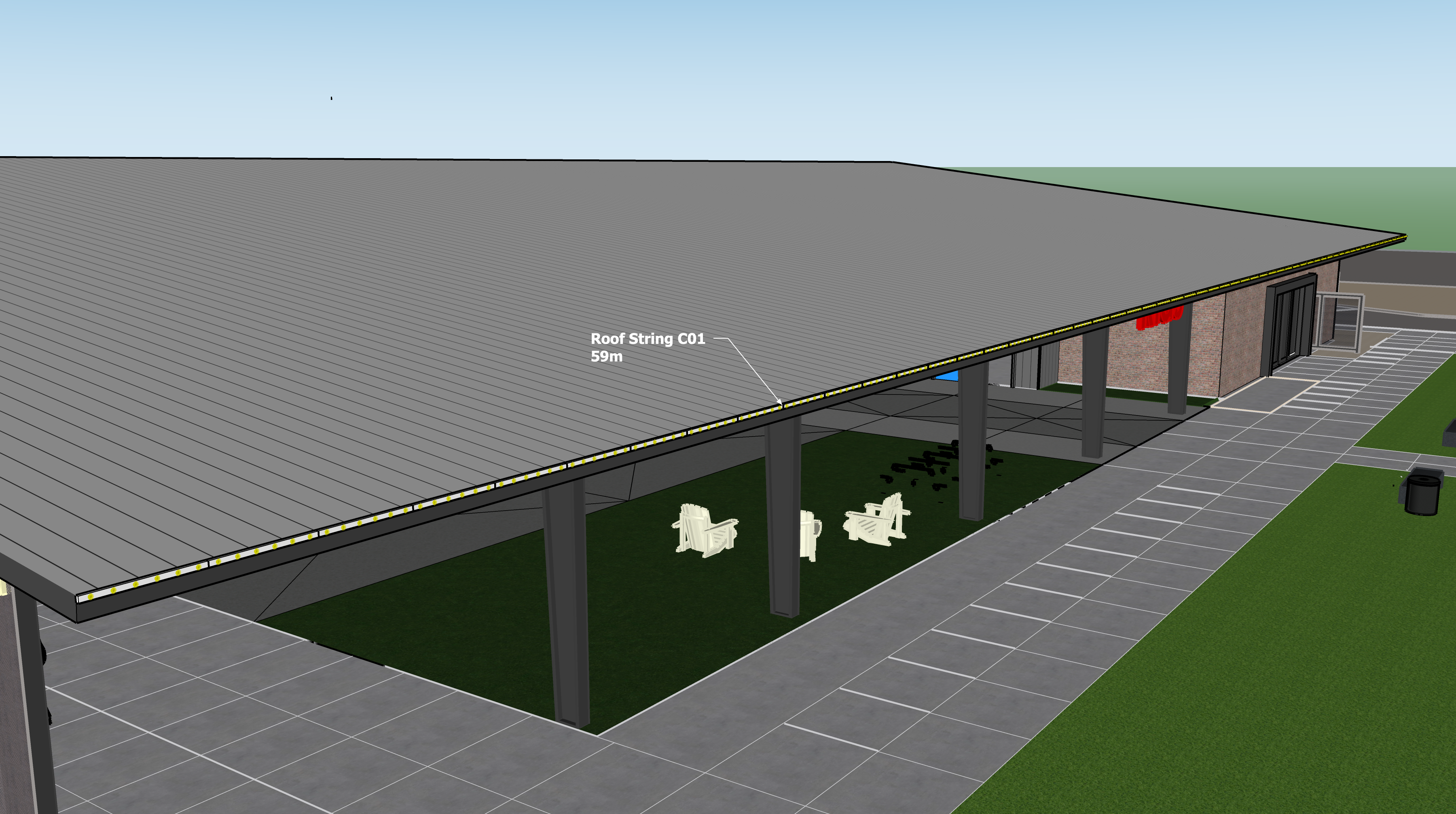

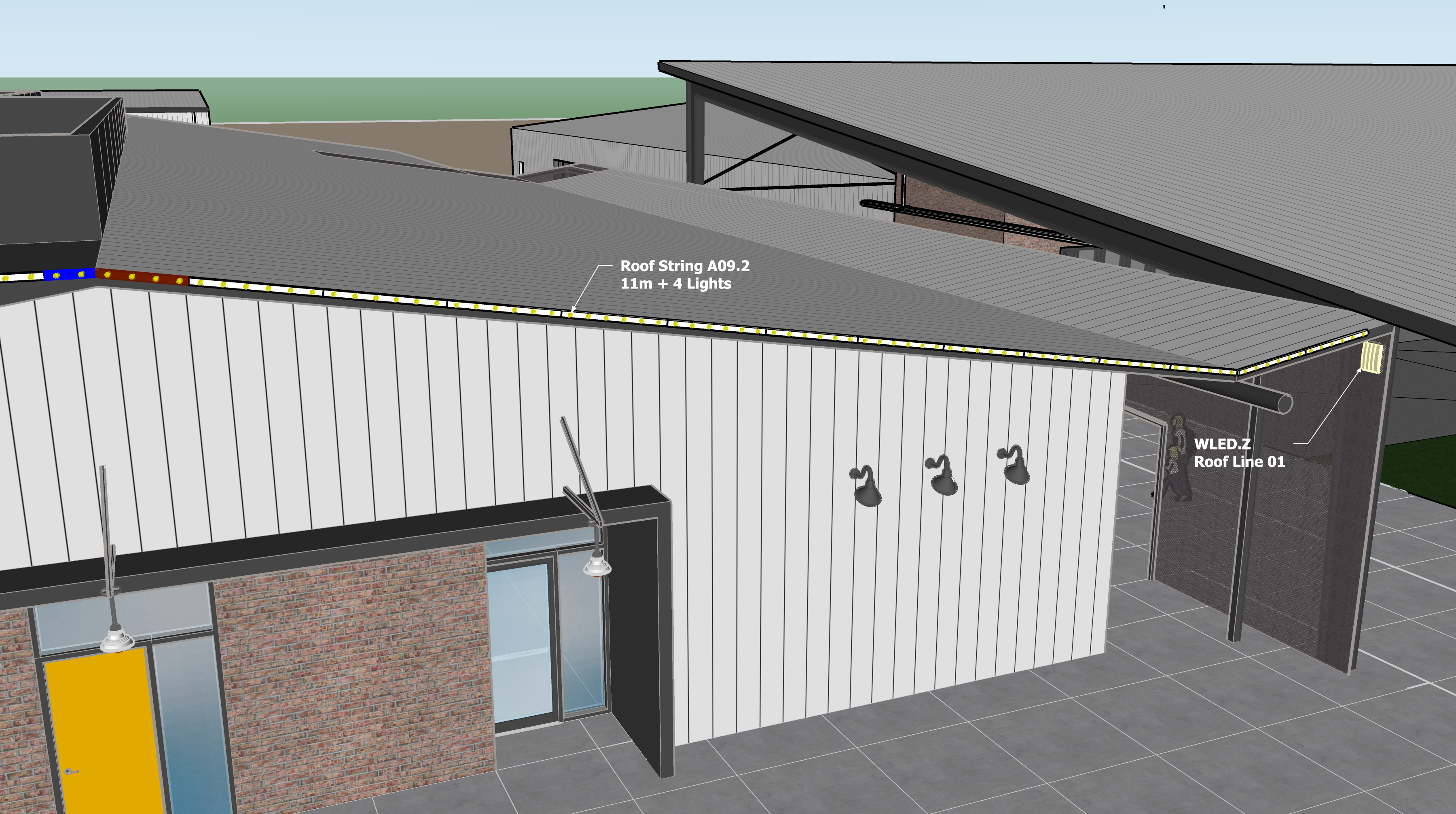

Setup Photos image 1 for controller WLED

Setup Photos image 2 for controller WLED

Setup Photos image 3 for controller WLED

Setup Photos image 4 for controller WLED

Setup Photos image 5 for controller WLED

Setup Photos image 6 for controller WLED

Setup Photos image 7 for controller WLED

Setup Photos image 8 for controller WLED

Setup Photos image 9 for controller WLED

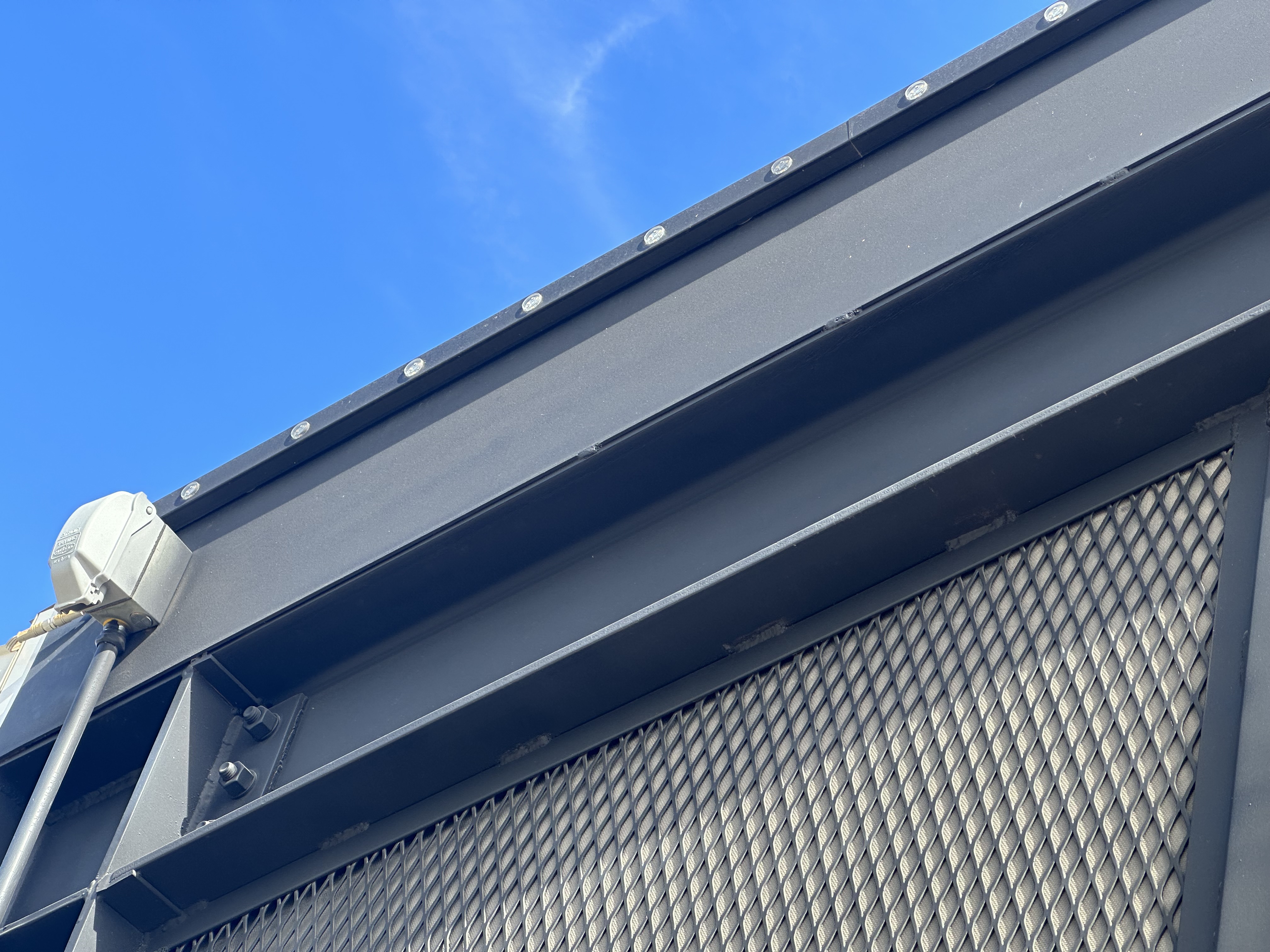

Reference Photos image 1 for controller WLED

Reference Photos image 2 for controller WLED

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)	Cable Length (3)	Prop 3 Name	Px Count (3)	Cable Length (4)	Prop 4 Name	Px Count (4)	Cable Length (5)	Prop 5 Name	Px Count (5)	Cable Length (6)	Prop 6 Name	Px Count (6)	Cable Length (7)	Prop 7 Name	Px Count (7)
WLED.V	1	1	1V	1	V			E46	704	354	354	350	1V	48		1.3	50	230.1	319.8	Patio	5	Patio String 01.1	36		Patio String 01.2	36		Patio String 02.1	36		Patio String 02.2	36		Patio String 03.1	36		Patio String 03.2	36		Patio String 04.2	138
WLED.V	2	2	2V	1	V				704	138	138	566	1V	48		1.3	50	89.7		Patio	5	Patio String 04.1	138
WLED.V	3	3	3V	1	V				704	0	0	704	1V	48		1.3	50	0		Patio
WLED.V	4	4	4V	1	V				704	0	0	704	1V	48		1.3	50	0		Patio
WLED.W	1	1	1W	1	W			F3	704	252	252	452	1W	48		1.3	50	163.8	163.8	Ramada	5	Ramada 01.1	96	0	Ramada 01.2	30	0	Ramada 01.3	96	0	Ramada 01.4	30
WLED.W	2	2	2W	1	W				704	0	0	704	1W	48		1.3	50	0		Ramada
WLED.W	3	3	3W	1	W				704	0	0	704	1W	48		1.3	50	0		Ramada
WLED.W	4	4	4W	1	W				704	0	0	704	1W	48		1.3	50	0		Ramada
WLED.X	1	1	1X	1	X			F48v4.B	704	107	107	597	1X	24		1.3	50	69.55	69.55	Canopy YTH	2.5	Horizontal Canopy YTH 01	28	0	Horizontal Canopy YTH 02	51	0	Horizontal Canopy YTH 03	28
WLED.X	2	2	2X	1	X				704	0	0	704	1X	24		1.3	50	0		Canopy YTH
WLED.X	3	3	3X	1	X				704	0	0	704	1X	24		1.3	50	0		Canopy YTH
WLED.X	4	4	4X	1	X				704	0	0	704	1X	24		1.3	50	0		Canopy YTH
WLED.Y	1	1	1Y	1	Y			F48v4.B	704	159	159	545	1Y	48		1.3	50	103.35	159.9	Patio B	5	Patio B String 02	36	0	Patio B String 01	123
WLED.Y	2	2	2Y	1	Y				704	87	87	617	1Y	48		1.3	50	56.55		Patio B	5	Patio B String 03	87
WLED.Y	3	3	3Y	1	Y				704	0	0	704	1Y	48		1.3	50	0		Patio B
WLED.Y	4	4	4Y	1	Y				704	0	0	704	1Y	48		1.3	50	0		Patio B
WLED.Z	1	1	1Z	1	Z			F48v4.B	704	185	185	519	1Z	48		1.3	50	120.25	250.25	Roof Line 01	5	Roof String A09	125	0	Roof String A08	60
WLED.Z	2	2	2Z	1	Z				704	200	200	504	1Z	48		1.3	50	130		Roof Line 01	5	Roof String C01	200
WLED.Z	3	3	3Z	1	Z				704	0	0	704	1Z	48		1.3	50	0		Roof Line 01
WLED.Z	4	4	4Z	1	Z				704	0	0	704	1Z	48		1.3	50	0		Roof Line 01
