Controller T2A~T2B

Location: Fence 04

Gallery

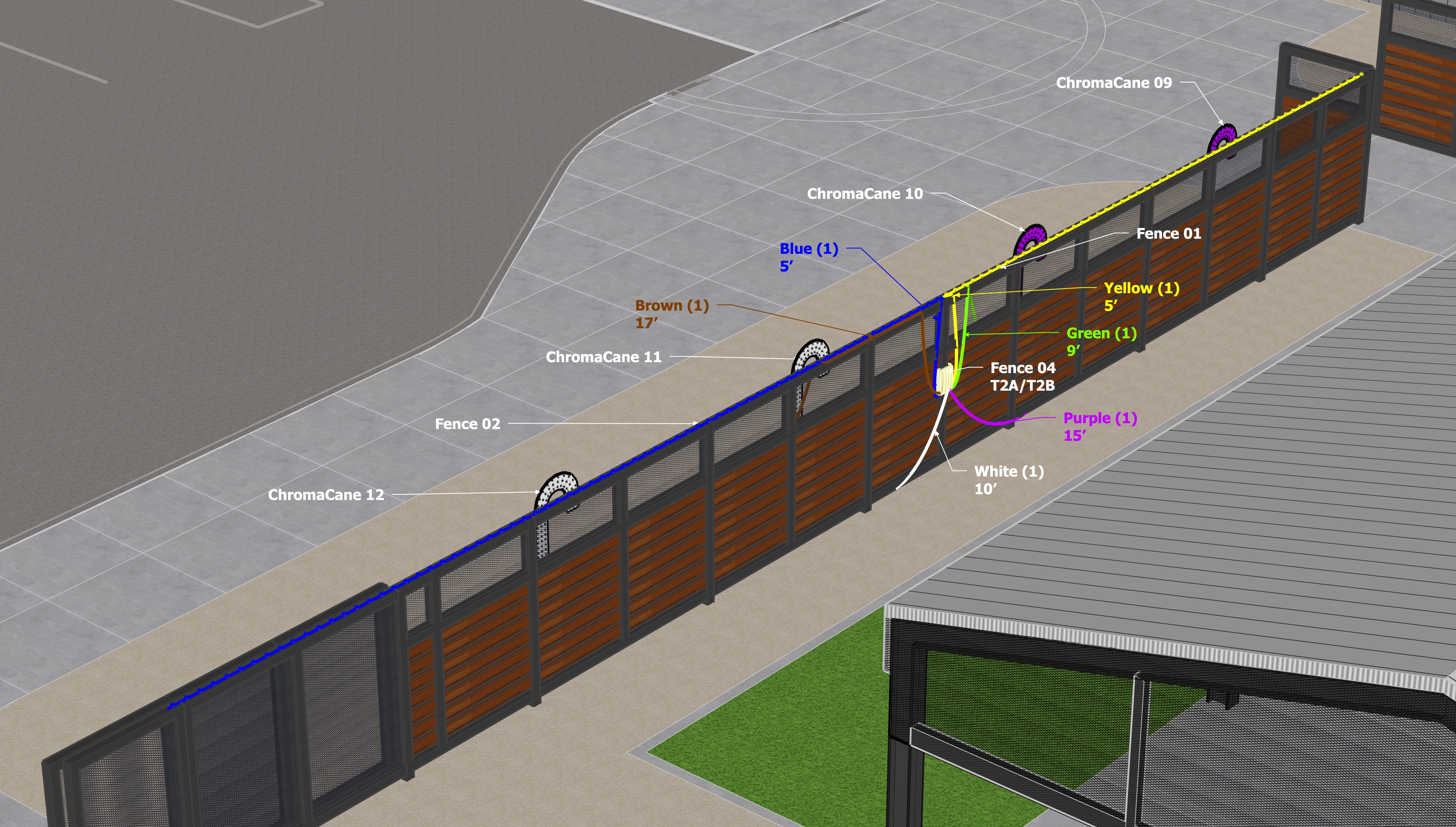

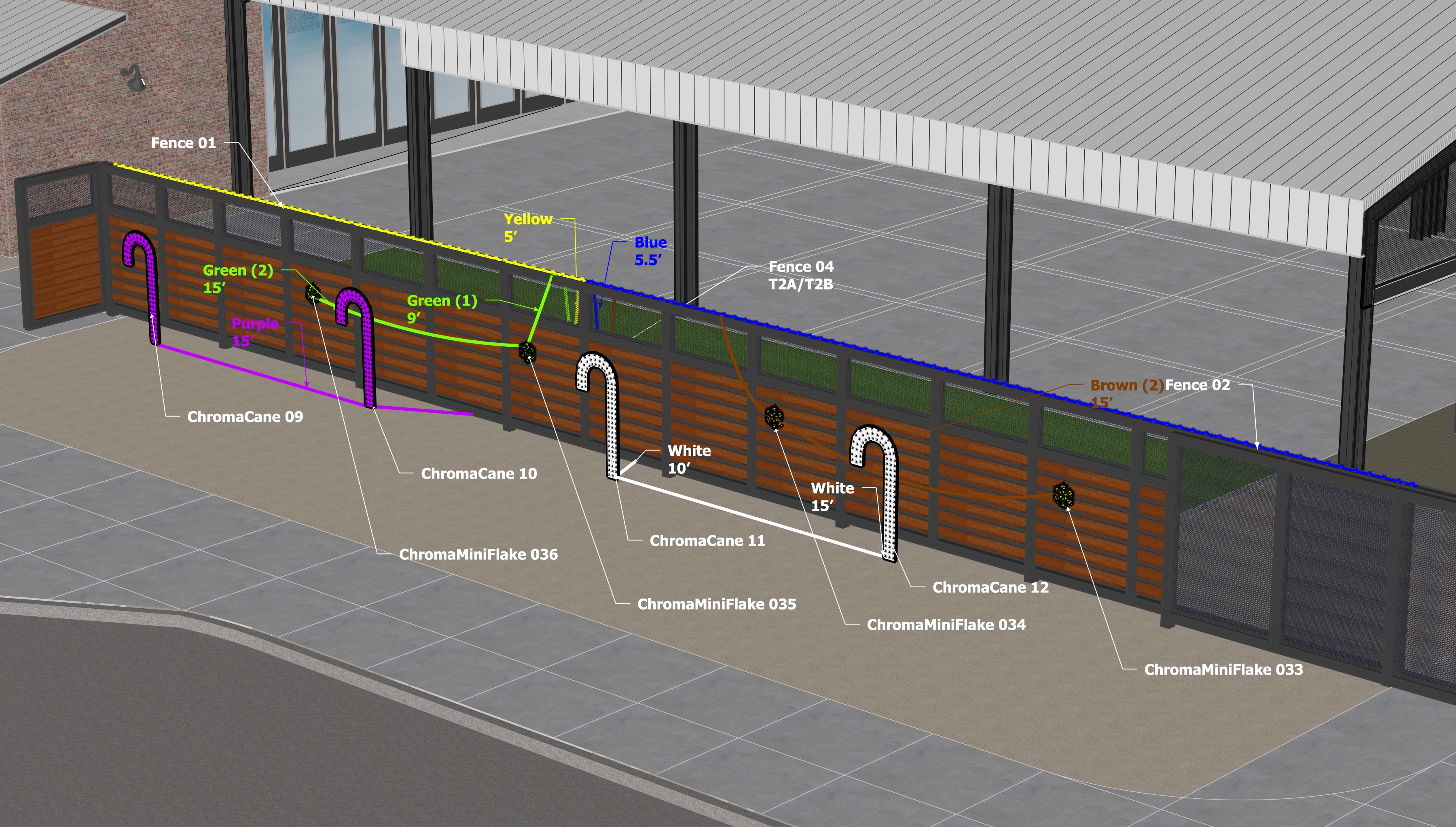

Setup Photos image 1 for controller T2A~T2B

Setup Photos image 2 for controller T2A~T2B

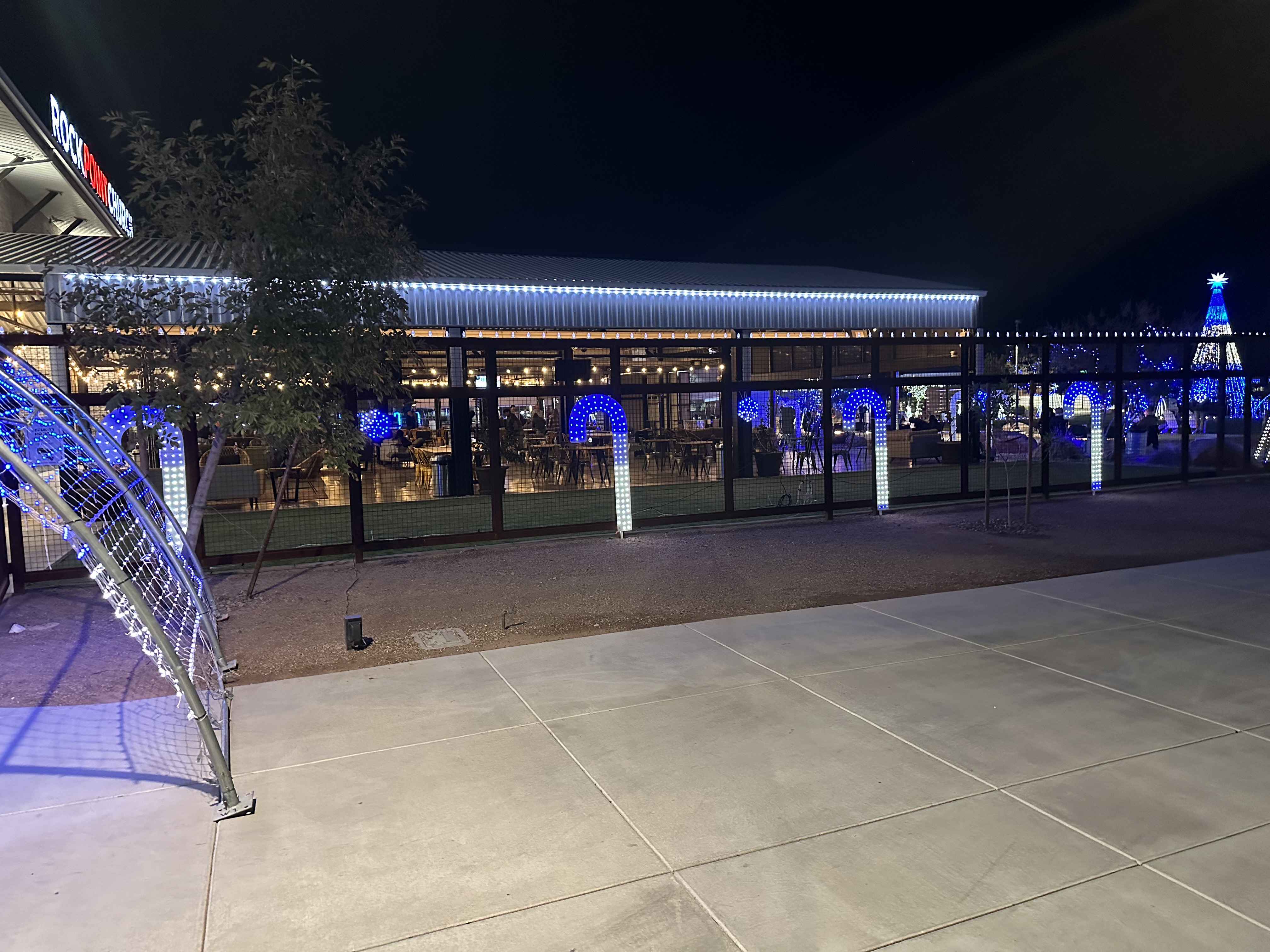

Reference Photos image 1 for controller T2A~T2B

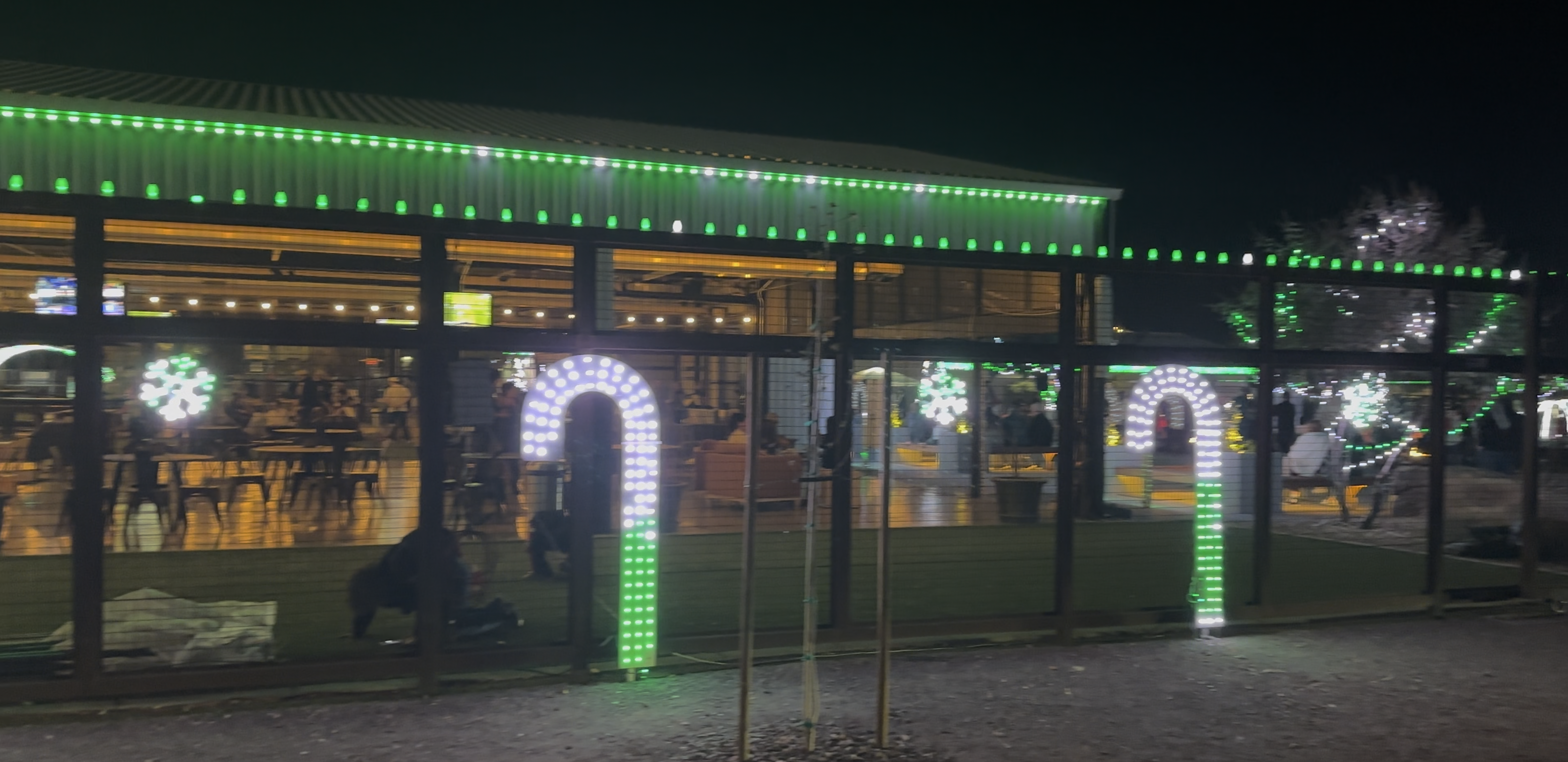

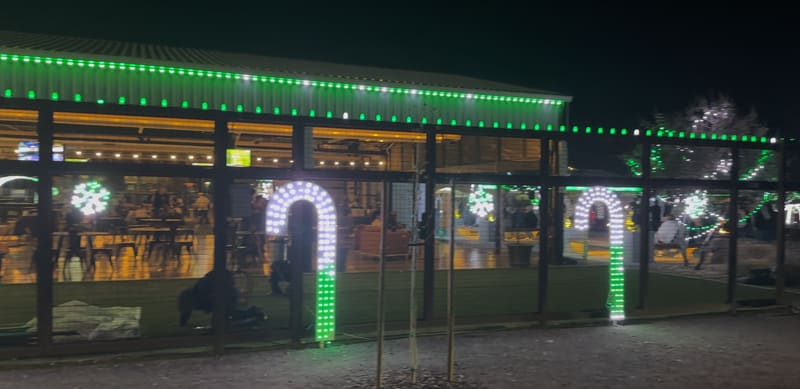

Reference Photos image 2 for controller T2A~T2B

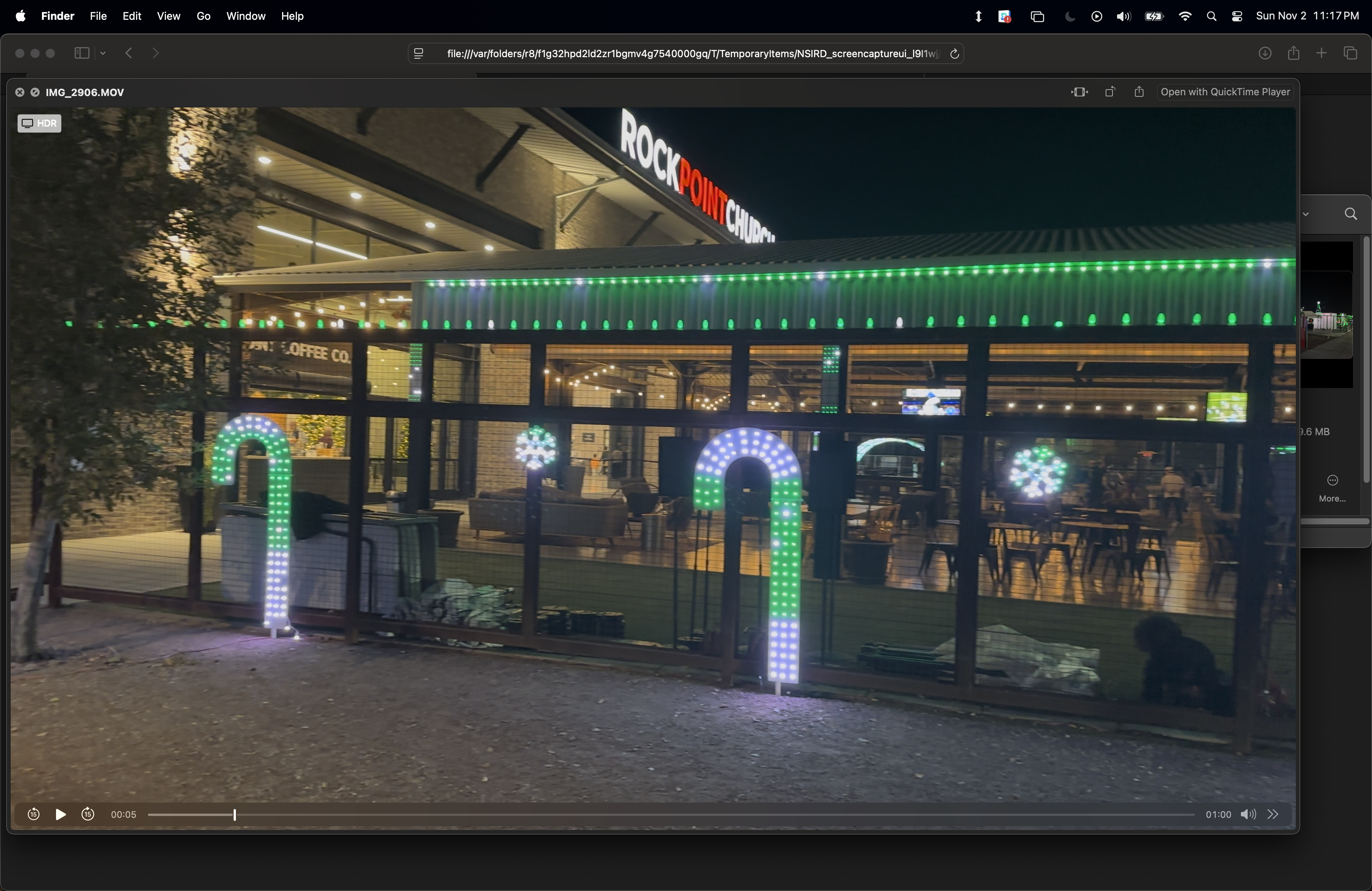

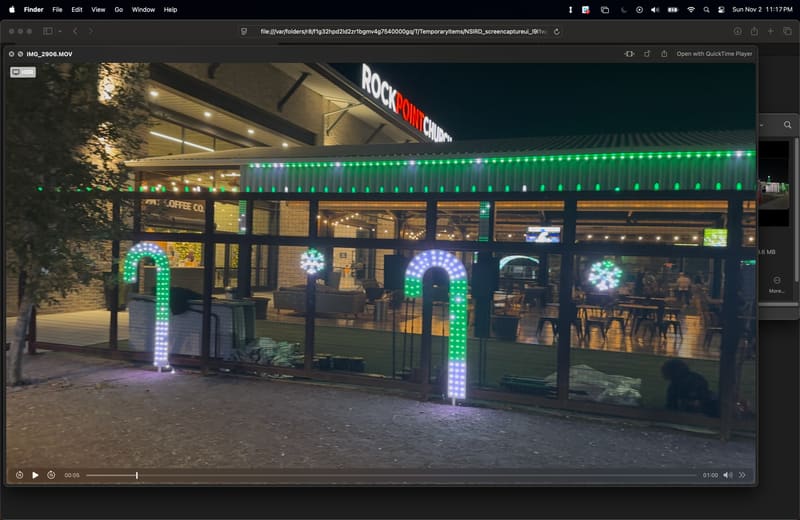

Reference Photos image 3 for controller T2A~T2B

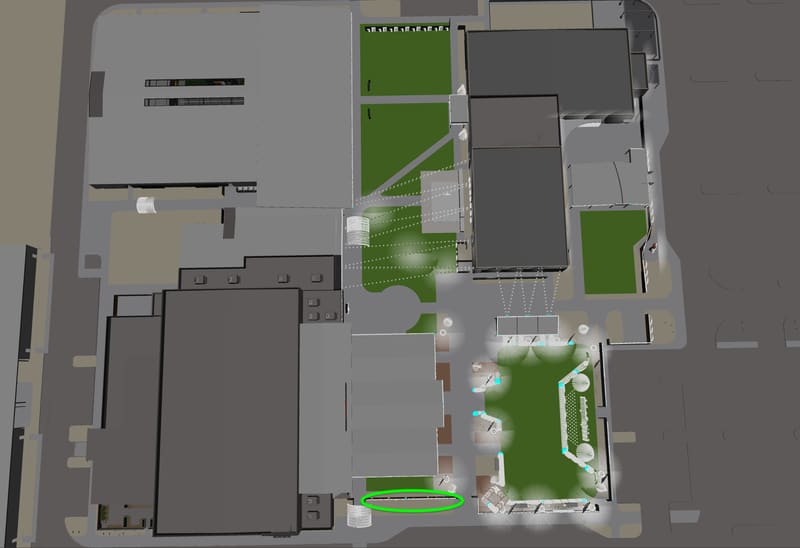

Site Map image 1 for controller T2A~T2B

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)
K8B.T	13	13A	T2A	2		T2A		K8B.T	640	248	50	392	T2A	12	750	0.6	50	15	3050.4	Fence 04	5	Fence 01	50
K8B.T	14	14A	T2A	2		T2A			640	272	74	368	T2A	12	750	0.6	50	22.2		Fence 04	5	Fence 02	74
K8B.T	15	15A	T2A	2		T2A			640	72	72	568	T2A	12	750	0.6	50	21.6		Fence 04	9	ChromaMiniFlake 035	36	15	ChromaMiniFlake 036	36
K8B.T	16	16A	T2A	2		T2A			640	72	72	568	T2A	12	750	0.6	50	21.6		Fence 04	17	ChromaMiniFlake 034	36	15	ChromaMiniFlake 033	36
K8B.T	13	13B	T2B	2		T2B		13A	640	248	198	392	T2A	12	750	10	75	1485		Fence 04	15	ChromaCane 10	99	15	ChromaCane 09	99
K8B.T	14	14B	T2B	2		T2B			640	272	198	368	T2A	12	750	10	75	1485		Fence 04	10	ChromaCane 11	99	15	ChromaCane 12	99
K8B.T	15	15B	T2B	2		T2B			640	72	0	568	T2A	12	750	0.6	50	0		Fence 04
K8B.T	16	16B	T2B	2		T2B			640	72	0	568	T2A	12	750	0.6	50	0		Fence 04

Controllers

1 box available

Show details

8 data pigtails

Controller Role

K8B.T

Pigtails

8 Data

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
