Controller T1A~T1B

Location: ChromaCanes 01

Gallery

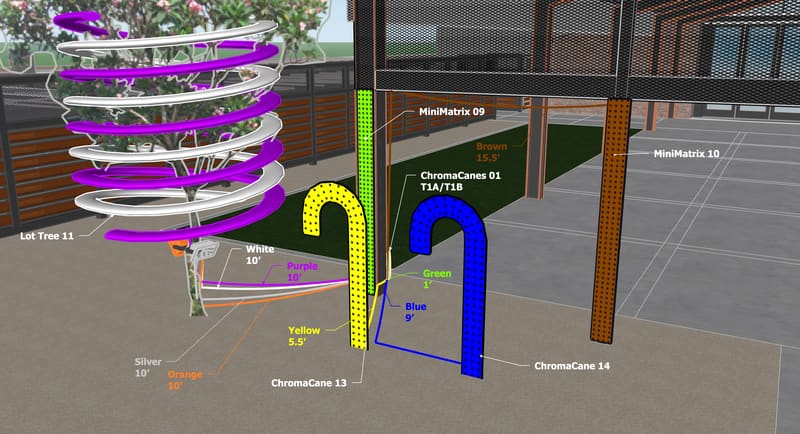

Setup Photos image 1 for controller T1A~T1B

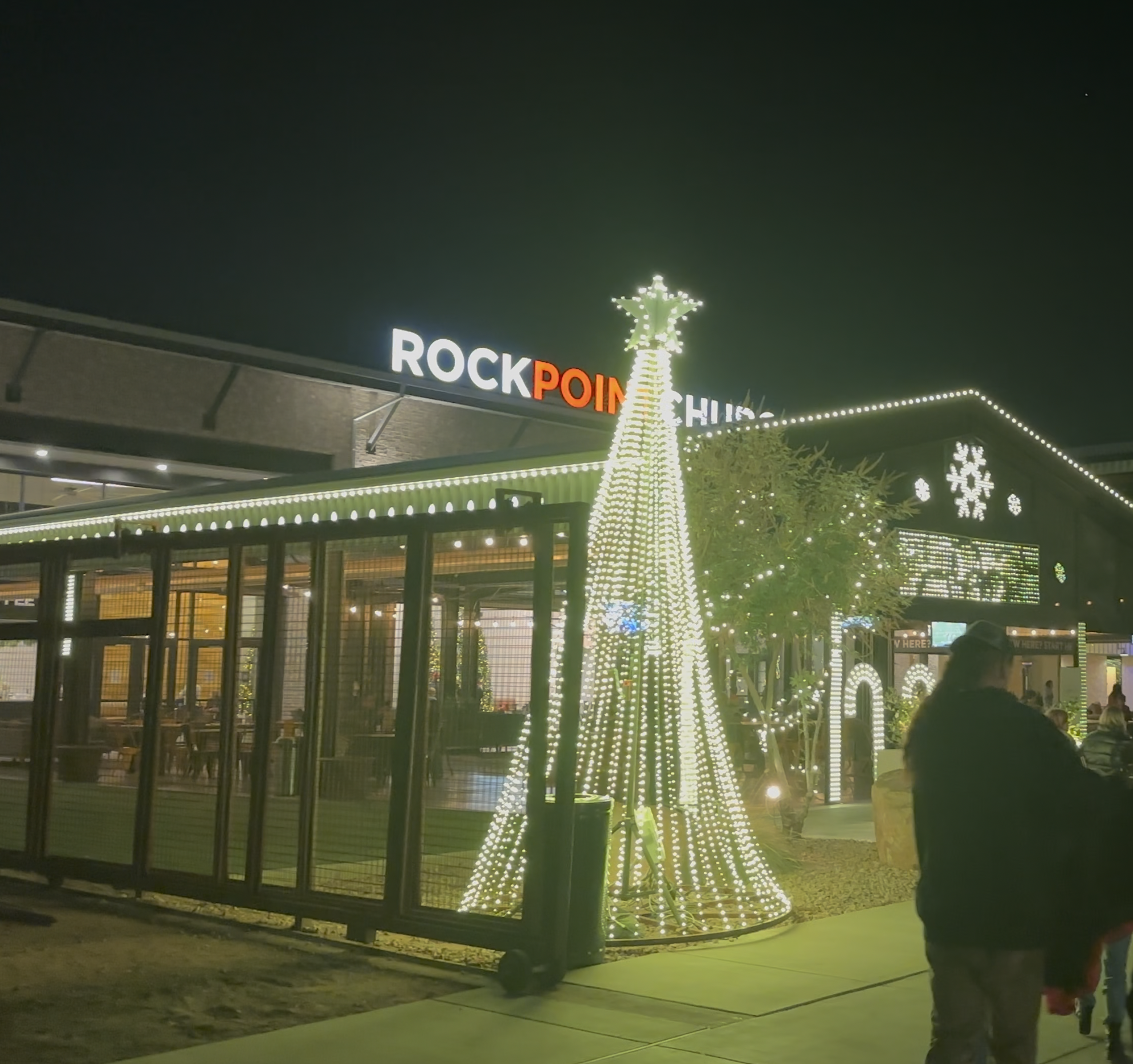

Reference Photos image 1 for controller T1A~T1B

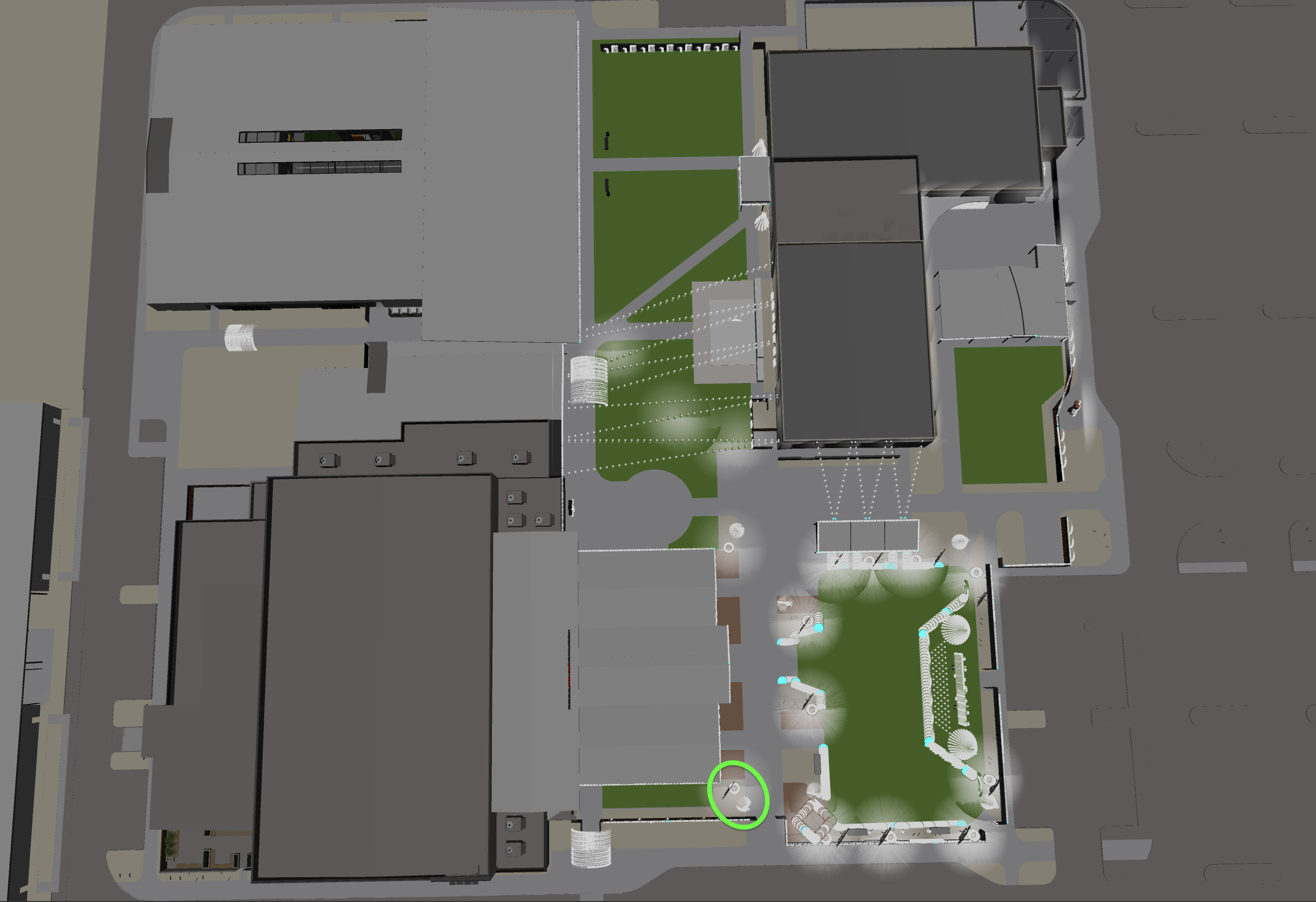

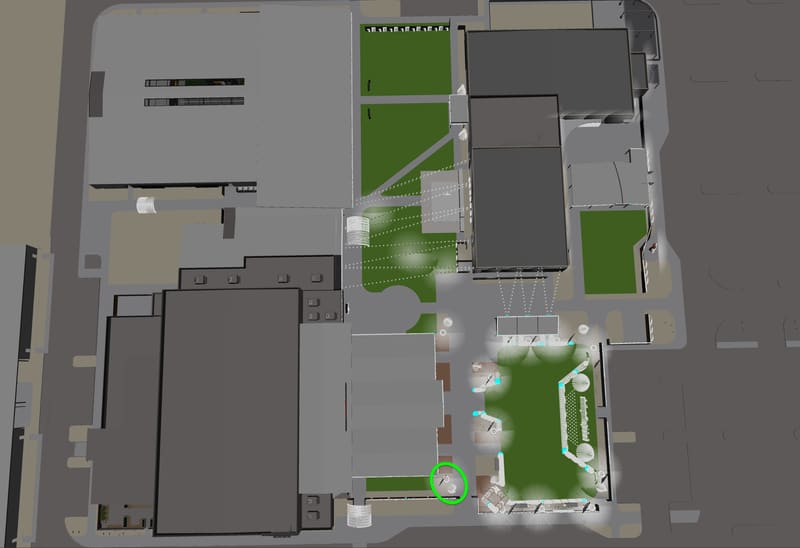

Site Map image 1 for controller T1A~T1B

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)
K8B.T	9	9A	T1A	1		T1A		K8B.T	640	100	99	540	T1A	12	750	0.6	50	29.7	3345.6	ChromaCanes 01	5.5	ChromaCane 13	99
K8B.T	10	10A	T1A	1		T1A			640	100	99	540	T1A	12	750	0.6	50	29.7		ChromaCanes 01	9	ChromaCane 14	99
K8B.T	11	11A	T1A	1		T1A			640	368	168	272	T1A	12	750	0.6	50	50.4		ChromaCanes 01	1	MiniMatrix 09.1	84	0	MiniMatrix 09.2	84
K8B.T	12	12A	T1A	1		T1A			640	368	168	272	T1A	12	750	0.6	50	50.4		ChromaCanes 01	15.5	MiniMatrix 10.1	84	0	MiniMatrix 10.2	84
K8B.T	9	9B	T1B	1		T1B		9A	640	100	1	540	T1A	12	750	10	75	7.5		ChromaCanes 01	10	10w Flood 11.1	1
K8B.T	10	10B	T1B	1		T1B			640	100	1	540	T1A	12	750	10	75	7.5		ChromaCanes 01	10	10w Flood 11.2	1
K8B.T	11	11B	T1B	1		T1B			640	368	200	272	T1A	12	750	0.6	50	60		ChromaCanes 01	10	Lot Tree 11.1	200
K8B.T	12	12B	T1B	1		T1B			640	368	200	272	T1A	12	750	0.6	50	60		ChromaCanes 01	10	Lot Tree 11.2	200

Controllers

1 box available

Show details

8 data pigtails

Controller Role

K8B.T

Pigtails

8 Data

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
