Controller S1A~S1B

Location: ChromaCanes 04

Gallery

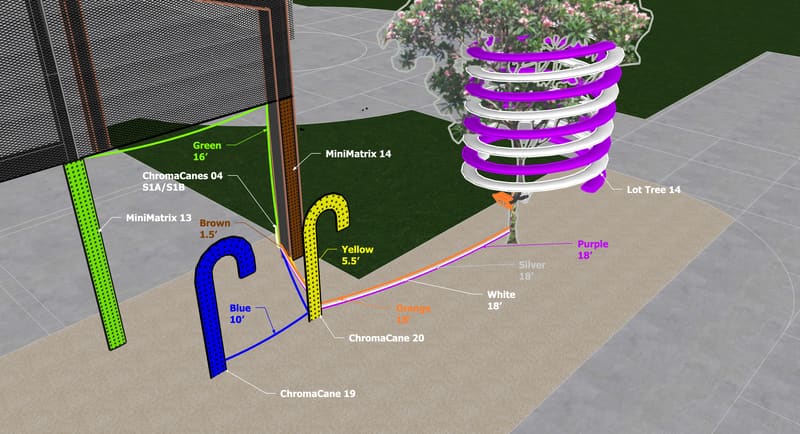

Setup Photos image 1 for controller S1A~S1B

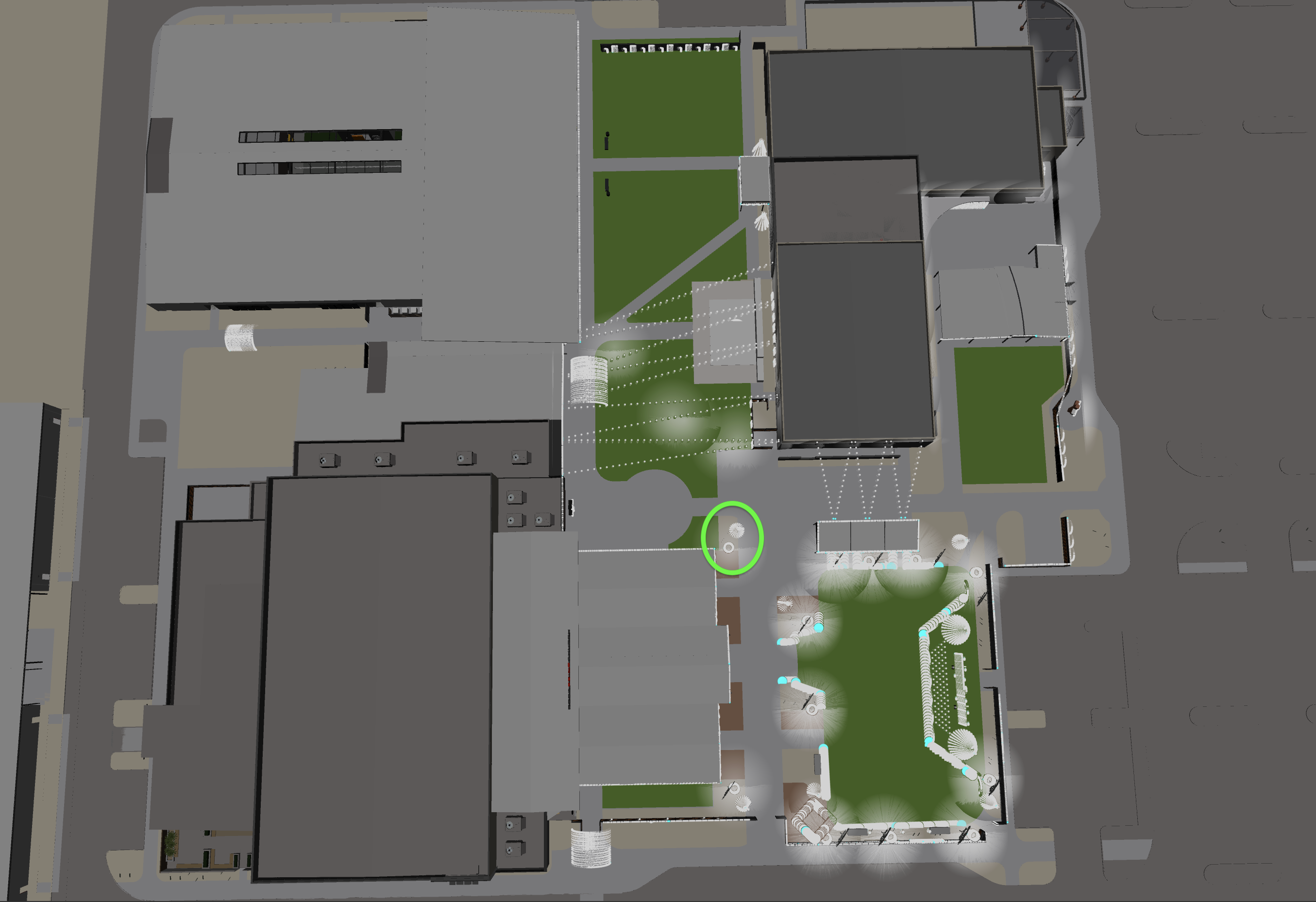

Site Map image 1 for controller S1A~S1B

ChromaCanes 04

8 data pigtails

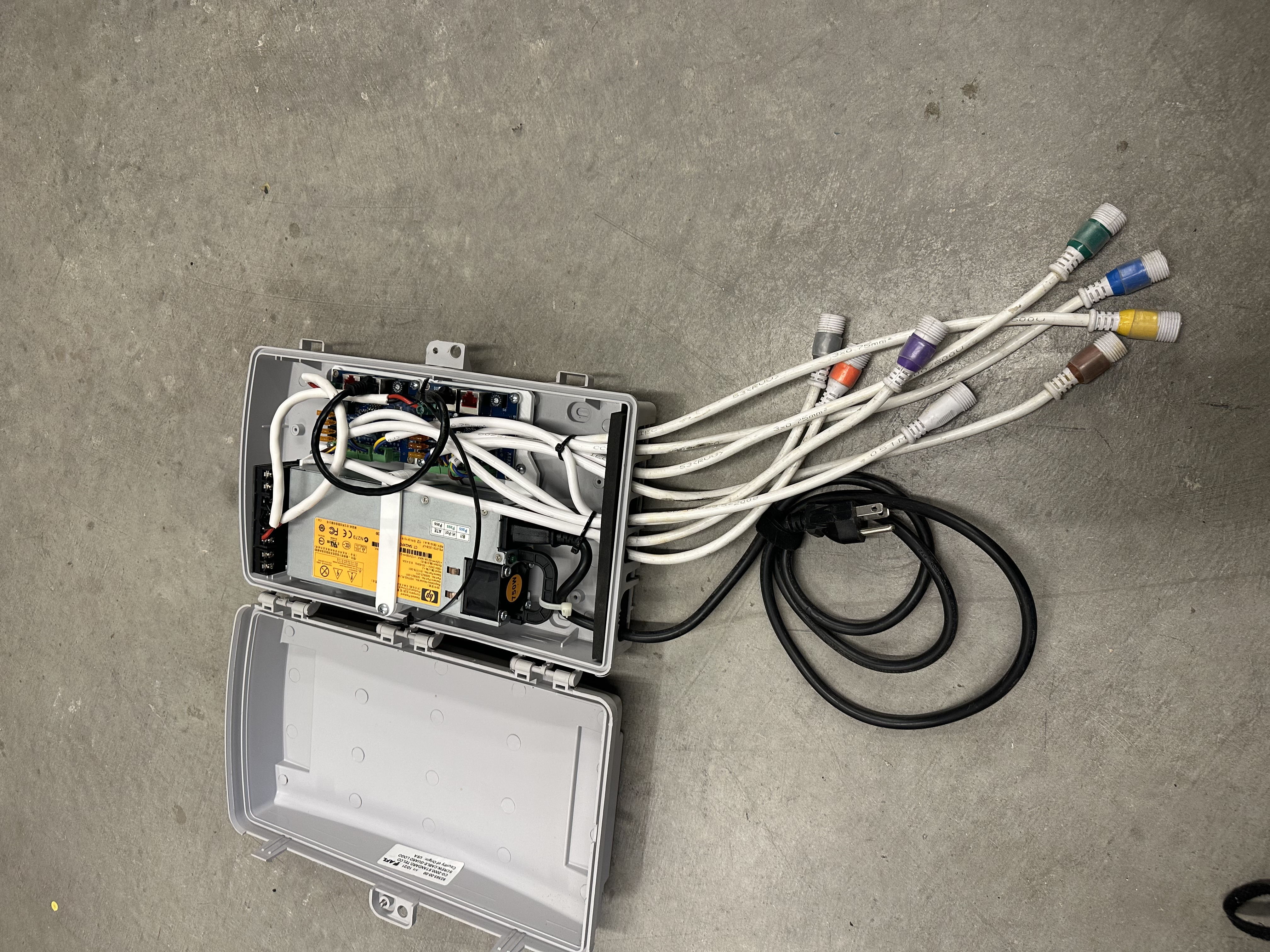

Controller Photos image 1 for controller S1A~S1B

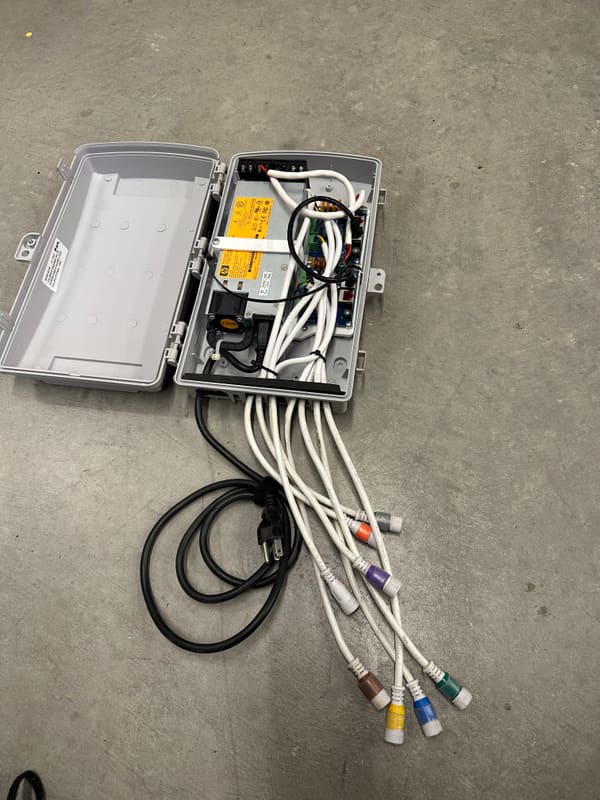

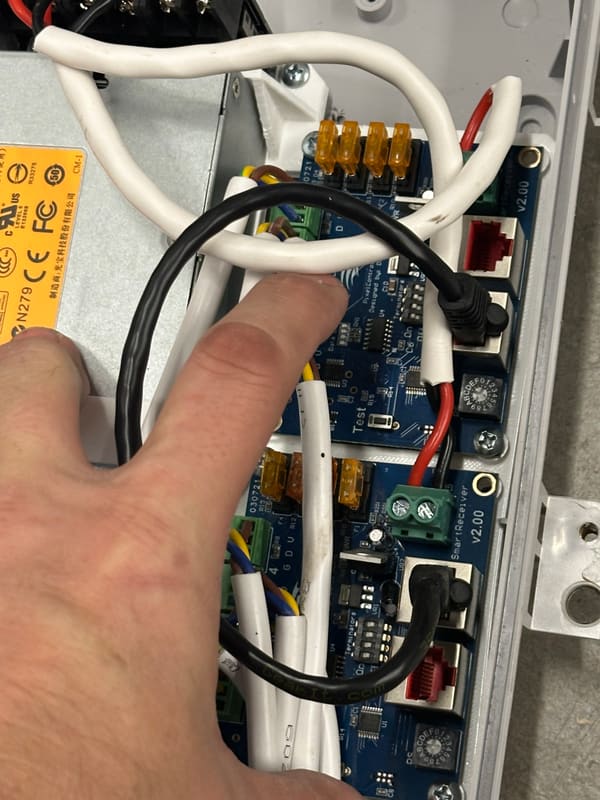

Controller Photos image 2 for controller S1A~S1B

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)
K8B.S	9	9A	S1A	1		S1A		K8B.S	640	100	99	540	S1A	12	750	0.6	50	29.7	295.2	ChromaCanes 04	5.5	ChromaCane 20	99
K8B.S	10	10A	S1A	1		S1A			640	100	99	540	S1A	12	750	0.6	50	29.7		ChromaCanes 04	10	ChromaCane 19	99
K8B.S	11	11A	S1A	1		S1A			640	368	168	272	S1A	12	750	0.6	50	50.4		ChromaCanes 04	16	MiniMatrix 13.1	84	0	MiniMatrix 13.2	84
K8B.S	12	12A	S1A	1		S1A			640	368	168	272	S1A	12	750	0.6	50	50.4		ChromaCanes 04	1.5	MiniMatrix 14.2	84	0	MiniMatrix 14.1	84
K8B.S	9	9B	S1B	1		S1B		9A	640	100	1	540	S1A	12	750	10	75	7.5		ChromaCanes 04	18	10w Flood 14.1	1
K8B.S	10	10B	S1B	1		S1B			640	100	1	540	S1A	12	750	10	75	7.5		ChromaCanes 04	18	10w Flood 14.2	1
K8B.S	11	11B	S1B	1		S1B			640	368	200	272	S1A	12	750	0.6	50	60		ChromaCanes 04	18	Lot Tree 14.1	200
K8B.S	12	12B	S1B	1		S1B			640	368	200	272	S1A	12	750	0.6	50	60		ChromaCanes 04	18	Lot Tree 14.2	200

Controllers

1 box available

Show details

8 data pigtails

Controller Role

K8B.S

Pigtails

8 Data

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
