Controller R2C~R2D

Location: Icicles 02

Gallery

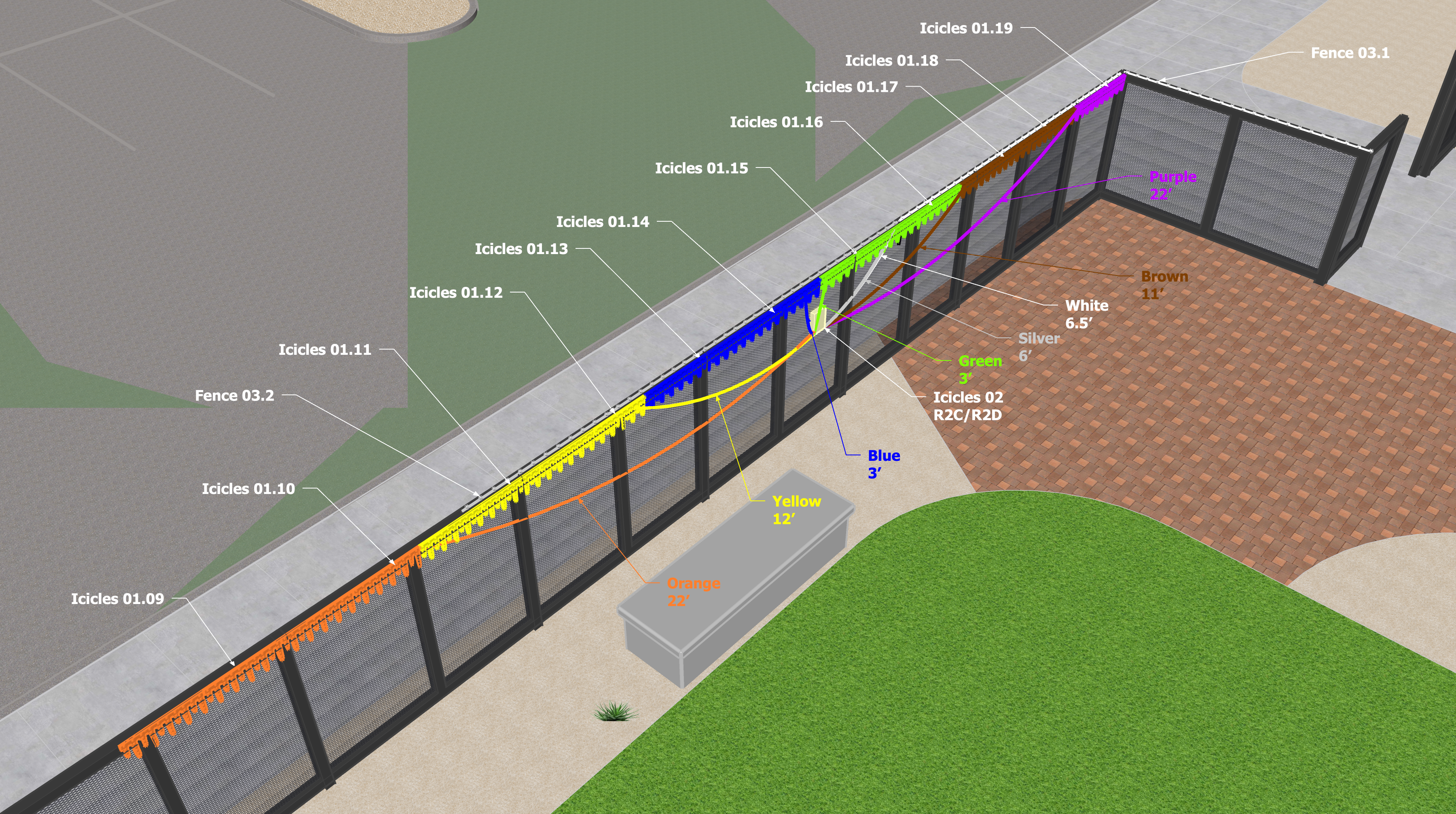

Setup Photos image 1 for controller R2C~R2D

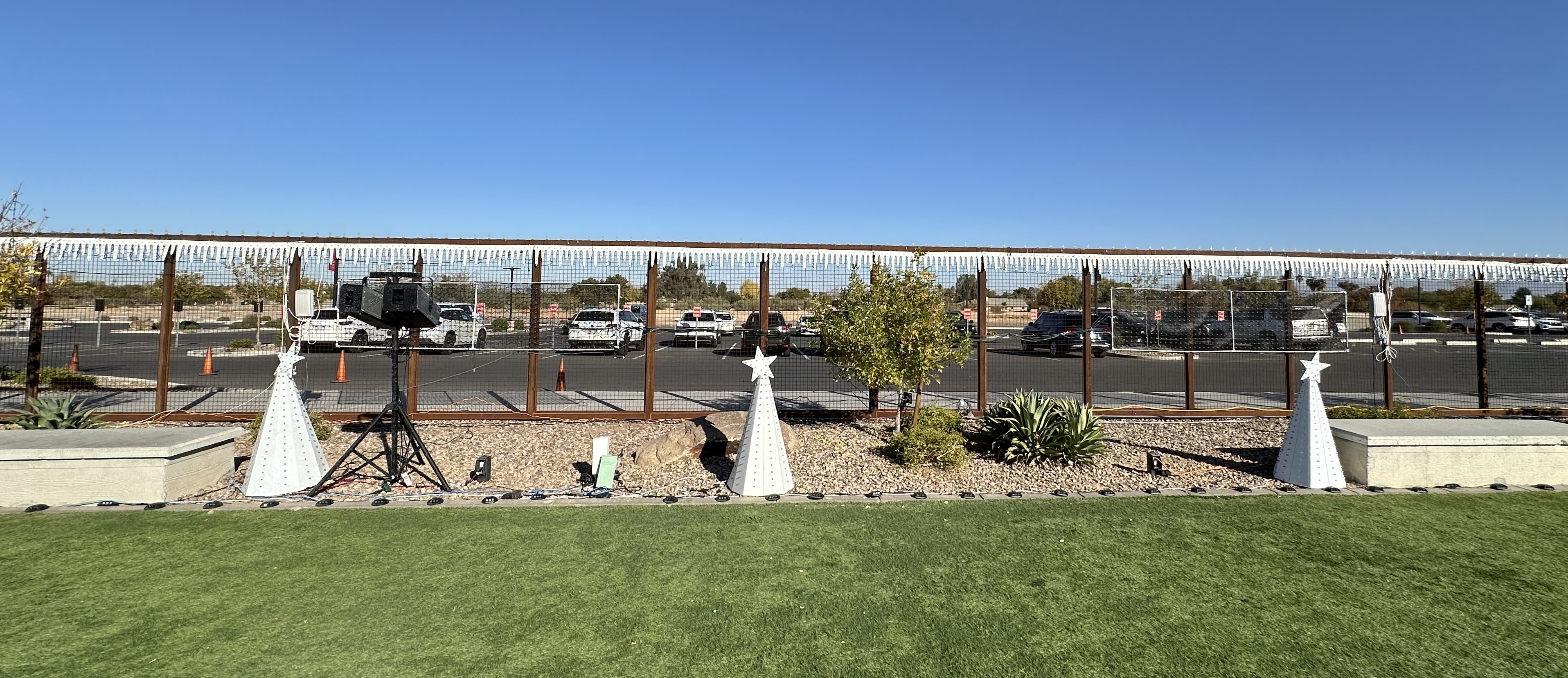

Reference Photos image 1 for controller R2C~R2D

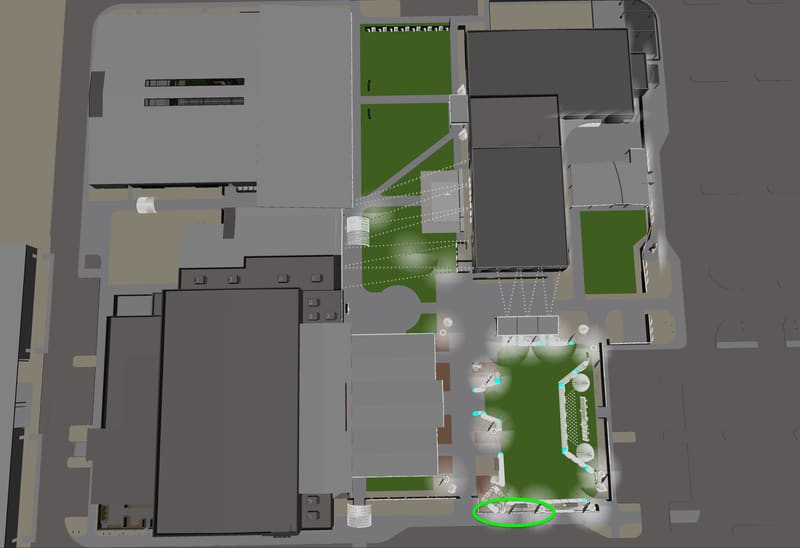

Site Map image 1 for controller R2C~R2D

Icicles 02

8 data pigtails

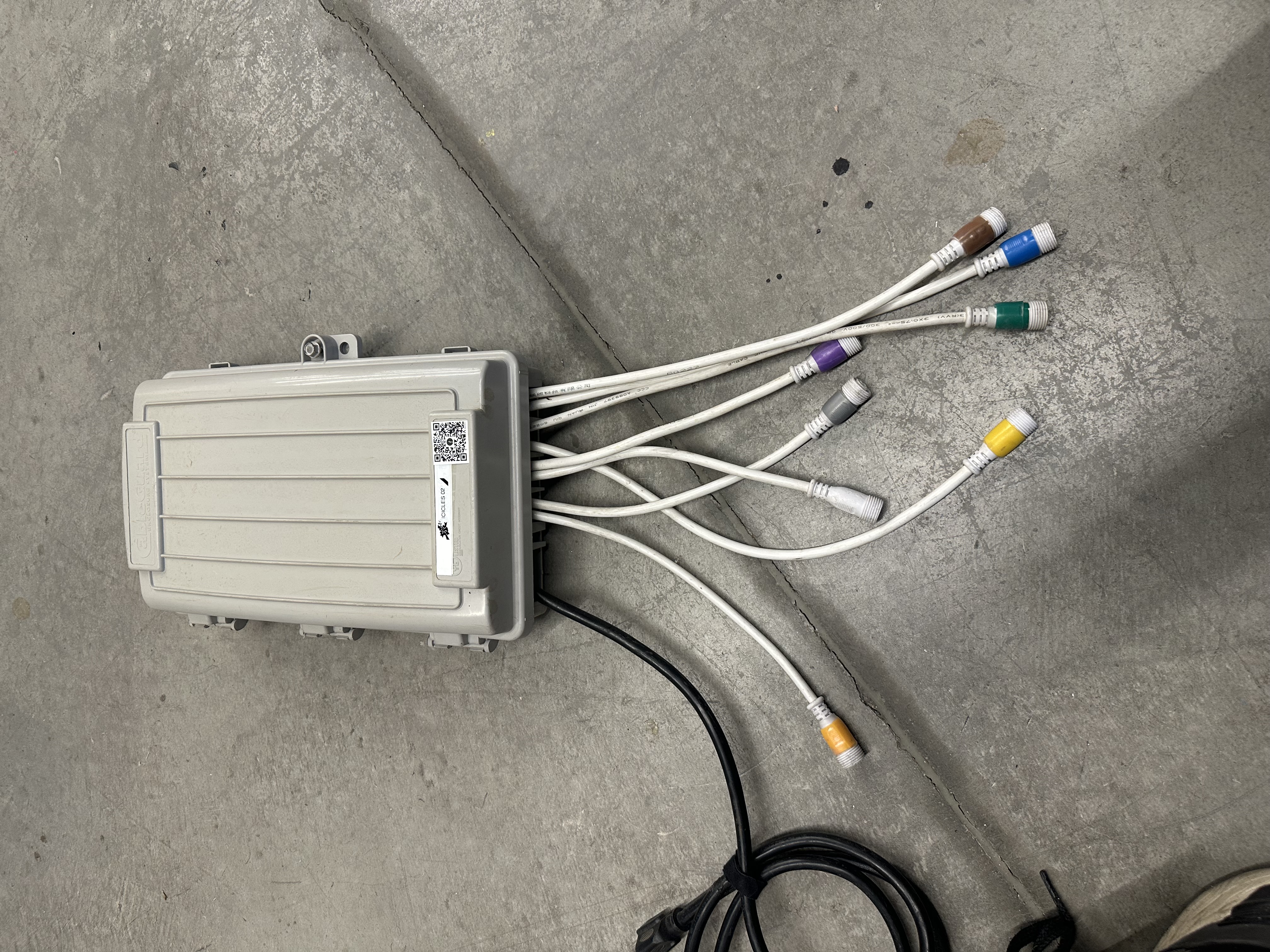

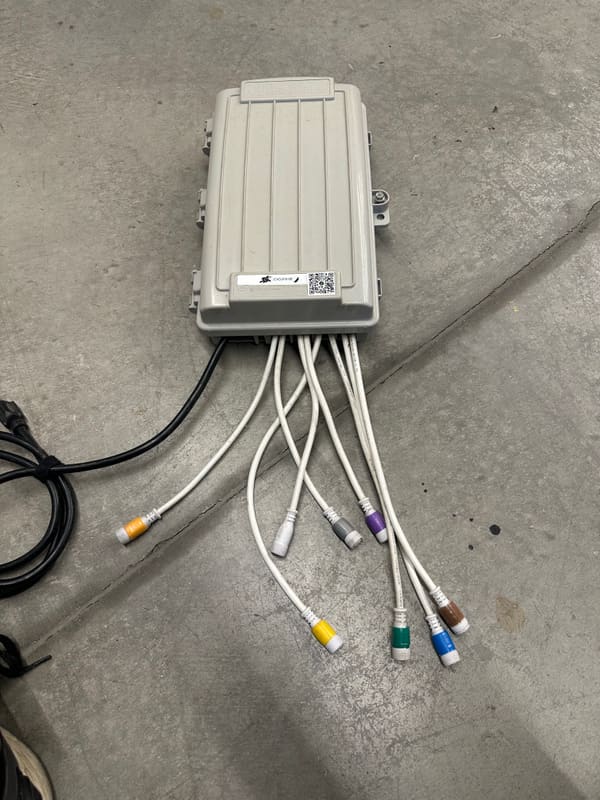

Controller Photos image 1 for controller R2C~R2D

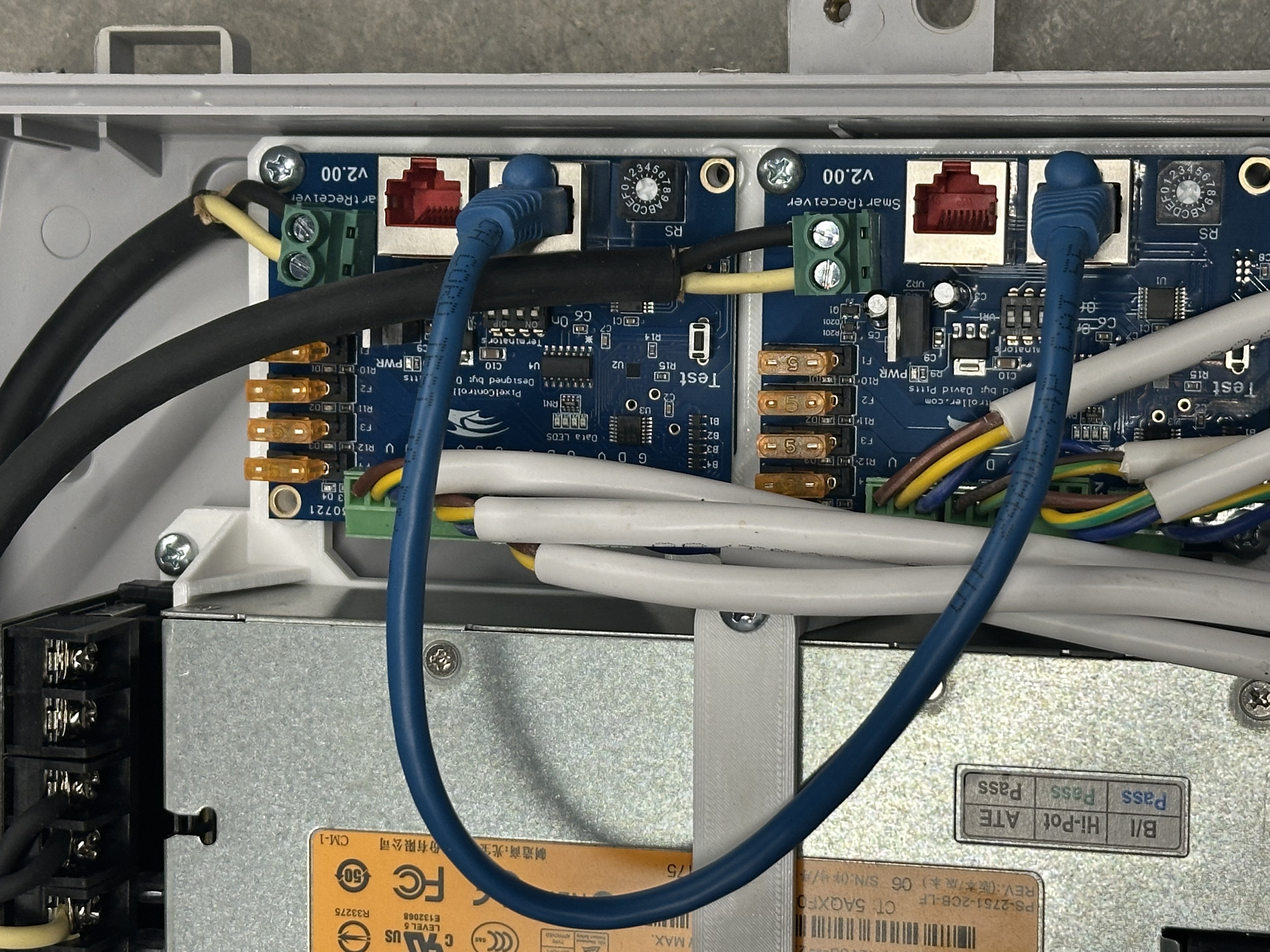

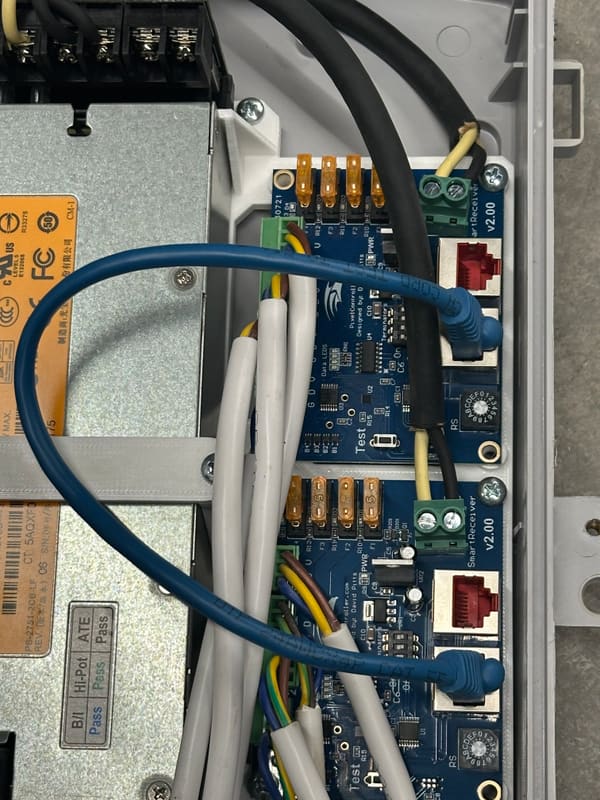

Controller Photos image 2 for controller R2C~R2D

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)
K8B.R	13	13C	R2C	2		R2C		R2B	640	603	200	37	R2C	12	750	0.6	50	60	393	Icicles 02	12	Icicles 01.12 (Right)	100	0	Icicles 01.11 (Right)	100
K8B.R	14	14C	R2C	2		R2C			640	452	200	188	R2C	12	750	0.6	50	60		Icicles 02	3	Icicles 01.14 (Right)	100	0	Icicles 01.13 (Right)	100
K8B.R	15	15C	R2C	2		R2C			640	501	200	139	R2C	12	750	0.6	50	60		Icicles 02	3	Icicles 01.15 (Left)	100	0	Icicles 01.16 (Left)	100
K8B.R	16	16C	R2C	2		R2C			640	639	200	1	R2C	12	750	0.6	50	60		Icicles 02	11	Icicles 01.17 (Left)	100	0	Icicles 01.18 (Left)	100
K8B.R	13	13D	R2D	2		R2D		R2C	640	603	200	37	R2C	12	750	0.6	50	60		Icicles 02	22	Icicles 01.19 (Left)	100	0	Icicles 01.20 (Left)	100
K8B.R	14	14D	R2D	2		R2D			640	452	50	188	R2C	12	750	0.6	50	15		Icicles 02	6.5	Fence 03.1	50
K8B.R	15	15D	R2D	2		R2D			640	501	60	139	R2C	12	750	0.6	50	18		Icicles 02	6	Fence 03.2	60
K8B.R	16	16D	R2D	2		R2D			640	639	200	1	R2C	12	750	0.6	50	60		Icicles 02	22	Icicles 01.10 (Right)	100	0	Icicles 01.09 (Right)	100

Controllers

1 box available

Show details

8 data pigtails

Controller Role

K8B.R

Pigtails

8 Data

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
