Matrix 03/04
8 data pigtails · 6 power pigtails
Controller Role
K8B.P
Pigtails
- 8 Data
- 6 Power Injection
Controller P3A~P3B Matrix 03:04
Gallery

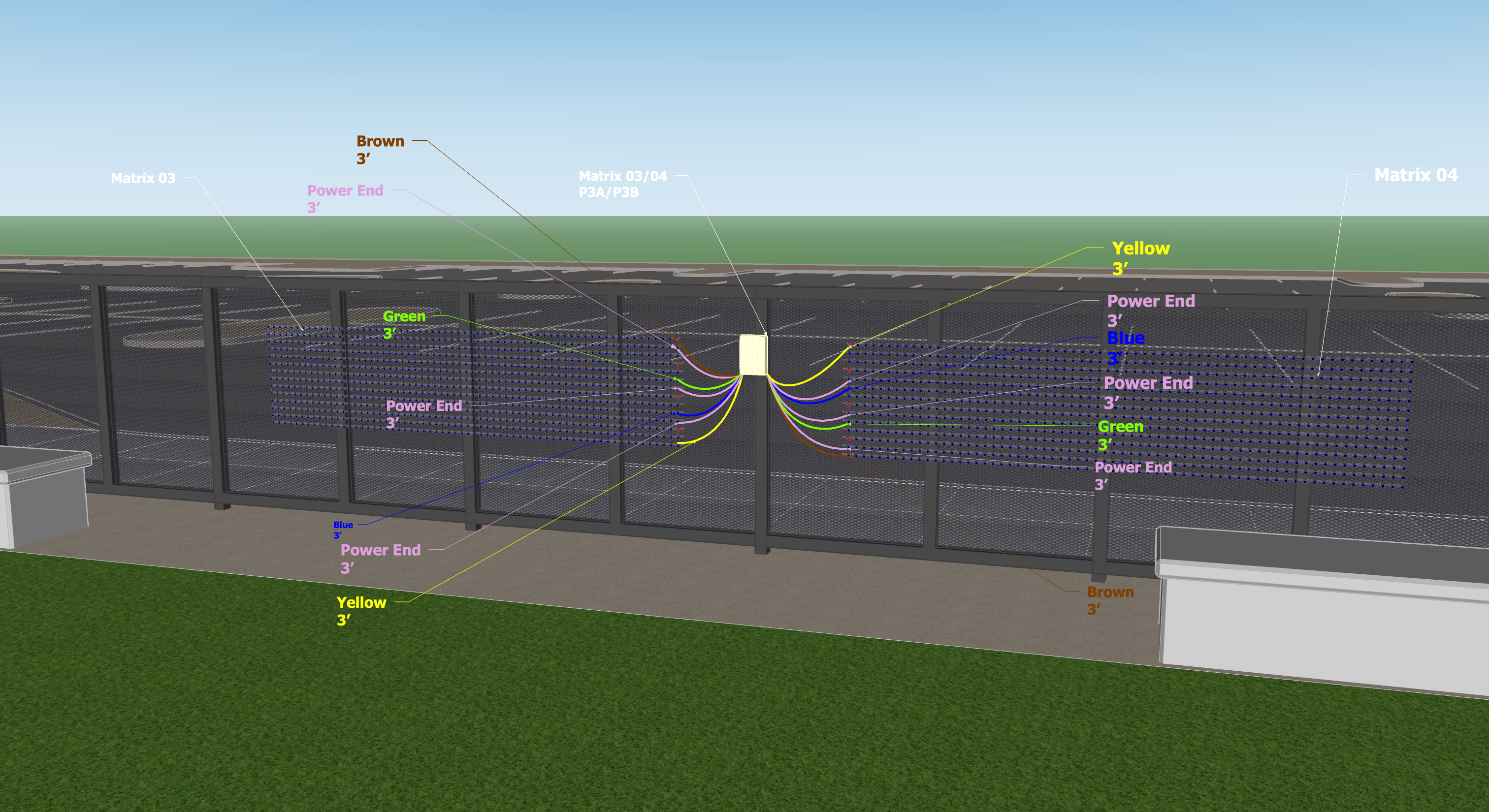

Setup Photos

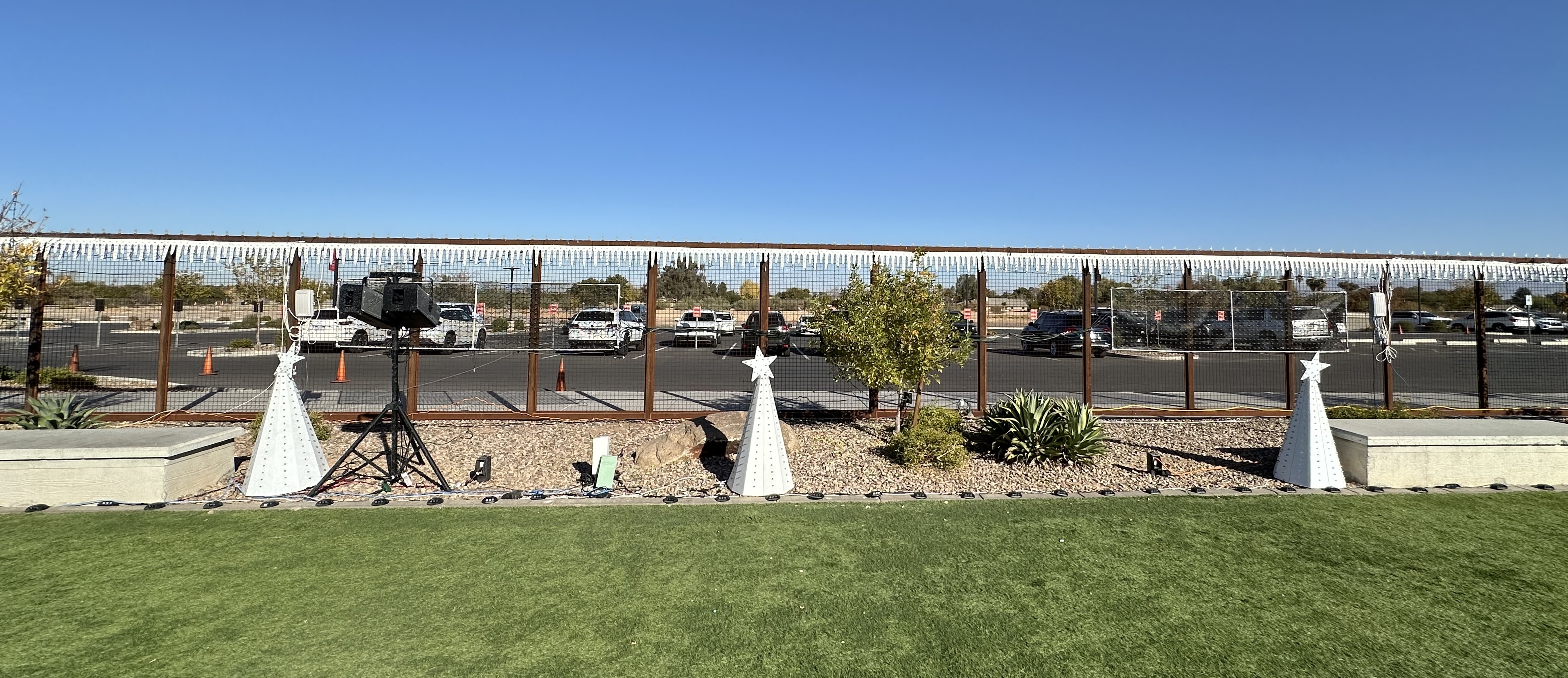

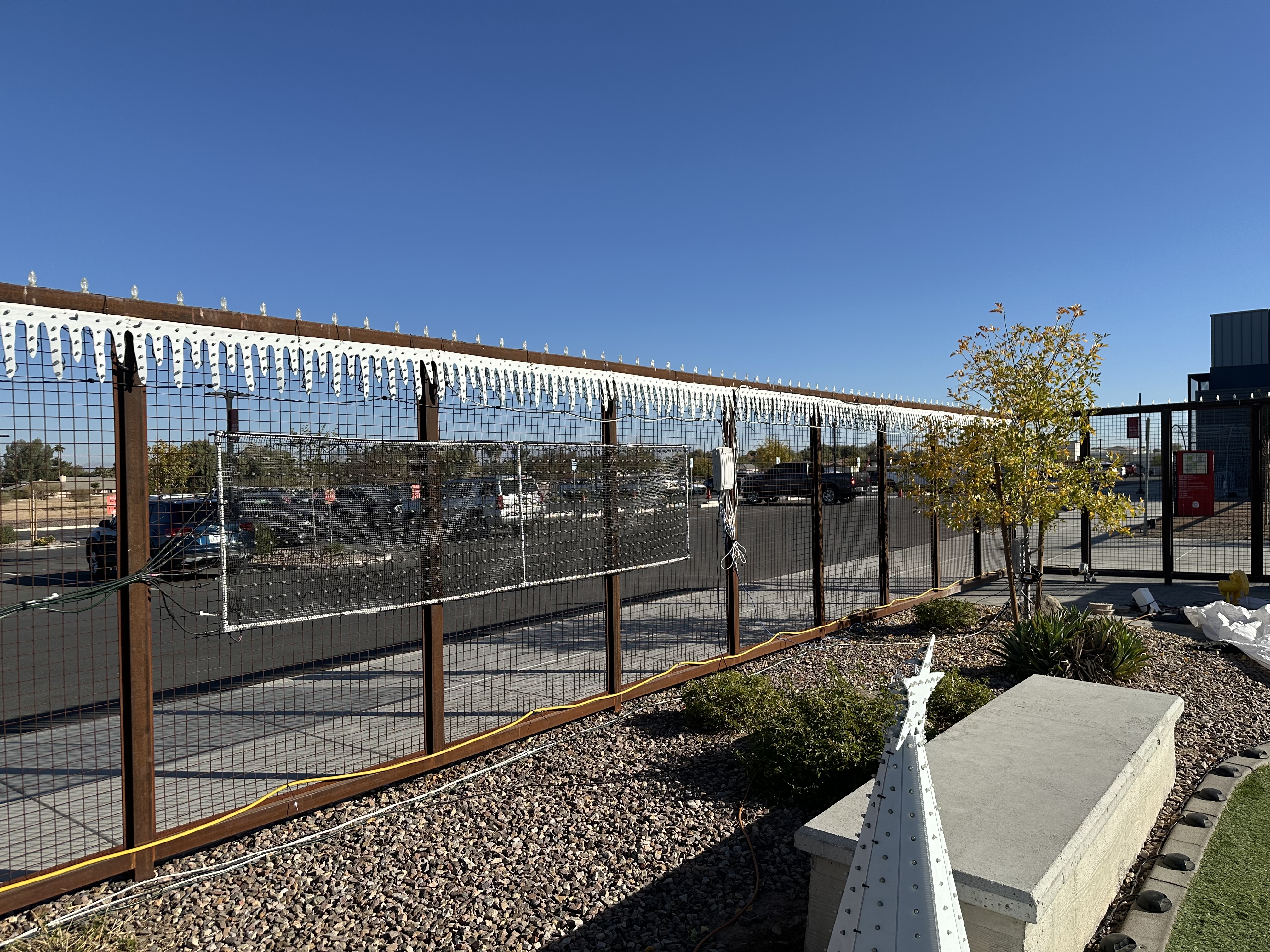

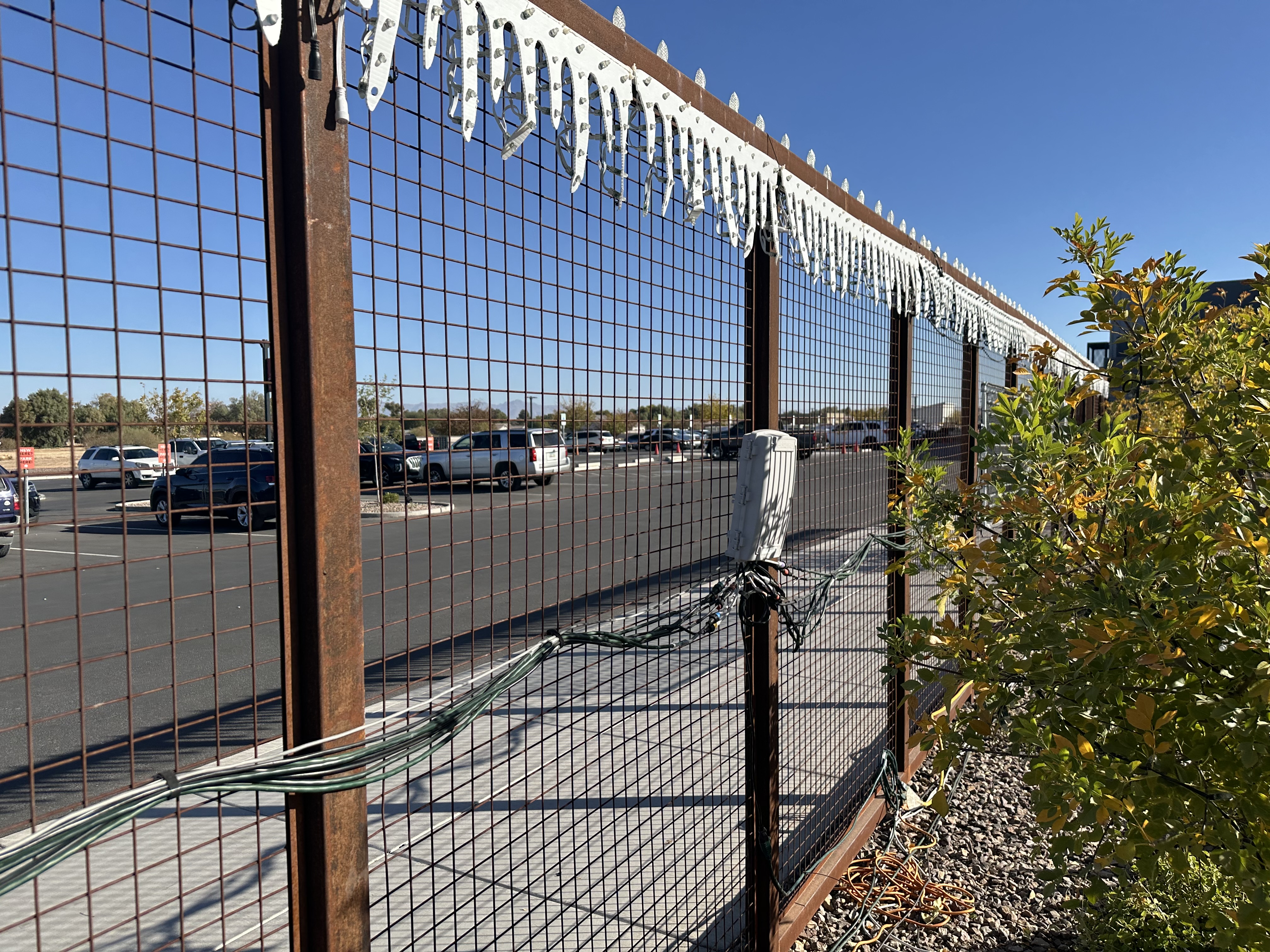

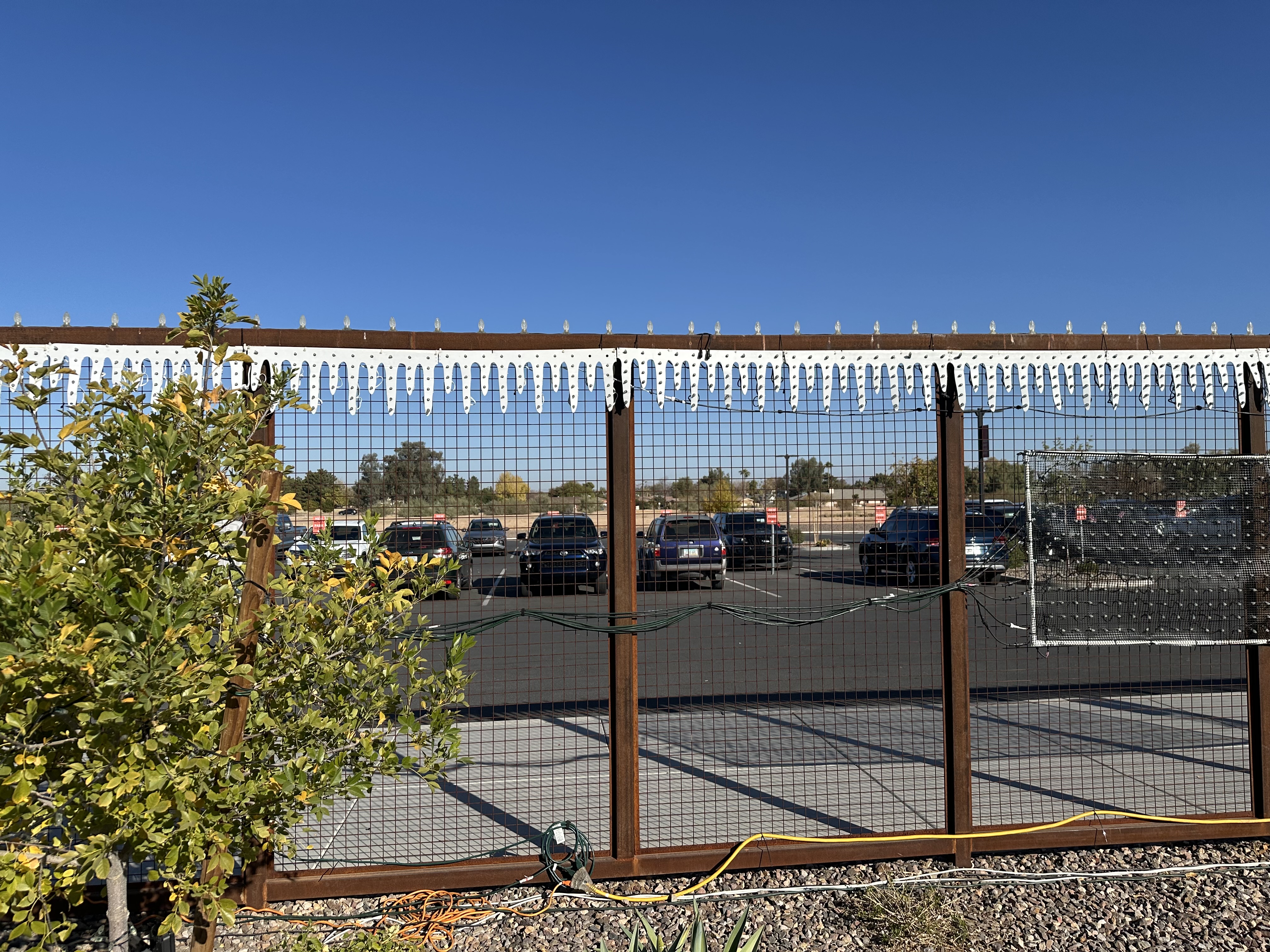

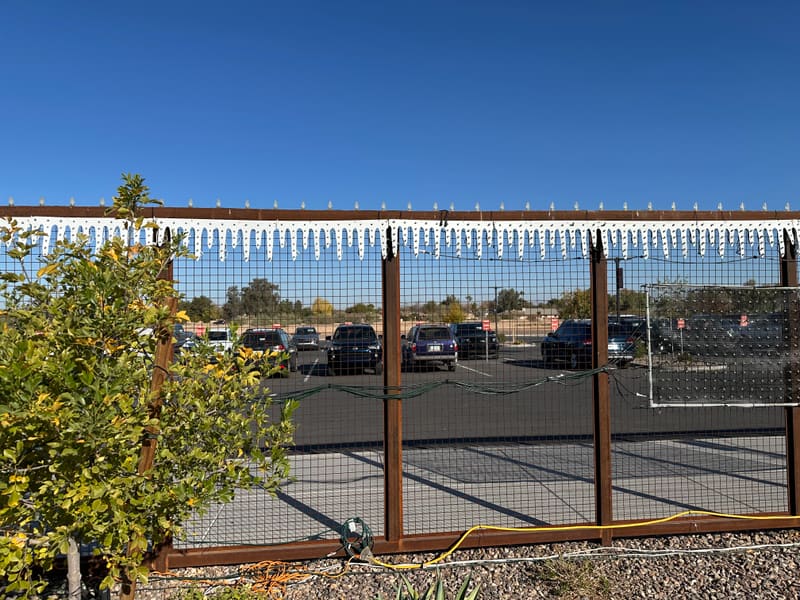

Reference Photos

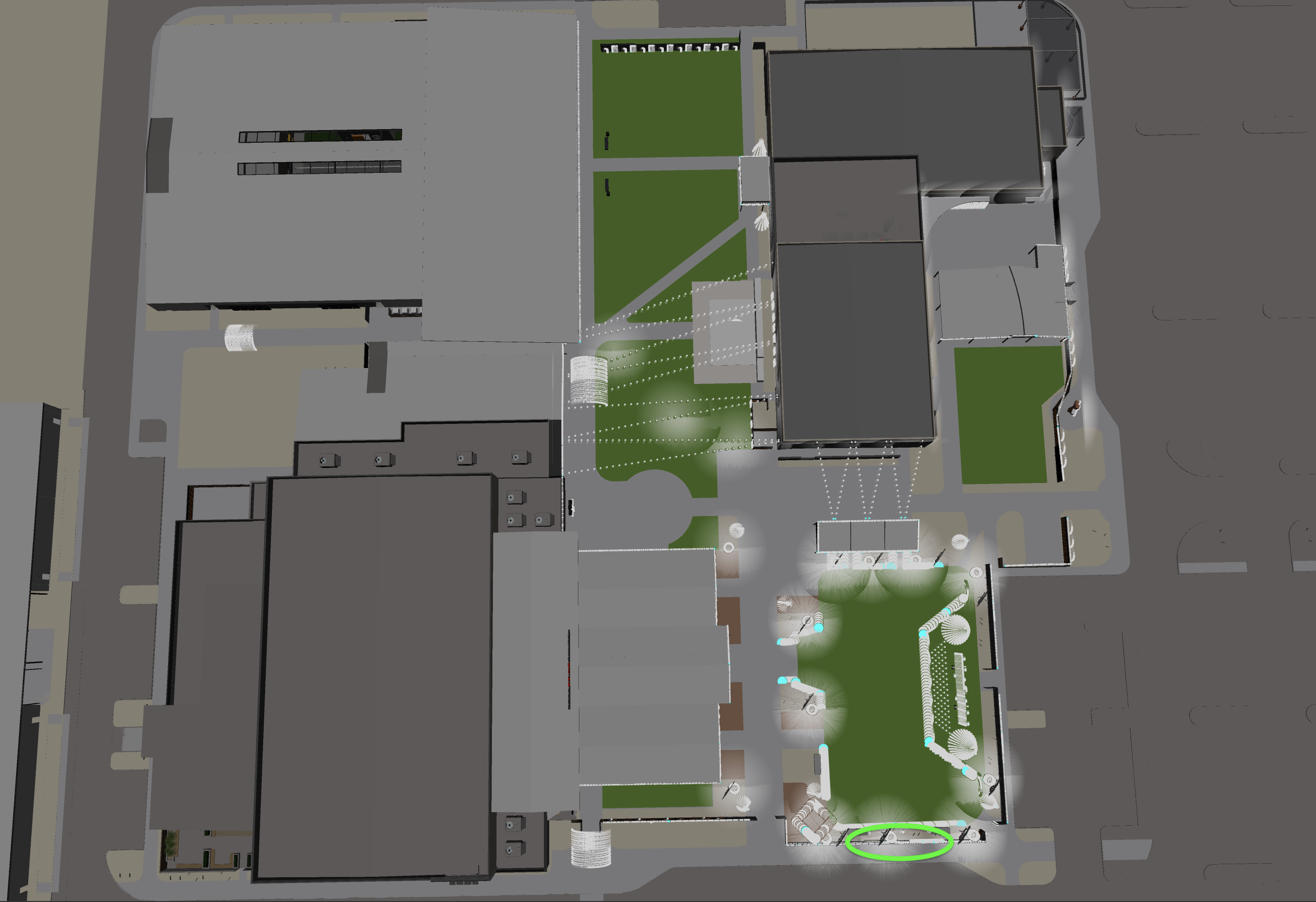

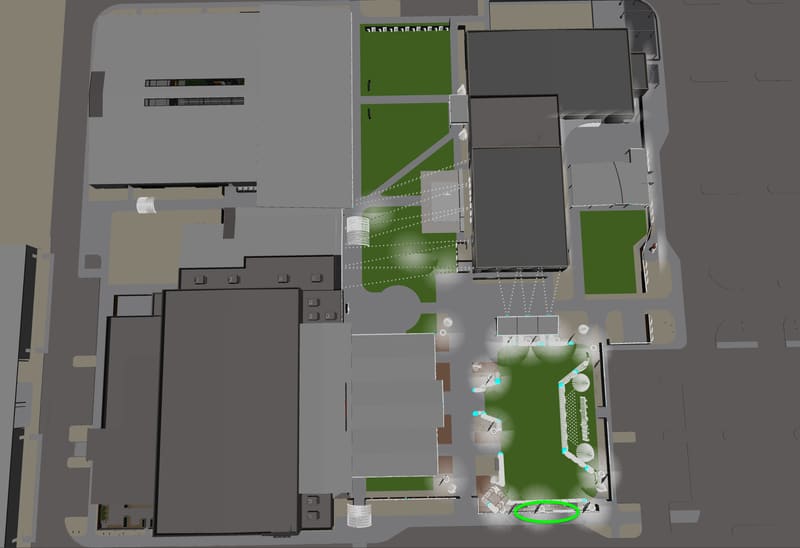

Site Map

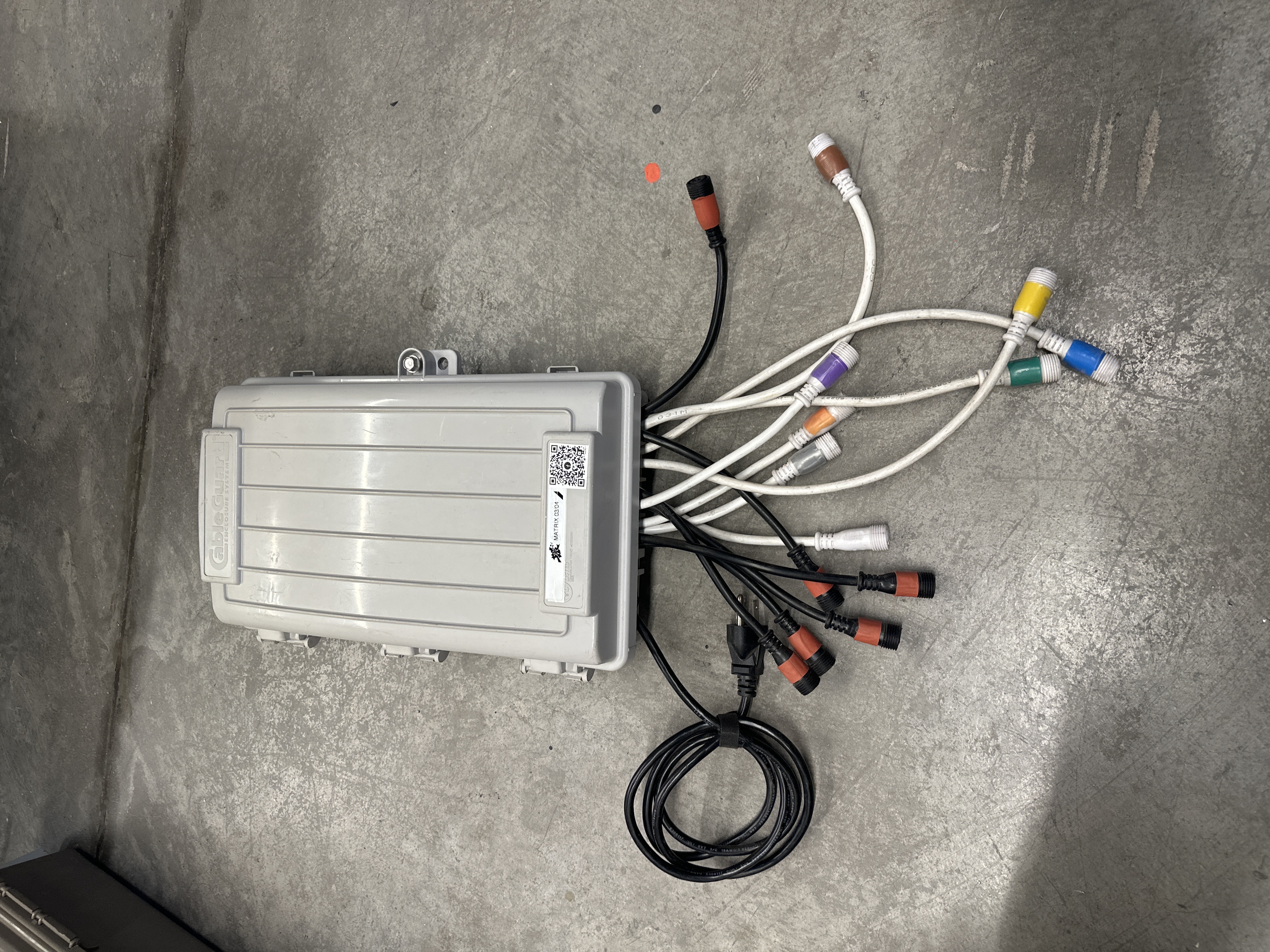

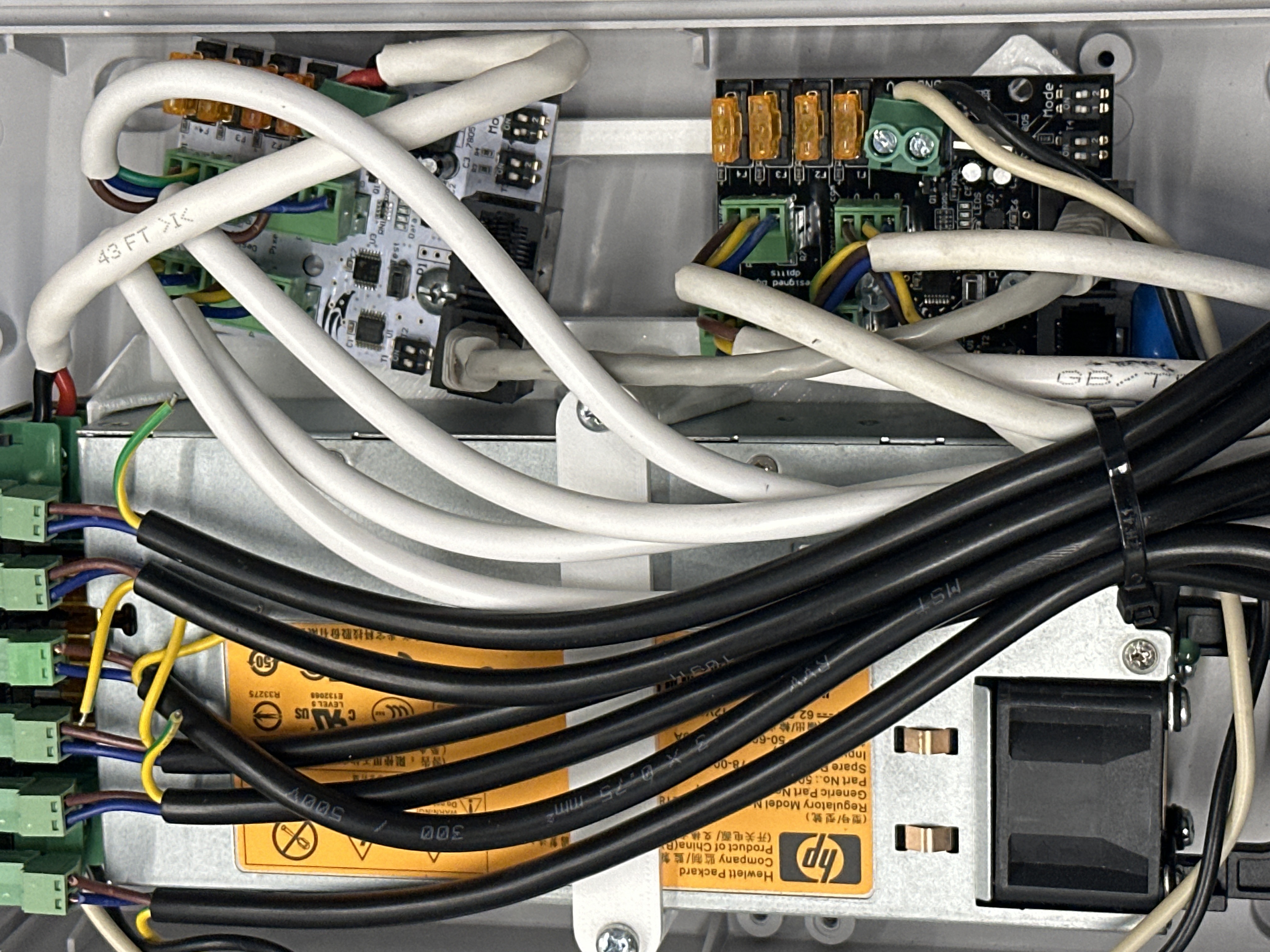

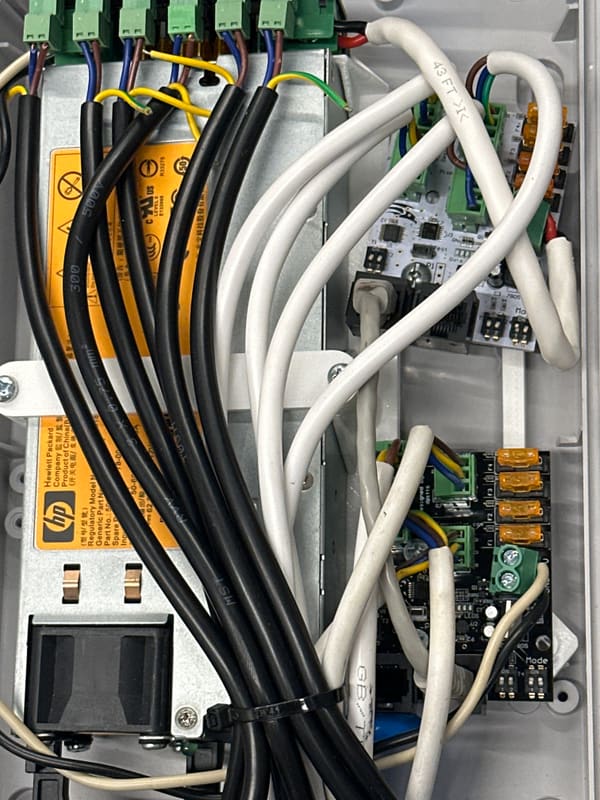

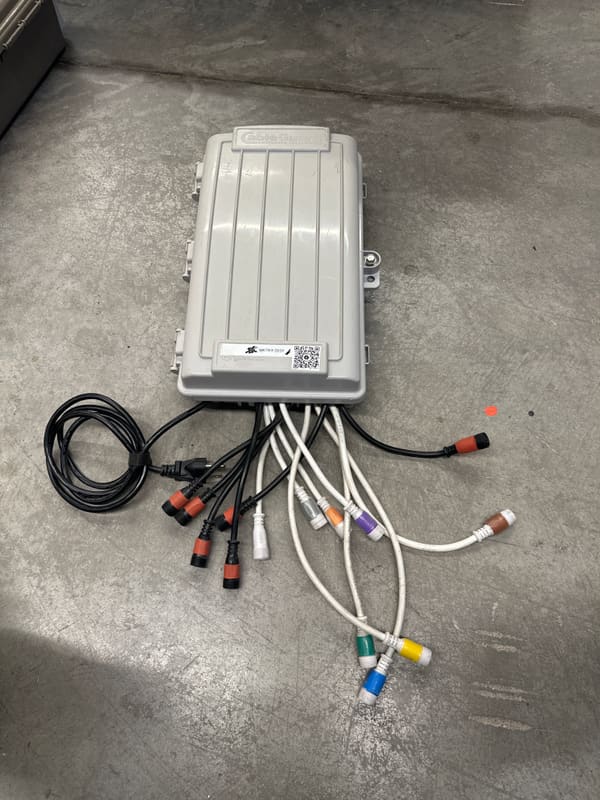

Controller Photos
Props
| Control Box Name | Cable Length | Prop 1 Name | Px Count | Cable Length (2) | Power Cut | Px Count (2) | Cable Length (3) | Prop 2 Name | Px Count (3) | Cable Length (4) | Power End |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Matrix 03/04 | 3 | Matrix 03.1 | 100 | Power Cut | 0 | Matrix 03.2 | 100 | 3 | Power End | ||
| Matrix 03/04 | 3 | Matrix 03.3 | 100 | Power Cut | 0 | Matrix 03.4 | 100 | 3 | Power End | ||
| Matrix 03/04 | 3 | Matrix 03.5 | 100 | Power Cut | 0 | Matrix 03.6 | 100 | 3 | Power End | ||
| Matrix 03/04 | 3 | Matrix 03.7 | 50 | ||||||||
| Matrix 03/04 | 3 | Matrix 04.1 | 100 | Power Cut | 0 | Matrix 04.2 | 100 | 3 | Power End | ||
| Matrix 03/04 | 3 | Matrix 04.3 | 100 | Power Cut | 0 | Matrix 04.4 | 100 | 3 | Power End | ||
| Matrix 03/04 | 3 | Matrix 04.5 | 100 | Power Cut | 0 | Matrix 04.6 | 100 | 3 | Power End | ||
| Matrix 03/04 | 3 | Matrix 04.7 | 50 |
Controllers
1 box available
