Controller P2A~P2B

Location: Icicles 01

Gallery

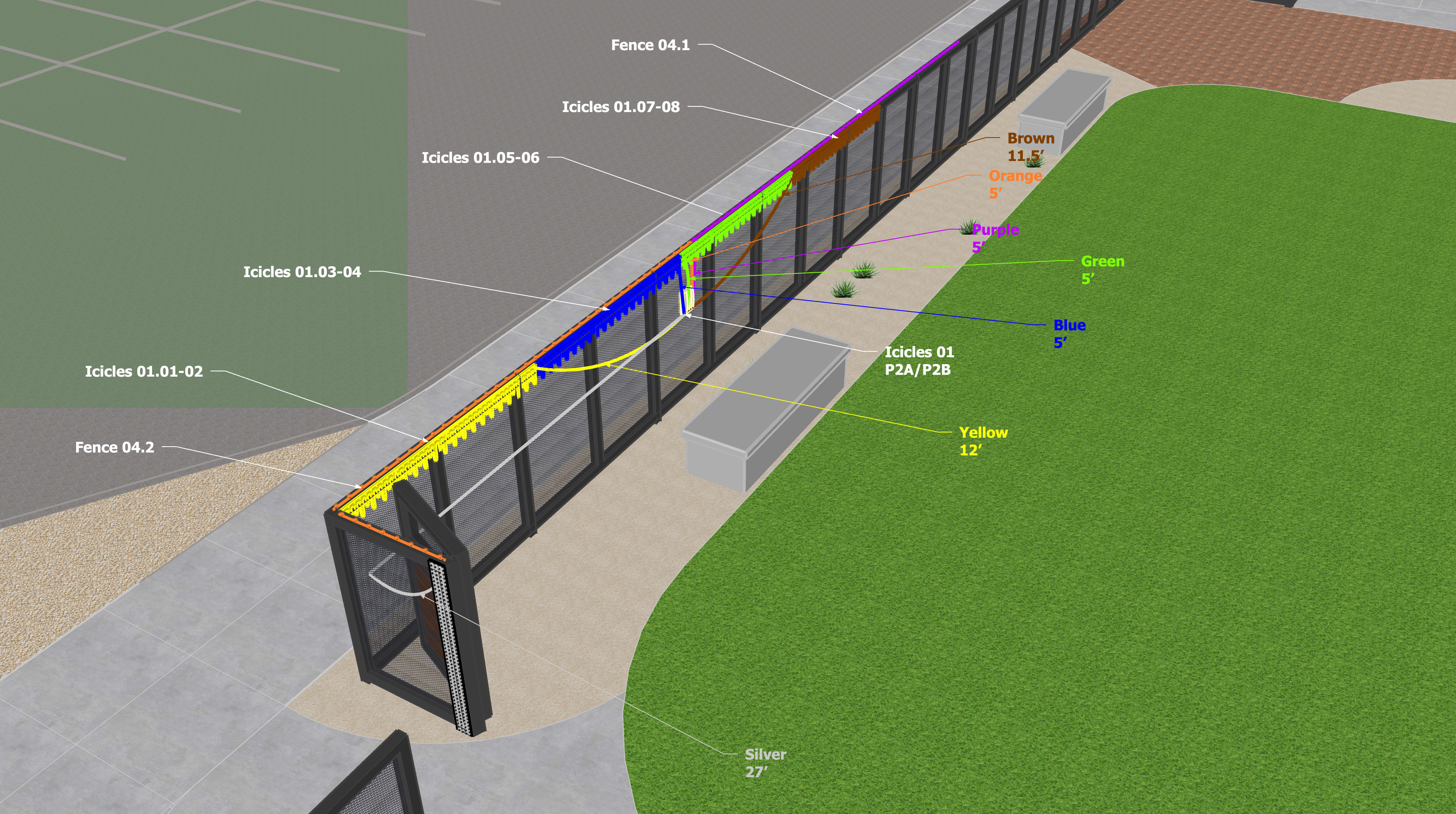

Setup Photos image 1 for controller P2A~P2B

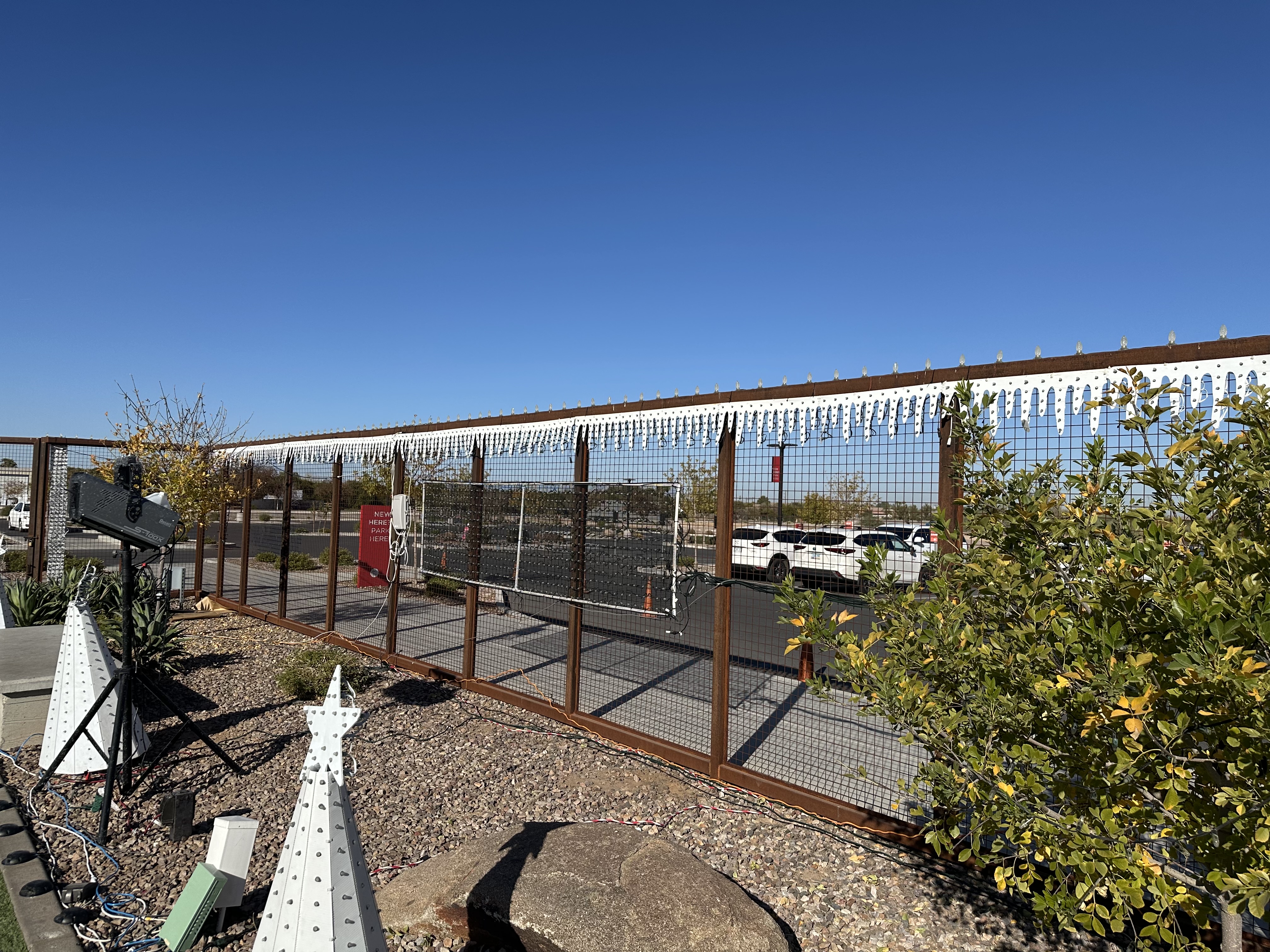

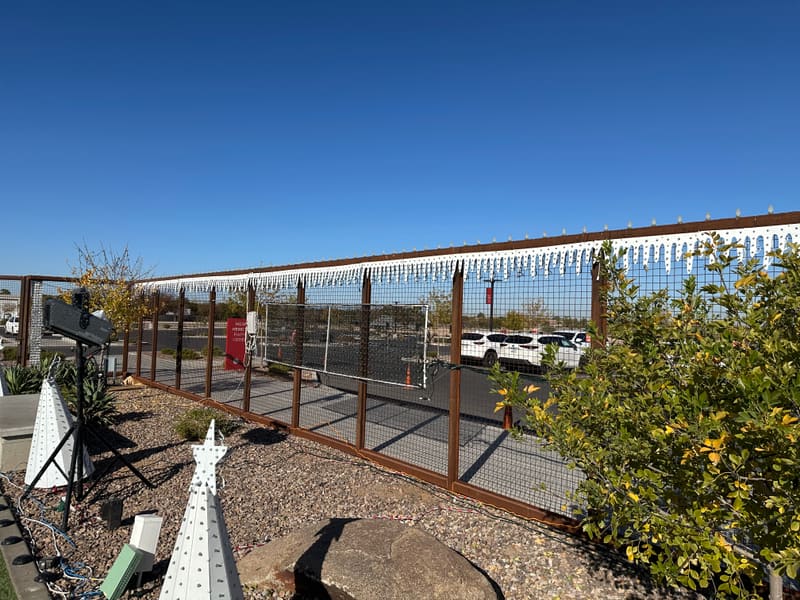

Reference Photos image 1 for controller P2A~P2B

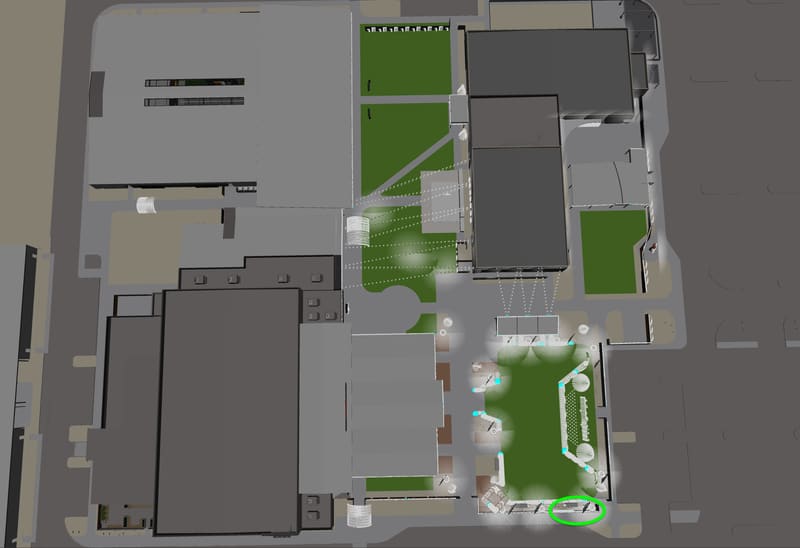

Site Map image 1 for controller P2A~P2B

Icicles 01

8 data pigtails

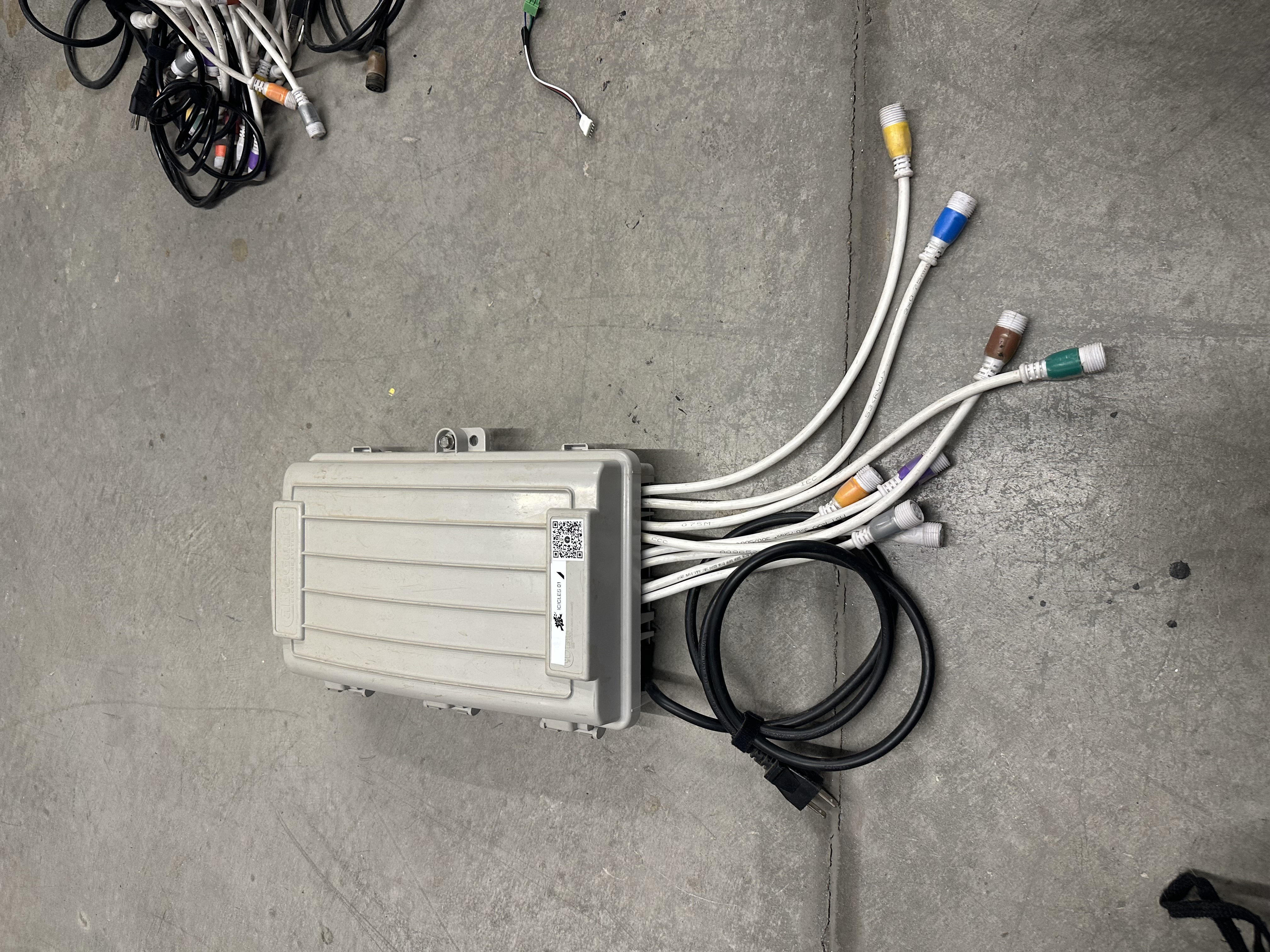

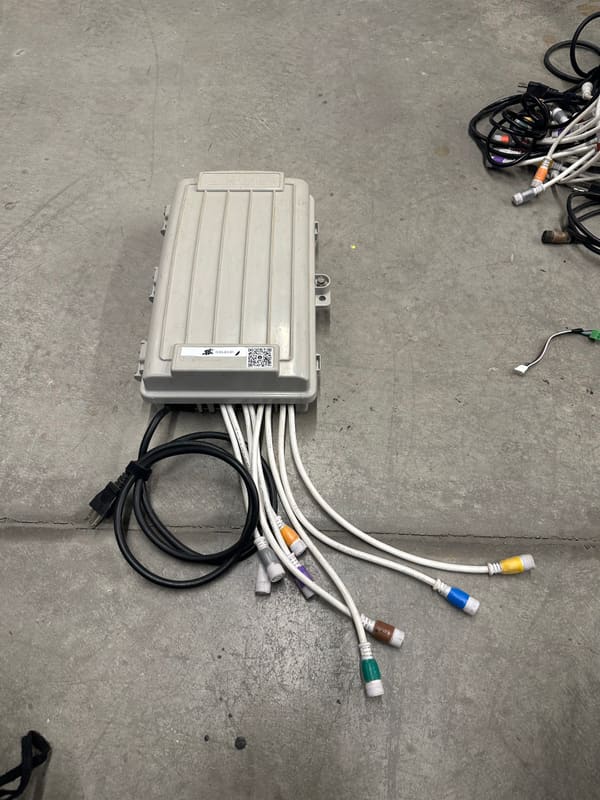

Controller Photos image 1 for controller P2A~P2B

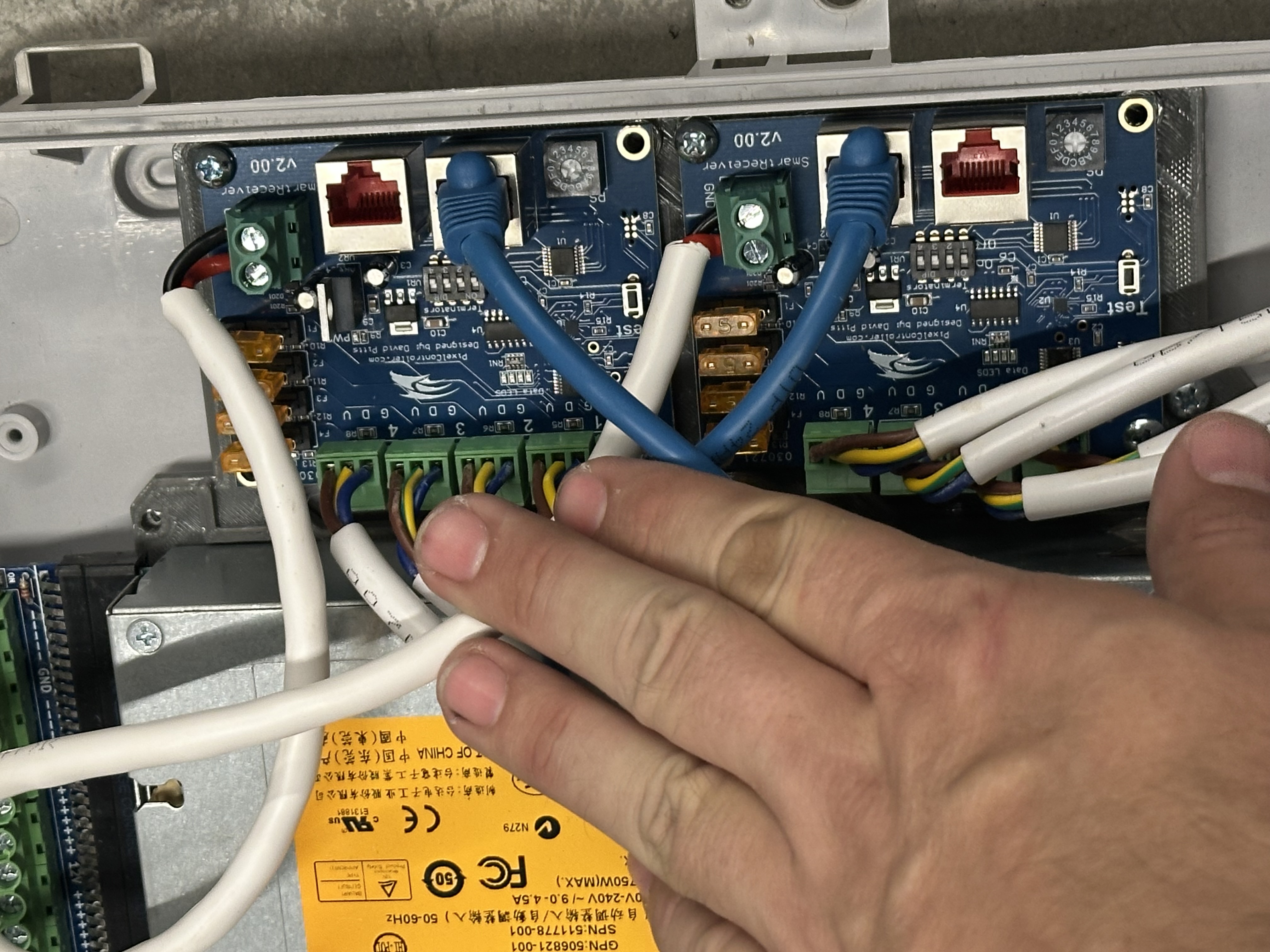

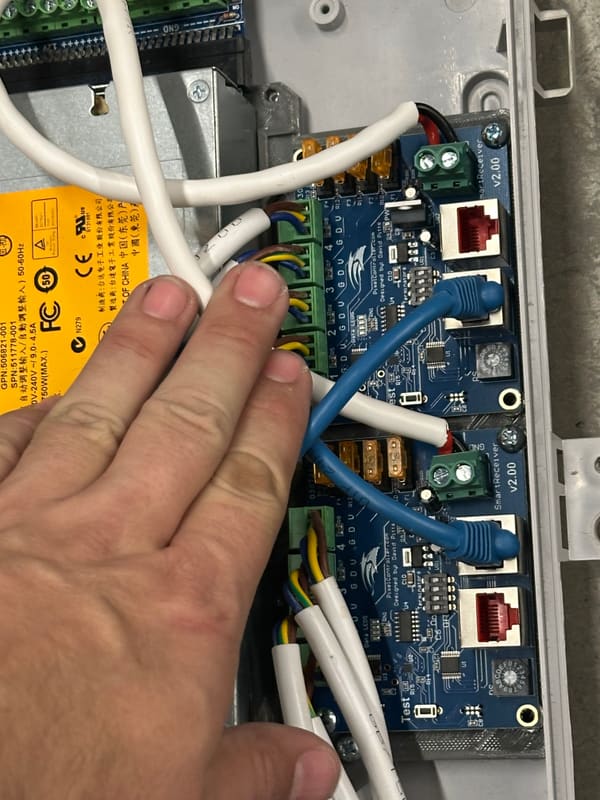

Controller Photos image 2 for controller P2A~P2B

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)
K8B.P	13	13A	P2A	2		P2A		B5B	640	440	200	200	P2A	12	750	0.6	50	60	332.4	Icicles 01	12	Icicles 01.02 (Right)	100	0	Icicles 01.01 (Right)	100
K8B.P	14	14A	P2A	2		P2A			640	430	200	210	P2A	12	750	0.6	50	60		Icicles 01	5	Icicles 01.04 (Right)	100	0	Icicles 01.03 (Right)	100
K8B.P	15	15A	P2A	2		P2A			640	558	200	82	P2A	12	750	0.6	50	60		Icicles 01	5	Icicles 01.05 (Left)	100	0	Icicles 01.06 (Left)	100
K8B.P	16	16A	P2A	2		P2A			640	440	200	200	P2A	12	750	0.6	50	60		Icicles 01	11.5	Icicles 01.07 (Left)	100	0	Icicles 01.08 (Left)	100
K8B.P	13	13B	P2B	2		P2B		B5C	640	440	50	200	P2A	12	750	0.6	50	15		Icicles 01	5	Fence 04.1	50
K8B.P	14	14B	P2B	2		P2B			640	430	40	210	P2A	12	750	0.6	50	12		Icicles 01	26	Entrance Arch 02	40
K8B.P	15	15B	P2B	2		P2B			640	558	168	82	P2A	12	750	0.6	50	50.4		Icicles 01	27	MiniMatrix 23.2	84	0	MiniMatrix 23.1	84
K8B.P	16	16B	P2B	2		P2B			640	440	50	200	P2A	12	750	0.6	50	15		Icicles 01	5	Fence 04.2	50

Controllers

1 box available

Show details

8 data pigtails

Controller Role

K8B.P

Pigtails

8 Data

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
