Controller P1C~P1D

Location: Fence 01

Gallery

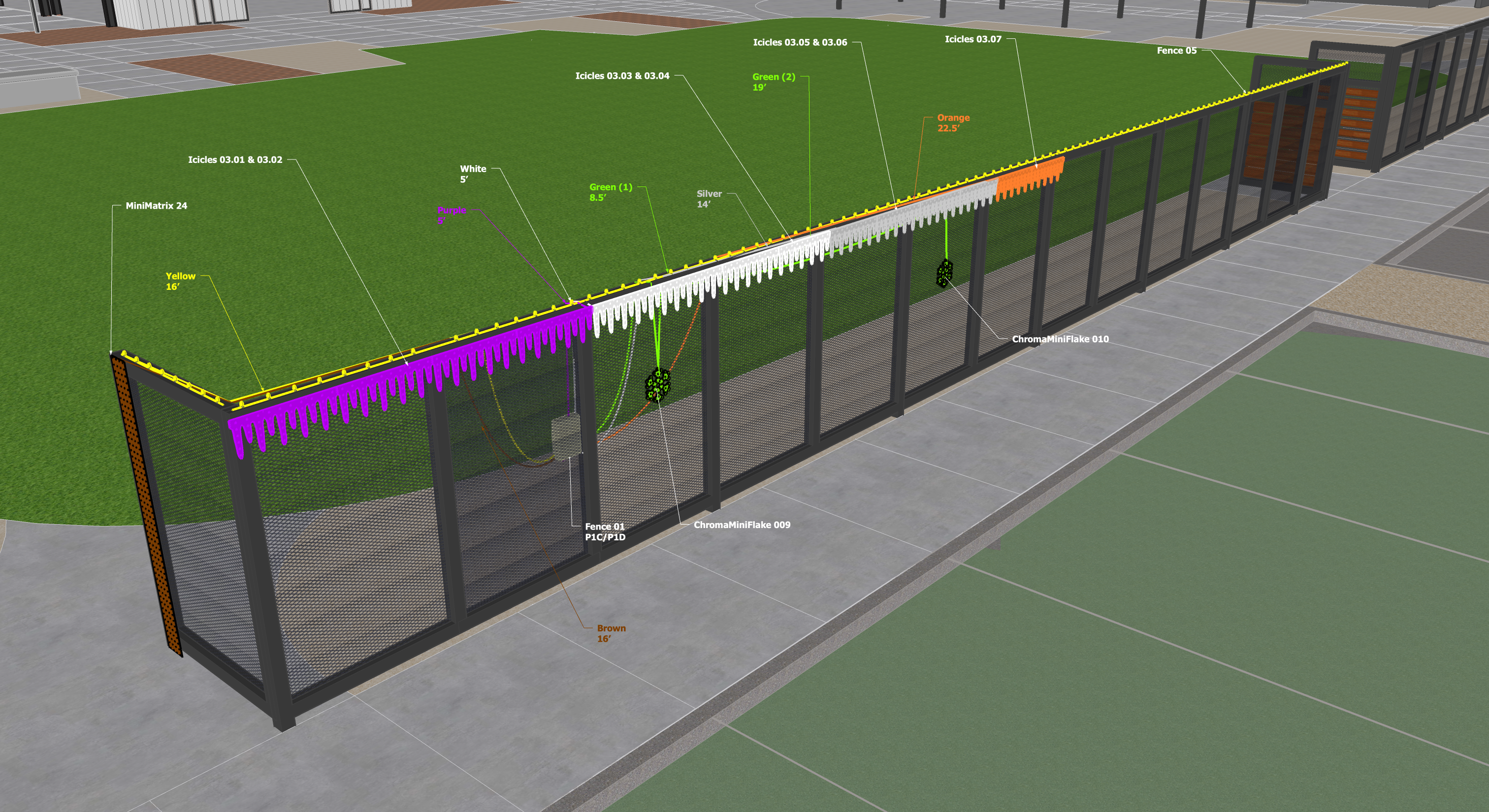

Setup Photos image 1 for controller P1C~P1D

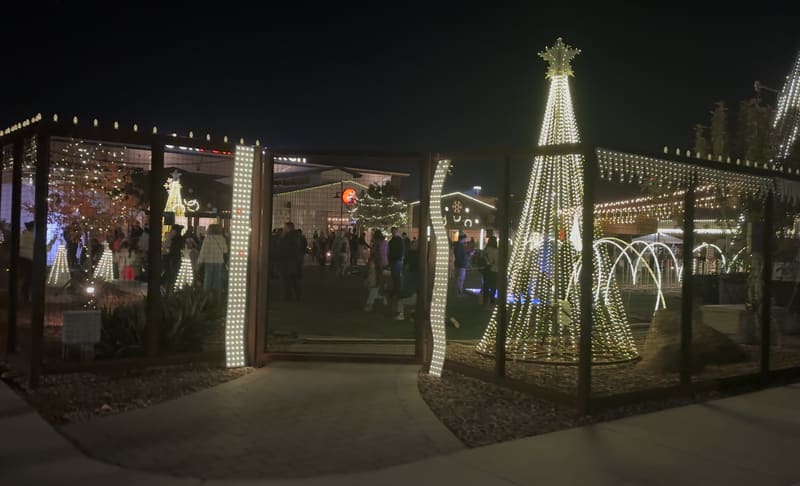

Reference Photos image 1 for controller P1C~P1D

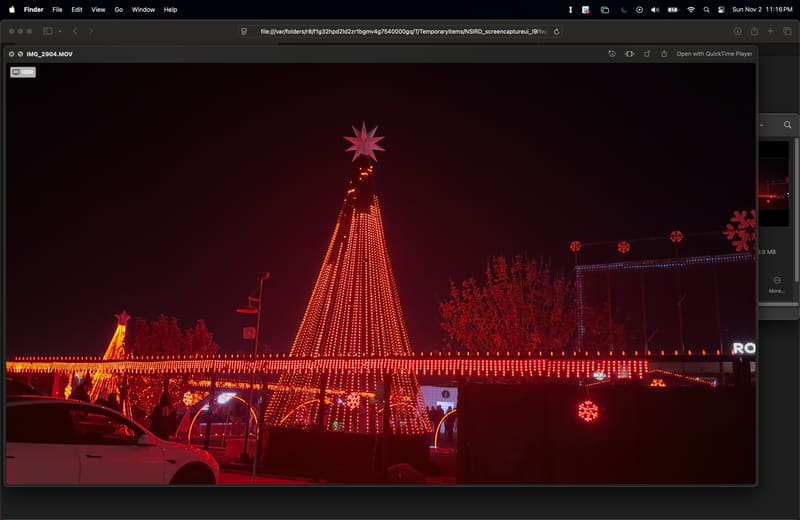

Reference Photos image 2 for controller P1C~P1D

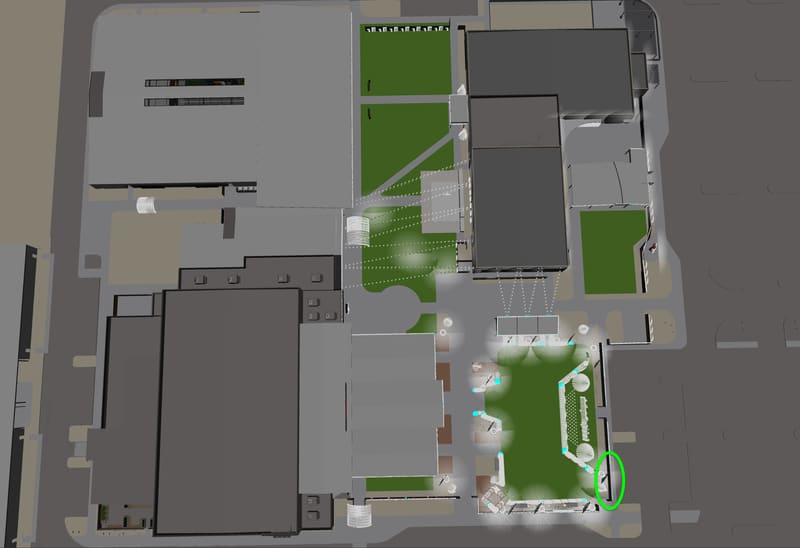

Site Map image 1 for controller P1C~P1D

Fence 01

8 data pigtails

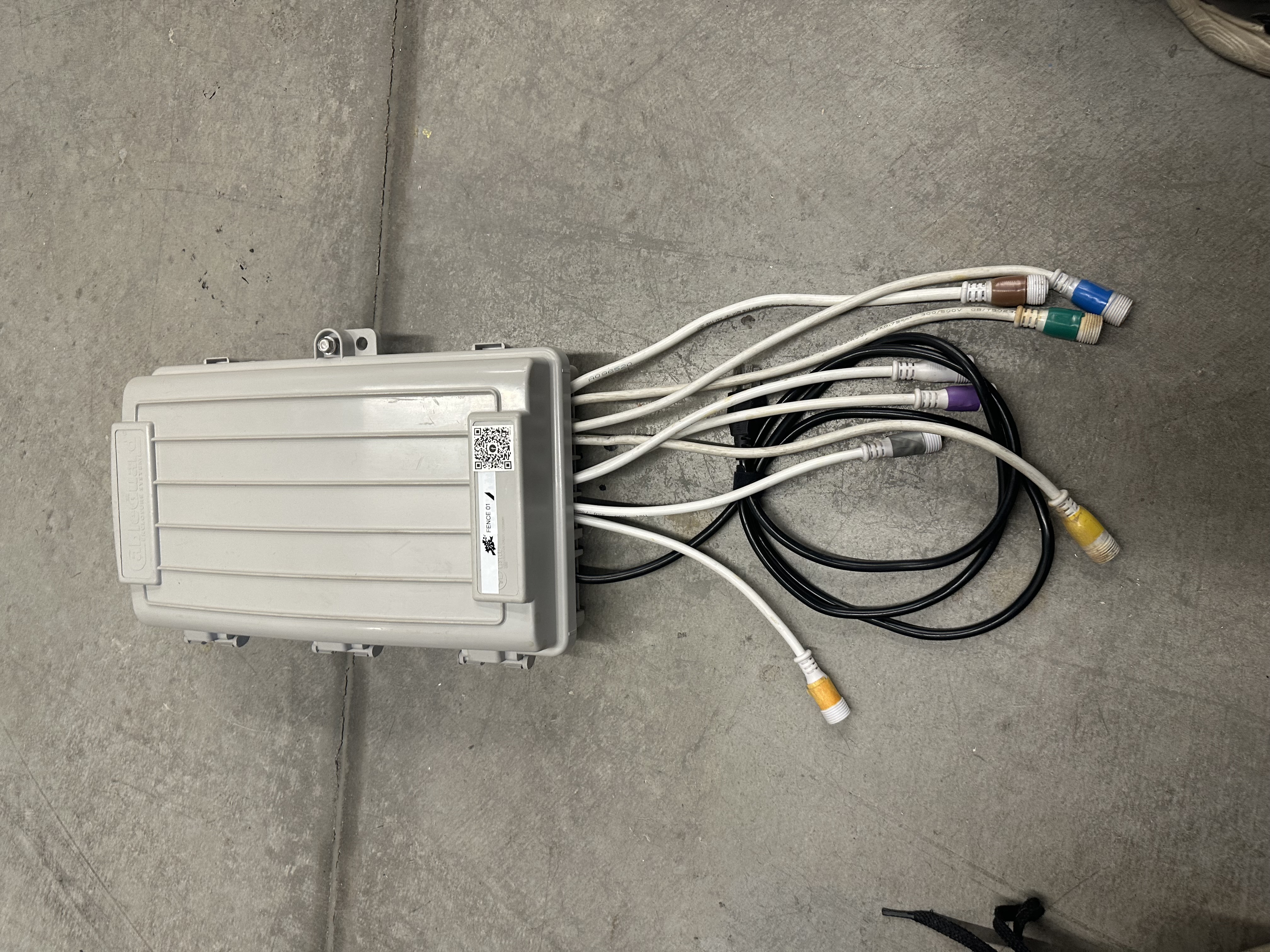

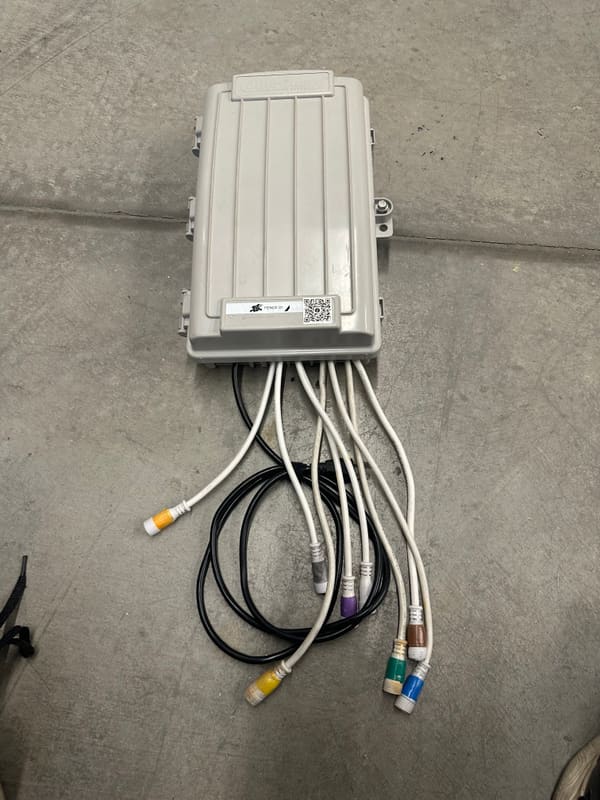

Controller Photos image 1 for controller P1C~P1D

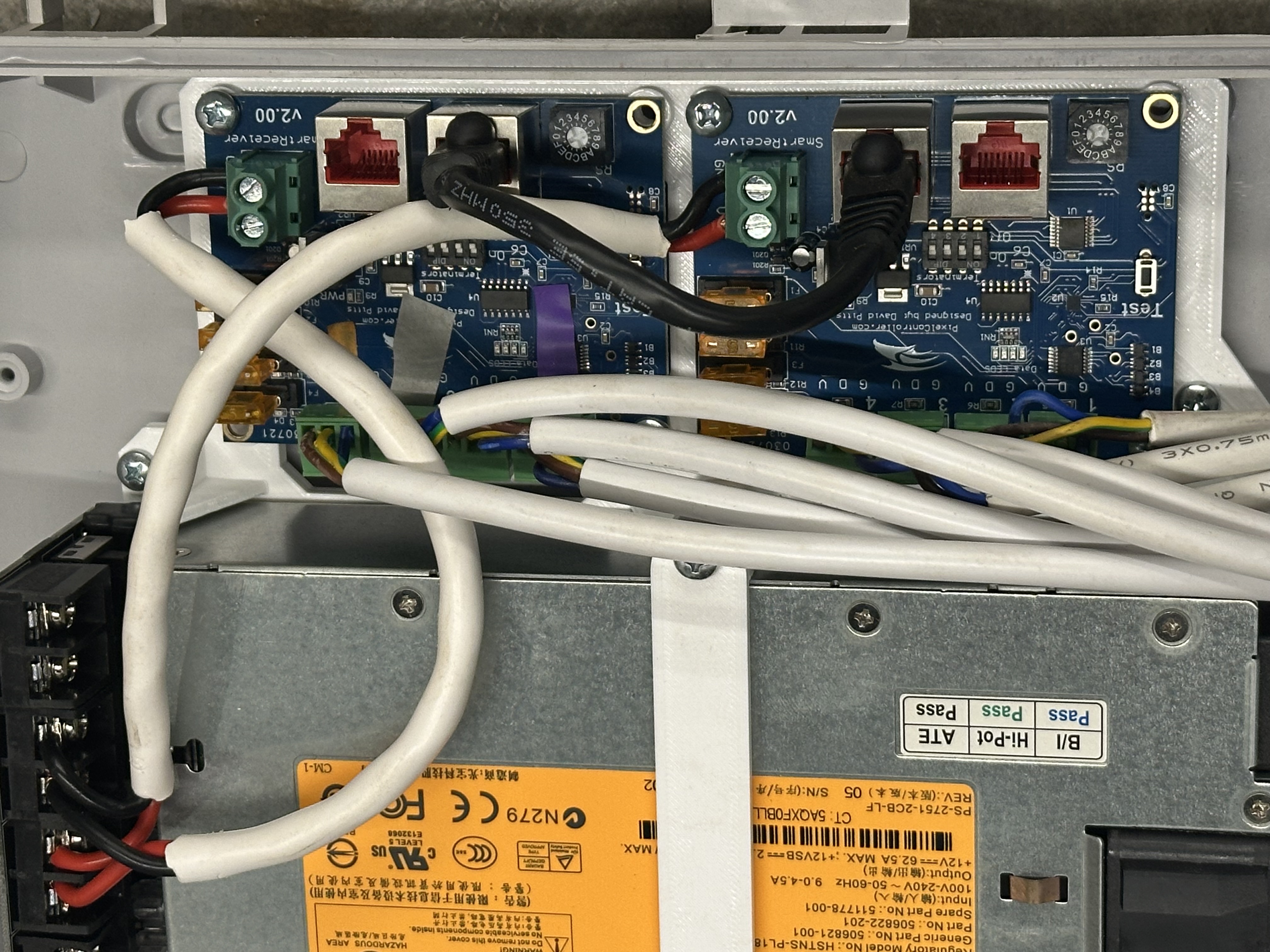

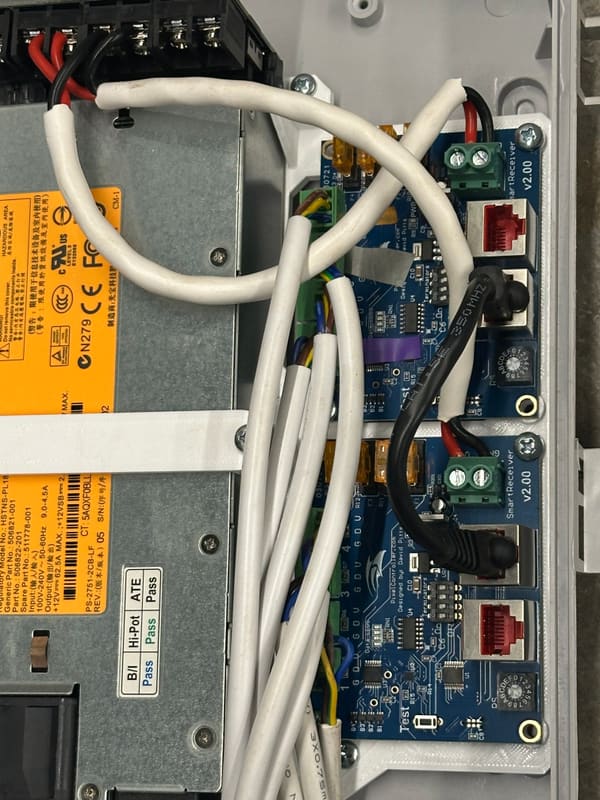

Controller Photos image 2 for controller P1C~P1D

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)
K8B.P	9	9C	P1C	1		P1C		K8B.P	640	573	100	67	P1C	12	750	0.6	50	30	312	Fence 01	16	Fence 05	100
K8B.P	10	10C	P1C	1		P1C			640	601	0	39	P1C	12	750	0.6	50	0		Fence 01
K8B.P	11	11C	P1C	1		P1C			640	573	72	67	P1C	12	750	0.6	50	21.6		Fence 01	8.5	ChromaMiniFlake 009	36	19	ChromaMiniFlake 010	36
K8B.P	12	12C	P1C	1		P1C			640	569	168	71	P1C	12	750	0.6	50	50.4		Fence 01	16	MiniMatrix 24.2 & 24.1	168
K8B.P	9	9D	P1D	1		P1D		P1C	640	573	200	67	P1C	12	750	0.6	50	60		Fence 01	5	Icicles 03.02 (Right)	100	0	Icicles 03.01 (Right)	100
K8B.P	10	10D	P1D	1		P1D			640	601	200	39	P1C	12	750	0.6	50	60		Fence 01	5	Icicles 03.04 (Right)	100	0	Icicles 03.03 (Right)	100
K8B.P	11	11D	P1D	1		P1D			640	573	200	67	P1C	12	750	0.6	50	60		Fence 01	14	Icicles 03.05 (Left)	100	0	Icicles 03.06 (Left)	100
K8B.P	12	12D	P1D	1		P1D			640	569	100	71	P1C	12	750	0.6	50	30		Fence 01	22.5	Icicles 03.07 (Left)	100

Controllers

1 box available

Show details

8 data pigtails

Controller Role

K8B.P

Pigtails

8 Data

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
