Controller O2A~O2B

Location: Icicles 03

Gallery

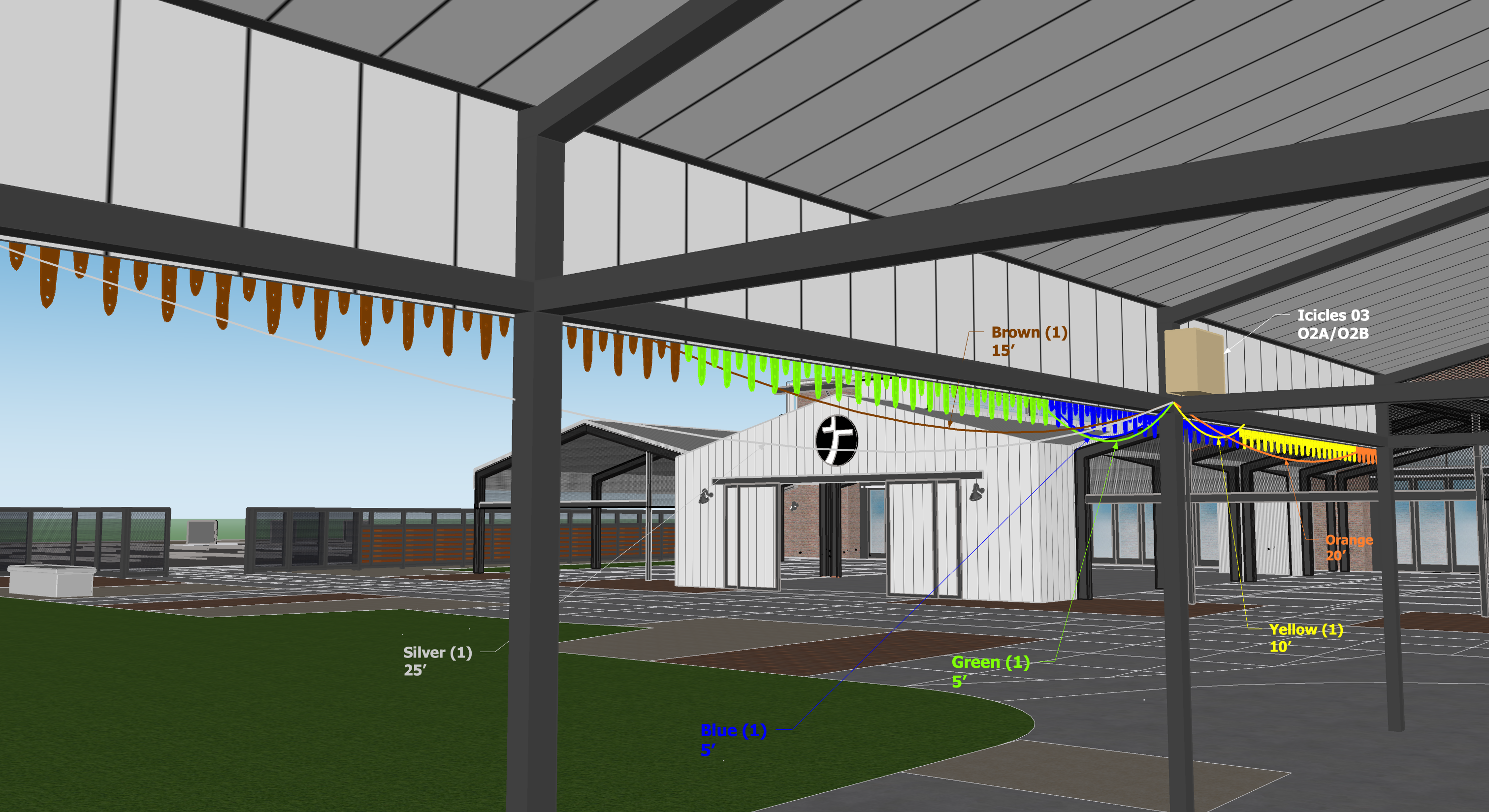

Setup Photos image 1 for controller O2A~O2B

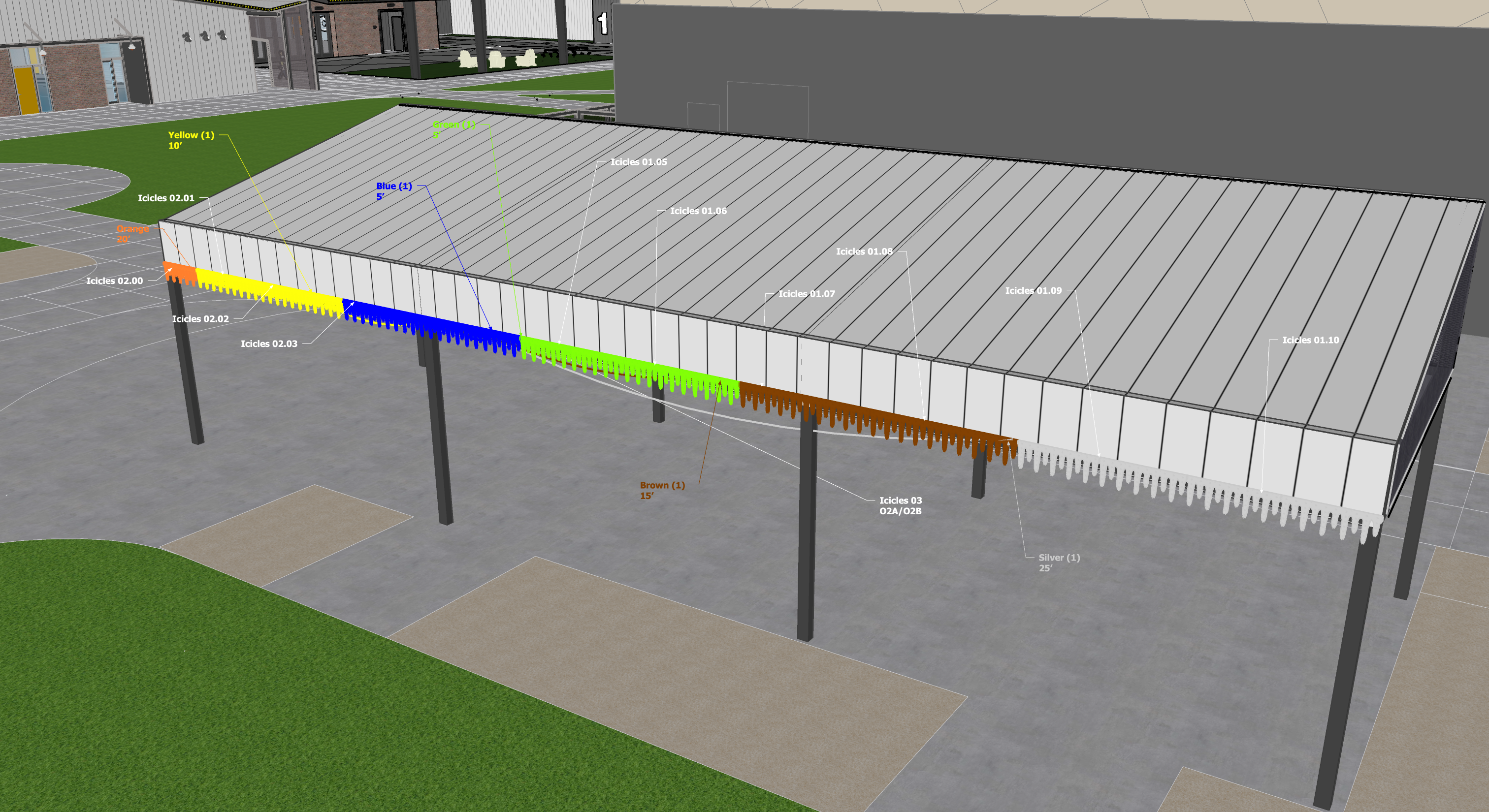

Setup Photos image 2 for controller O2A~O2B

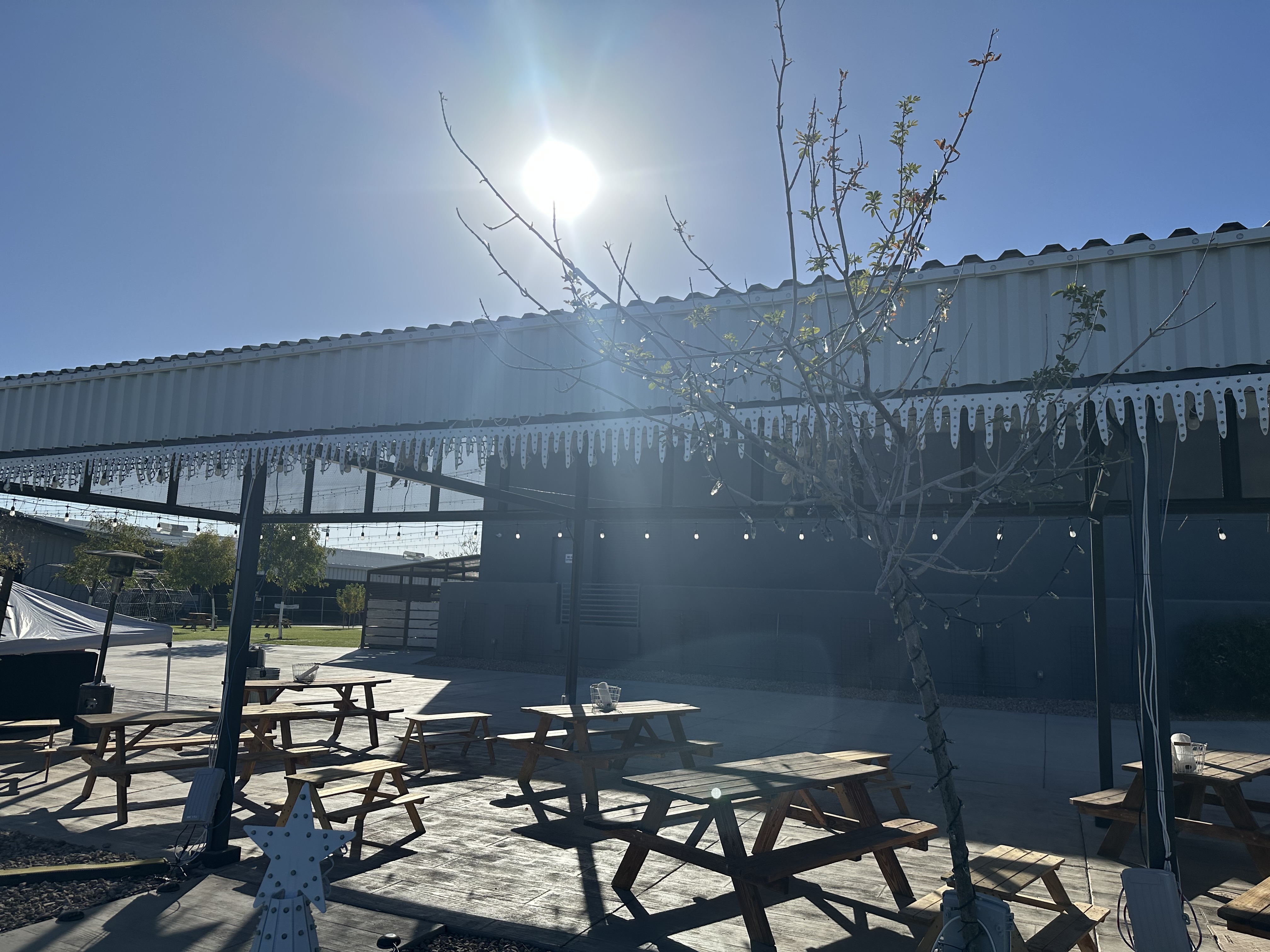

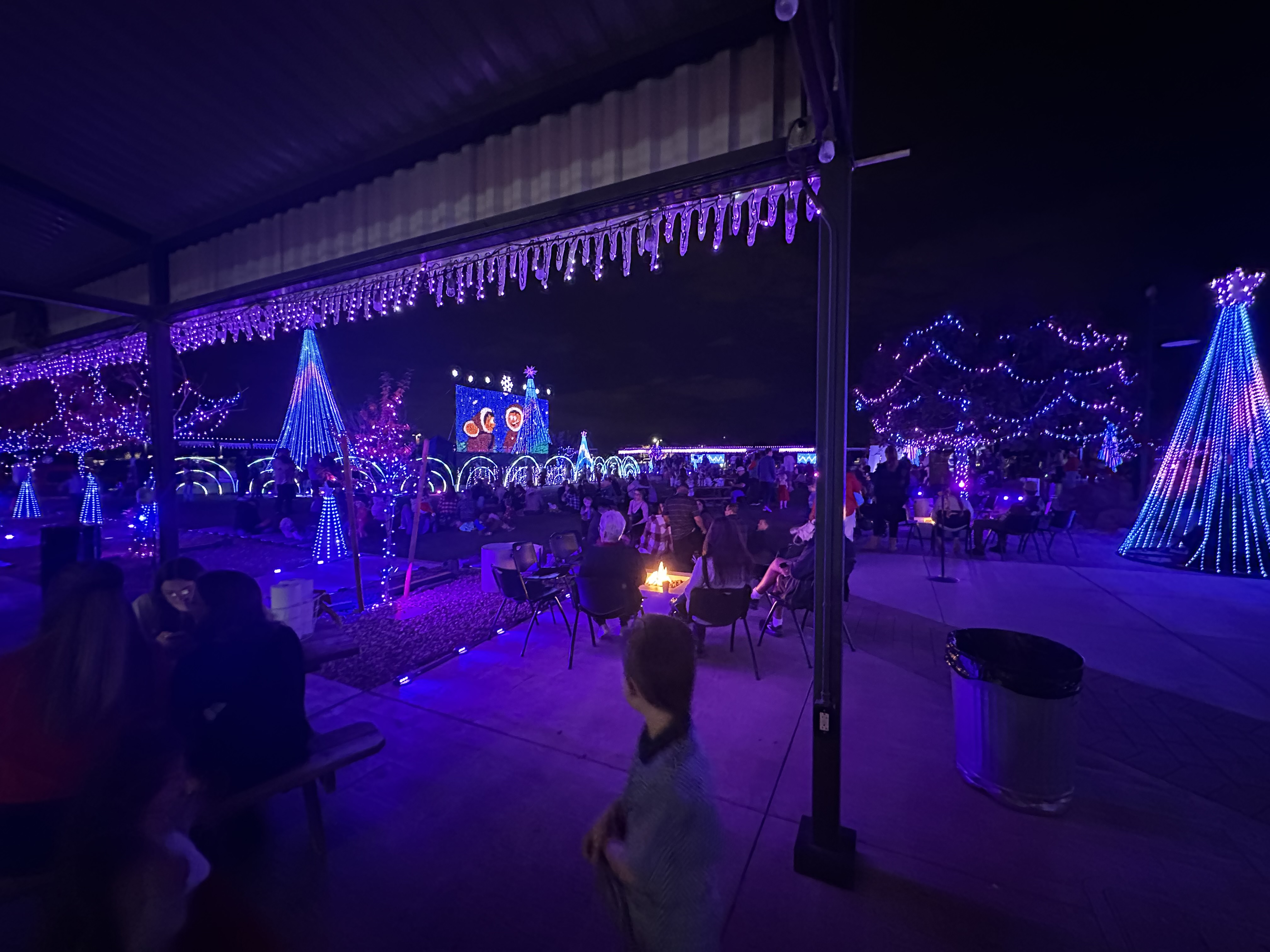

Reference Photos image 1 for controller O2A~O2B

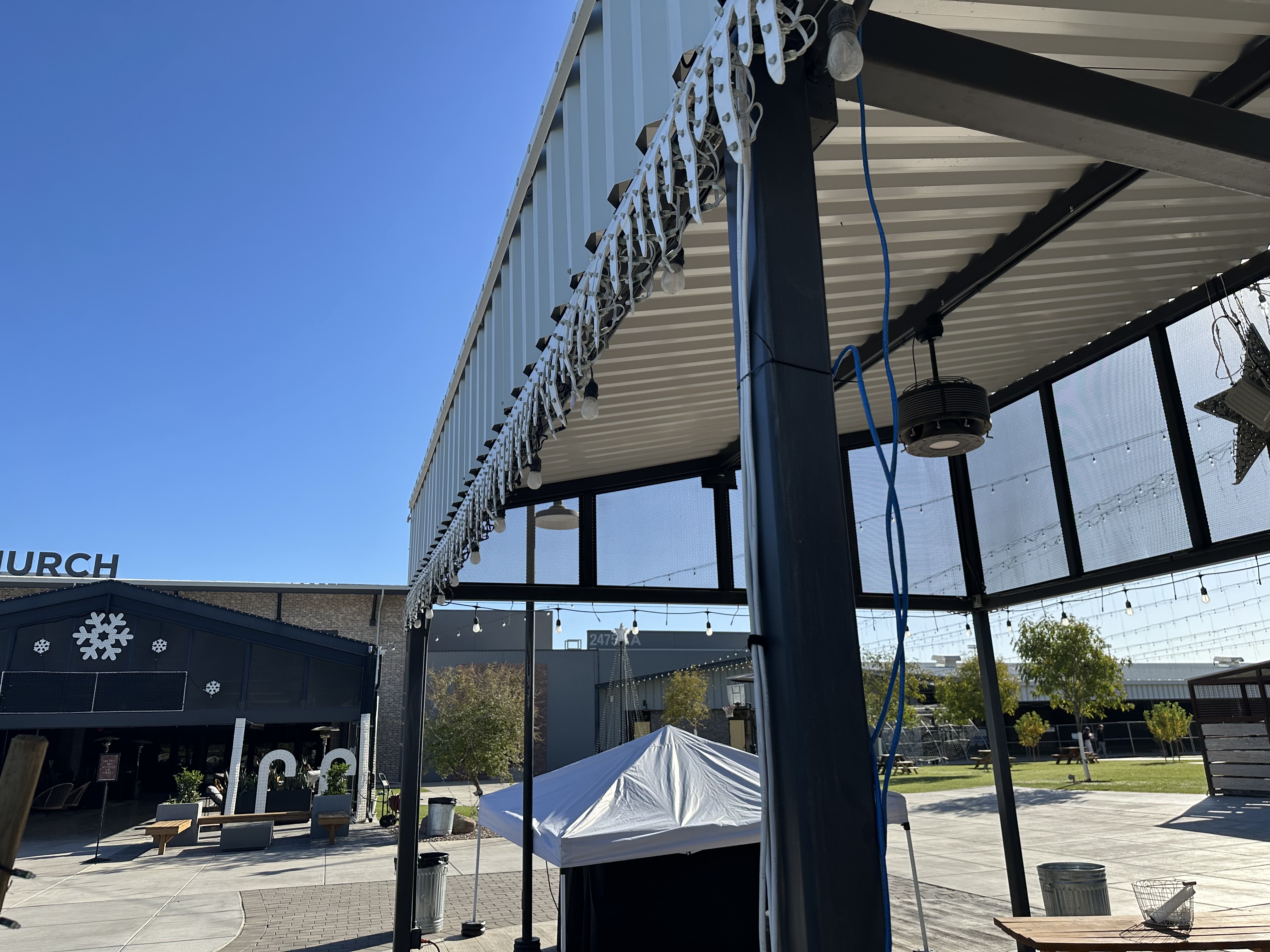

Reference Photos image 2 for controller O2A~O2B

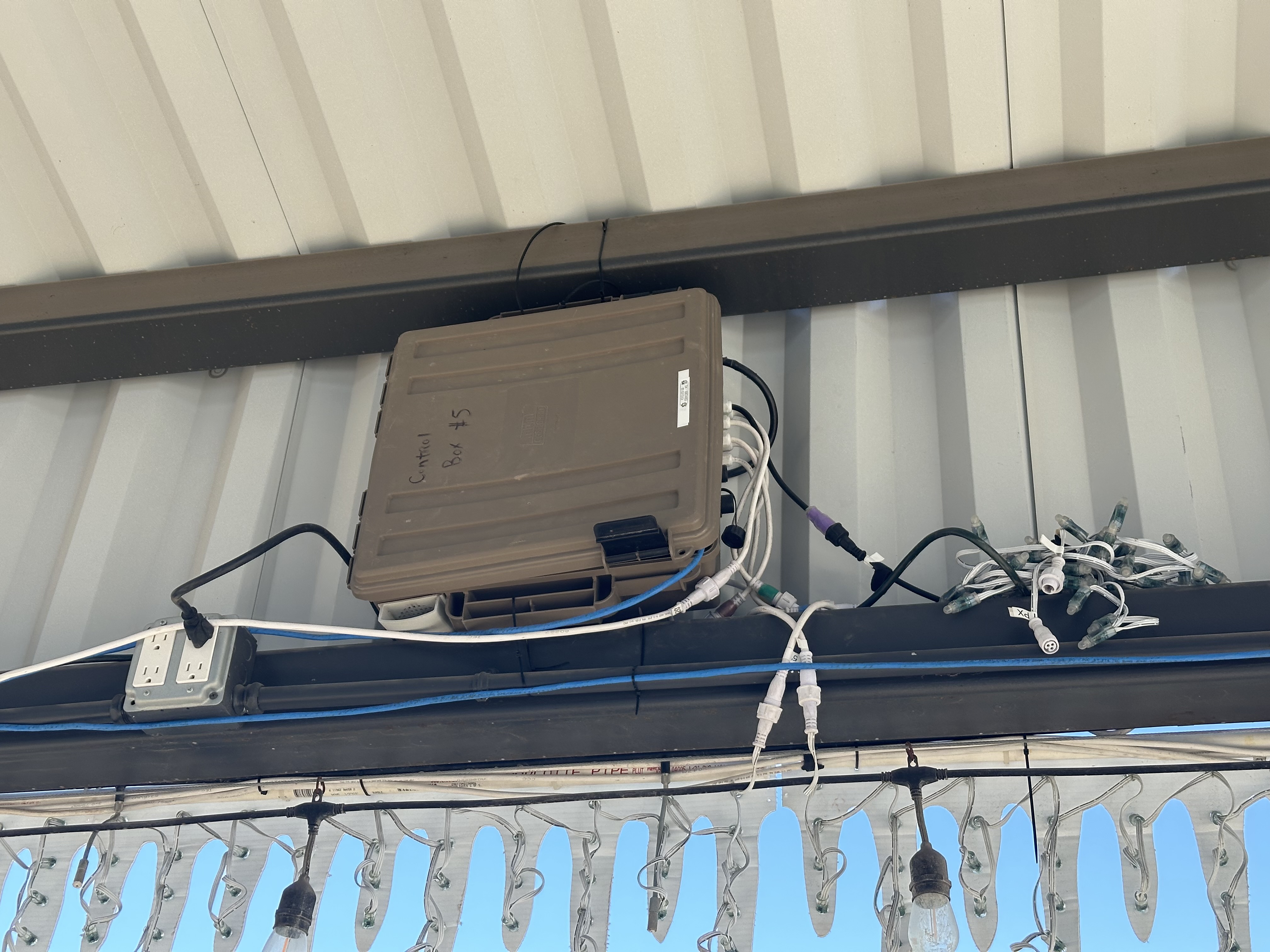

Reference Photos image 3 for controller O2A~O2B

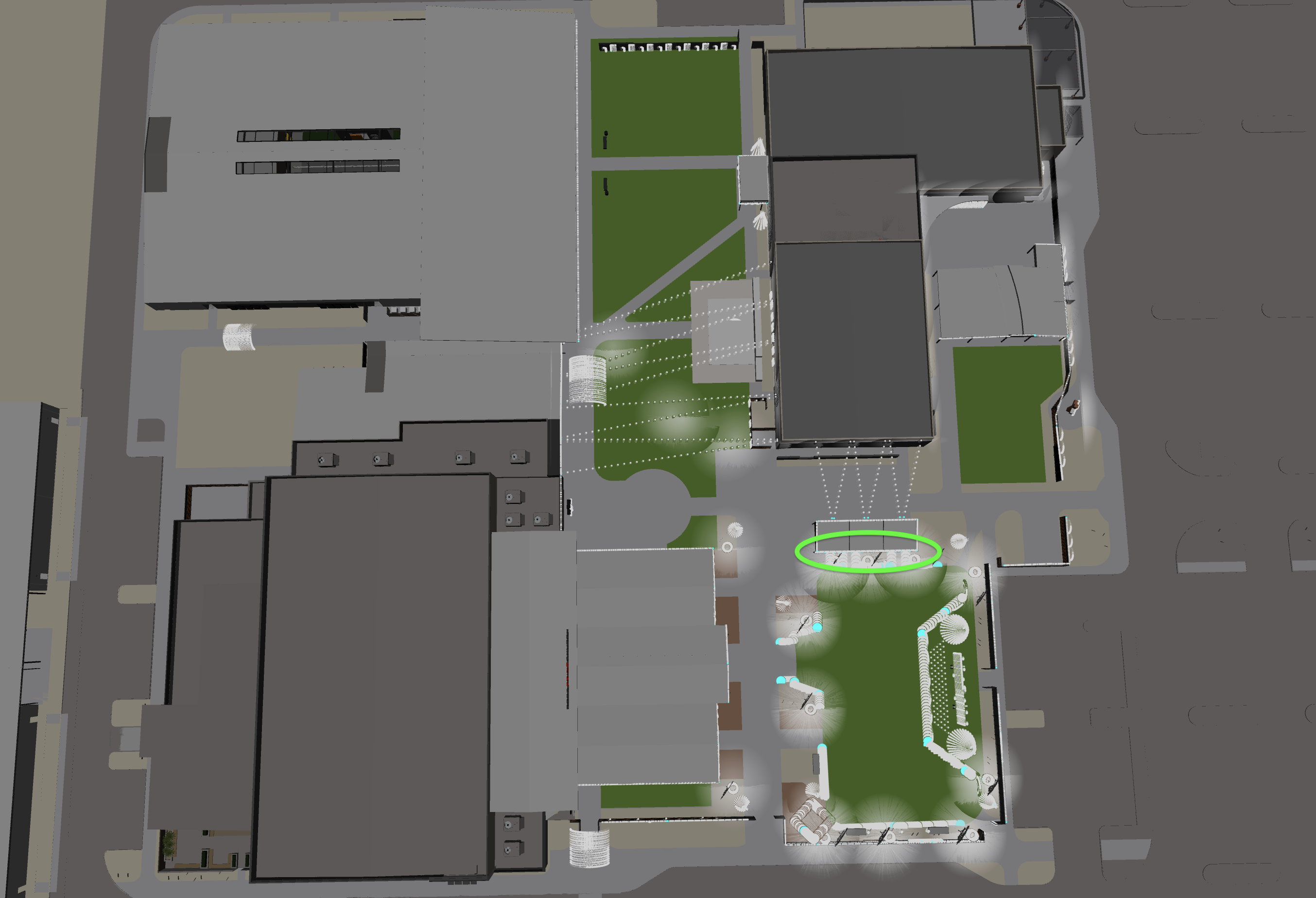

Site Map image 1 for controller O2A~O2B

Icicles 03

8 data pigtails

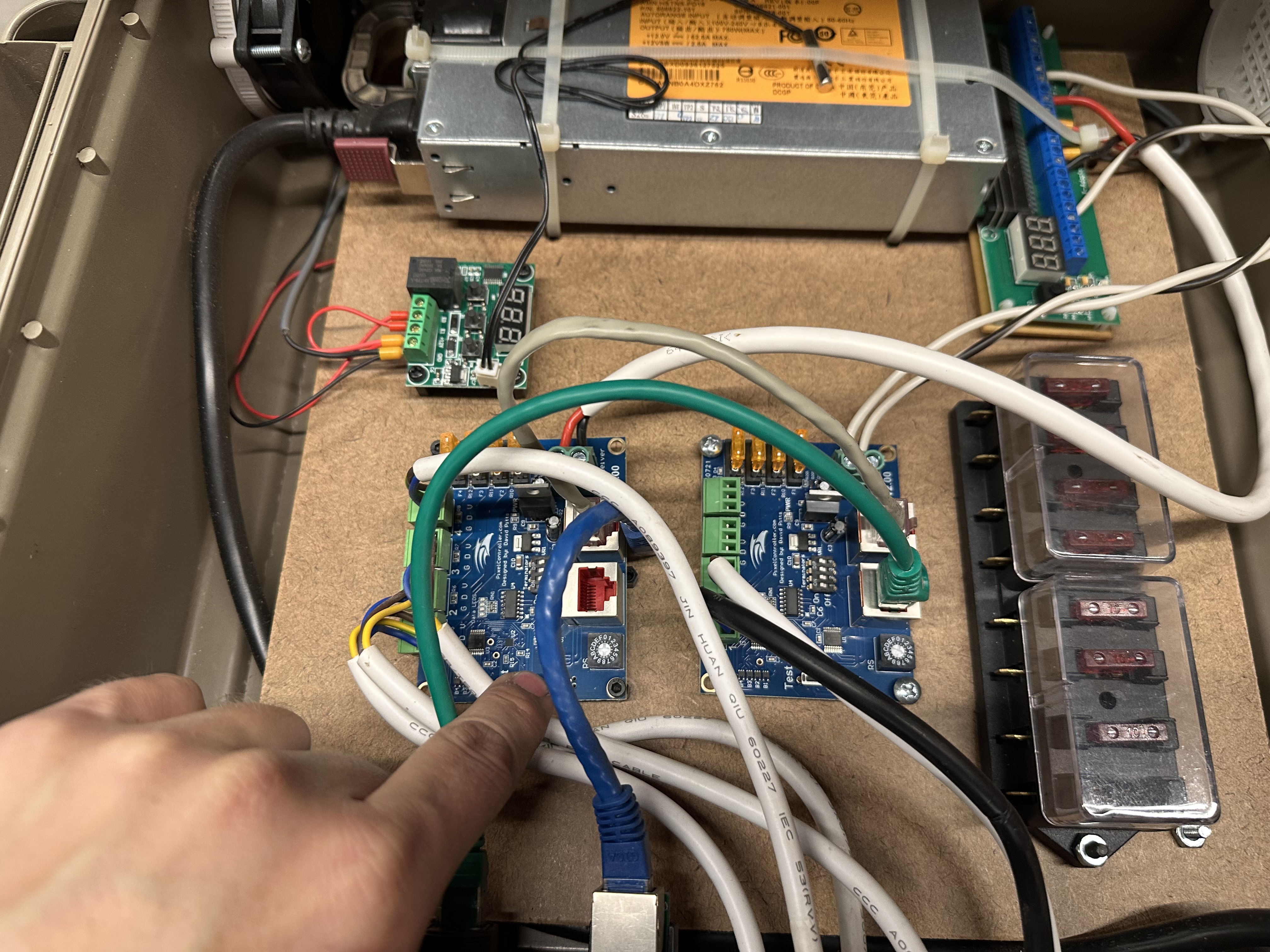

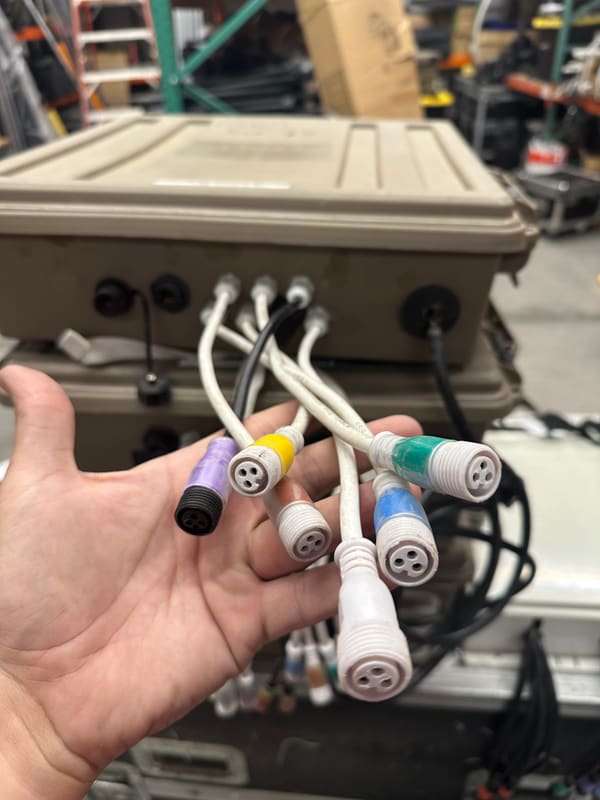

Controller Photos image 1 for controller O2A~O2B

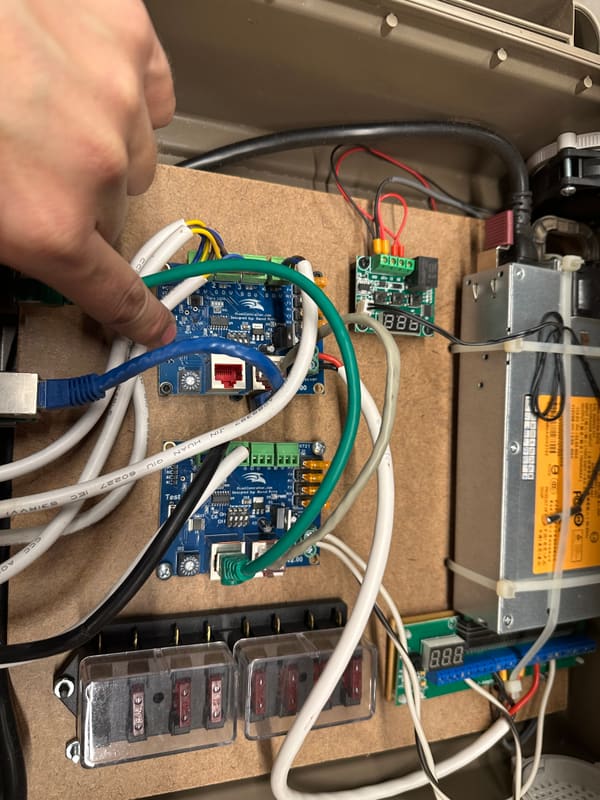

Controller Photos image 2 for controller O2A~O2B

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)
K8B.O	13	13A	O2A	2		O2A		O2C	640	500	200	140	O2A	12	750	0.6	50	60	330	Icicles 03	10	Icicles 02.02 (Right)	100	0	Icicles 02.01 (Right)	100
K8B.O	14	14A	O2A	2		O2A			640	400	200	240	O2A	12	750	0.6	50	60		Icicles 03	5	Icicles 02.04 (Right)	100	0	Icicles 02.03 (Right)	100
K8B.O	15	15A	O2A	2		O2A			640	402	200	238	O2A	12	750	0.6	50	60		Icicles 03	5	Icicles 02.05 (Left)	100	0	Icicles 02.06 (Left)	100
K8B.O	16	16A	O2A	2		O2A			640	400	200	240	O2A	12	750	0.6	50	60		Icicles 03	15	Icicles 02.07 (Left)	100	0	Icicles 02.08 (Left)	100
K8B.O	13	13B	O2B	2		O2B		O2A	640	500	100	140	O2A	12	750	0.6	50	30		Icicles 03	20	Icicles 02.00 (Right)	100
K8B.O	14	14B	O2B	2		O2B			640	400	0	240	O2A	12	750	0.6	50	0		Icicles 03
K8B.O	15	15B	O2B	2		O2B			640	402	200	238	O2A	12	750	0.6	50	60		Icicles 03	25	Icicles 02.09 (Left)	100	0	Icicles 02.10 (Left)	100
K8B.O	16	16B	O2B	2		O2B			640	400	0	240	O2A	12	750	0.6	50	0		Icicles 03

Controllers

1 box available

Show details

8 data pigtails

Controller Role

K8B.O

Pigtails

8 Data

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
