Controller O1A

Location: MiniTrees 01

Gallery

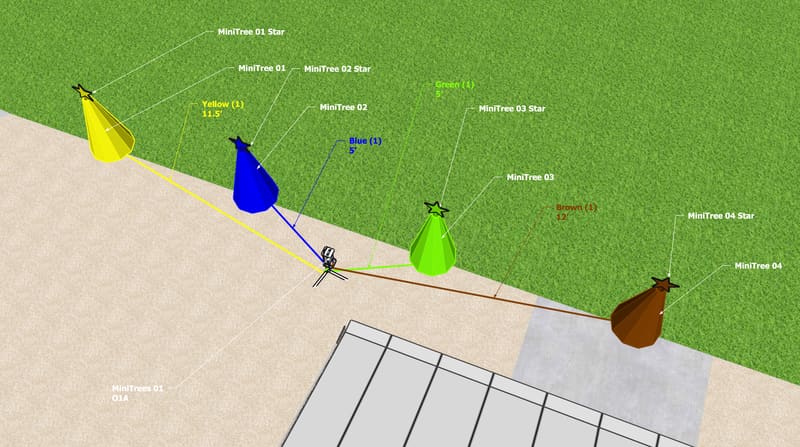

Setup Photos image 1 for controller O1A

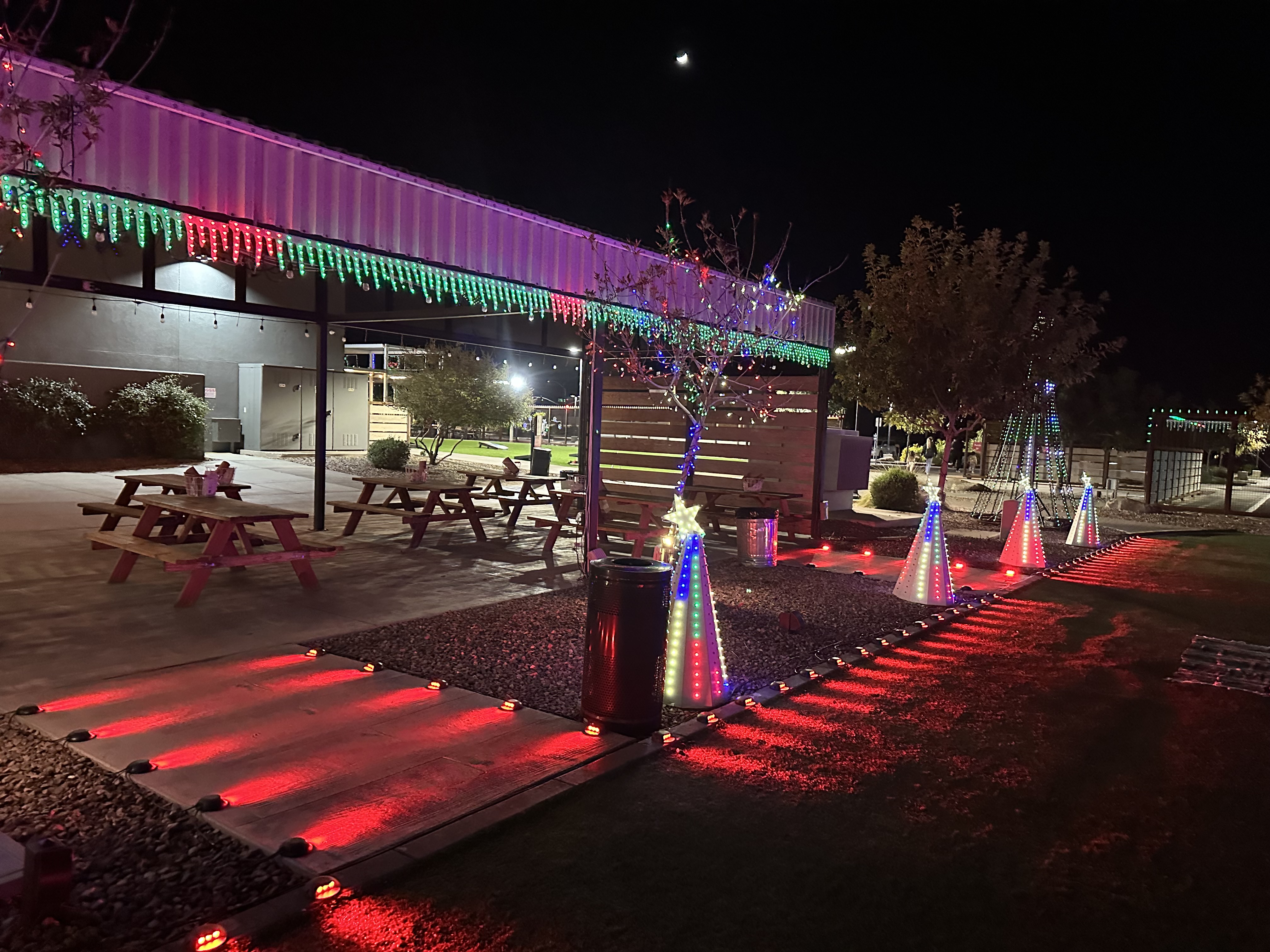

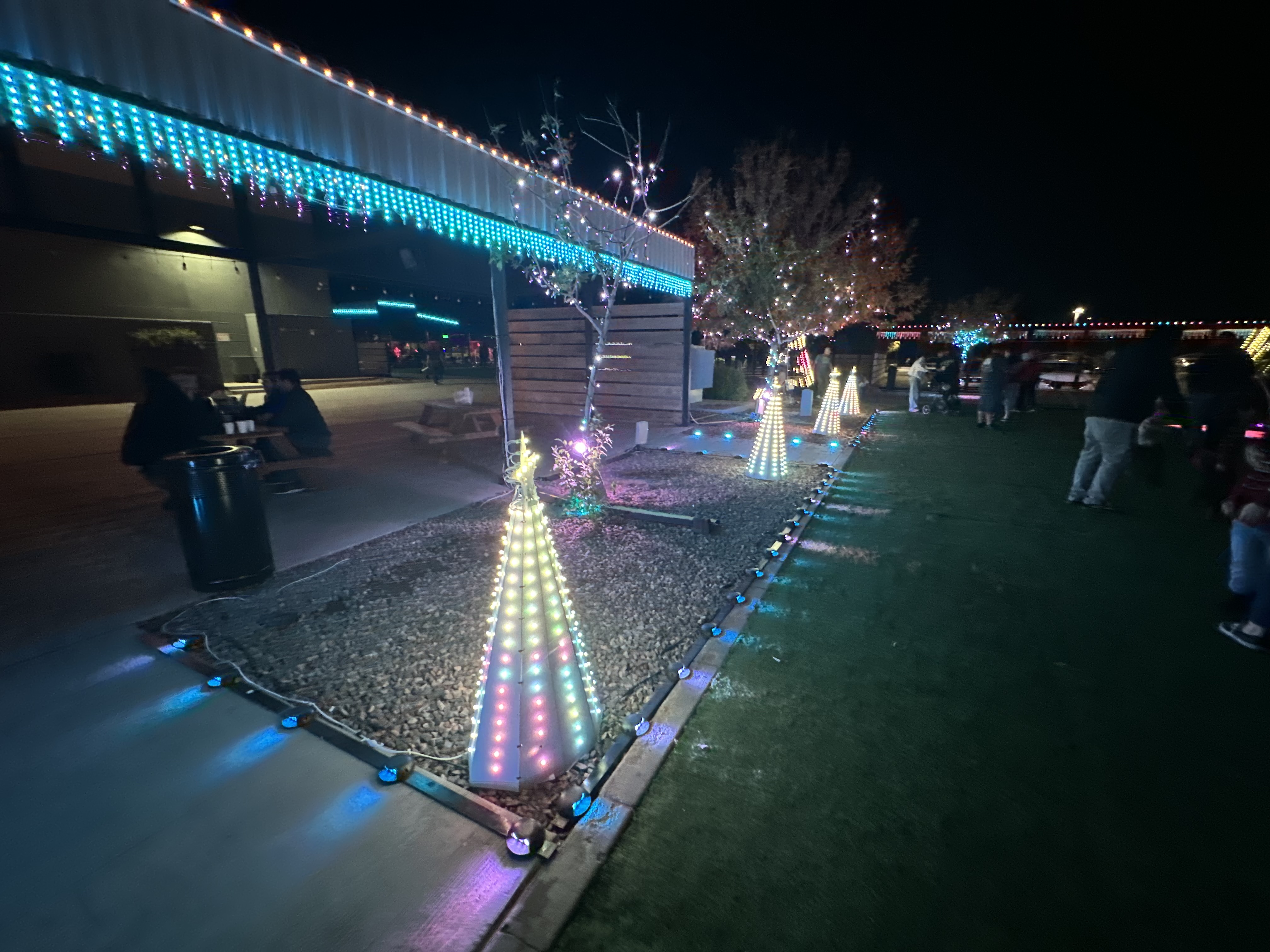

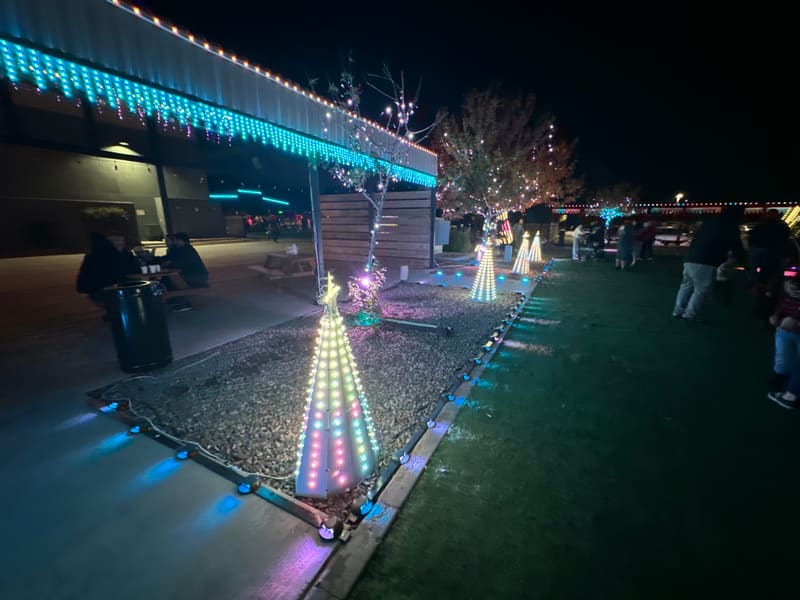

Reference Photos image 1 for controller O1A

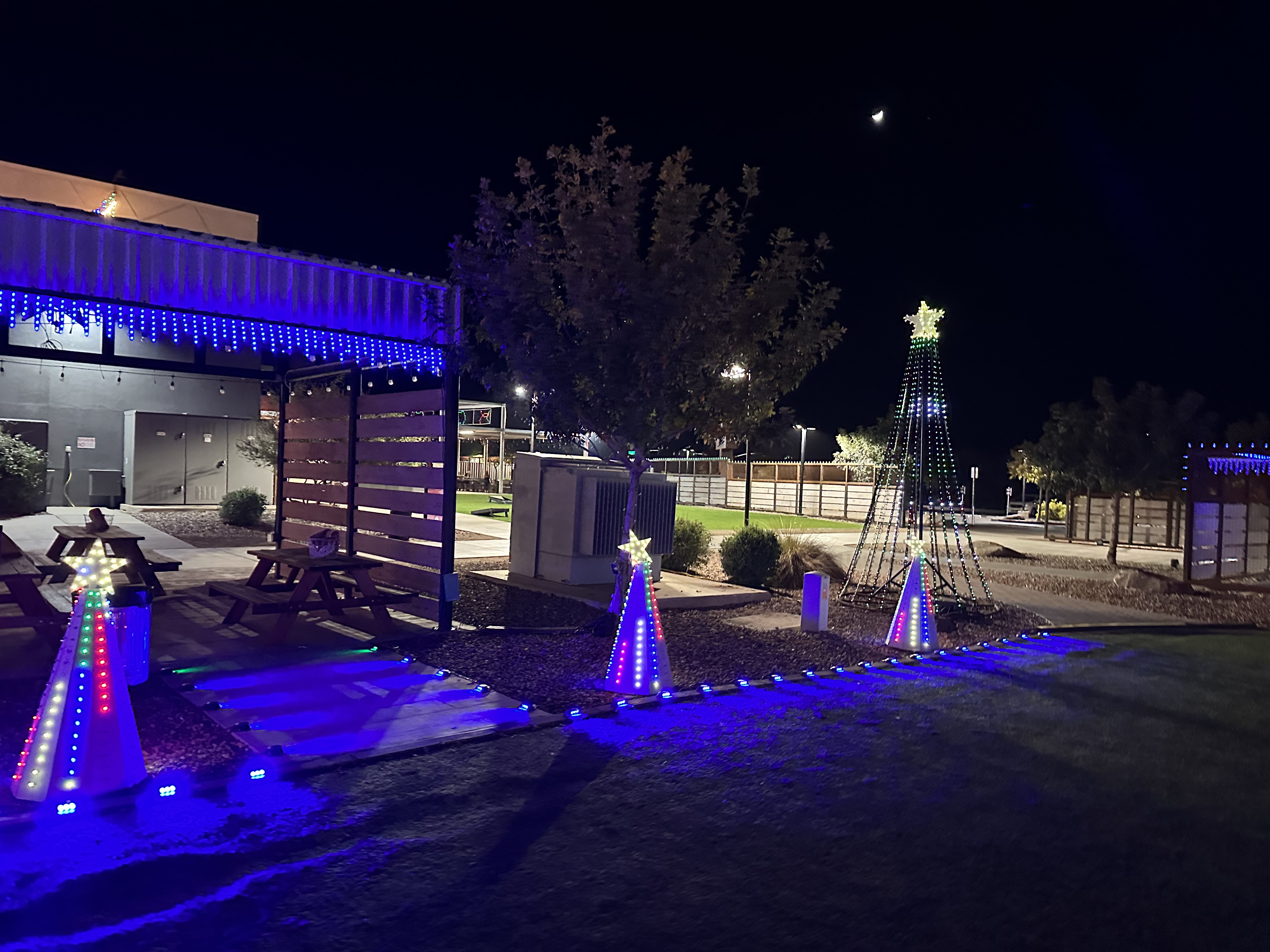

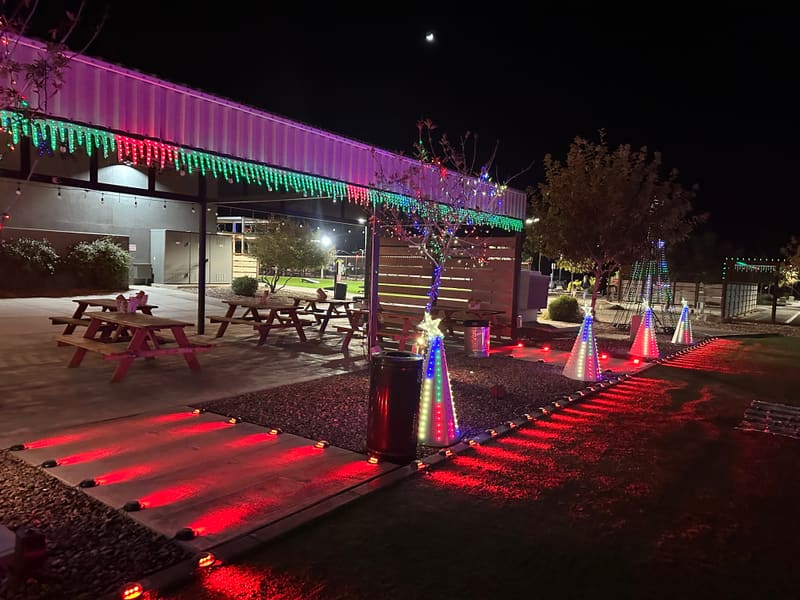

Reference Photos image 2 for controller O1A

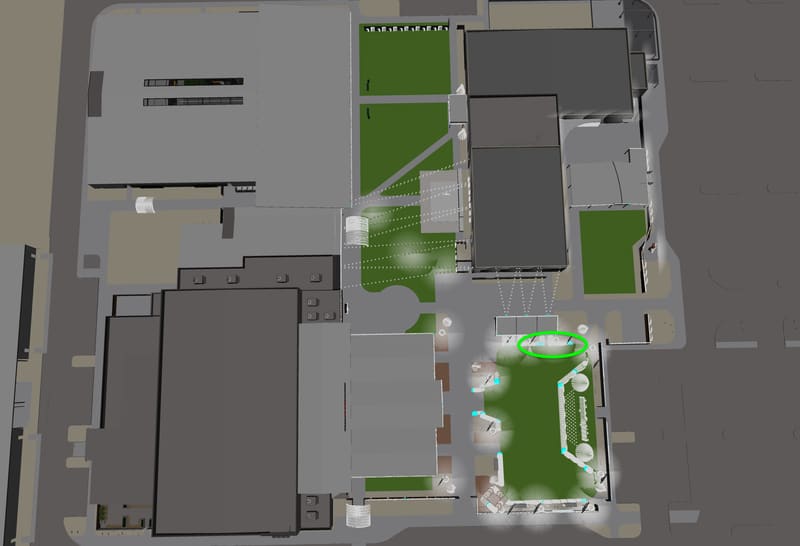

Site Map image 1 for controller O1A

MiniTrees 01

4 data pigtails

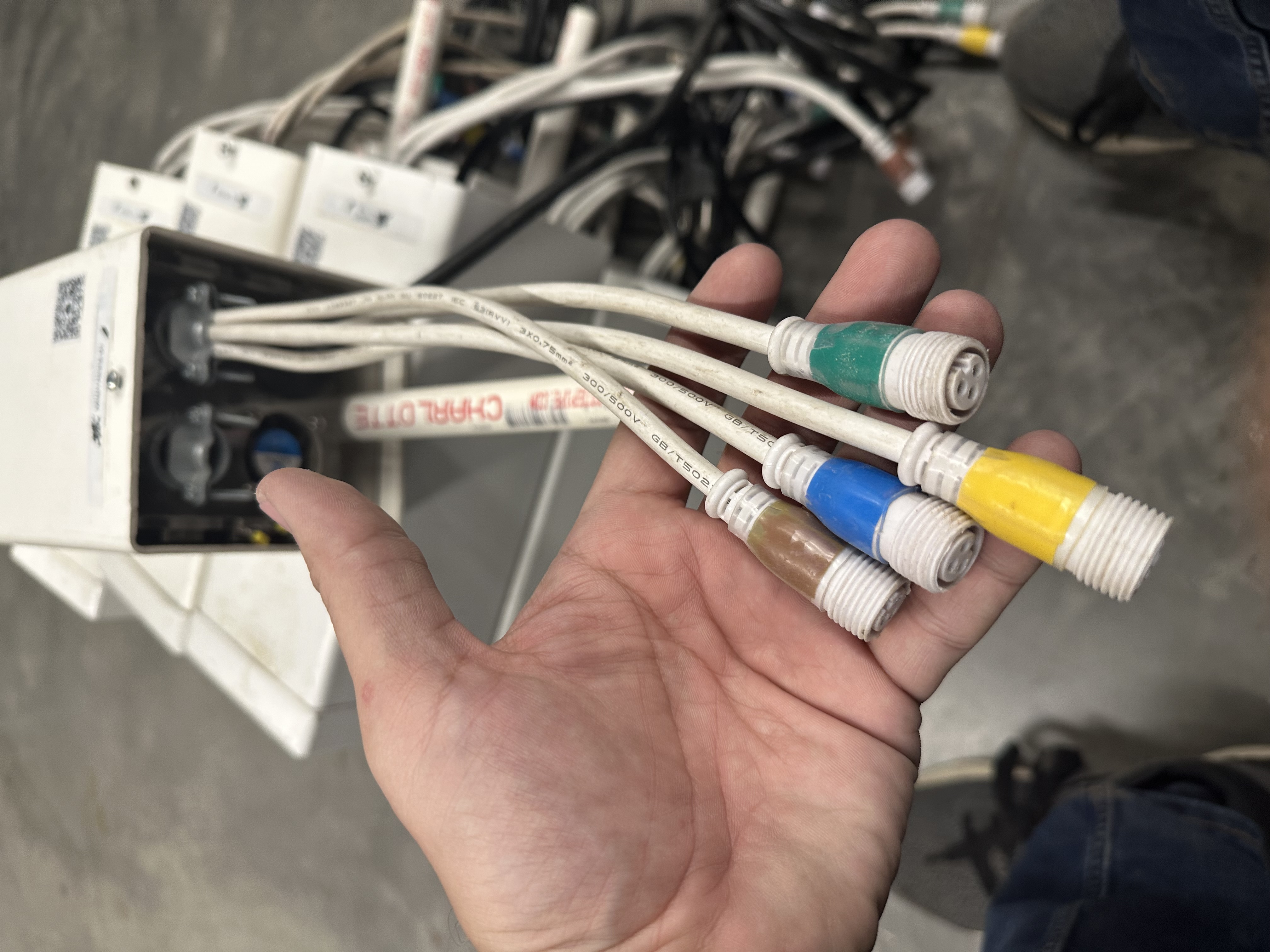

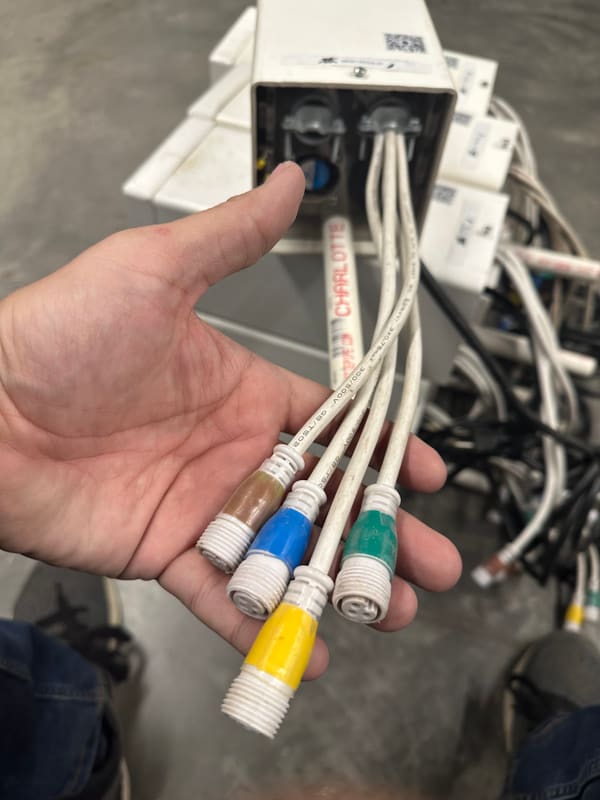

Controller Photos image 1 for controller O1A

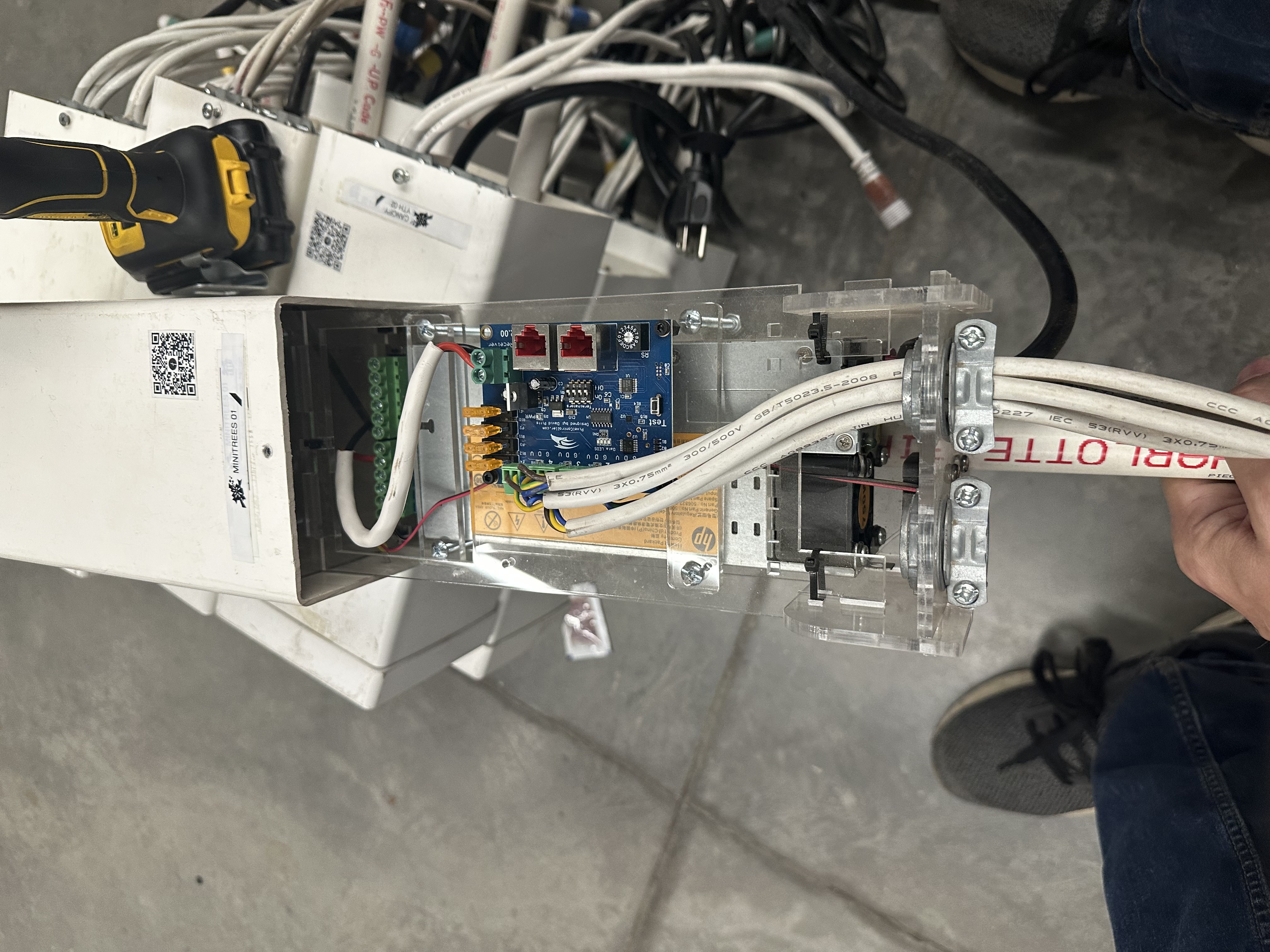

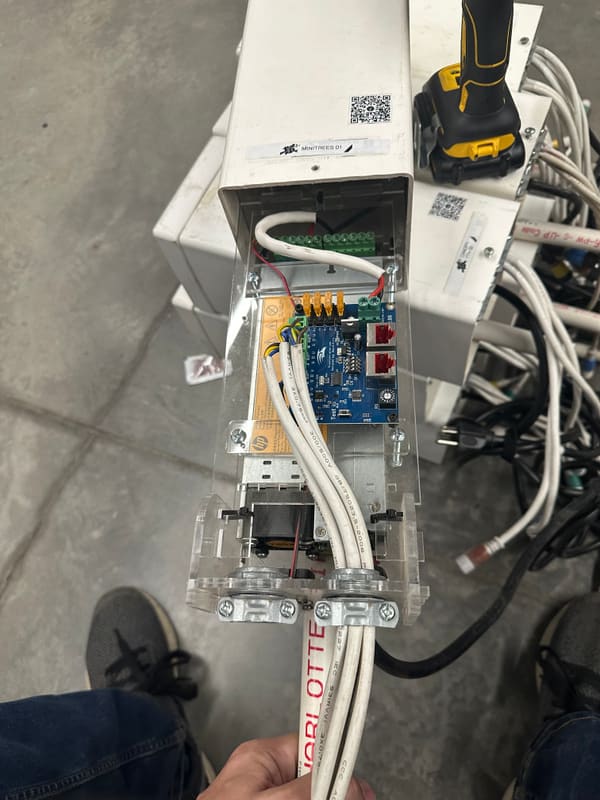

Controller Photos image 2 for controller O1A

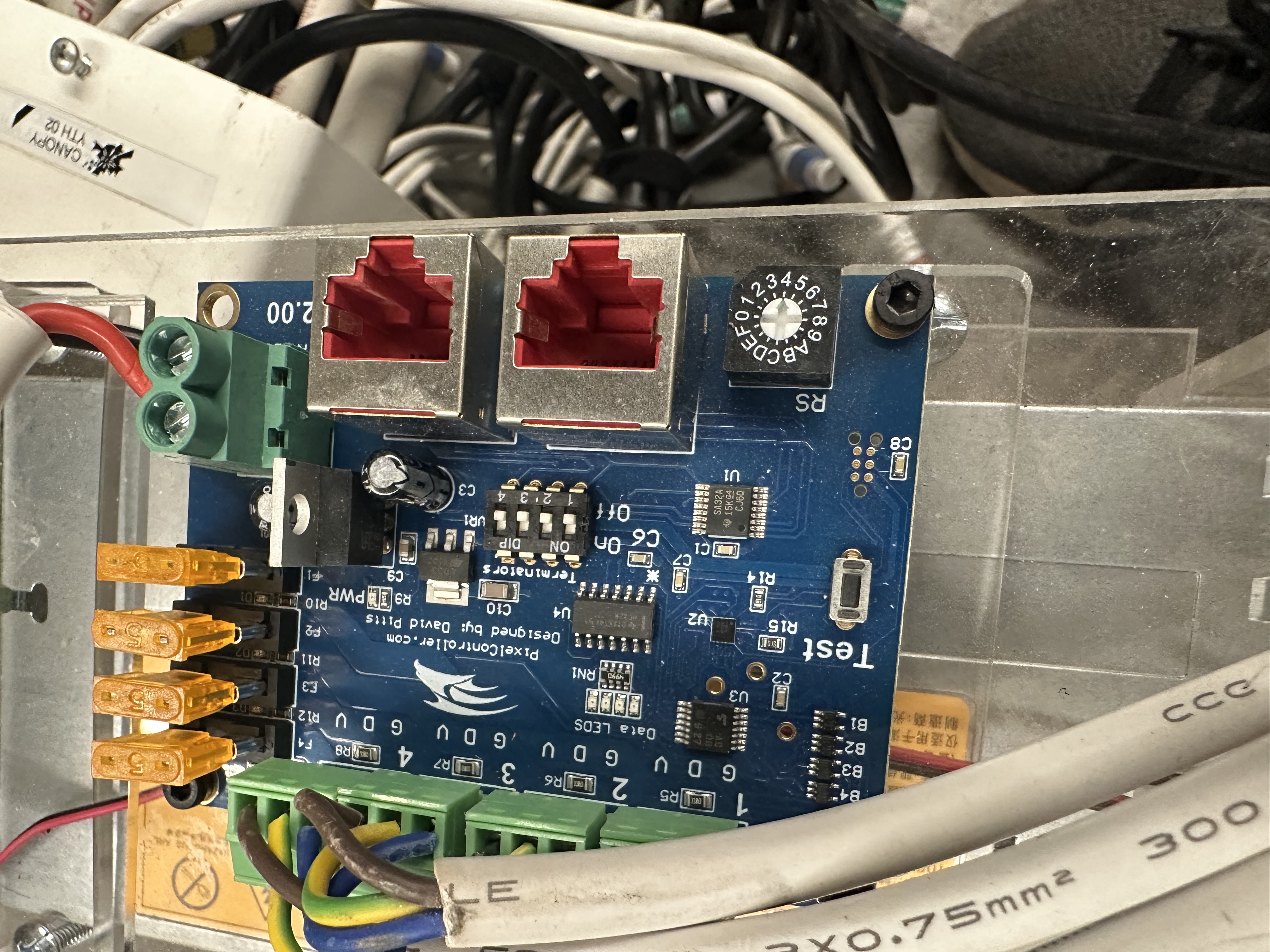

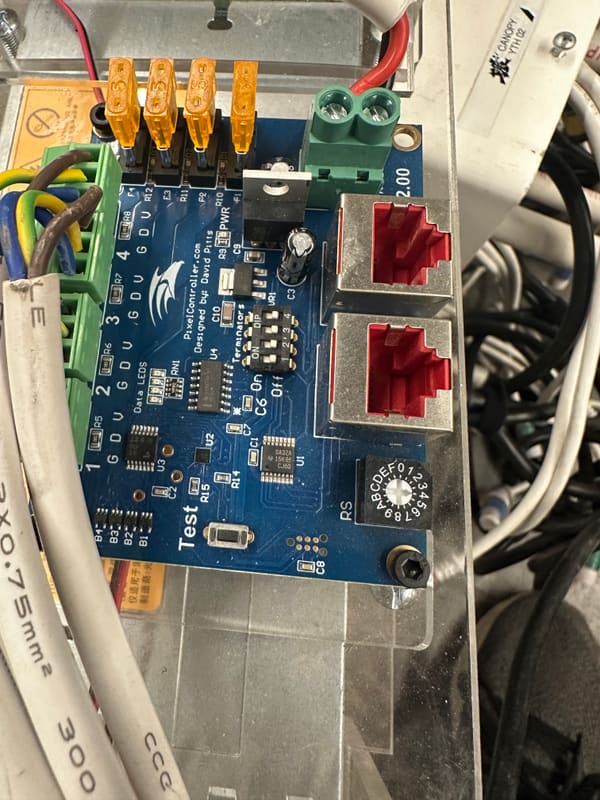

Controller Photos image 3 for controller O1A

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)	Cable Length (3)	Prop 3 Name	Px Count (3)
K8B.O	9	9A	O1A	1		O1A		K8B.O	640	391	190	249	O1A	12	750	0.6	50	57	228	MiniTrees 01	11.5	MiniTree 01.1	85	0	MiniTree 01.2	85	0	MiniTree 01 Star	20
K8B.O	10	10A	O1A	1		O1A			640	391	190	249	O1A	12	750	0.6	50	57		MiniTrees 01	5	MiniTree 02.1	85	0	MiniTree 02.2	85	0	MiniTree 02 Star	20
K8B.O	11	11A	O1A	1		O1A			640	391	190	249	O1A	12	750	0.6	50	57		MiniTrees 01	5	MiniTree 03.1	85	0	MiniTree 03.2	85	0	MiniTree 03 Star	20
K8B.O	12	12A	O1A	1		O1A			640	391	190	249	O1A	12	750	0.6	50	57		MiniTrees 01	12	MiniTree 04.1	85	0	MiniTree 04.2	85	0	MiniTree 04 Star	20

Controllers

1 box available

Show details

4 data pigtails

Controller Role

K8B.O

Pigtails

4 Data

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
