Controller K8PB.N

Location: TrainTunnel 01

Gallery

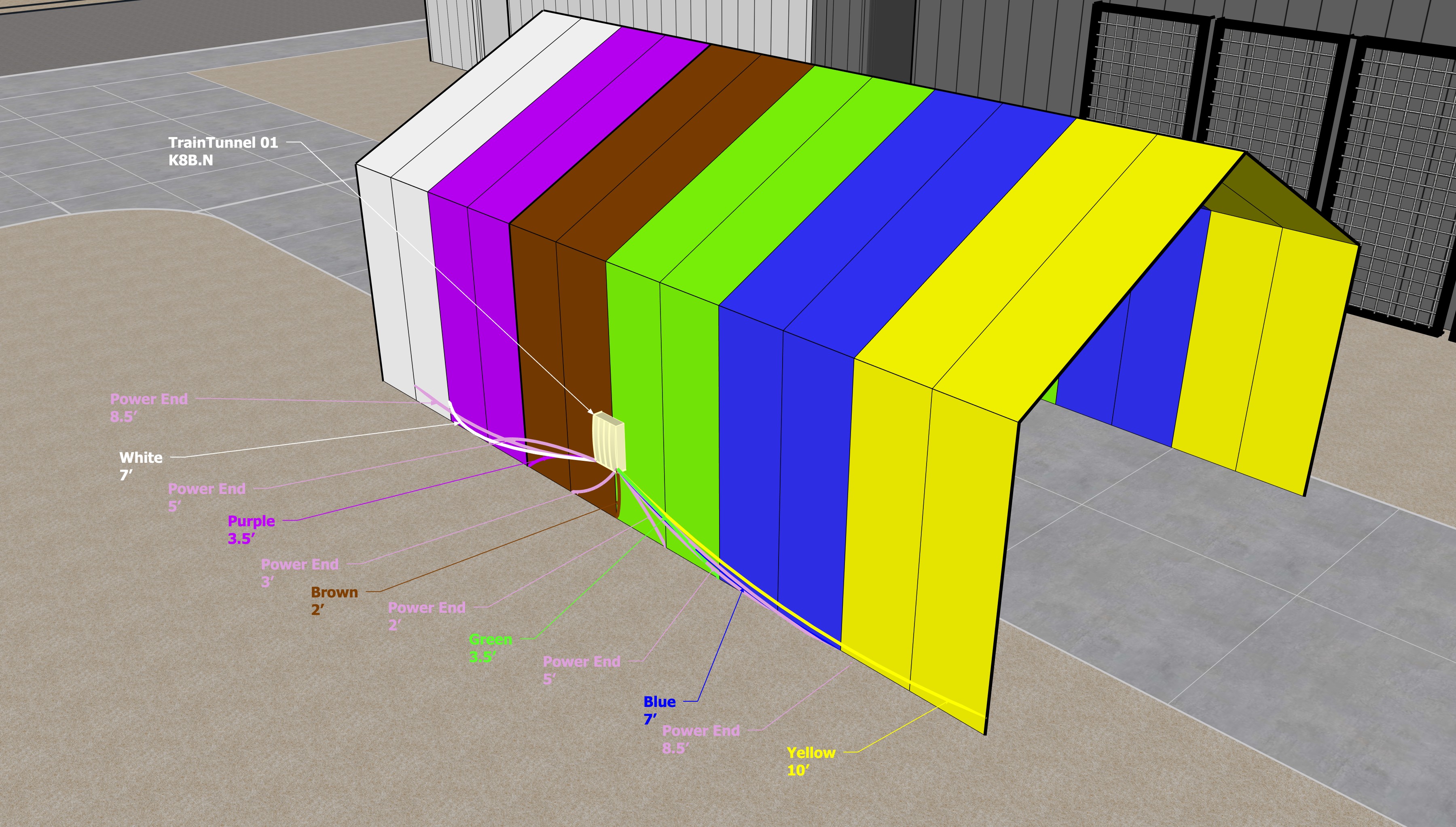

Setup Photos image 1 for controller K8PB.N

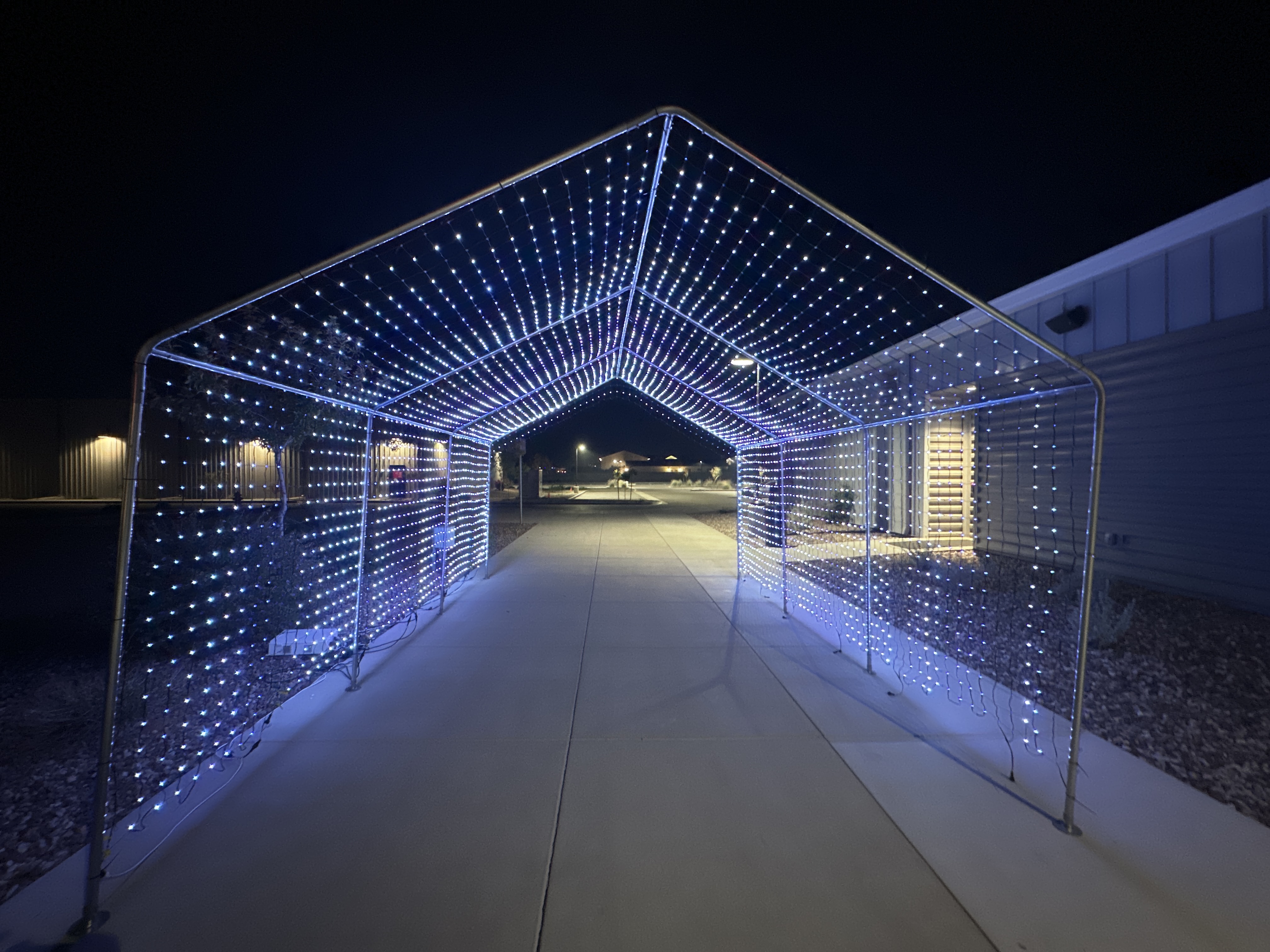

Reference Photos image 1 for controller K8PB.N

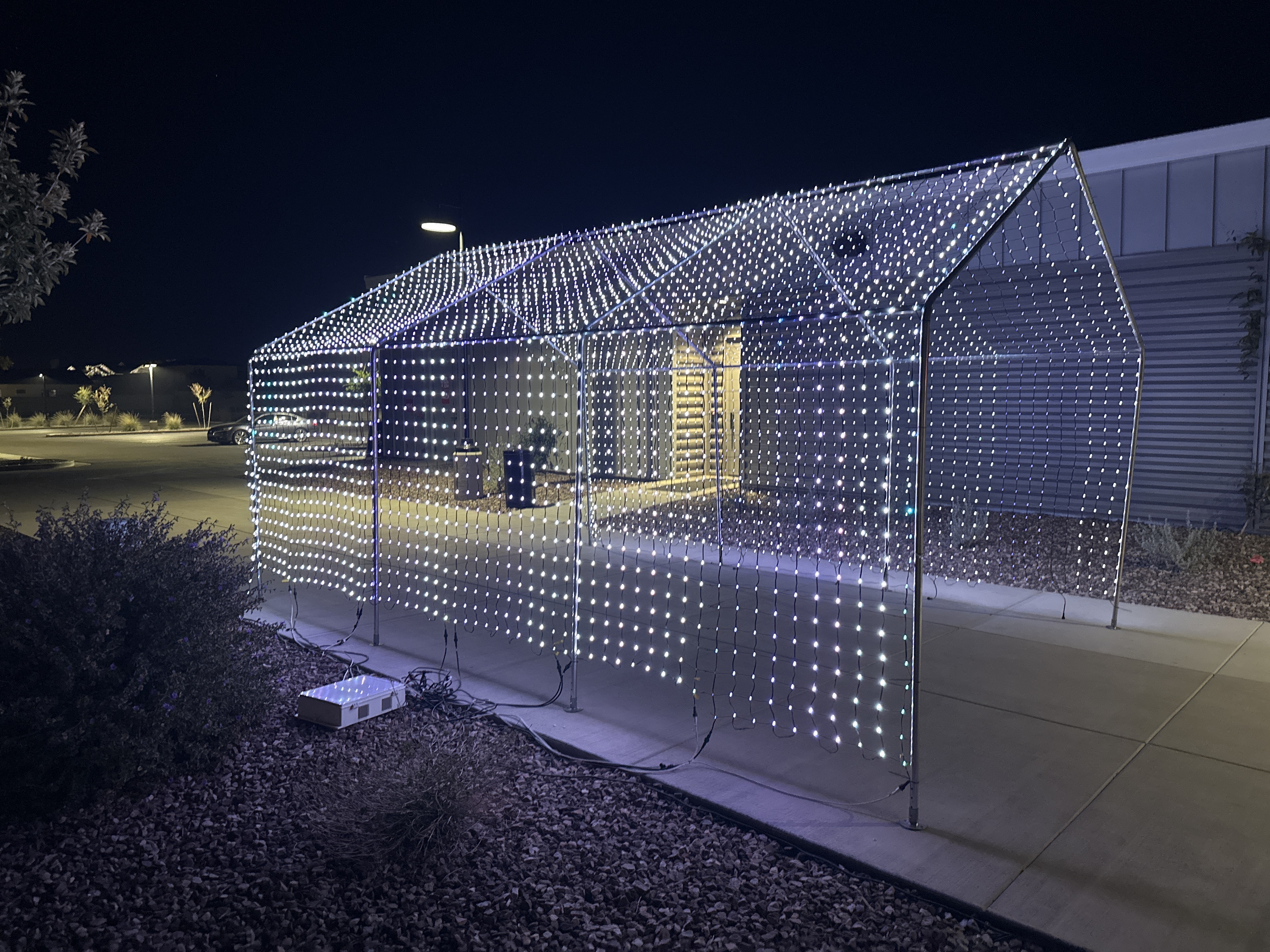

Reference Photos image 2 for controller K8PB.N

Reference Photos image 3 for controller K8PB.N

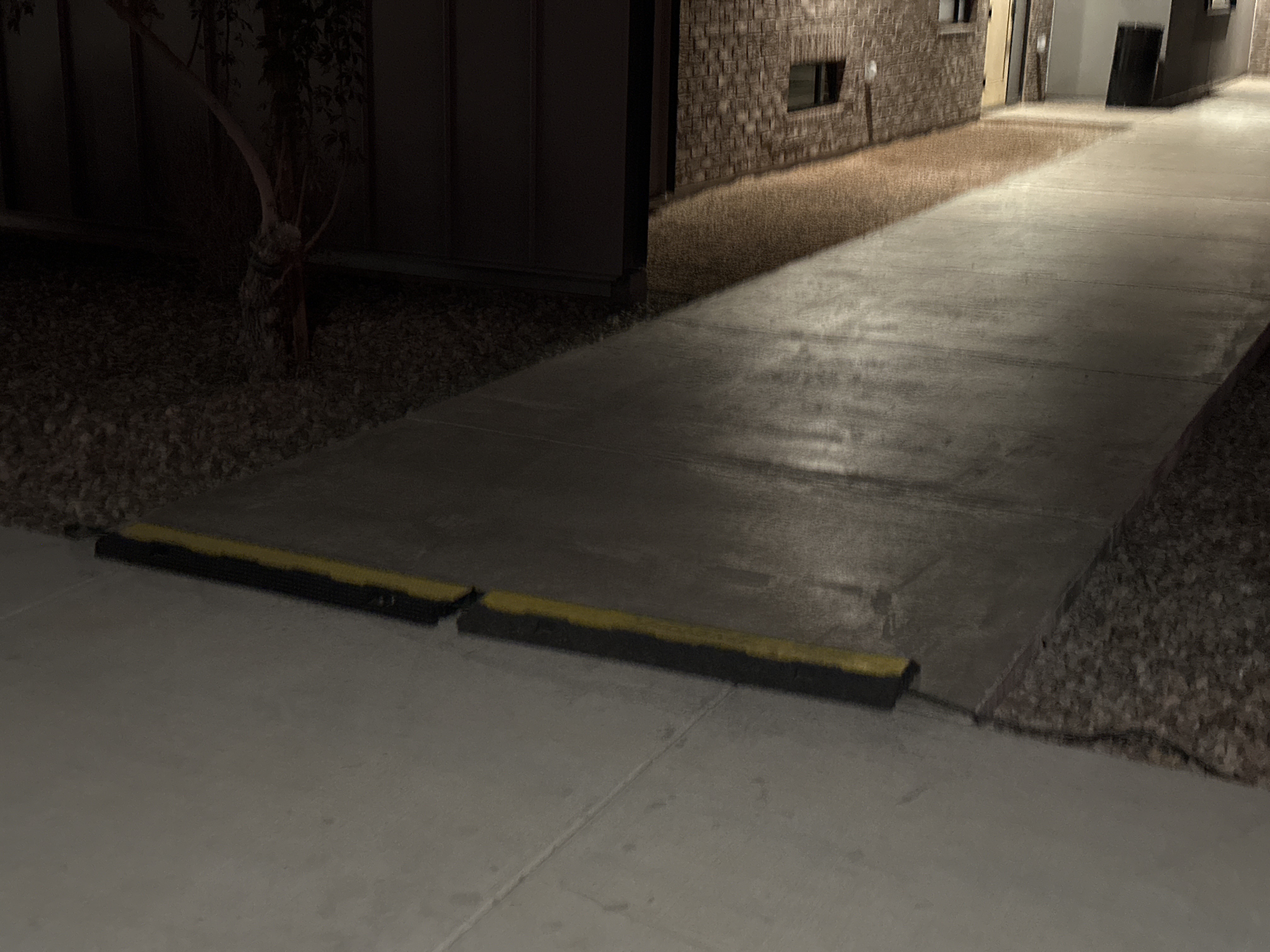

Reference Photos image 4 for controller K8PB.N

Site Map image 1 for controller K8PB.N

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count
K8B.N	1	1	K8B.N	0				Self	800	800	800	0	K8B.N	12	750	0.1	100	80	480	TrainTunnel 01	10	Train Tunnel 01.1	800
K8B.N	2	2	K8B.N	0					800	800	800	0	K8B.N	12	750	0.1	100	80		TrainTunnel 01	8.5	Train Tunnel 01.2	800
K8B.N	3	3	K8B.N	0					800	800	800	0	K8B.N	12	750	0.1	100	80		TrainTunnel 01	7	Train Tunnel 01.3	800
K8B.N	4	4	K8B.N	0					800	800	800	0	K8B.N	12	750	0.1	100	80		TrainTunnel 01	5	Train Tunnel 01.4	800
K8B.N	5	5	K8B.N	0					800	800	800	0	K8B.N	12	750	0.1	100	80		TrainTunnel 01	3.5	Train Tunnel 01.5	800
K8B.N	6	6	K8B.N	0					800	800	800	0	K8B.N	12	750	0.1	100	80		TrainTunnel 01	2	Train Tunnel 01.6	800
K8B.N	7	7	K8B.N	0					800	0	0	800	K8B.N	12	750	0.1	100	0		TrainTunnel 01
K8B.N	8	8	K8B.N	0					800	0	0	800	K8B.N	12	750	0.1	100	0		TrainTunnel 01

Controllers

1 box available

Show details

6 data pigtails

Controller Role

K8B.N

Pigtails

6 Data

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
