Controller K8PB.H

Location: Fence 07

Gallery

Setup Photos image 1 for controller K8PB.H

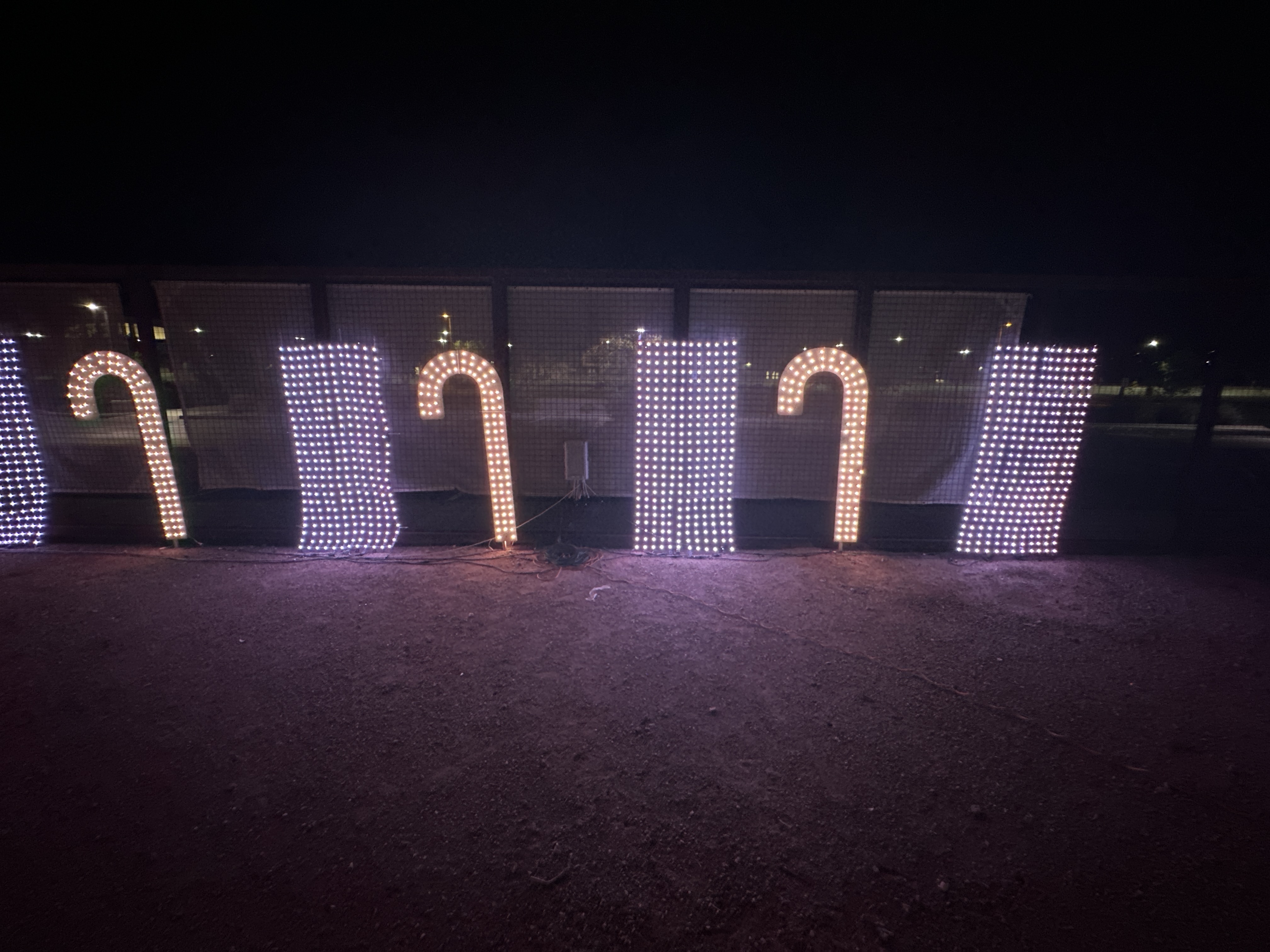

Reference Photos image 1 for controller K8PB.H

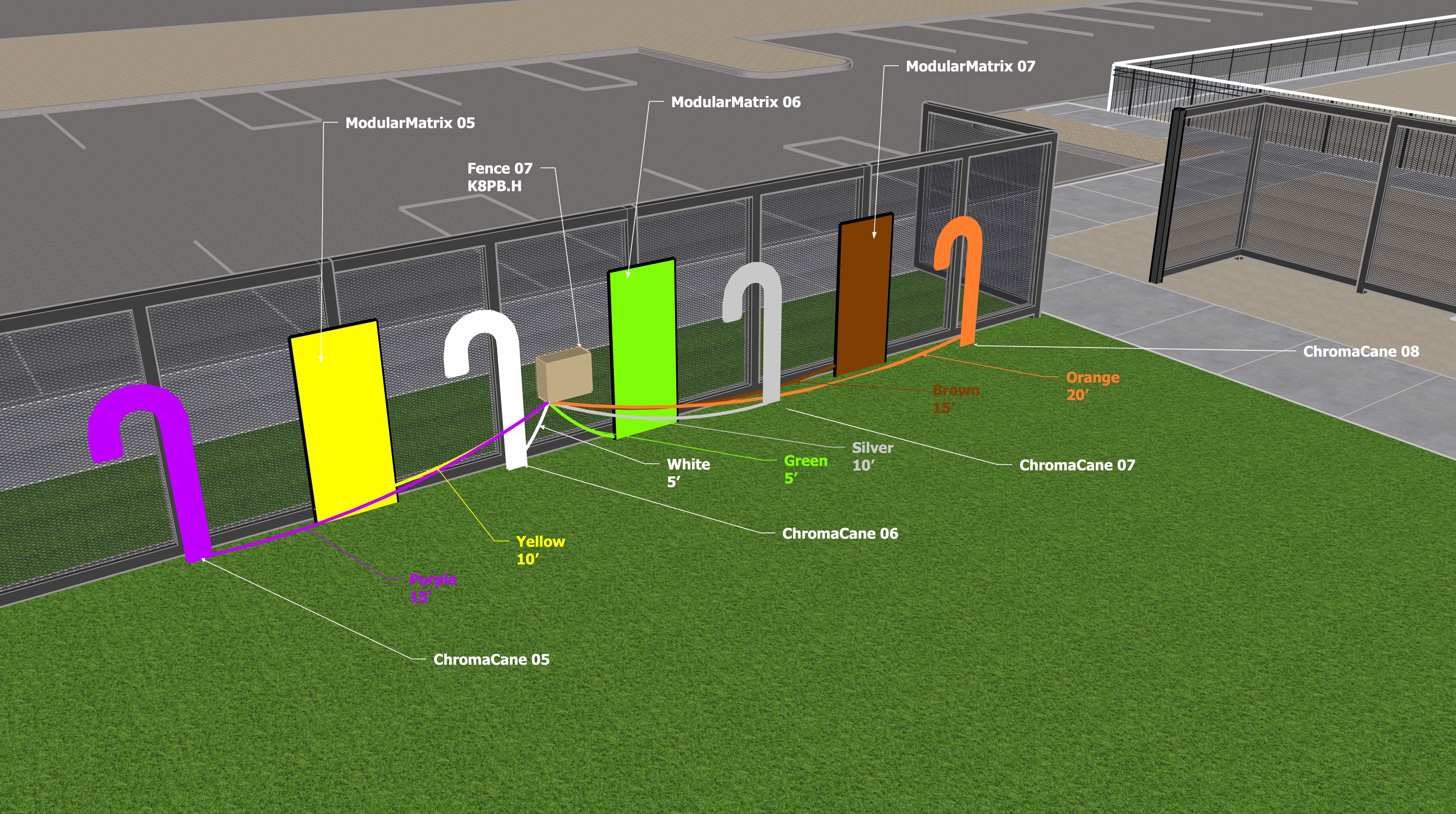

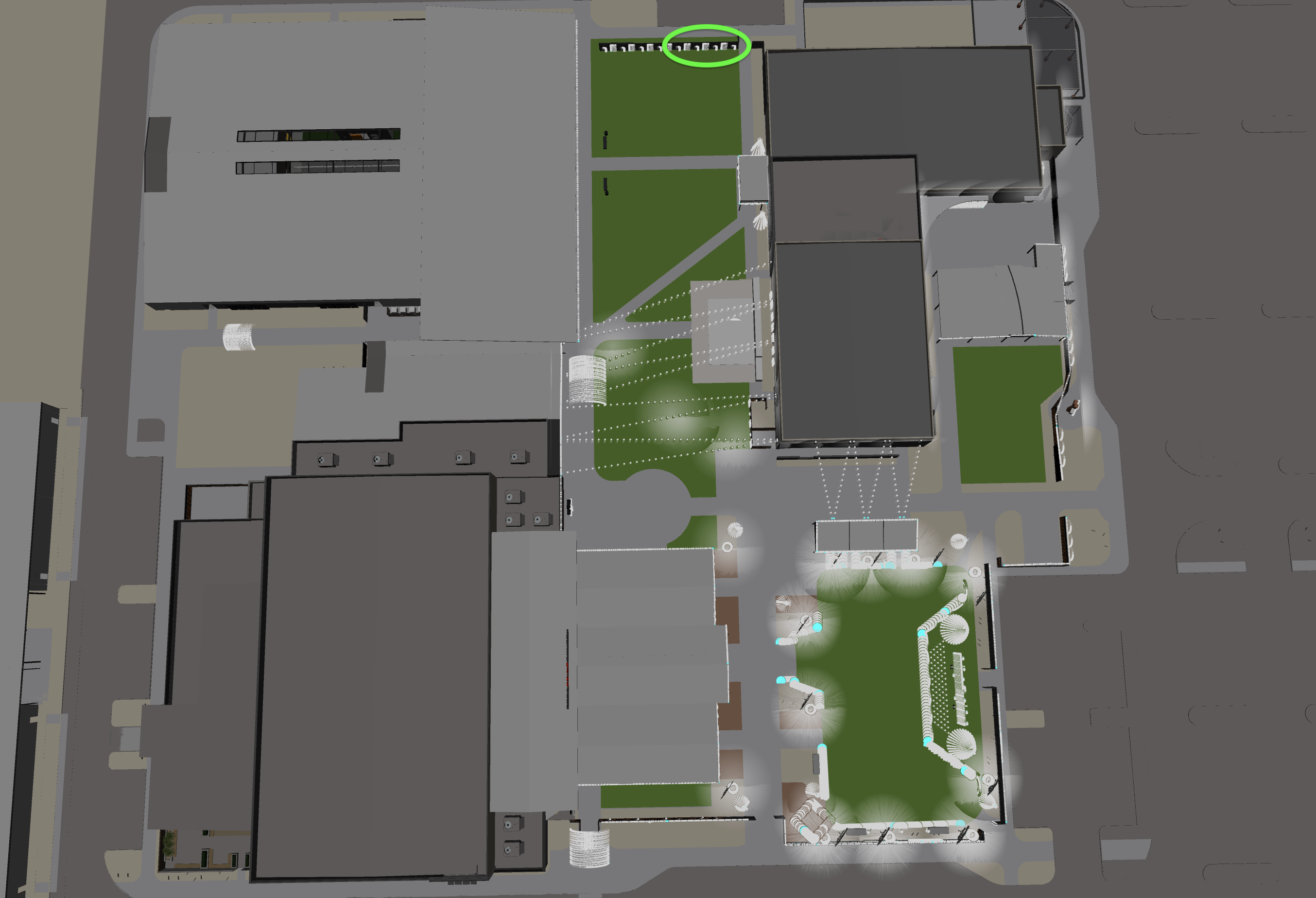

Site Map image 1 for controller K8PB.H

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)	Cable Length (3)	Prop 3 Name	Px Count (3)	Cable Length (4)	Prop 4 Name	Px Count (4)
K8PB.H	1	1	K8PB.H	1				SELF	800	300	300	500	K8PB.H	12	750	0.6	50	90	388.8	Fence 07	10	ModularMatrix 05.1	100	0	ModularMatrix 05.2	100	0	Power Inject	0	0	ModularMatrix 05.3	100
K8PB.H	2	2	K8PB.H	2					800	0	0	800	K8PB.H	12	750	0.6	50	0		Fence 07
K8PB.H	3	3	K8PB.H	3					800	300	300	500	K8PB.H	12	750	0.6	50	90		Fence 07	10	ModularMatrix 06.1	100	0	ModularMatrix 06.2	100	0	Power Inject	0	0	ModularMatrix 06.3	100
K8PB.H	4	4	K8PB.H	4					800	300	300	500	K8PB.H	12	750	0.6	50	90		Fence 07	25	ModularMatrix 07.1	100	0	ModularMatrix 07.2	100	0	Power Inject	0	0	ModularMatrix 07.3	100
K8PB.H	5	5	K8PB.H	5					800	99	99	701	K8PB.H	12	750	0.6	50	29.7		Fence 07	25	ChromaCane 05	99
K8PB.H	6	6	K8PB.H	6					800	99	99	701	K8PB.H	12	750	0.6	50	29.7		Fence 07	10	ChromaCane 06	99
K8PB.H	7	7	K8PB.H	7					800	99	99	701	K8PB.H	12	750	0.6	50	29.7		Fence 07	10	ChromaCane 07	99
K8PB.H	8	8	K8PB.H	8					800	99	99	701	K8PB.H	12	750	0.6	50	29.7		Fence 07	25	ChromaCane 08	99

Controllers

1 box available

Show details

7 data pigtails · 3 power pigtails

Controller Role

K8PB.H

Pigtails

7 Data
3 Power Injection

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
