Controller K8PB.G

Location: Baptism Matrix

Gallery

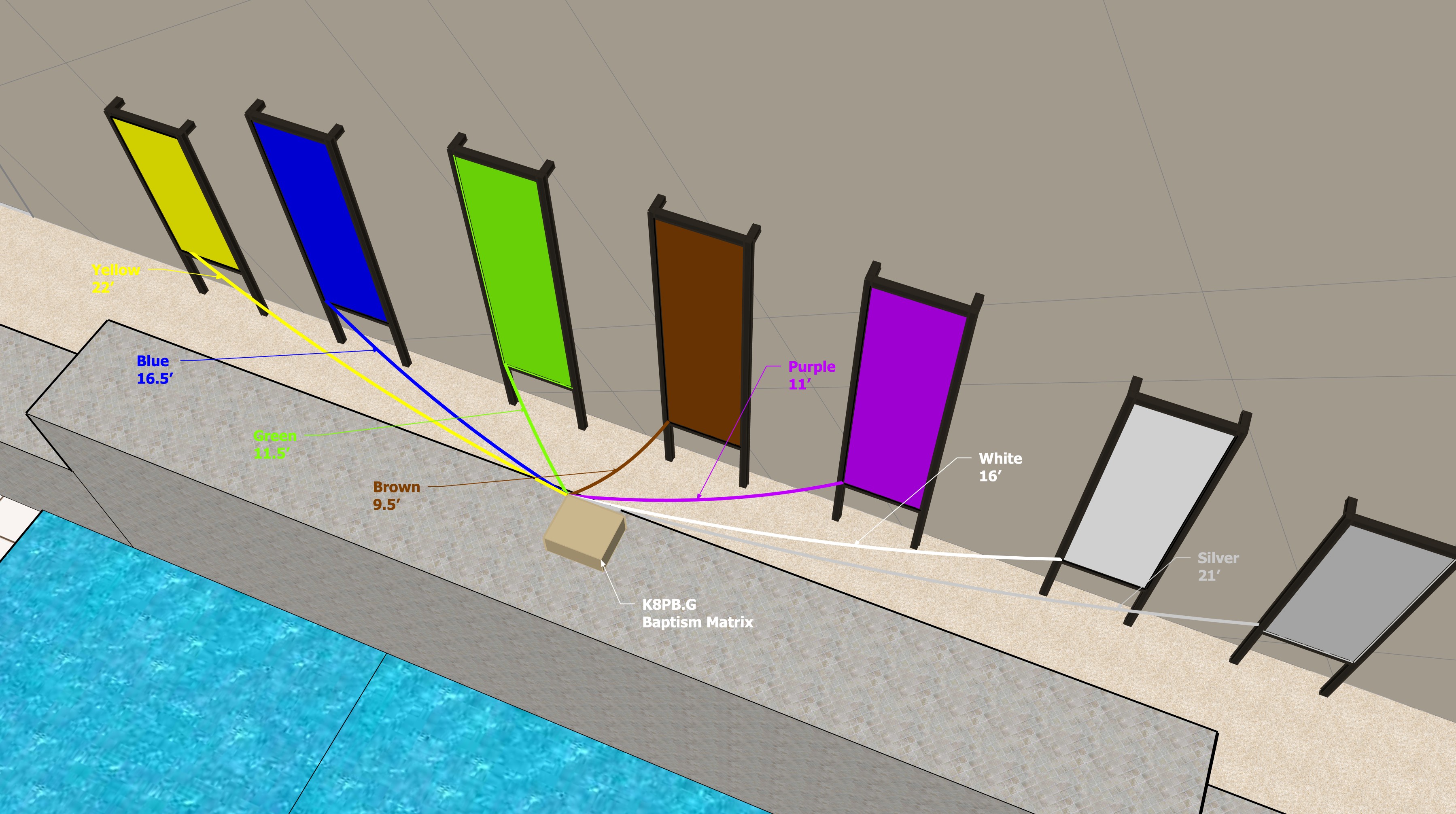

Setup Photos image 1 for controller K8PB.G

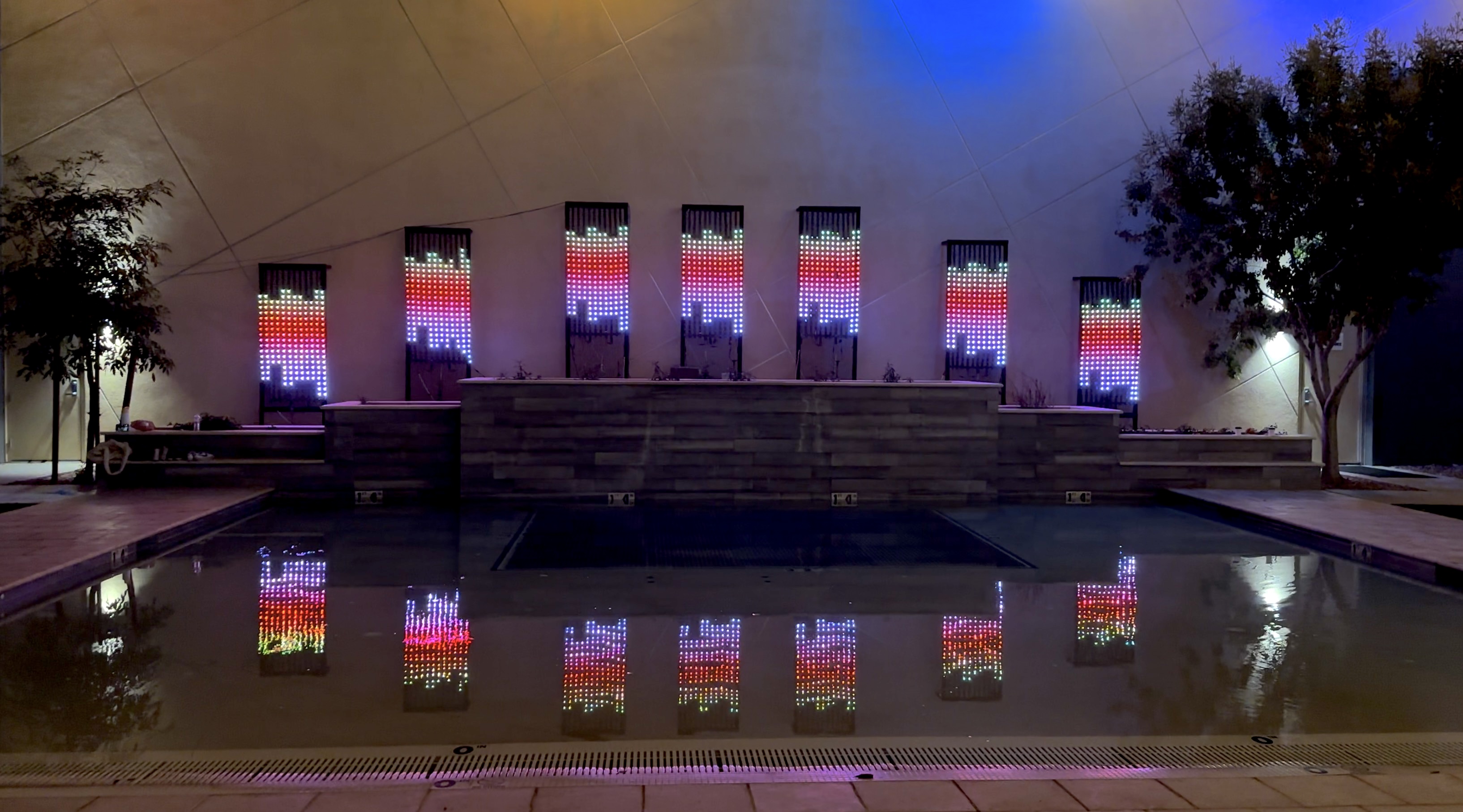

Reference Photos image 1 for controller K8PB.G

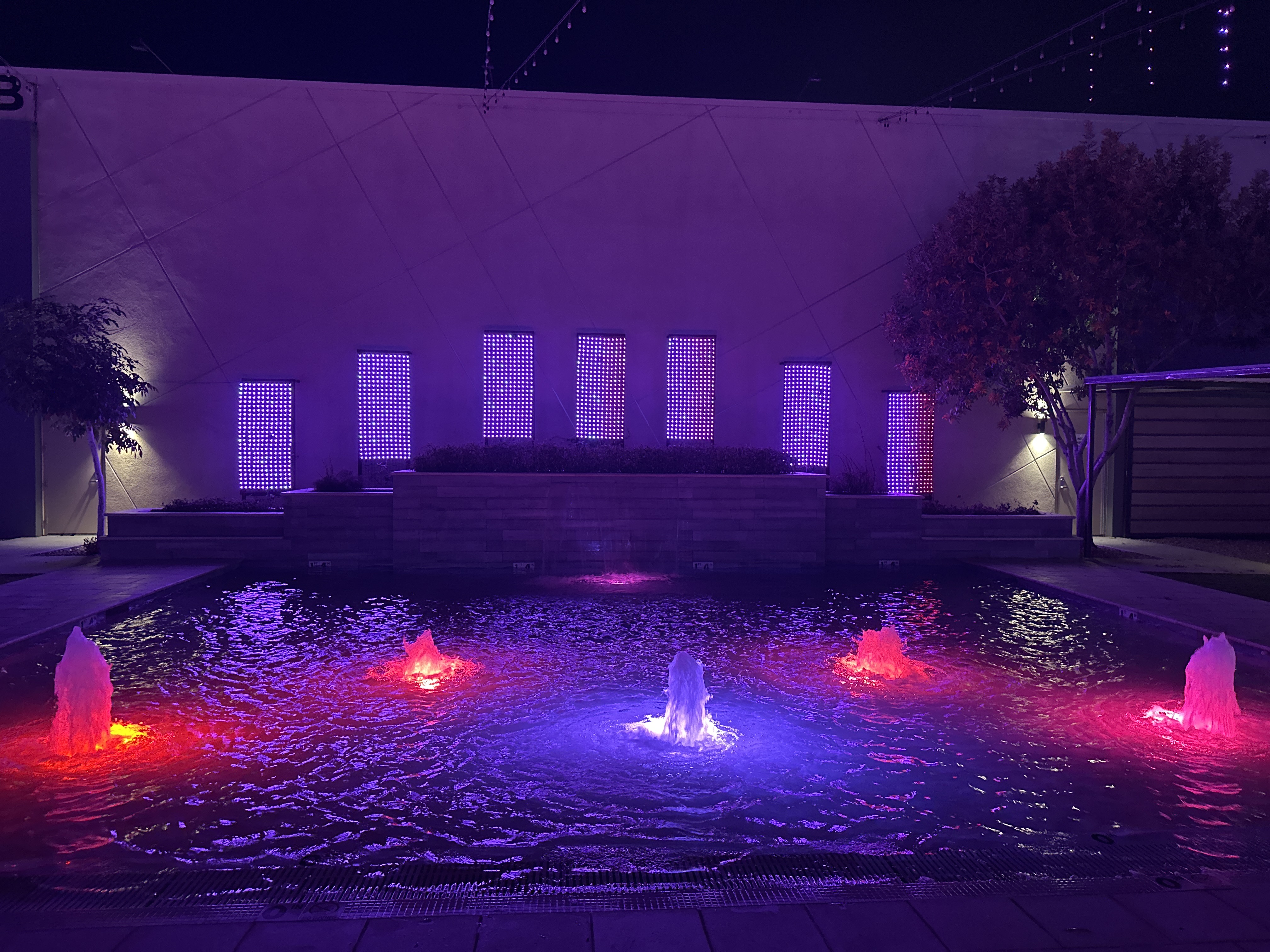

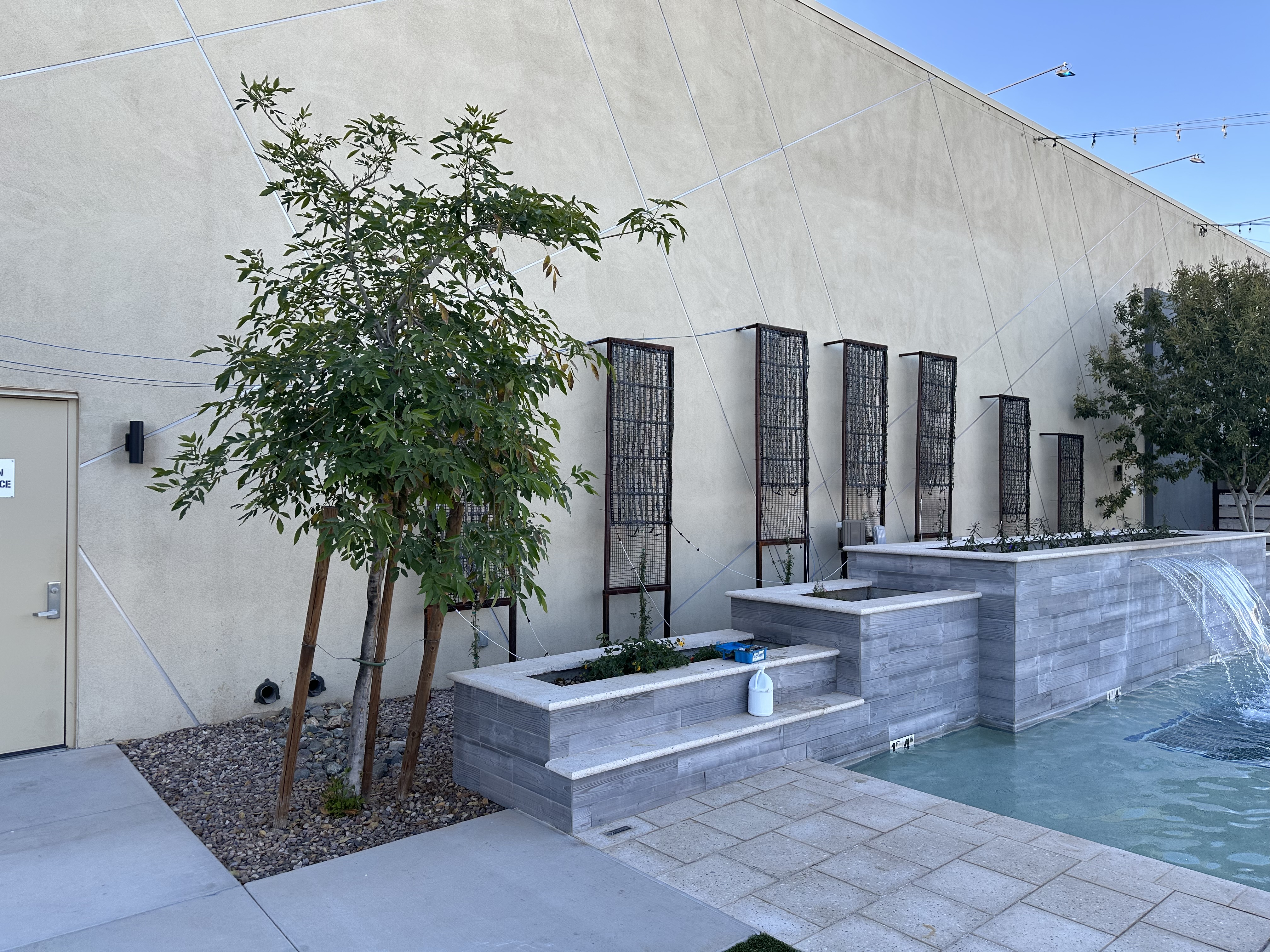

Reference Photos image 2 for controller K8PB.G

Site Map image 1 for controller K8PB.G

Baptism Matrix

7 data pigtails · 7 power pigtails

Reference Photos image 1 for controller K8PB.G

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)	Cable Length (3)	Prop 3 Name	Px Count (3)	Cable Length (4)	Prop 4 Name	Px Count (4)
K8PB.G	1	1	K8PB.G	1				SELF	800	300	300	500	Power Supply	12	750	0.6	50	90	630	Baptism Matrix	22	Matrix - Baptism 01.1	100	0	Matrix - Baptism 01.2	100	0	Power Inject	0	0	Matrix - Baptism 01.3	100
K8PB.G	2	2	K8PB.G	2					800	300	300	500	Power Supply	12	750	0.6	50	90		Baptism Matrix	16.5	Matrix - Baptism 02.1	100	0	Matrix - Baptism 02.2	100	0	Power Inject	0	0	Matrix - Baptism 02.3	100
K8PB.G	3	3	K8PB.G	3					800	300	300	500	Power Supply	12	750	0.6	50	90		Baptism Matrix	11.5	Matrix - Baptism 03.1	100	0	Matrix - Baptism 03.2	100	0	Power Inject	0	0	Matrix - Baptism 03.3	100
K8PB.G	4	4	K8PB.G	4					800	300	300	500	Power Supply	12	750	0.6	50	90		Baptism Matrix	9.5	Matrix - Baptism 04.1	100	0	Matrix - Baptism 04.2	100	0	Power Inject	0	0	Matrix - Baptism 04.3	100
K8PB.G	5	5	K8PB.G	5					800	300	300	500	Power Supply	12	750	0.6	50	90		Baptism Matrix	11	Matrix - Baptism 05.1	100	0	Matrix - Baptism 05.2	100	0	Power Inject	0	0	Matrix - Baptism 05.3	100
K8PB.G	6	6	K8PB.G	6					800	300	300	500	Power Supply	12	750	0.6	50	90		Baptism Matrix	16	Matrix - Baptism 06.1	100	0	Matrix - Baptism 06.2	100	0	Power Inject	0	0	Matrix - Baptism 06.3	100
K8PB.G	7	7	K8PB.G	7					800	300	300	500	Power Supply	12	750	0.6	50	90		Baptism Matrix	21	Matrix - Baptism 07.1	100	0	Matrix - Baptism 07.2	100	0	Power Inject	0	0	Matrix - Baptism 07.3	100
K8PB.G	8	8	K8PB.G	8					800	0	0	800	Power Supply	12	750	0.6	50	0		Baptism Matrix

Controllers

1 box available

Show details

7 data pigtails · 7 power pigtails

Controller Role

K8PB.G

Pigtails

7 Data
7 Power Injection

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
