Controller K8PB.B

Location: Fence 05

Gallery

Setup Photos image 1 for controller K8PB.B

Setup Photos image 2 for controller K8PB.B

Reference Photos image 1 for controller K8PB.B

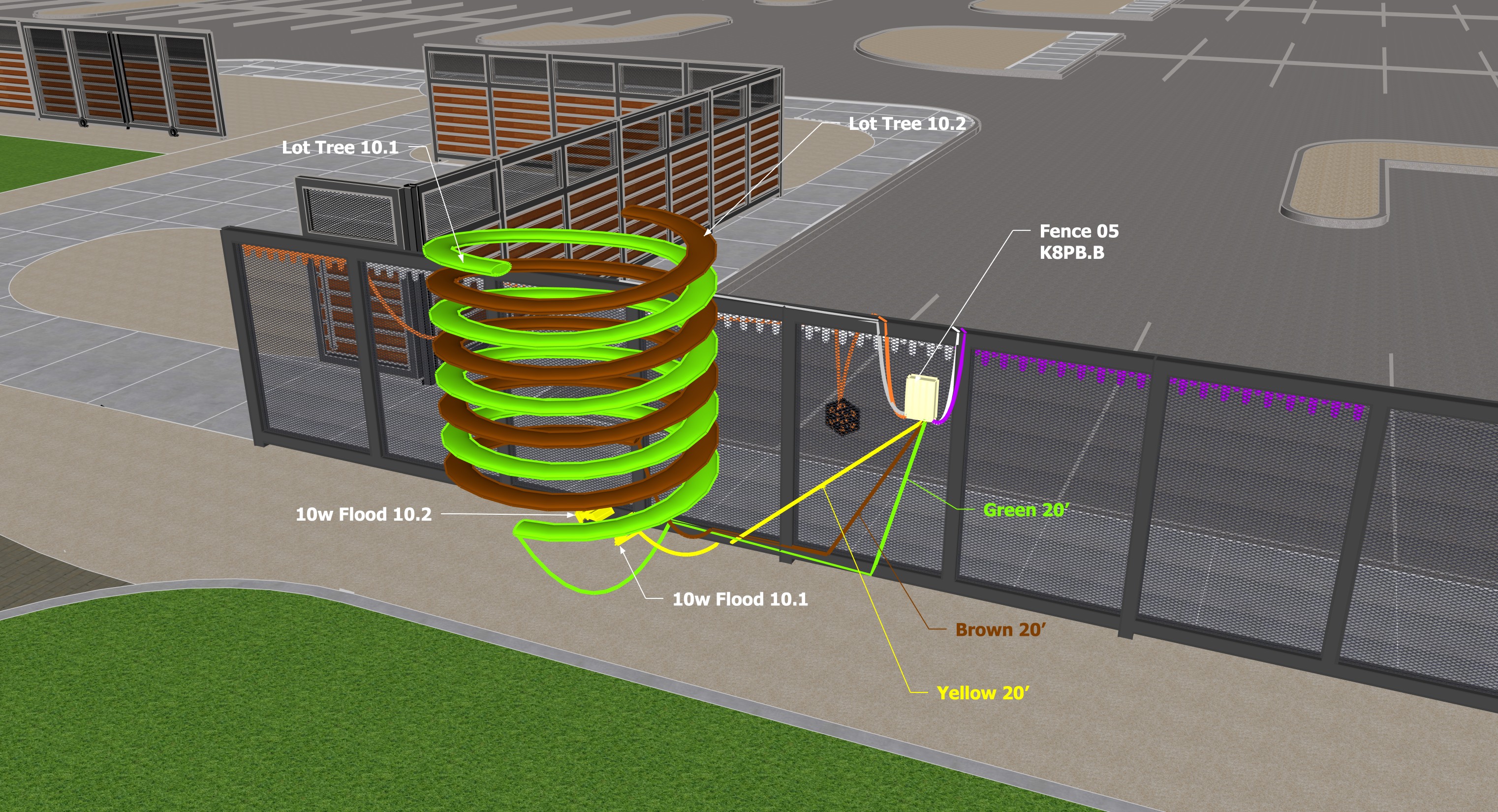

Site Map image 1 for controller K8PB.B

Fence 05

7 data pigtails

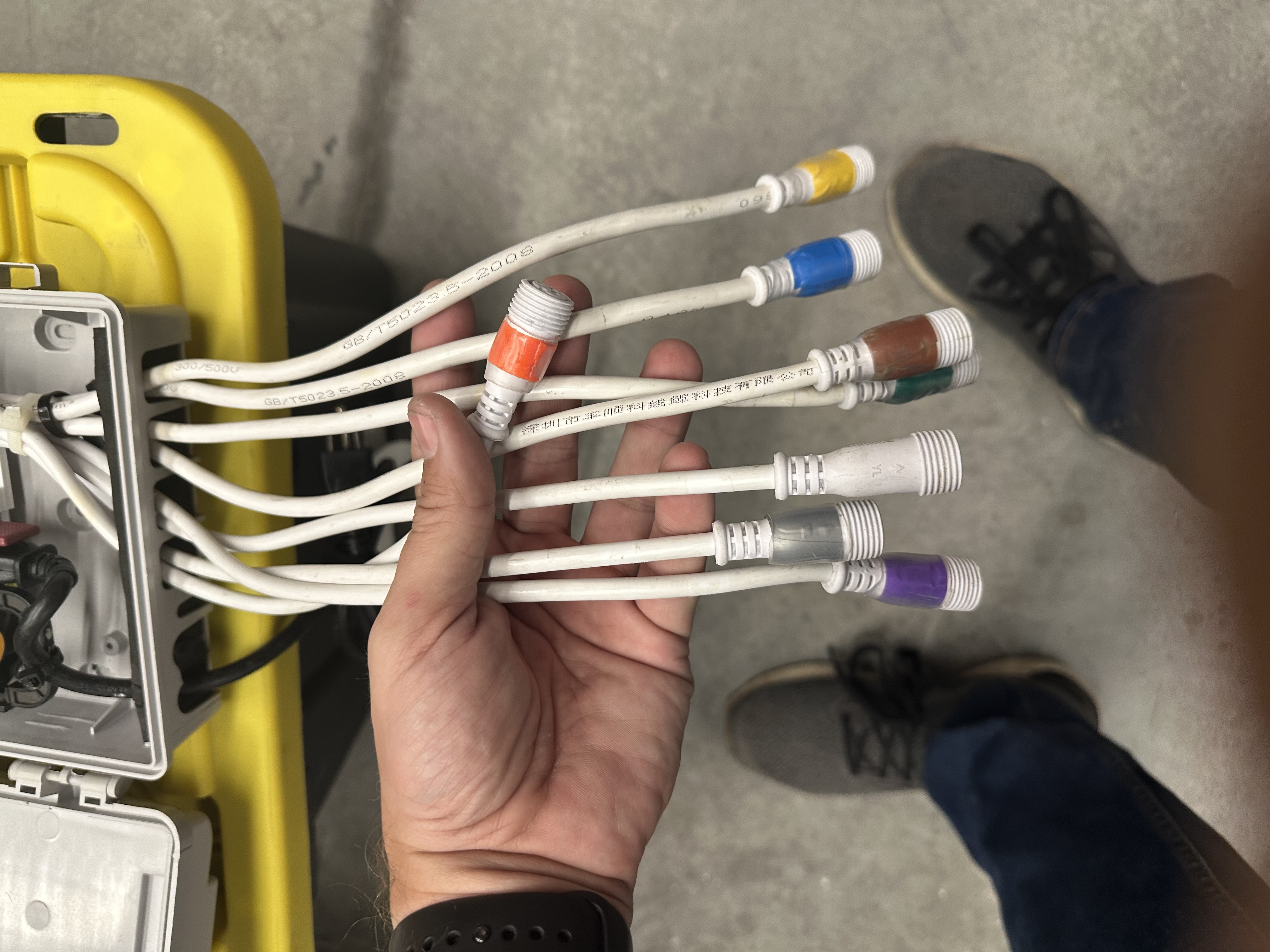

Controller Photos image 1 for controller K8PB.B

Controller Photos image 2 for controller K8PB.B

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)	Cable Length (3)	Prop 3 Name	Px Count (3)	Cable Length (4)	Prop 4 Name	Px Count (4)
K8PB.B	1	1	K8PB.B	1				SELF	800	4	4	796	K8PB.B	12	750	0.6	50	1.2	352.8	Fence 05	20	10w Flood 10.1	1	0	10w Flood 10.1 IU	1	0	10w Flood 10.2	1	0	10w Flood 10.2 IU	1
K8PB.B	2	2	K8PB.B	2					800	0	0	800	K8PB.B	12	750	0.6	50	0		Fence 05
K8PB.B	3	3	K8PB.B	3					800	200	200	600	K8PB.B	12	750	0.6	50	60		Fence 05	20	Lot Tree 10.1	200
K8PB.B	4	4	K8PB.B	4					800	200	200	600	K8PB.B	12	750	0.6	50	60		Fence 05	20	Lot Tree 10.2	200
K8PB.B	5	5	K8PB.B	5					800	200	200	600	K8PB.B	12	750	0.6	50	60		Fence 05	3.5	Icicles 04.06 (Right)	100	0	Icicles 04.05 (Right)	100
K8PB.B	6	6	K8PB.B	6					800	200	200	600	K8PB.B	12	750	0.6	50	60		Fence 05	3.5	Icicles 04.07 (Left)	100	0	Icicles 04.08 (Left)	100
K8PB.B	7	7	K8PB.B	7					800	300	300	500	K8PB.B	12	750	0.6	50	90		Fence 05	11	Icicles 04.09 (Left)	100	0	Icicles 04.10 (Left)	100		Icicles 04.11 (Left)	100
K8PB.B	8	8	K8PB.B	8					800	72	72	728	K8PB.B	12	750	0.6	50	21.6		Fence 05	6	ChromaMiniFlake 015	36	18	ChromaMiniFlake 016	36	5

Controllers

1 box available

Show details

7 data pigtails

Controller Role

K8PB.B

Pigtails

7 Data

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
