Controller K8PB.AC

Location: Interactive Matrix 01

Gallery

Setup Photos image 1 for controller K8PB.AC

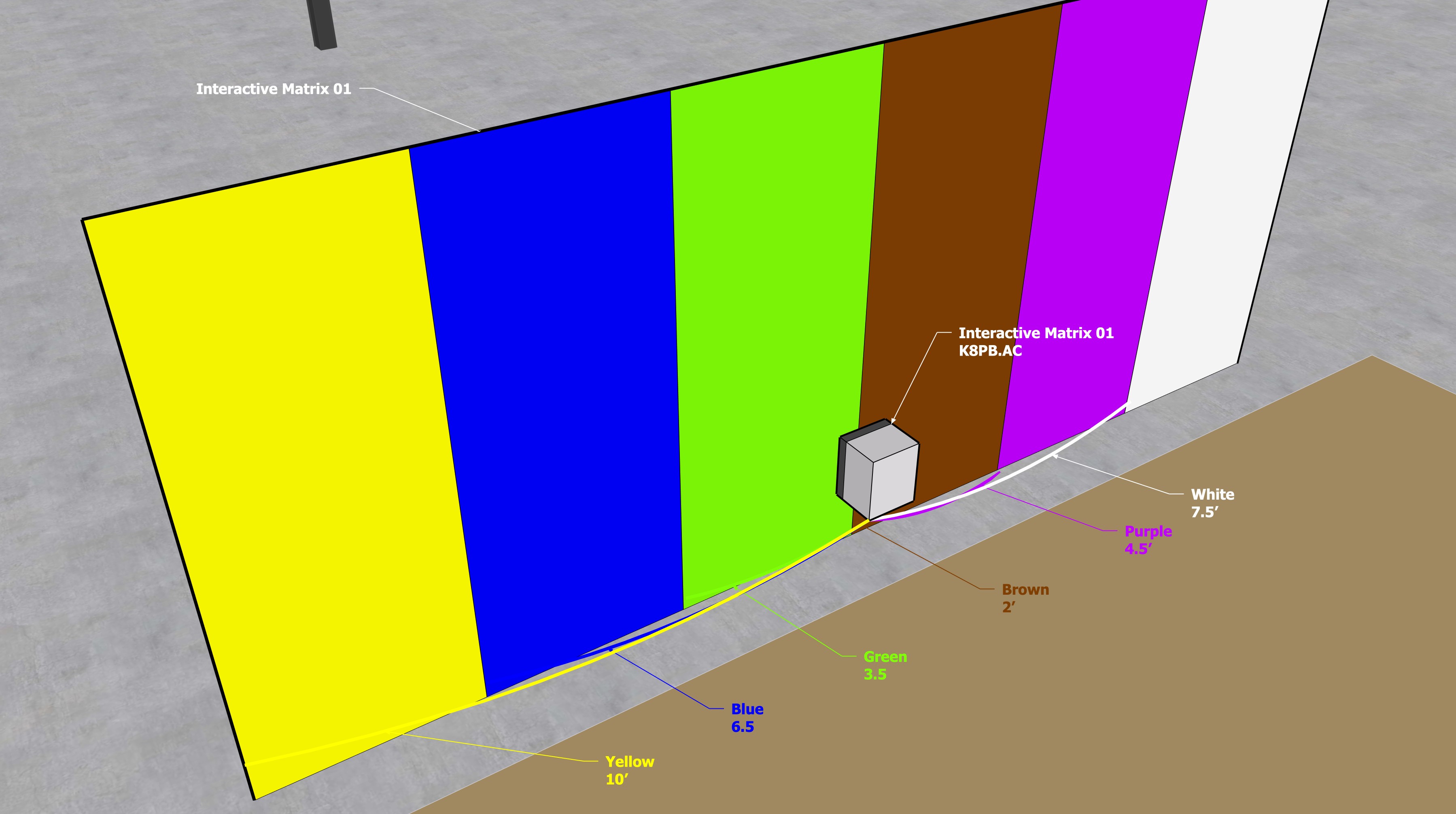

Setup Photos image 2 for controller K8PB.AC

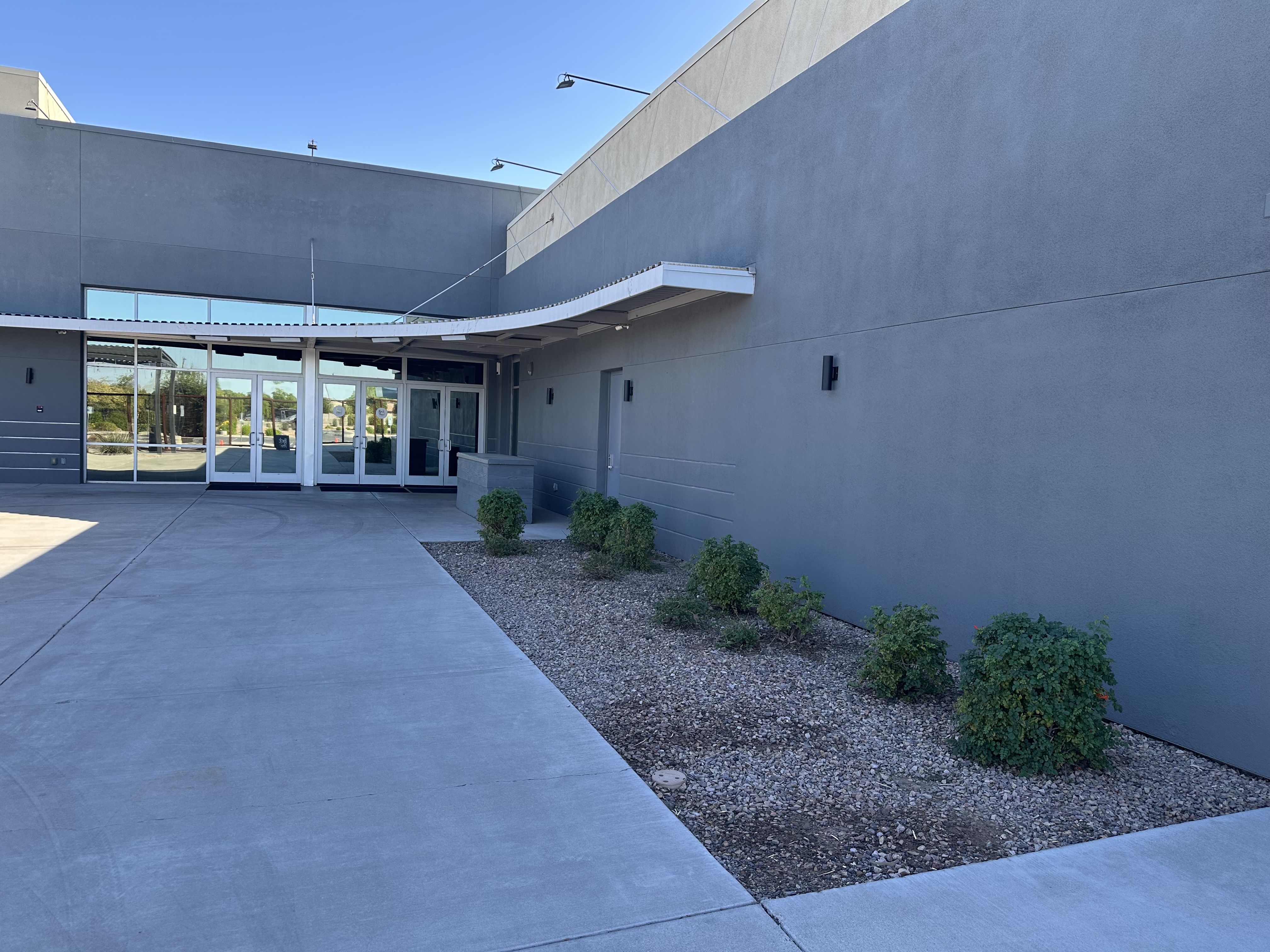

Reference Photos image 1 for controller K8PB.AC

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count
K8PB.AC	1	1	1AC	0				SELF	800	250	250	550	1AC	12	750	0.1	100	25	150	Interactive Matrix 01	10	Interactive Matrix 01.01	250
K8PB.AC	2	2	2AC	0					800	250	250	550	1AC	12	750	0.1	100	25		Interactive Matrix 01	5	Interactive Matrix 01.02	250
K8PB.AC	3	3	3AC	0					800	250	250	550	1AC	12	750	0.1	100	25		Interactive Matrix 01	5	Interactive Matrix 01.03	250
K8PB.AC	4	4	4AC	0					800	250	250	550	1AC	12	750	0.1	100	25		Interactive Matrix 01	5	Interactive Matrix 01.04	250
K8PB.AC	5	5	5AC	0					800	250	250	550	1AC	12	750	0.1	100	25		Interactive Matrix 01	5	Interactive Matrix 01.05	250
K8PB.AC	6	6	6AC	0					800	250	250	550	1AC	12	750	0.1	100	25		Interactive Matrix 01	10	Interactive Matrix 01.06	250
K8PB.AC	7	7	7AC	0					800	0	0	800	1AC	12	750	0.6	100	0		Interactive Matrix 01
K8PB.AC	8	8	8AC	0					800	0	0	800	1AC	12	750	0.6	100	0		Interactive Matrix 01

Controllers

1 box available

Show details

6 data pigtails

Controller Role

K8PB.AC

Pigtails

6 Data

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
