Controller K8PB.A

Location: ChromaFlakes 01

Gallery

Setup Photos image 1 for controller K8PB.A

Site Map image 1 for controller K8PB.A

ChromaFlakes 01

4 data pigtails · 1 power pigtail

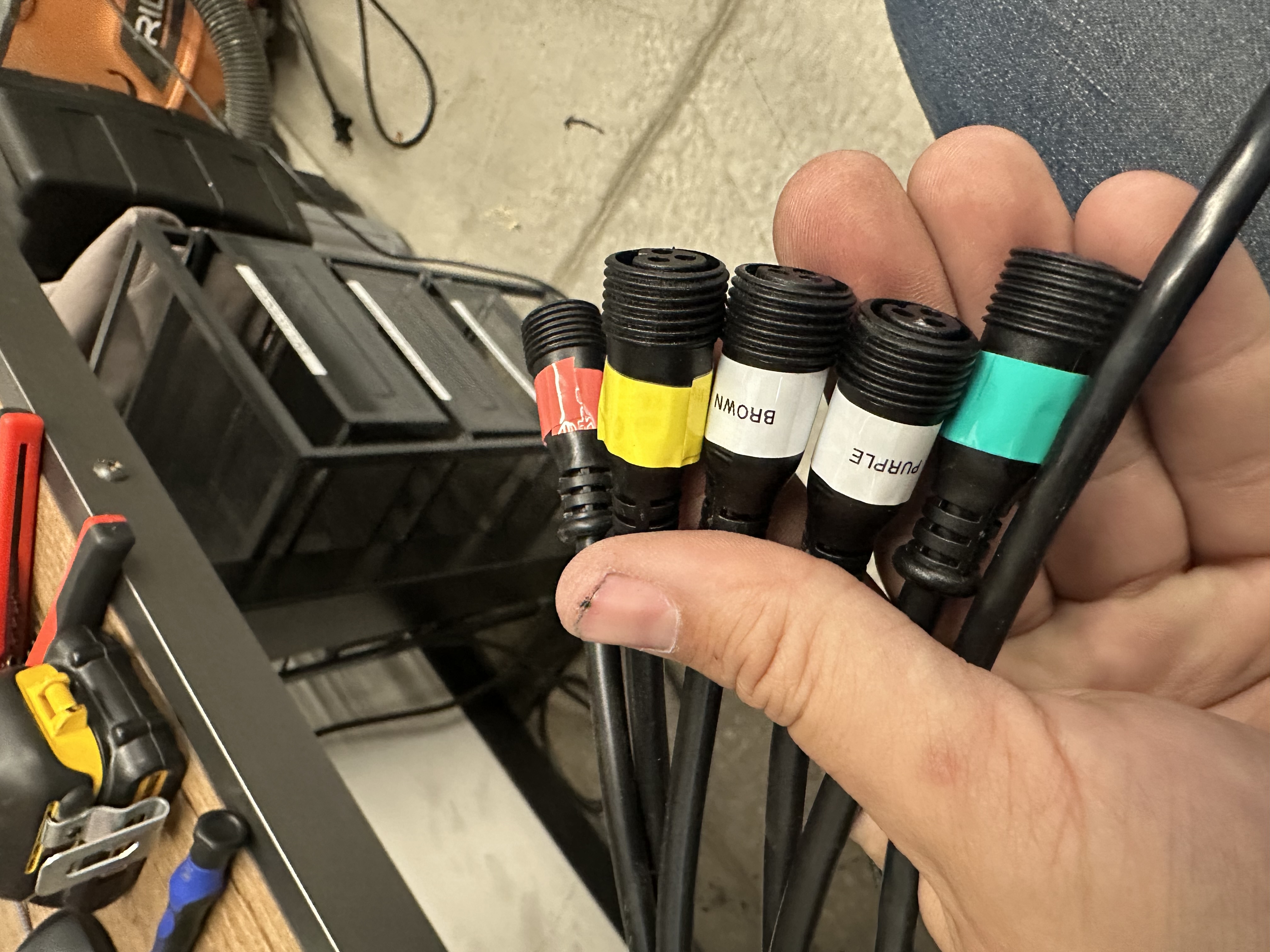

Controller Photos image 1 for controller K8PB.A

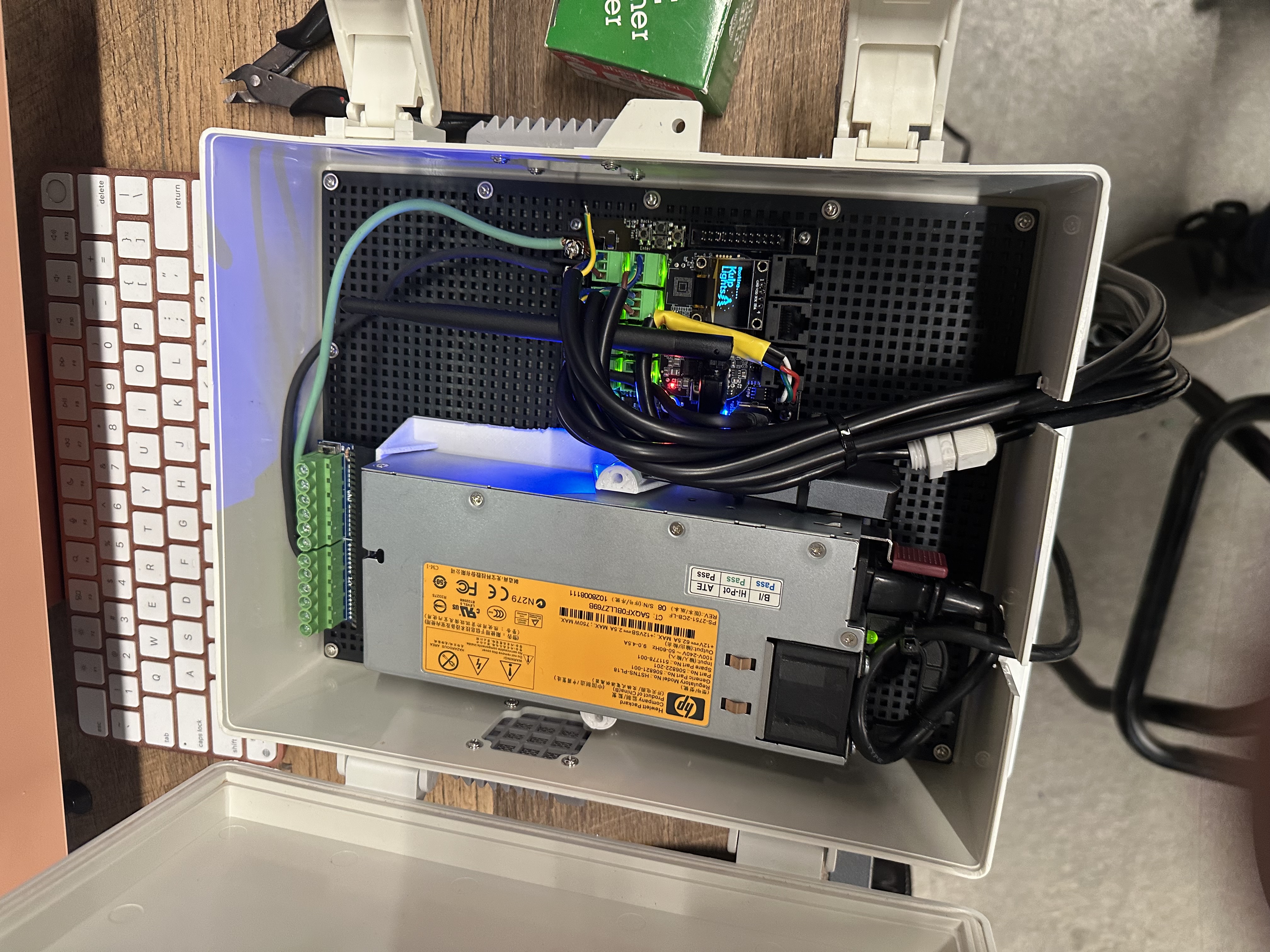

Controller Photos image 2 for controller K8PB.A

Controller Photos image 3 for controller K8PB.A

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)	Cable Length (3)	Prop 3 Name	Px Count (3)
K8PB.A	1	1	K8PB.A	1				SELF	800	222	222	578	K8PB.A	12	750	0.6	50	66.6	153	ChromaFlakes 01	14	ChromaFlake 01.1	222	14	Power End
K8PB.A	2	2	K8PB.A	2					800	0	0	800	K8PB.A	12	750	0.6	50	0		ChromaFlakes 01
K8PB.A	3	3	K8PB.A	3					800	108	108	692	K8PB.A	12	750	0.6	50	32.4		ChromaFlakes 01	15	ChromaMiniFlake 027	36	5	ChromaMiniFlake 026	36	5	ChromaMiniFlake 025	36
K8PB.A	4	4	K8PB.A	4					800	108	108	692	K8PB.A	12	750	0.6	50	32.4		ChromaFlakes 01	15	ChromaMiniFlake 028	36	5	ChromaMiniFlake 029	36	5	ChromaMiniFlake 030	36
K8PB.A	5	5	K8PB.A	5					800	72	72	728	K8PB.A	12	750	0.6	50	21.6		ChromaFlakes 01	5	ChromaMiniFlake 031	36	10	ChromaMiniFlake 032	36
K8PB.A	6	6	K8PB.A	6					800	0	0	800	K8PB.A	12	750	0.6	50	0		ChromaFlakes 01
K8PB.A	7	7	K8PB.A	7					800	0	0	800	K8PB.A	12	750	0.6	50	0		ChromaFlakes 01
K8PB.A	8	8	K8PB.A	8					800	0	0	800	K8PB.A	12	750	0.6	50	0		ChromaFlakes 01

Controllers

1 box available

Show details

4 data pigtails · 1 power pigtail

Pigtails

4 Data
1 Power Injection

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
