Controller K8B.C

Location: MegaTree 01

Gallery

Setup Photos image 1 for controller K8B.C

Setup Photos image 2 for controller K8B.C

Reference Photos image 1 for controller K8B.C

Reference Photos image 2 for controller K8B.C

Reference Photos image 3 for controller K8B.C

MegaTree 01.03

4 data pigtails · 4 power pigtails Has 8 and 8 - Set aside

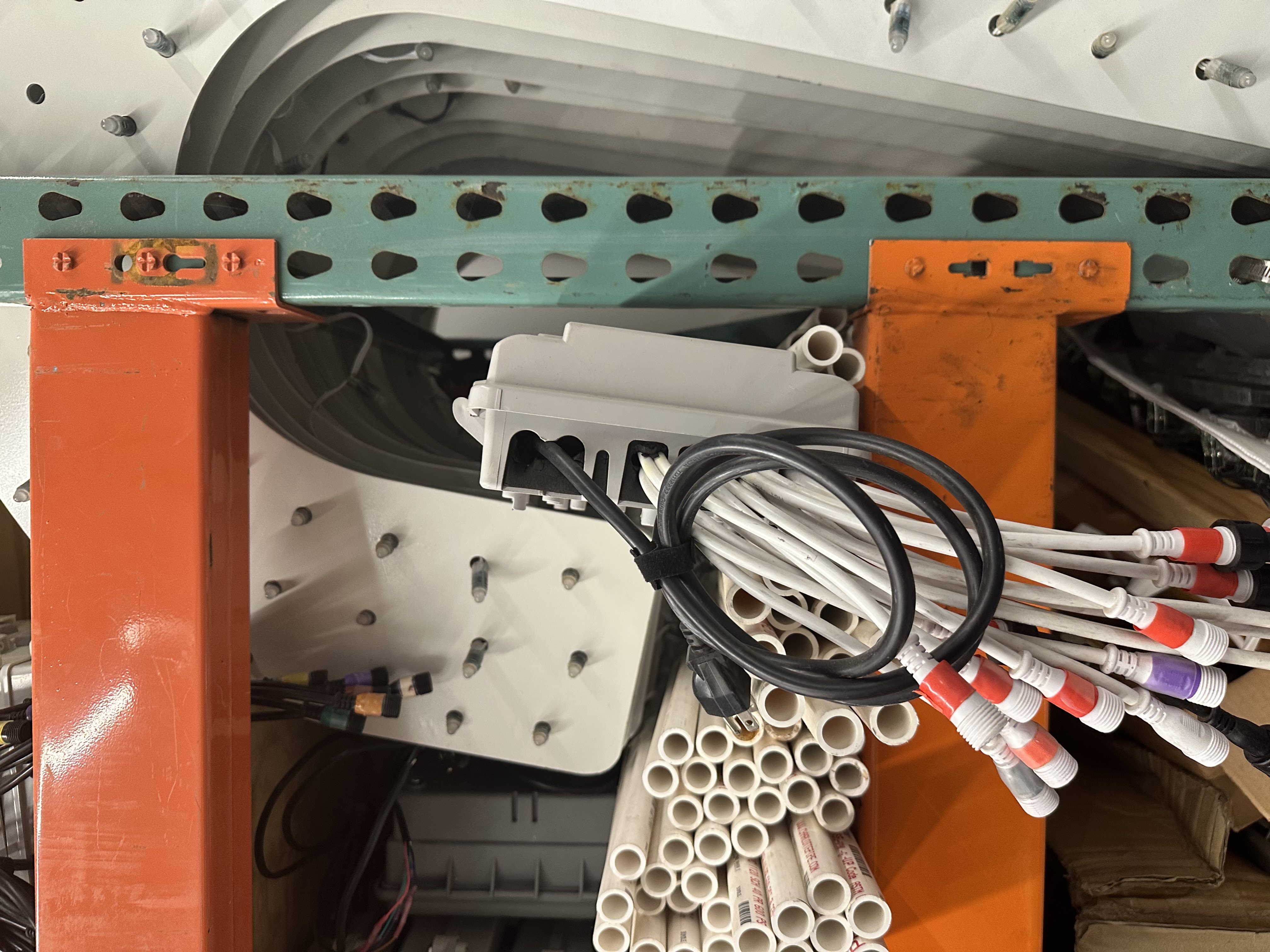

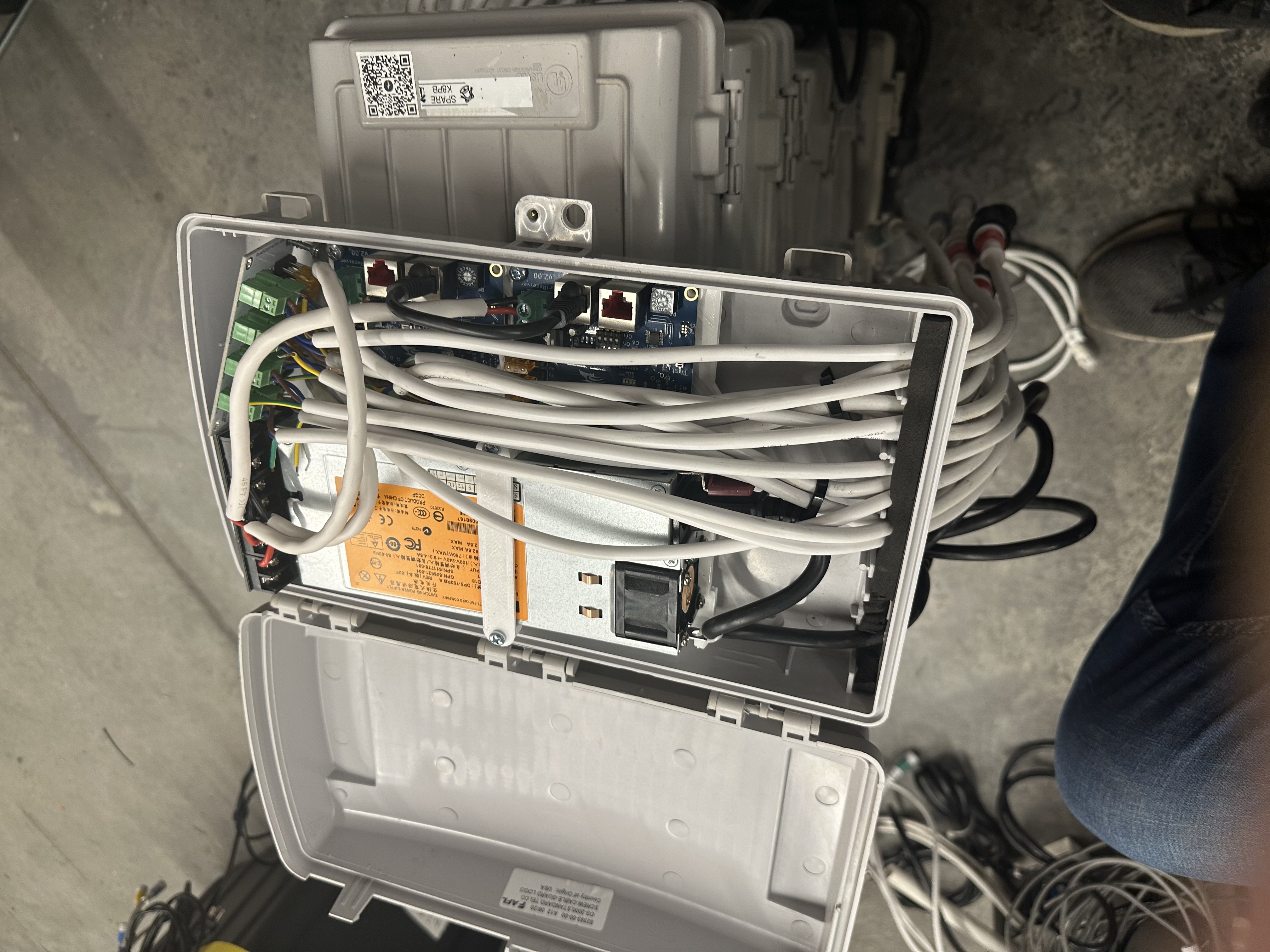

Controller Photos image 1 for controller K8B.C

Controller Photos image 2 for controller K8B.C

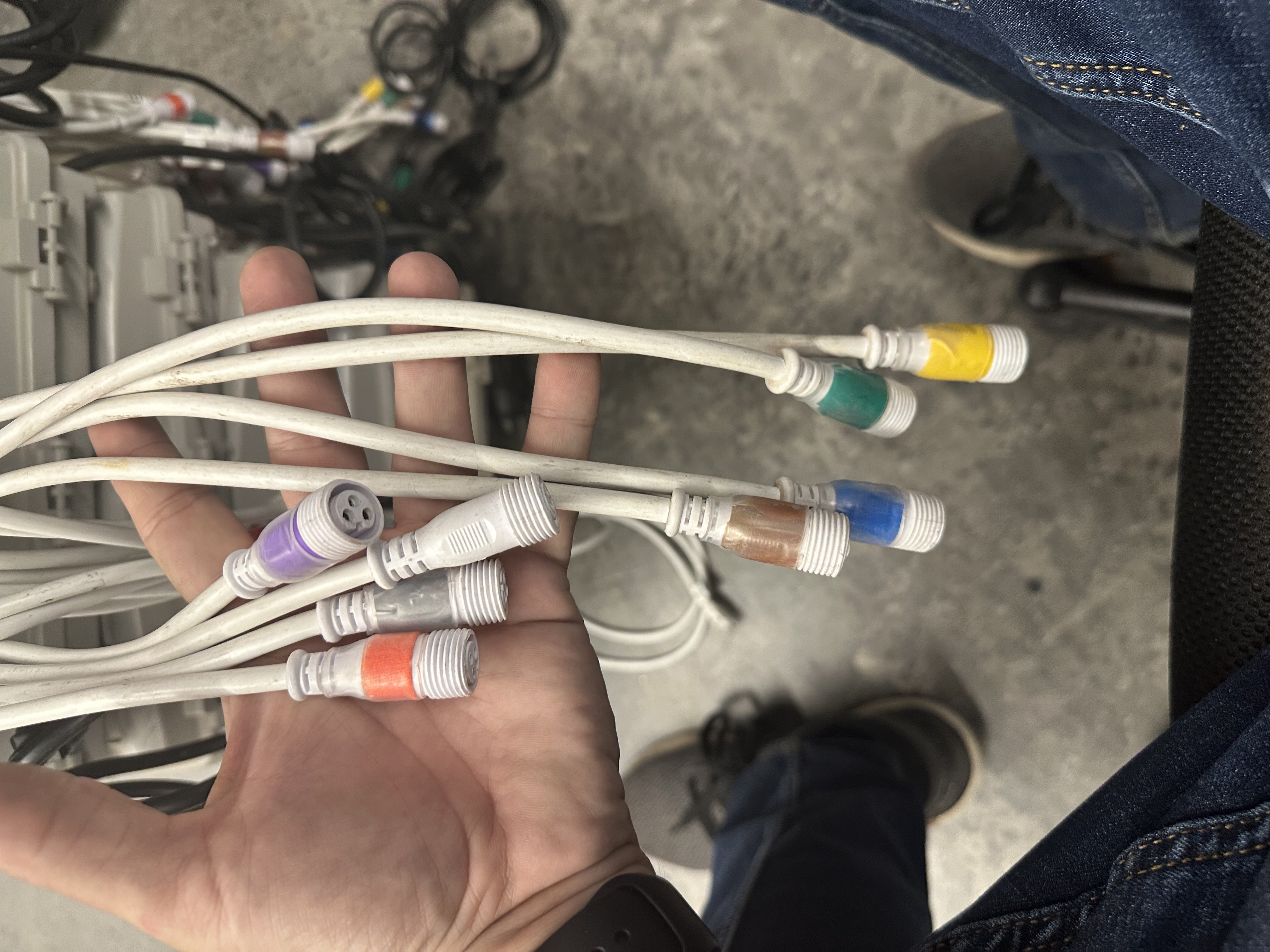

Controller Photos image 3 for controller K8B.C

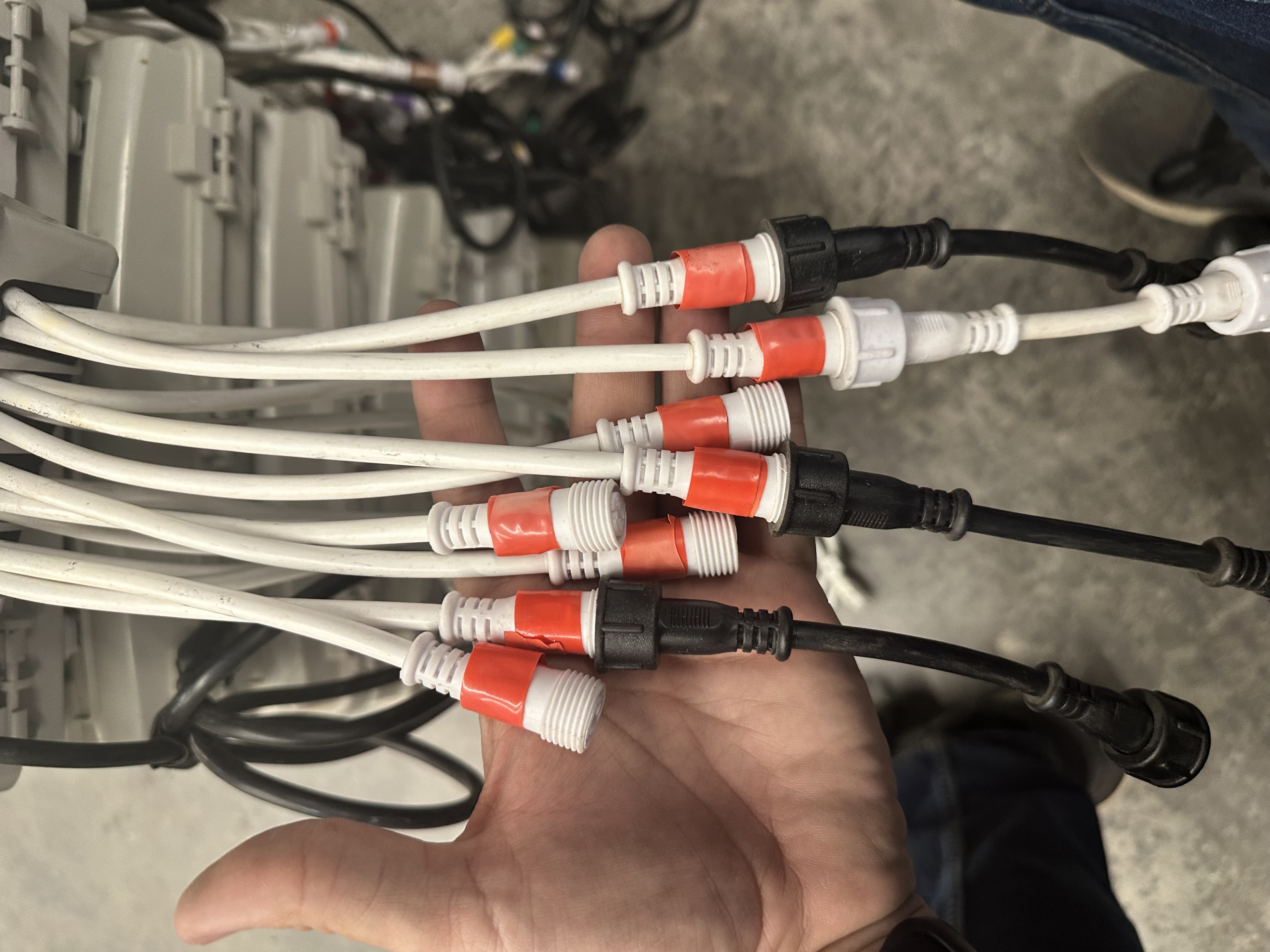

Controller Photos image 4 for controller K8B.C

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Smart Receiver	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Cable Length (3)	Prop 3 Name	Px Count (3)	Cable Length (4)	Prop 4 Name
K8B.C	1	1	K8B.C	1		SELF	800	140	140	660	K8B.C	12	750	0.6	50	42	42	MegaTree 01.01	22	Star 01	140
K8B.C	2	2	K8B.C	2			800	0	0	800	K8B.C	12	750	0.6	50	0		MegaTree 01.01
K8B.C	3	3	K8B.C	3			800	0	0	800	K8B.C	12	750	0.6	50	0		MegaTree 01.01
K8B.C	4	4	K8B.C	4			800	0	0	800	K8B.C	12	750	0.6	50	0		MegaTree 01.01
K8B.C	5	5	K8B.C	5			800	0	0	800	K8B.C	12	750	0.6	50	0		MegaTree 01.01
K8B.C	6	6	K8B.C	6			800	0	0	800	K8B.C	12	750	0.6	50	0		MegaTree 01.01
K8B.C	7	7	K8B.C	7			800	0	0	800	K8B.C	12	750	0.6	50	0		MegaTree 01.01
K8B.C	8	8	K8B.C	8			800	0	0	800	K8B.C	12	750	0.6	50	0		MegaTree 01.01
K8B.C	9	9A	C9A	9	C9A	K8B.C	640	600	200	40	C9A	12	750	10	75	1500	3360	MegaTree 01.01	10	MegaTree 01-str-1.1	100	0	Power Cut	0	MegaTree 01-str-1.2	100	5	Power End
K8B.C	10	10A	C9A	9	C9A		640	600	200	40	C9A	12	750	10	75	1500		MegaTree 01.01	10	MegaTree 01-str-2.1	100	0	Power Cut	0	MegaTree 01-str-2.2	100	5	Power End
K8B.C	11	11A	C9A	9	C9A		640	600	200	40	C9A	12	750	0.6	50	60		MegaTree 01.01	10	MegaTree 01-str-3.1	100	0	Power Cut	0	MegaTree 01-str-3.2	100	5	Power End
K8B.C	12	12A	C9A	9	C9A		640	600	200	40	C9A	12	750	0.6	50	60		MegaTree 01.01	10	MegaTree 01-str-4.1	100	0	Power Cut	0	MegaTree 01-str-4.2	100	5	Power End
K8B.C	9	9B	C9B	9	C9B	C9A	640	600	200	40	C9A	12	750	0.6	50	60		MegaTree 01.01	10	MegaTree 01-str-5.1	100	0	Power Cut	0	MegaTree 01-str-5.2	100	5	Power End
K8B.C	10	10B	C9B	9	C9B		640	600	200	40	C9A	12	750	0.6	50	60		MegaTree 01.01	10	MegaTree 01-str-6.1	100	0	Power Cut	0	MegaTree 01-str-6.2	100	5	Power End
K8B.C	11	11B	C9B	9	C9B		640	600	200	40	C9A	12	750	0.6	50	60		MegaTree 01.01	10	MegaTree 01-str-7.1	100	0	Power Cut	0	MegaTree 01-str-7.2	100	5	Power End
K8B.C	12	12B	C9B	9	C9B		640	600	200	40	C9A	12	750	0.6	50	60		MegaTree 01.01	10	MegaTree 01-str-8.1	100	0	Power Cut	0	MegaTree 01-str-8.2	100	5	Power End
K8B.C	9	9C	C9C	9	C9C	C9B	640	600	200	40	C9C	12	750	0.6	50	60	240	MegaTree 01.01	10	MegaTree 01-str-9.1	100	0	Power Cut	0	MegaTree 01-str-9.2	100	5	Power End
K8B.C	10	10C	C9C	9	C9C		640	600	200	40	C9C	12	750	0.6	50	60		MegaTree 01.01	10	MegaTree 01-str-10.1	100	0	Power Cut	0	MegaTree 01-str-10.2	100	5	Power End
K8B.C	11	11C	C9C	9	C9C		640	600	200	40	C9C	12	750	0.6	50	60		MegaTree 01.01	10	MegaTree 01-str-11.1	100	0	Power Cut	0	MegaTree 01-str-11.2	100	5	Power End
K8B.C	12	12C	C9C	9	C9C		640	600	200	40	C9C	12	750	0.6	50	60		MegaTree 01.01	10	MegaTree 01-str-12.1	100	0	Power Cut	0	MegaTree 01-str-12.2	100	5	Power End
K8B.C	13	13A	C10A	10	C10A	K8B.C	640	600	200	40	C10B	12	750	0.6	50	60	480	MegaTree 01.01	10	MegaTree 01-str-13.1	100	0	Power Cut	0	MegaTree 01-str-13.2	100	5	Power End
K8B.C	14	14A	C10A	10	C10A		640	600	200	40	C10B	12	750	0.6	50	60		MegaTree 01.01	10	MegaTree 01-str-14.1	100	0	Power Cut	0	MegaTree 01-str-14.2	100	5	Power End
K8B.C	15	15A	C10A	10	C10A		640	600	200	40	C10B	12	750	0.6	50	60		MegaTree 01.01	10	MegaTree 01-str-15.1	100	0	Power Cut	0	MegaTree 01-str-15.2	100	5	Power End
K8B.C	16	16A	C10A	10	C10A		640	600	200	40	C10B	12	750	0.6	50	60		MegaTree 01.01	10	MegaTree 01-str-16.1	100	0	Power Cut	0	MegaTree 01-str-16.2	100	5	Power End
K8B.C	13	13B	C10B	10	C10B	C10A	640	600	200	40	C10B	12	750	0.6	50	60		MegaTree 01.01	10	MegaTree 01-str-17.1	100	0	Power Cut	0	MegaTree 01-str-17.2	100	5	Power End
K8B.C	14	14B	C10B	10	C10B		640	600	200	40	C10B	12	750	0.6	50	60		MegaTree 01.01	10	MegaTree 01-str-18.1	100	0	Power Cut	0	MegaTree 01-str-18.2	100	5	Power End
K8B.C	15	15B	C10B	10	C10B		640	600	200	40	C10B	12	750	0.6	50	60		MegaTree 01.01	10	MegaTree 01-str-19.1	100	0	Power Cut	0	MegaTree 01-str-19.2	100	5	Power End
K8B.C	16	16B	C10B	10	C10B		640	600	200	40	C10B	12	750	0.6	50	60		MegaTree 01.01	10	MegaTree 01-str-20.1	100	0	Power Cut	0	MegaTree 01-str-20.2	100	5	Power End
K8B.C	13	13C	C10C	10	C10C	C10B	640	600	200	40	C10C	12	750	0.6	50	60	240	MegaTree 01.01	10	MegaTree 01-str-21.1	100	0	Power Cut	0	MegaTree 01-str-21.2	100	5	Power End
K8B.C	14	14C	C10C	10	C10C		640	600	200	40	C10C	12	750	0.6	50	60		MegaTree 01.01	10	MegaTree 01-str-22.1	100	0	Power Cut	0	MegaTree 01-str-22.2	100	5	Power End
K8B.C	15	15C	C10C	10	C10C		640	600	200	40	C10C	12	750	0.6	50	60		MegaTree 01.01	10	MegaTree 01-str-23.1	100	0	Power Cut	0	MegaTree 01-str-23.2	100	5	Power End
K8B.C	16	16C	C10C	10	C10C		640	600	200	40	C10C	12	750	0.6	50	60		MegaTree 01.01	10	MegaTree 01-str-24.1	100	0	Power Cut	0	MegaTree 01-str-24.2	100	5	Power End
K8B.C	17	17A	C11A	11	C11A	K8B.C	640	400	200	240	C11A	12	750	0.6	50	60	480	MegaTree 01.02	10	MegaTree 01-str-25.1	100	0	Power Cut	0	MegaTree 01-str-25.2	100	5	Power End
K8B.C	18	18A	C11A	11	C11A		640	400	200	240	C11A	12	750	0.6	50	60		MegaTree 01.02	10	MegaTree 01-str-26.1	100	0	Power Cut	0	MegaTree 01-str-26.2	100	5	Power End
K8B.C	19	19A	C11A	11	C11A		640	400	200	240	C11A	12	750	0.6	50	60		MegaTree 01.02	10	MegaTree 01-str-27.1	100	0	Power Cut	0	MegaTree 01-str-27.2	100	5	Power End
K8B.C	20	20A	C11A	11	C11A		640	400	200	240	C11A	12	750	0.6	50	60		MegaTree 01.02	10	MegaTree 01-str-28.1	100	0	Power Cut	0	MegaTree 01-str-28.2	100	5	Power End
K8B.C	17	17B	C11B	11	C11B	C11A	640	400	200	240	C11A	12	750	0.6	50	60		MegaTree 01.03	10	MegaTree 01-str-29.1	100	0	Power Cut	0	MegaTree 01-str-29.2	100	5	Power End
K8B.C	18	18B	C11B	11	C11B		640	400	200	240	C11A	12	750	0.6	50	60		MegaTree 01.03	10	MegaTree 01-str-30.1	100	0	Power Cut	0	MegaTree 01-str-30.2	100	5	Power End
K8B.C	19	19B	C11B	11	C11B		640	400	200	240	C11A	12	750	0.6	50	60		MegaTree 01.03	10	MegaTree 01-str-31.1	100	0	Power Cut	0	MegaTree 01-str-31.2	100	5	Power End
K8B.C	20	20B	C11B	11	C11B		640	400	200	240	C11A	12	750	0.6	50	60		MegaTree 01.03	10	MegaTree 01-str-32.1	100	0	Power Cut	0	MegaTree 01-str-32.2	100	5	Power End
