Matrix 01
8 data pigtails · 4 power pigtails
Controller Role
K40D.K
Pigtails
- 8 Data
- 4 Power Injection
Controller K7A~K7B
Location: Matrix 01
Gallery

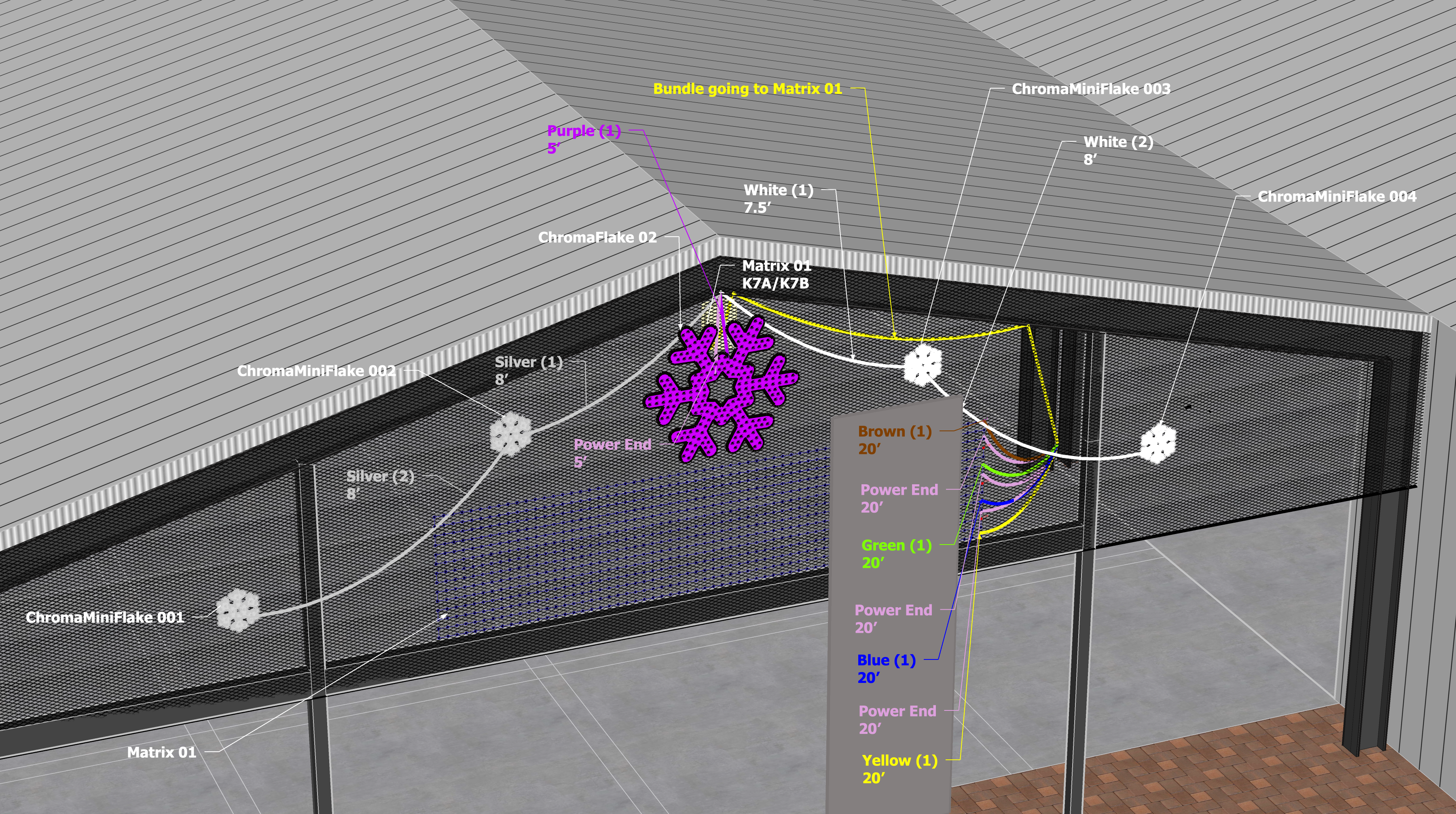

Setup Photos

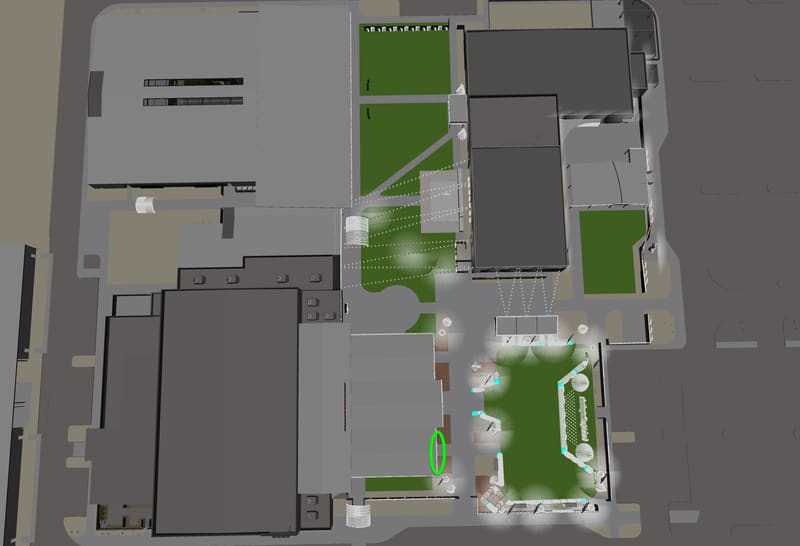

Site Map
Matrix 01
8 data pigtails · 4 power pigtails

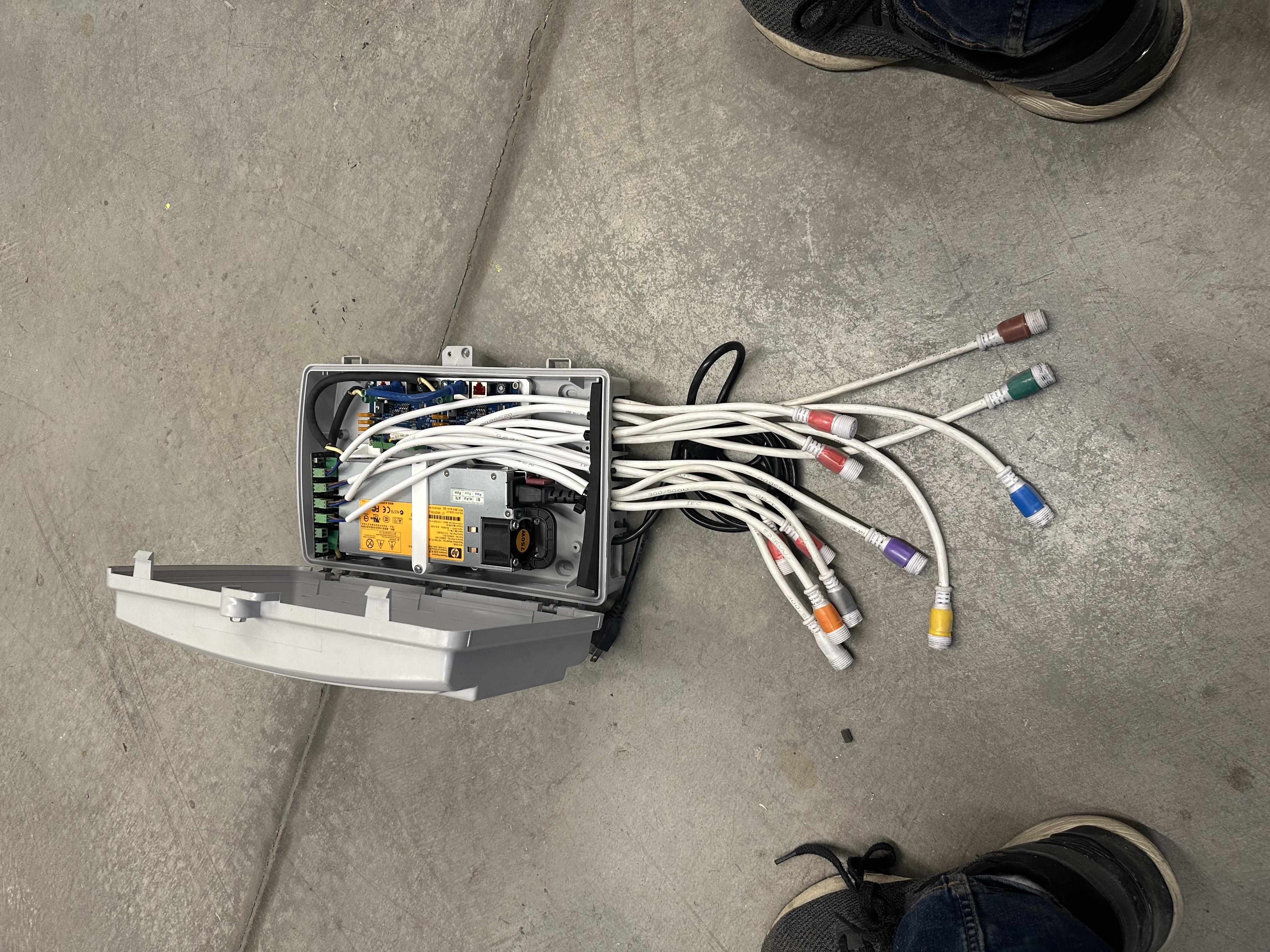

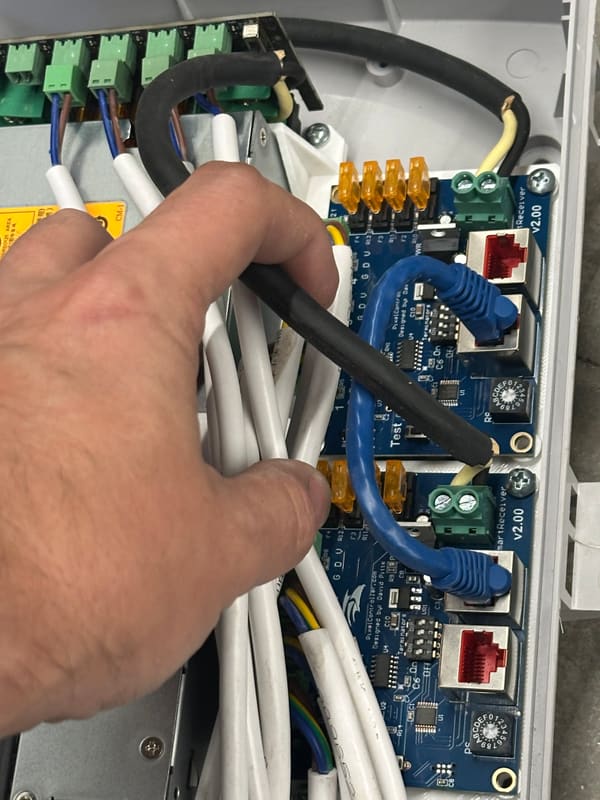

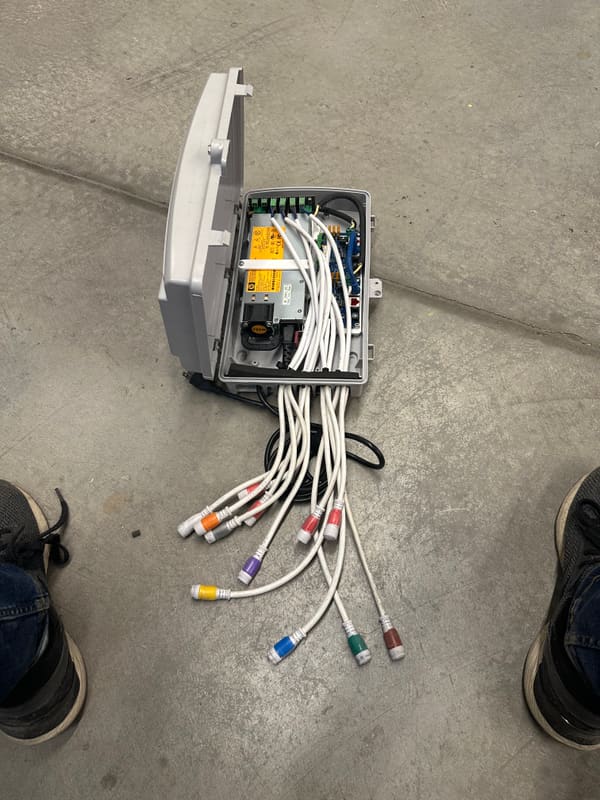

Controller Photos
Props
| Control Box Name | Cable Length | Prop 1 Name | Px Count | Cable Length (2) | Prop 2 Name | Px Count (2) | Cable Length (3) | Prop 3 Name | Px Count (3) | Cable Length (4) | Power |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Matrix 01 | 20 | Matrix 01.1 | 100 | 0 | Power Cut | 0 | Matrix 01.2 | 100 | 20 | Power End | |
| Matrix 01 | 20 | Matrix 01.3 | 100 | 0 | Power Cut | 0 | Matrix 01.4 | 100 | 20 | Power End | |
| Matrix 01 | 20 | Matrix 01.5 | 100 | 0 | Power Cut | 0 | Matrix 01.6 | 100 | 20 | Power End | |
| Matrix 01 | 20 | Matrix 01.7 | 50 | ||||||||
| Matrix 01 | 5 | ChromaFlake 02.1 | 100 | 0 | Power Cut | ChromaFlake 02.2 | 122 | 5 | Power End | ||
| Matrix 01 | 7.5 | ChromaMiniFlake 003 | 36 | 8 | ChromaMiniFlake 004 | 36 | |||||
| Matrix 01 | 8 | ChromaMiniFlake 002 | 36 | 8 | ChromaMiniFlake 001 | 36 | |||||
| Matrix 01 |
