Matrix 02
8 data pigtails · 4 power pigtails
Controller Role
K40D.K
Pigtails
- 8 Data
- 4 Power Injection
Controller K5A~K5B
Location: Matrix 02
Gallery

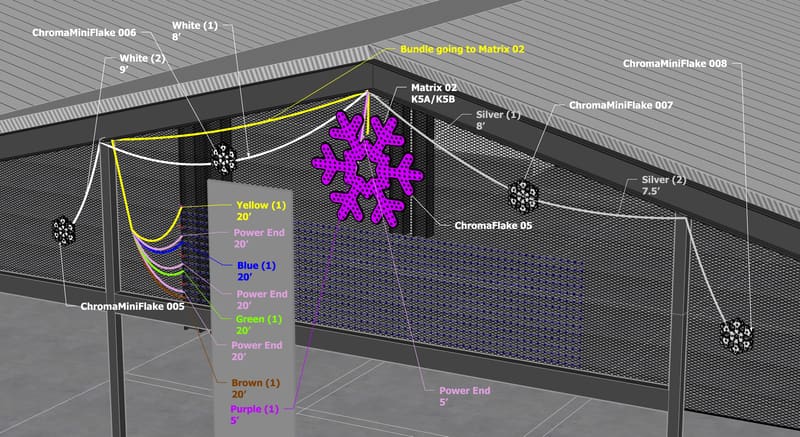

Setup Photos

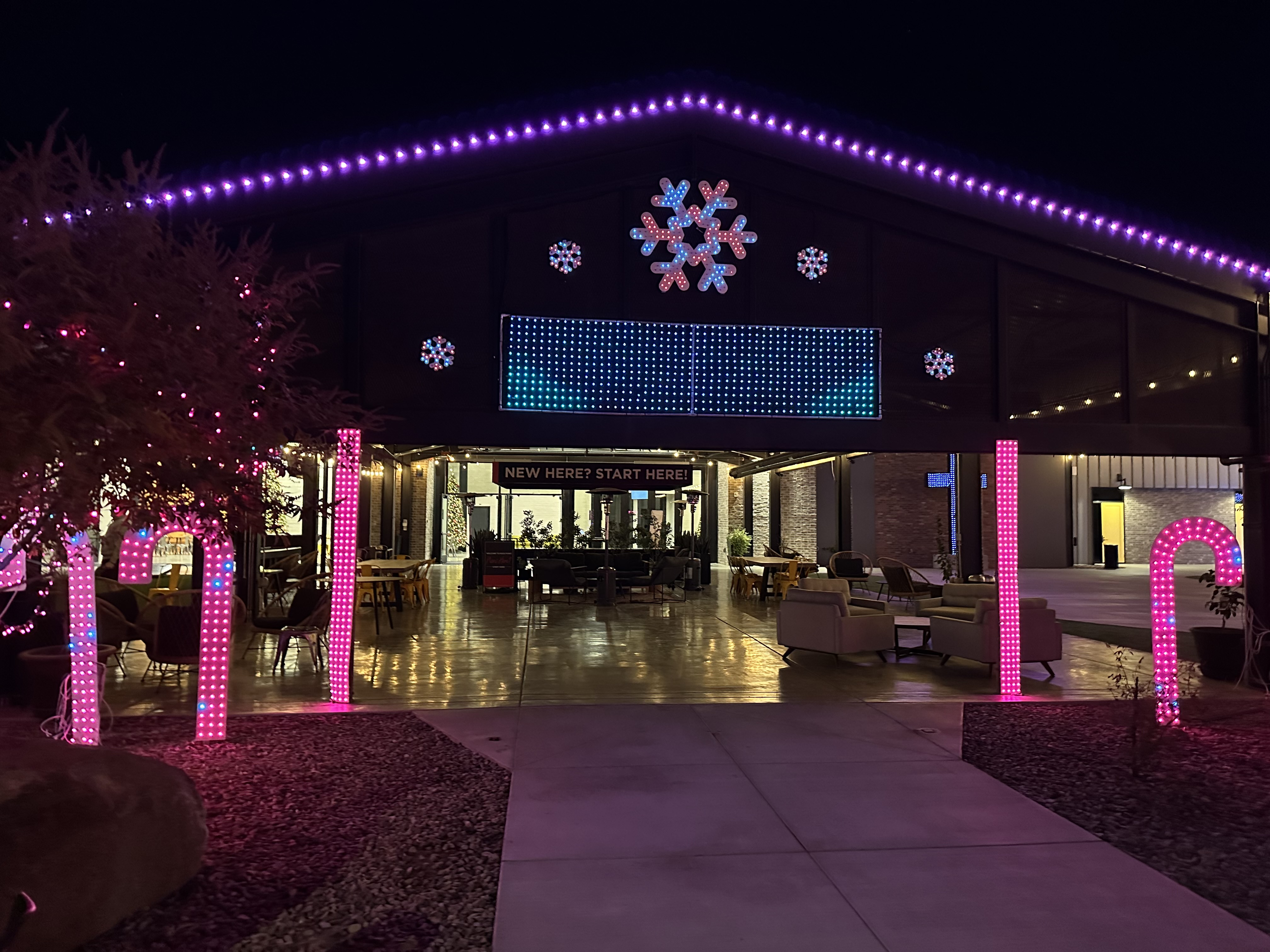

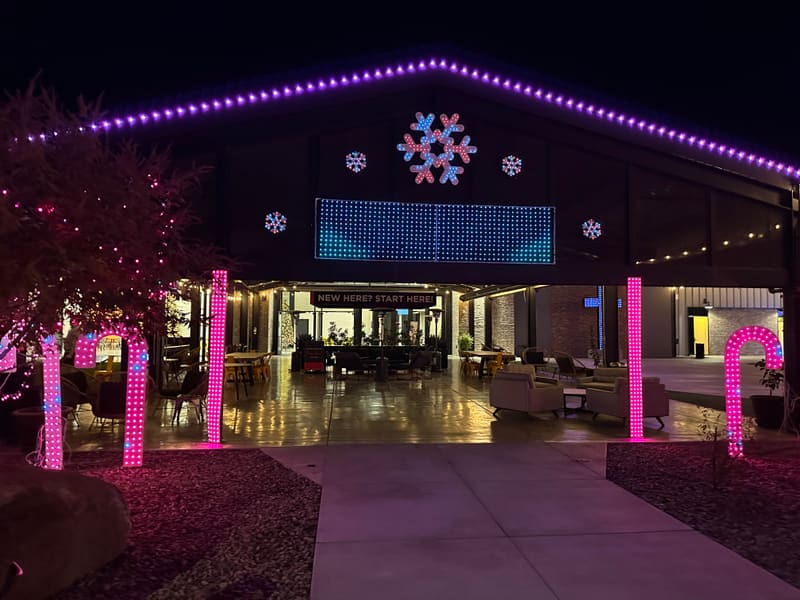

Reference Photos

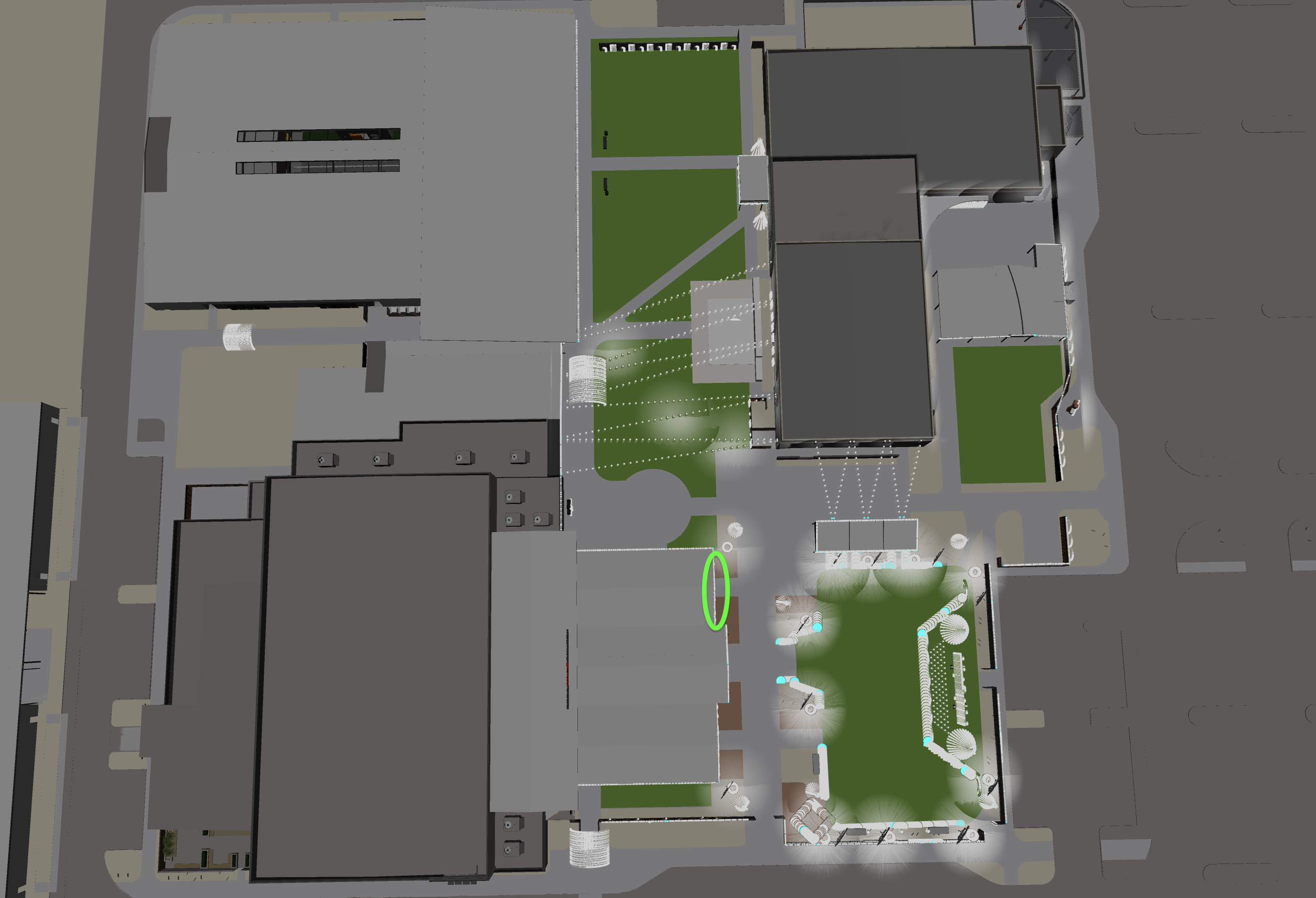

Site Map
Additional Photos
Matrix 02
8 data pigtails · 4 power pigtails

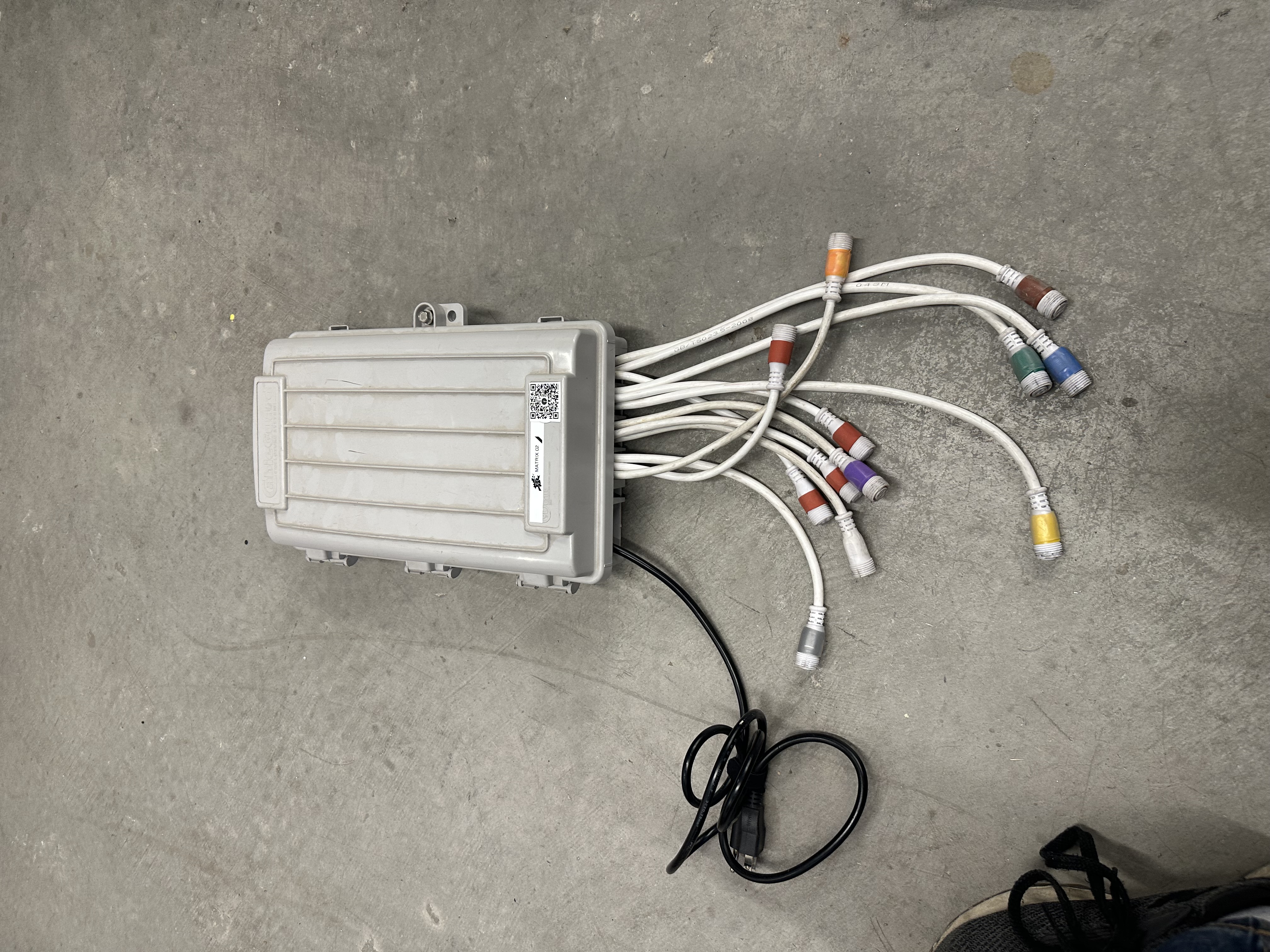

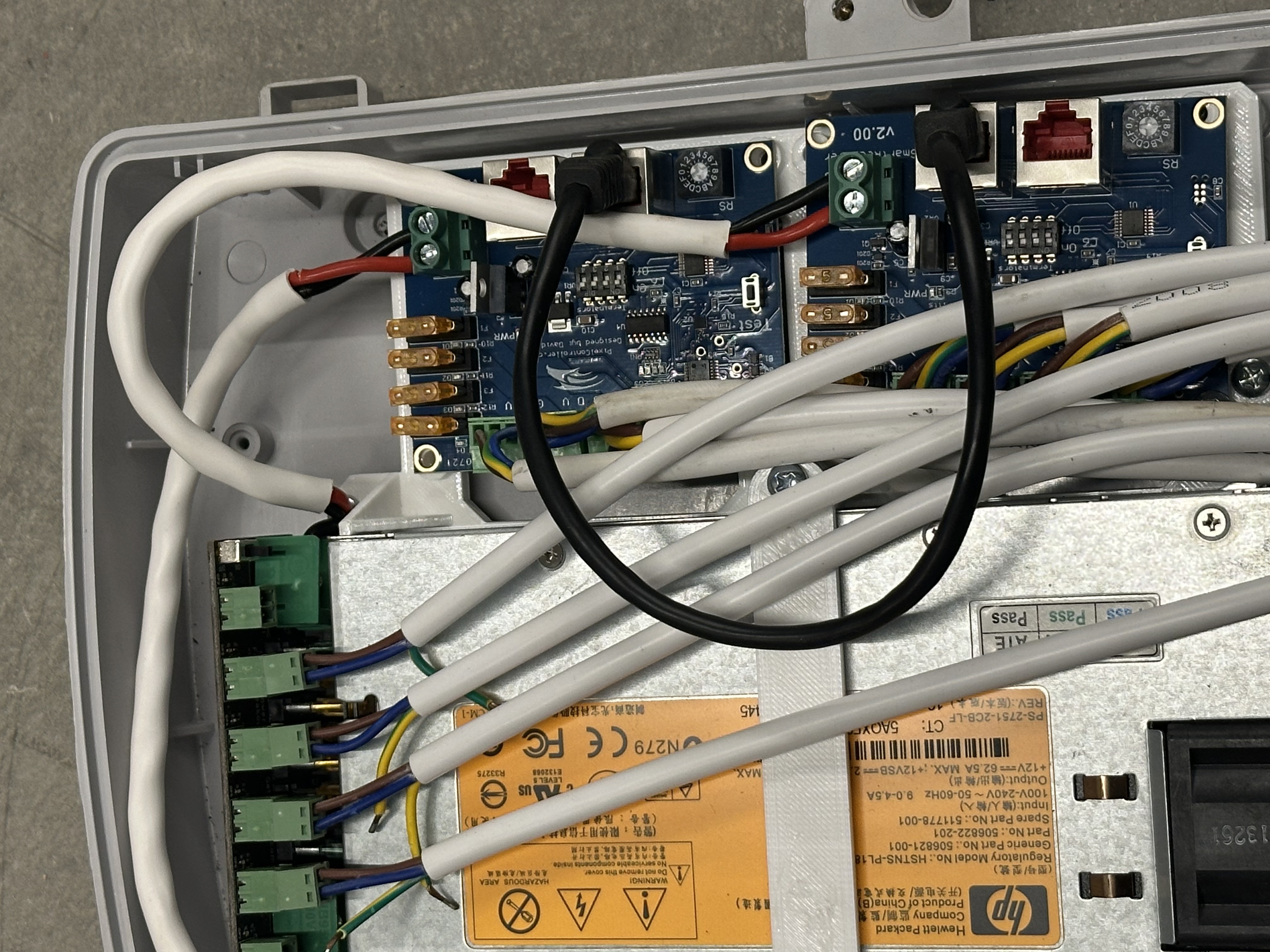

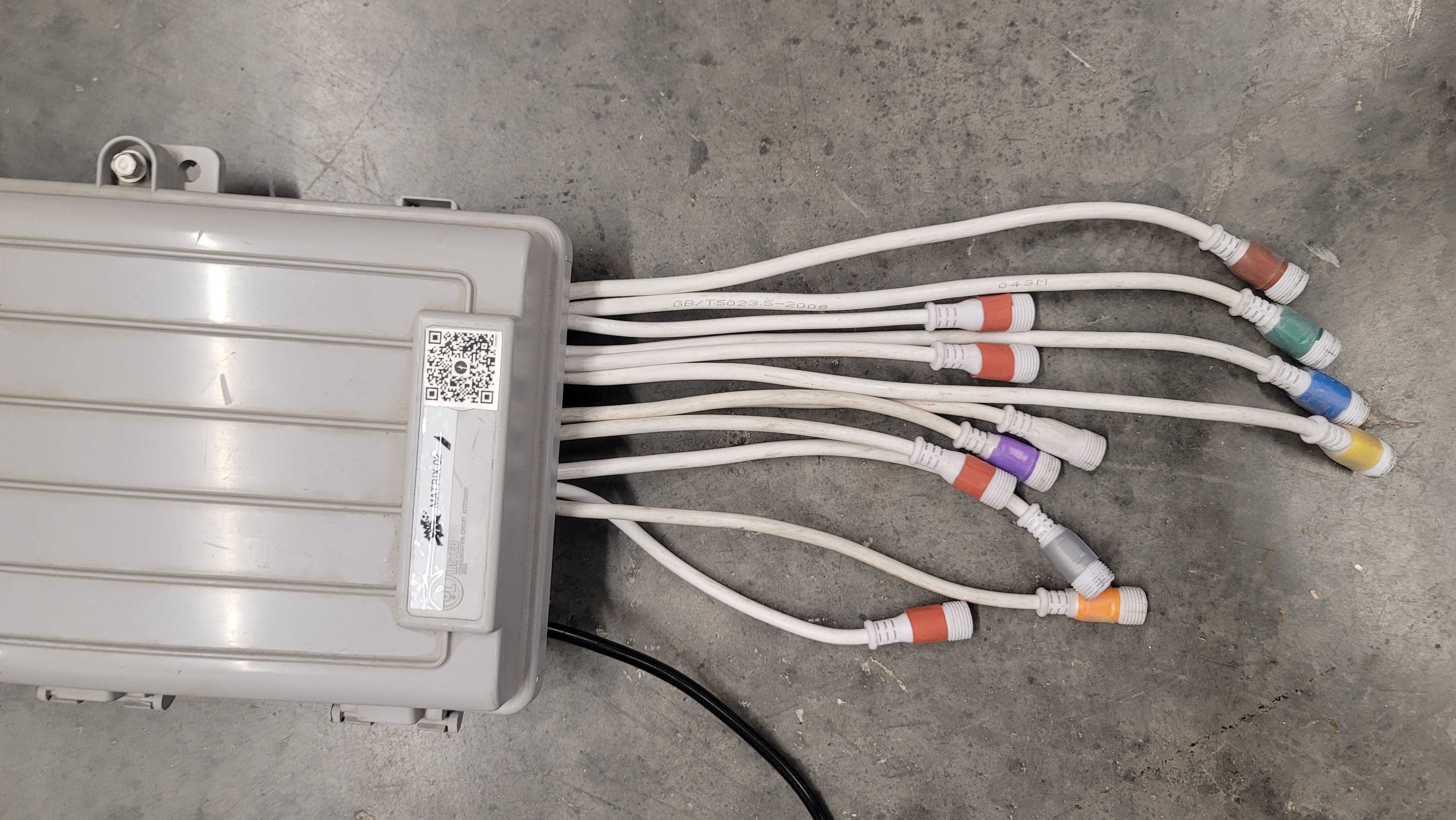

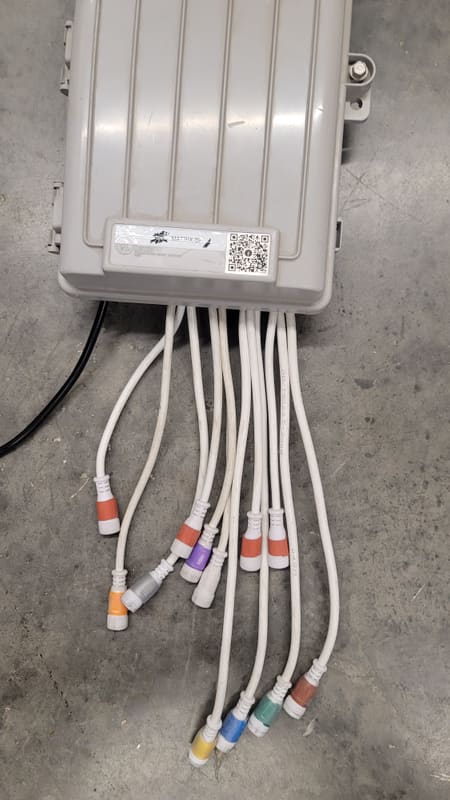

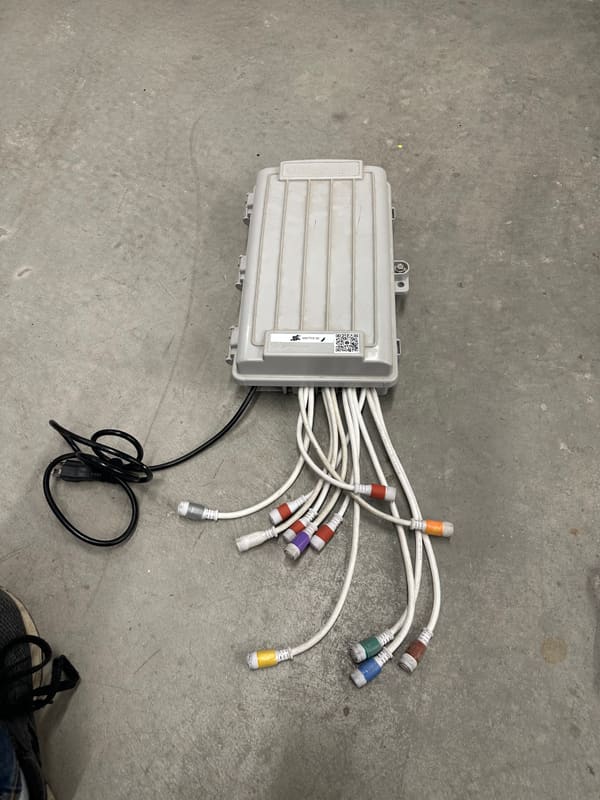

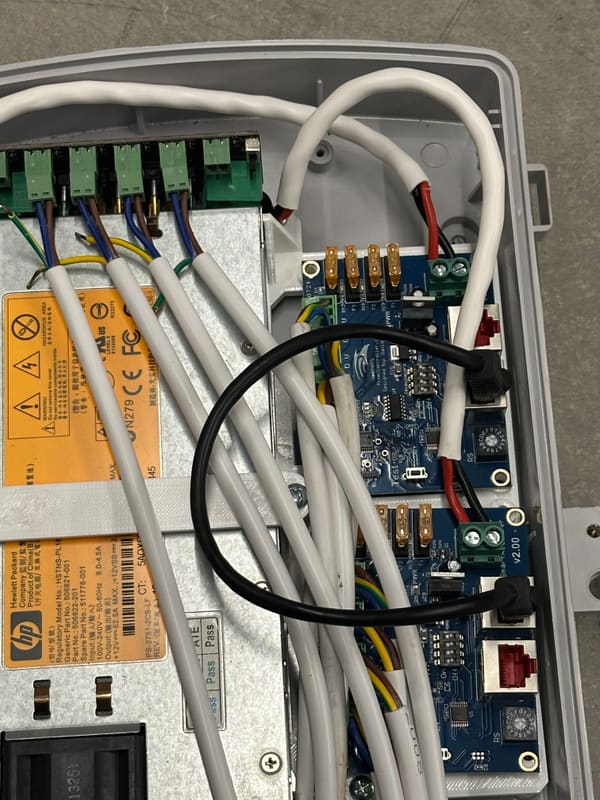

Controller Photos
Props
| Control Box Name | Cable Length | Prop 1 Name | Px Count | Cable Length (2) | Prop 2 Name | Px Count (2) | Cable Length (3) | Prop 3 Name | Px Count (3) | Cable Length (4) | Power |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Matrix 02 | 20 | Matrix 02.1 | 100 | 0 | Power Cut | 0 | Matrix 02.2 | 100 | 20 | Power End | |
| Matrix 02 | 20 | Matrix 02.3 | 100 | 0 | Power Cut | 0 | Matrix 02.4 | 100 | 20 | Power End | |
| Matrix 02 | 20 | Matrix 02.5 | 100 | 0 | Power Cut | 0 | Matrix 02.6 | 100 | 20 | Power End | |
| Matrix 02 | 20 | Matrix 02.7 | 50 | ||||||||
| Matrix 02 | 5 | ChromaFlake 05.1 | 100 | 0 | Power Cut | 0 | ChromaFlake 05.2 | 122 | 5 | Power End | |
| Matrix 02 | 8 | ChromaMiniFlake 006 | 36 | 9 | ChromaMiniFlake 005 | 36 | |||||
| Matrix 02 | 8 | ChromaMiniFlake 007 | 36 | 7.5 | ChromaMiniFlake 008 | 36 | |||||
| Matrix 02 |
Controllers
1 box available
Show details
Controllers
1 box available
