Controller K4C

Location: Roof 08

Gallery

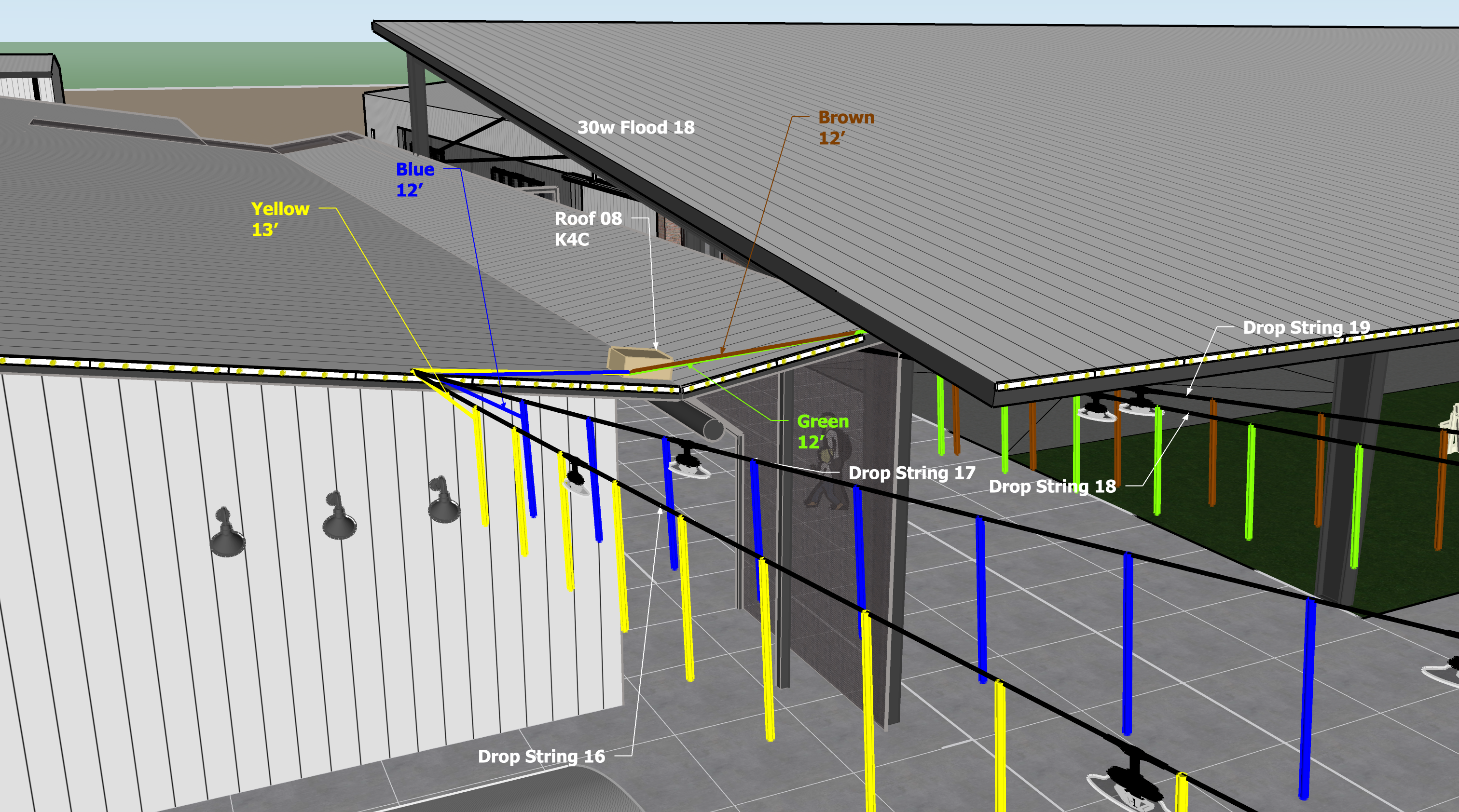

Setup Photos image 1 for controller K4C

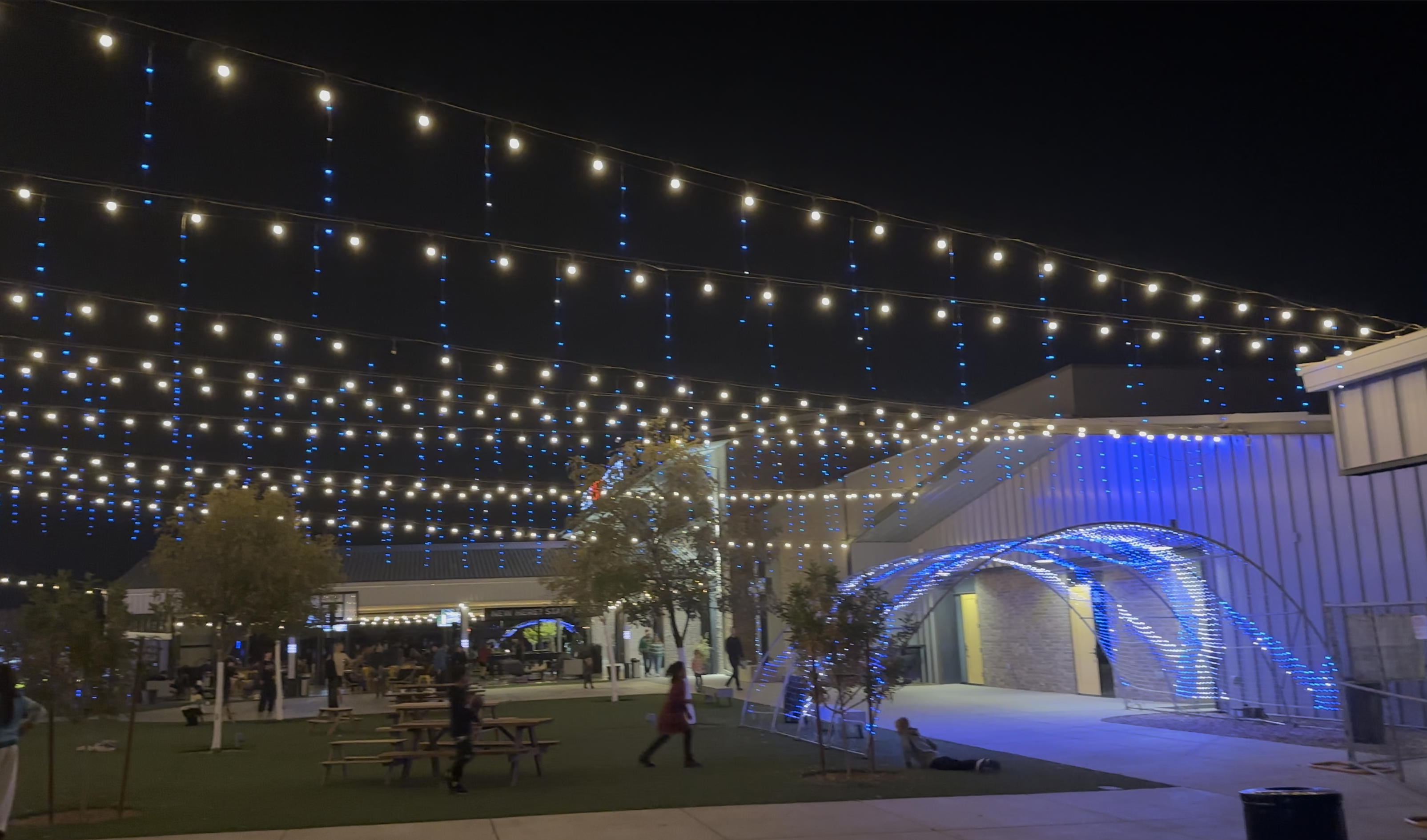

Reference Photos image 1 for controller K4C

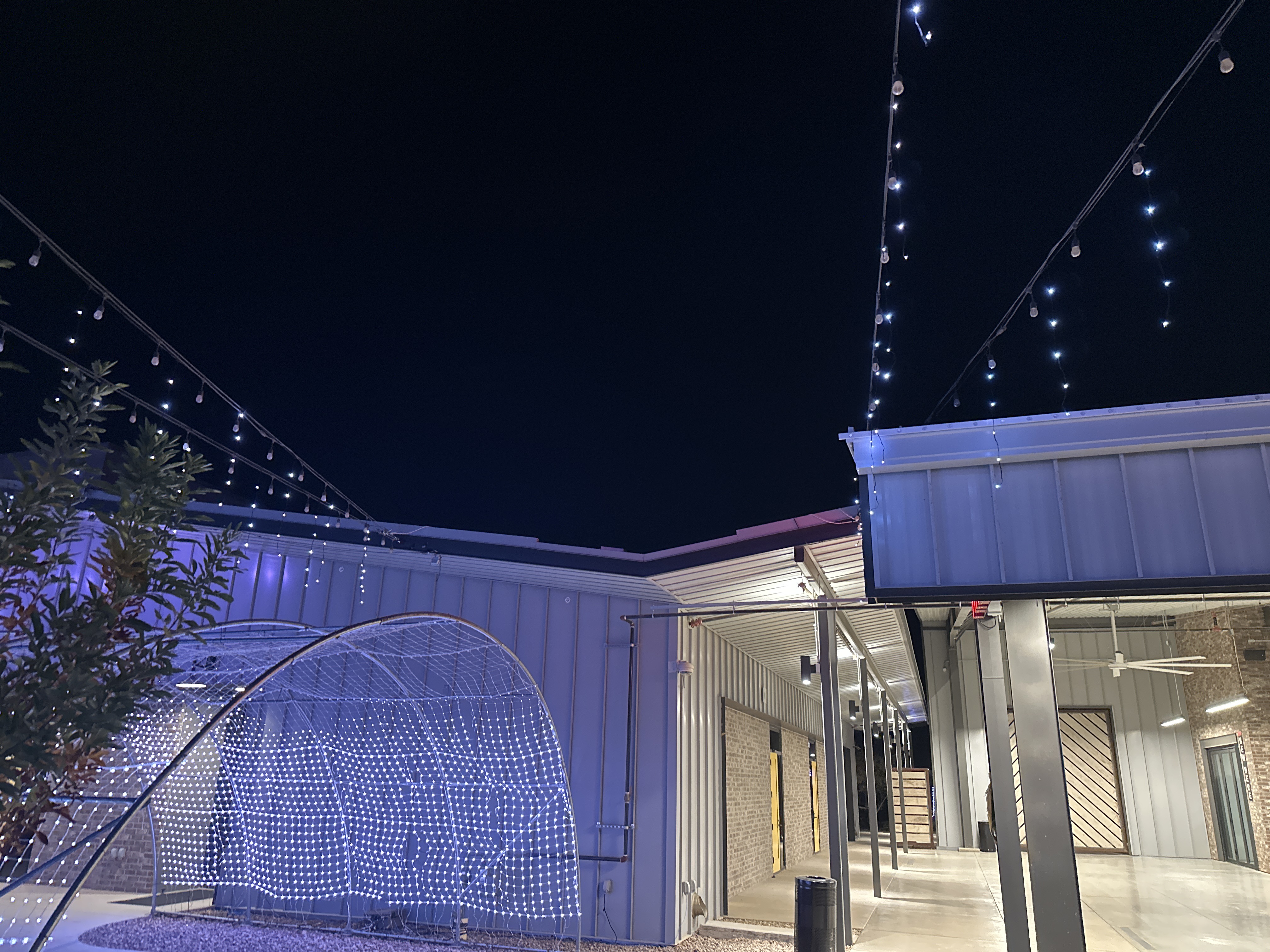

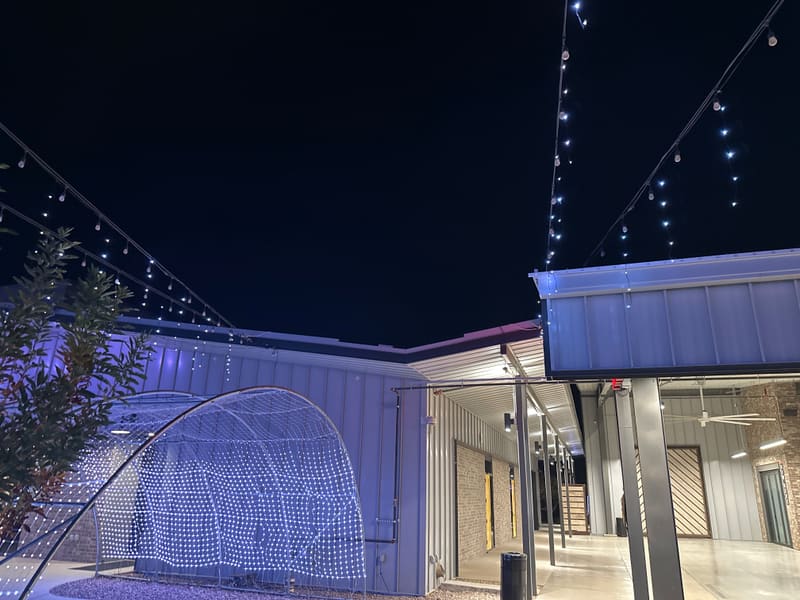

Reference Photos image 2 for controller K4C

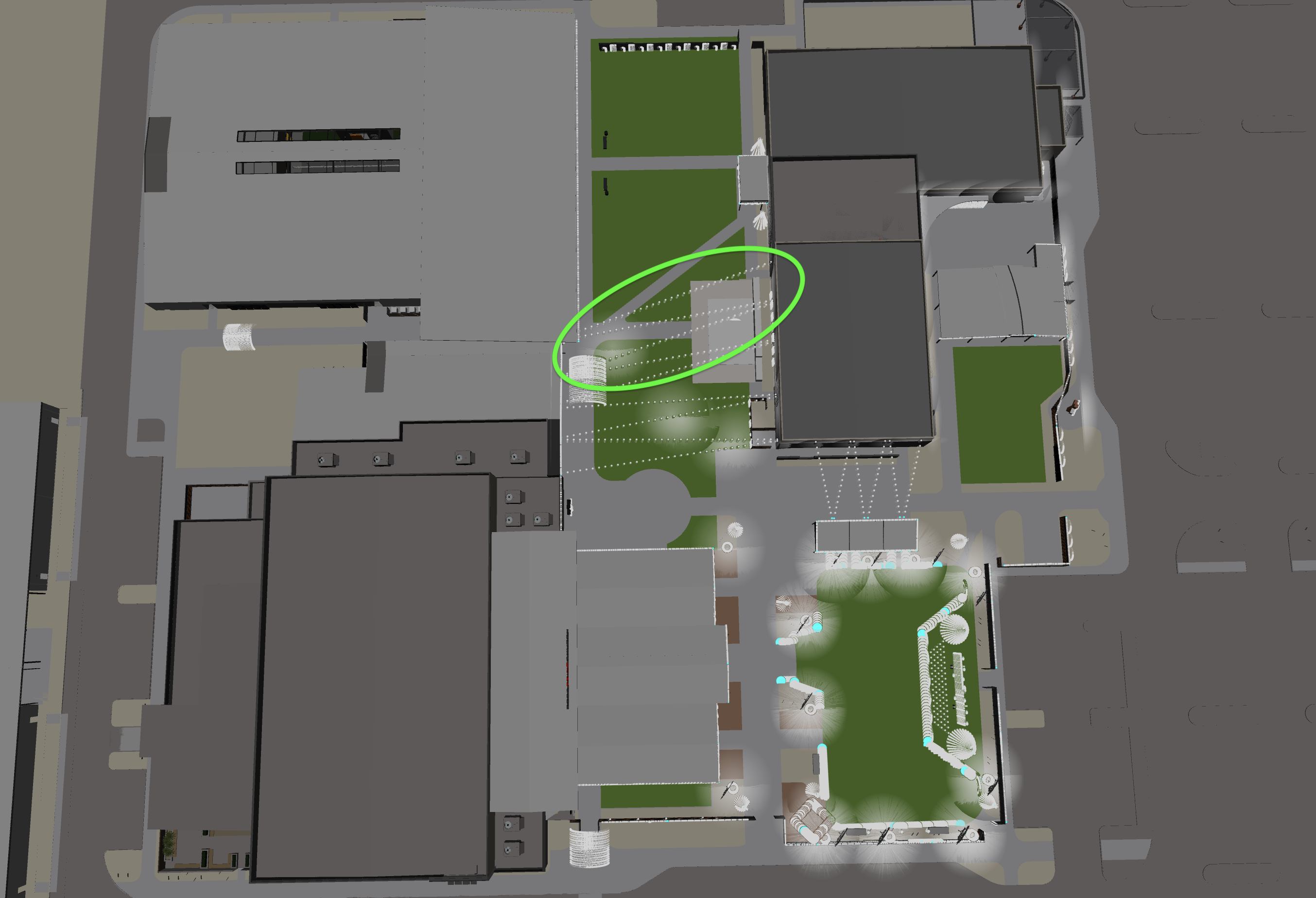

Site Map image 1 for controller K4C

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count
K40D.K	13	13C	K4C	4		K4C			640	525	175	115	K4C	12	750	0.1	50	8.75	35	Roof 08	13	Drop String 16	175
K40D.K	14	14C	K4C	4		K4C			640	525	175	115	K4C	12	750	0.1	50	8.75		Roof 08	12	Drop String 17	175
K40D.K	15	15C	K4C	4		K4C			640	352	175	288	K4C	12	750	0.1	50	8.75		Roof 08	12	Drop String 18	175
K40D.K	16	16C	K4C	4		K4C			640	177	175	463	K4C	12	750	0.1	50	8.75		Roof 08	12	Drop String 19	175

Controllers

1 box available

Show details

4 data pigtails

Controller Role

K40D.K

Pigtails

4 Data

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
