Controller K4B

Location: Roof 07

Gallery

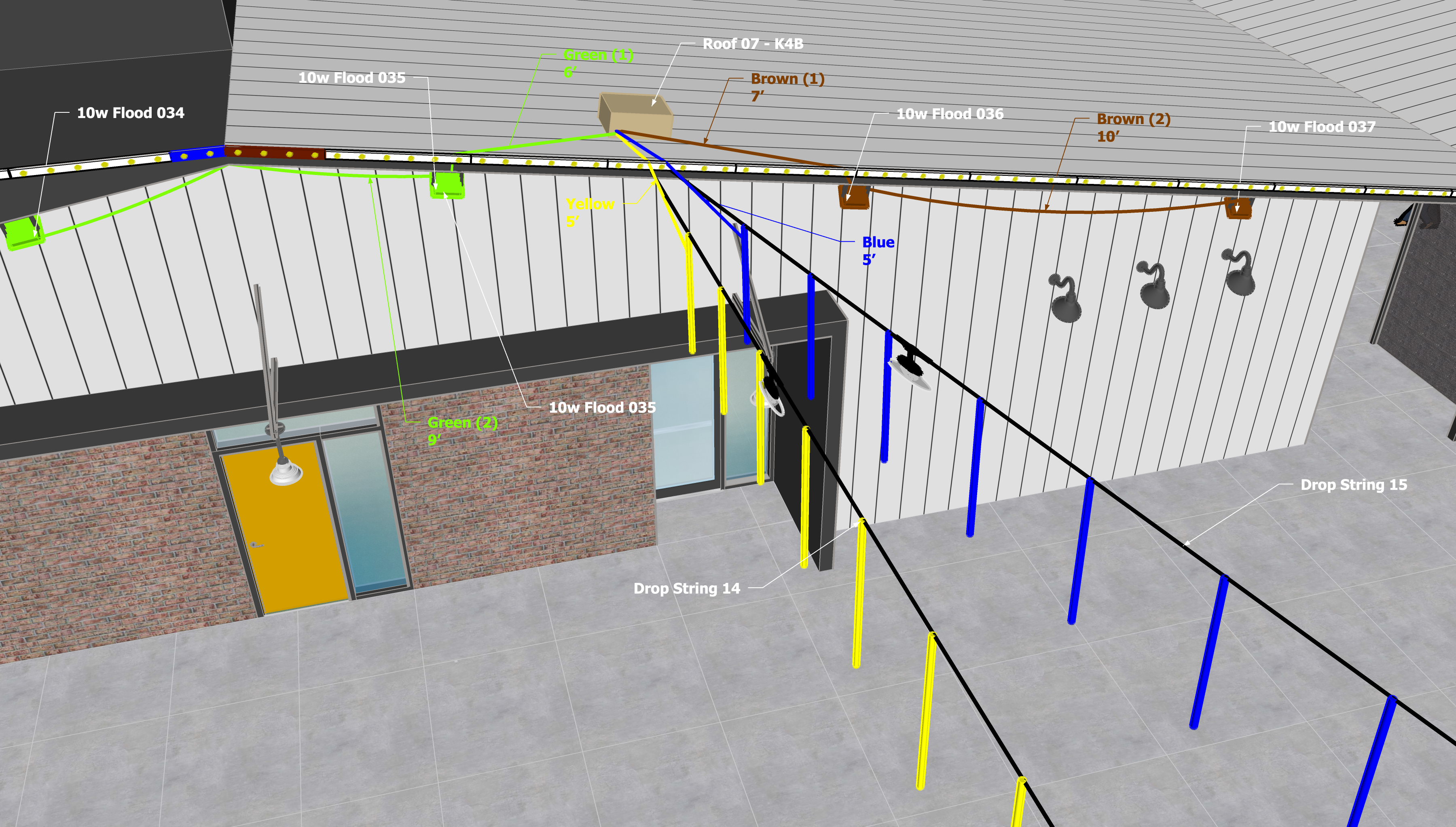

Setup Photos image 1 for controller K4B

Reference Photos image 1 for controller K4B

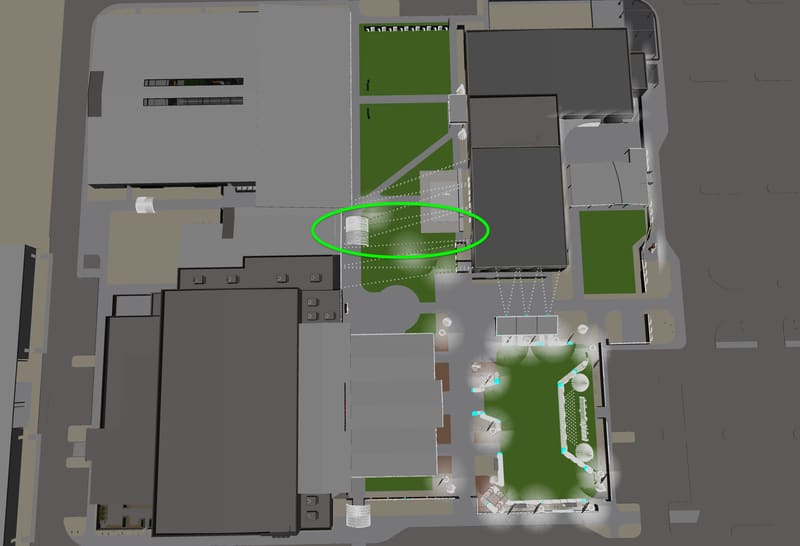

Site Map image 1 for controller K4B

Roof 07

4 data pigtails

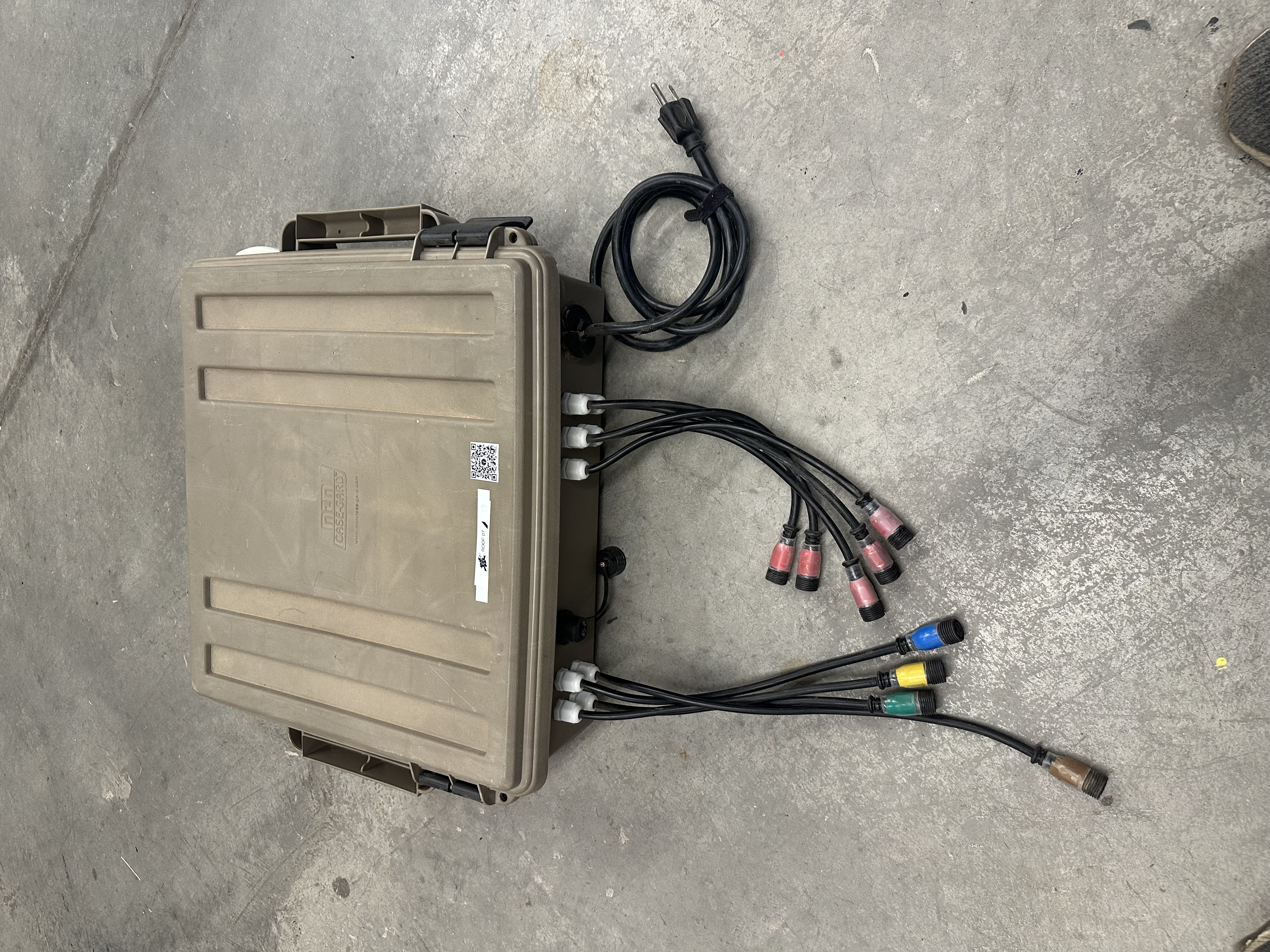

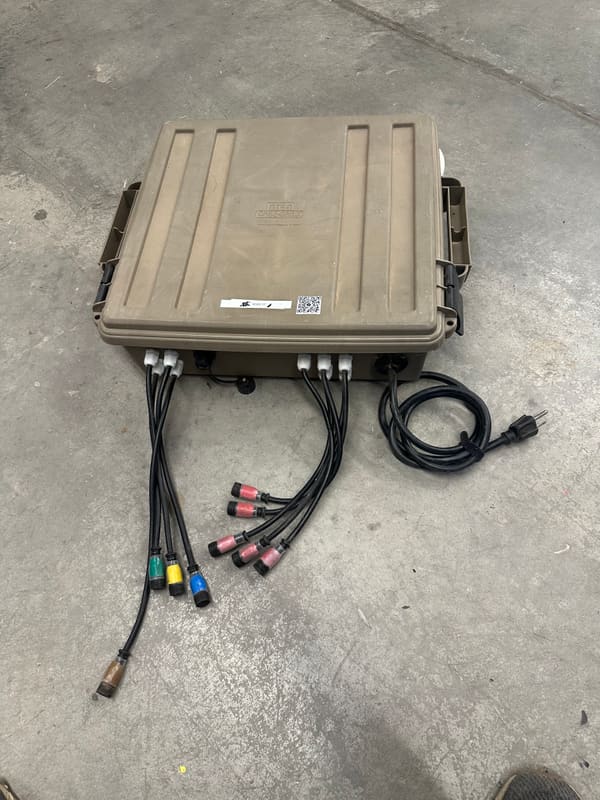

Controller Photos image 1 for controller K4B

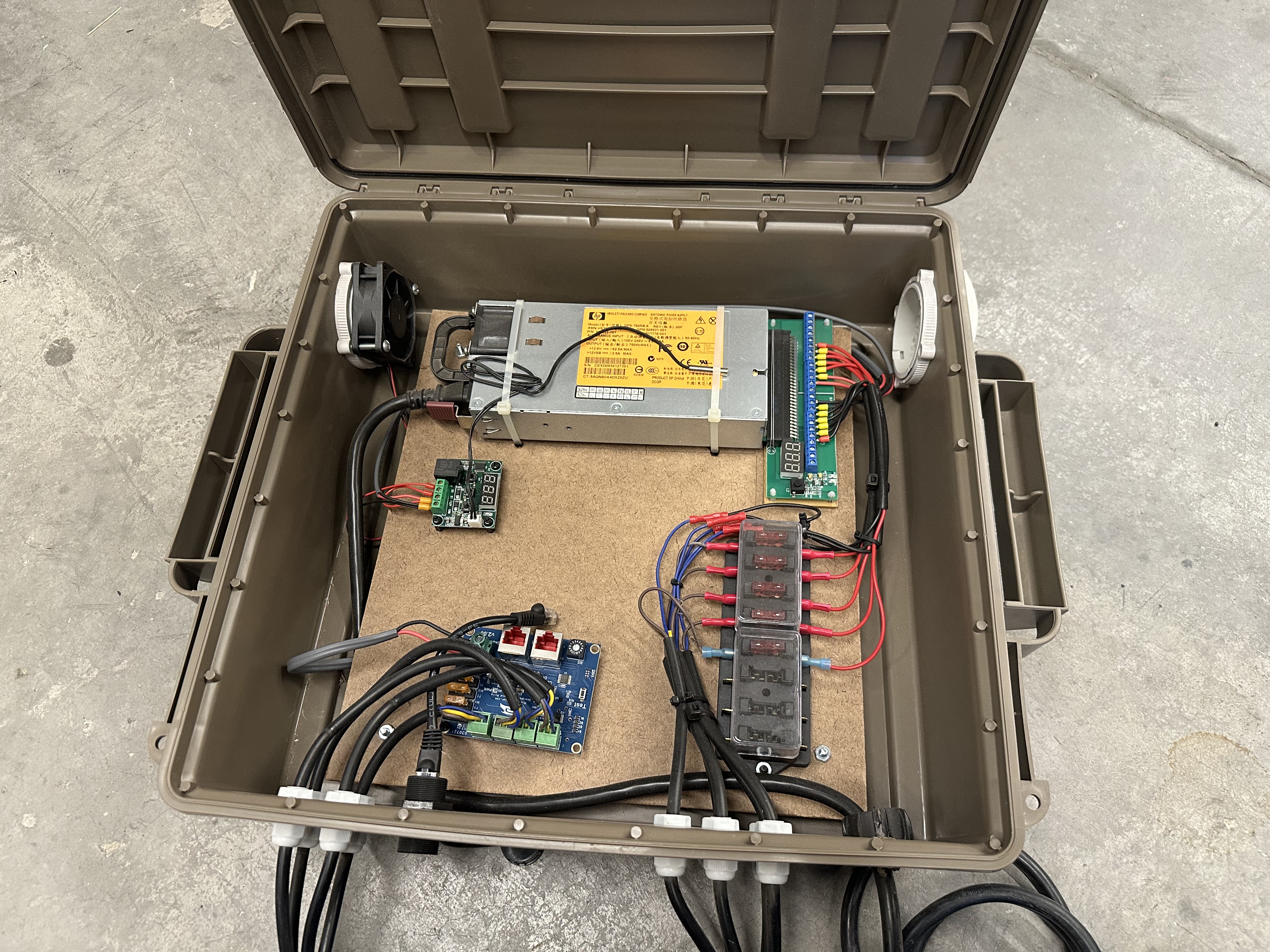

Controller Photos image 2 for controller K4B

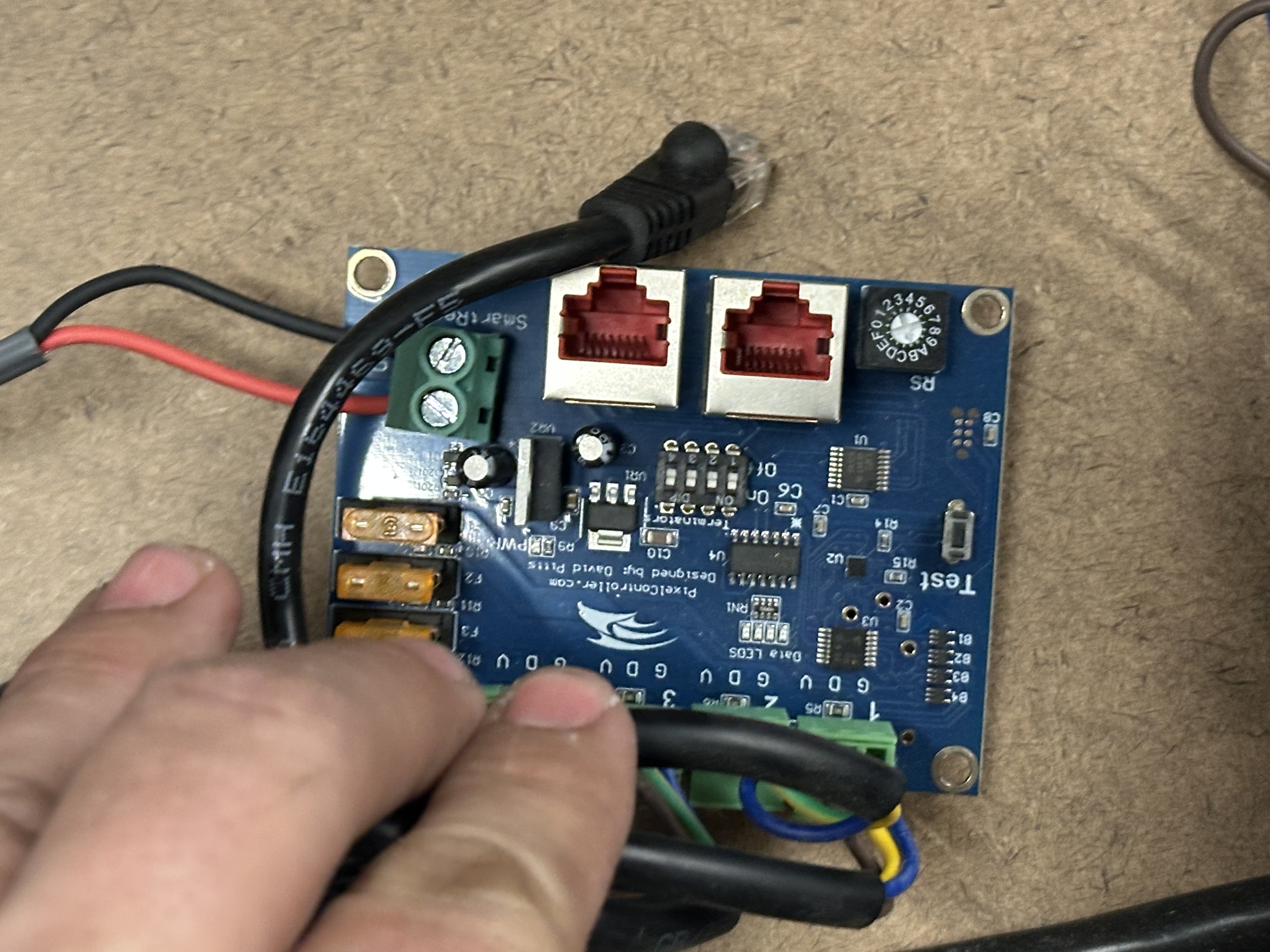

Controller Photos image 3 for controller K4B

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)
K40D.K	13	13B	K4B	4		K4B			640	525	175	115	K4B	12	750	0.1	50	8.75	32.5	Roof 07	5	Drop String 14	175
K40D.K	14	14B	K4B	4		K4B			640	525	175	115	K4B	12	750	0.1	50	8.75		Roof 07	5	Drop String 15	175
K40D.K	15	15B	K4B	4		K4B			640	352	2	288	K4B	12	750	10	75	15		Roof 07	9	10w Flood 035	1	9	10w Flood 034	1
K40D.K	16	16B	K4B	4		K4B			640	177	0	463	K4B	12	750	10	75	0		Roof 07

Controllers

1 box available

Show details

4 data pigtails

Controller Role

K40D.K

Pigtails

4 Data

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
