Controller K4A

Location: Roof 06

Gallery

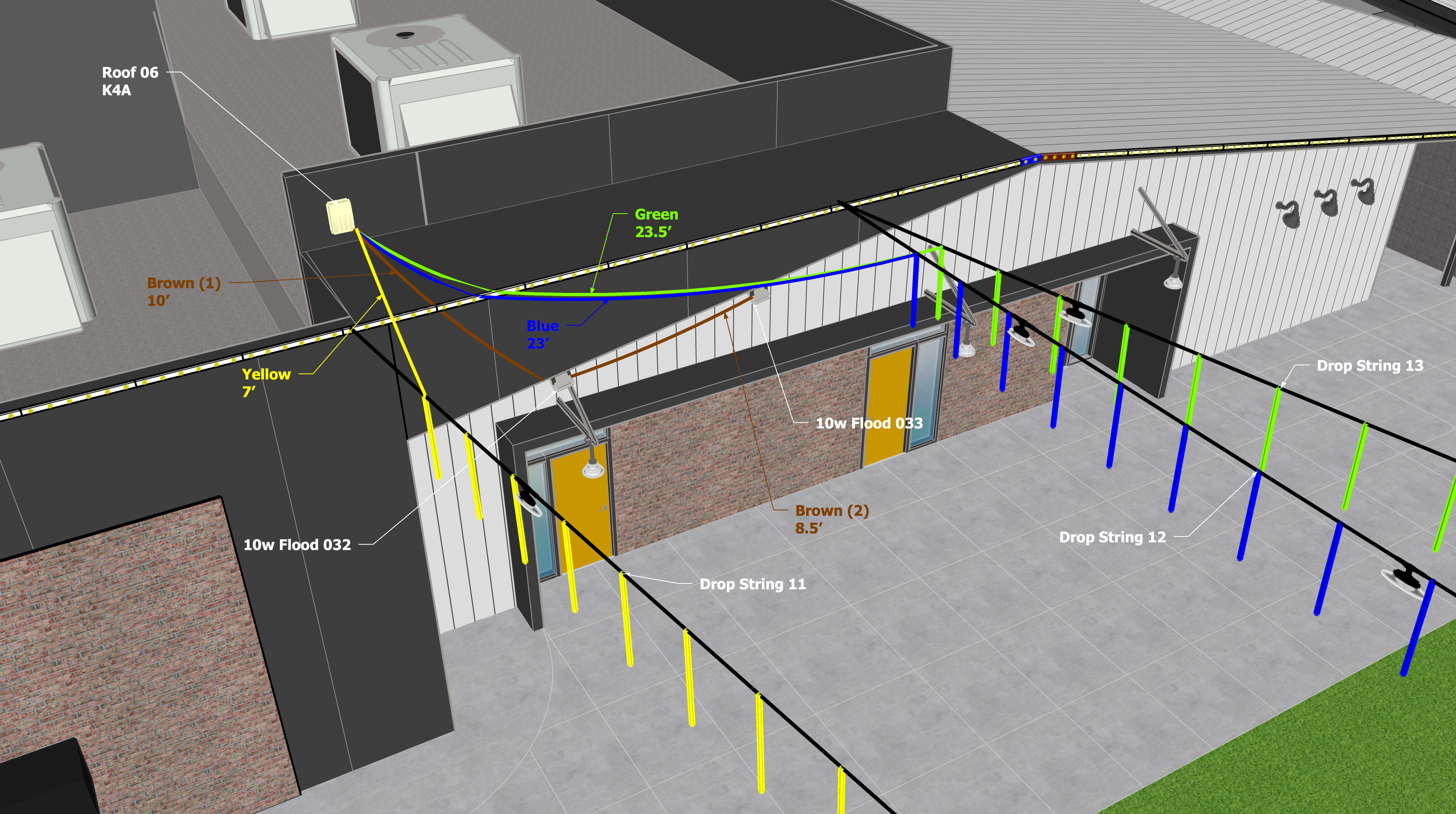

Setup Photos image 1 for controller K4A

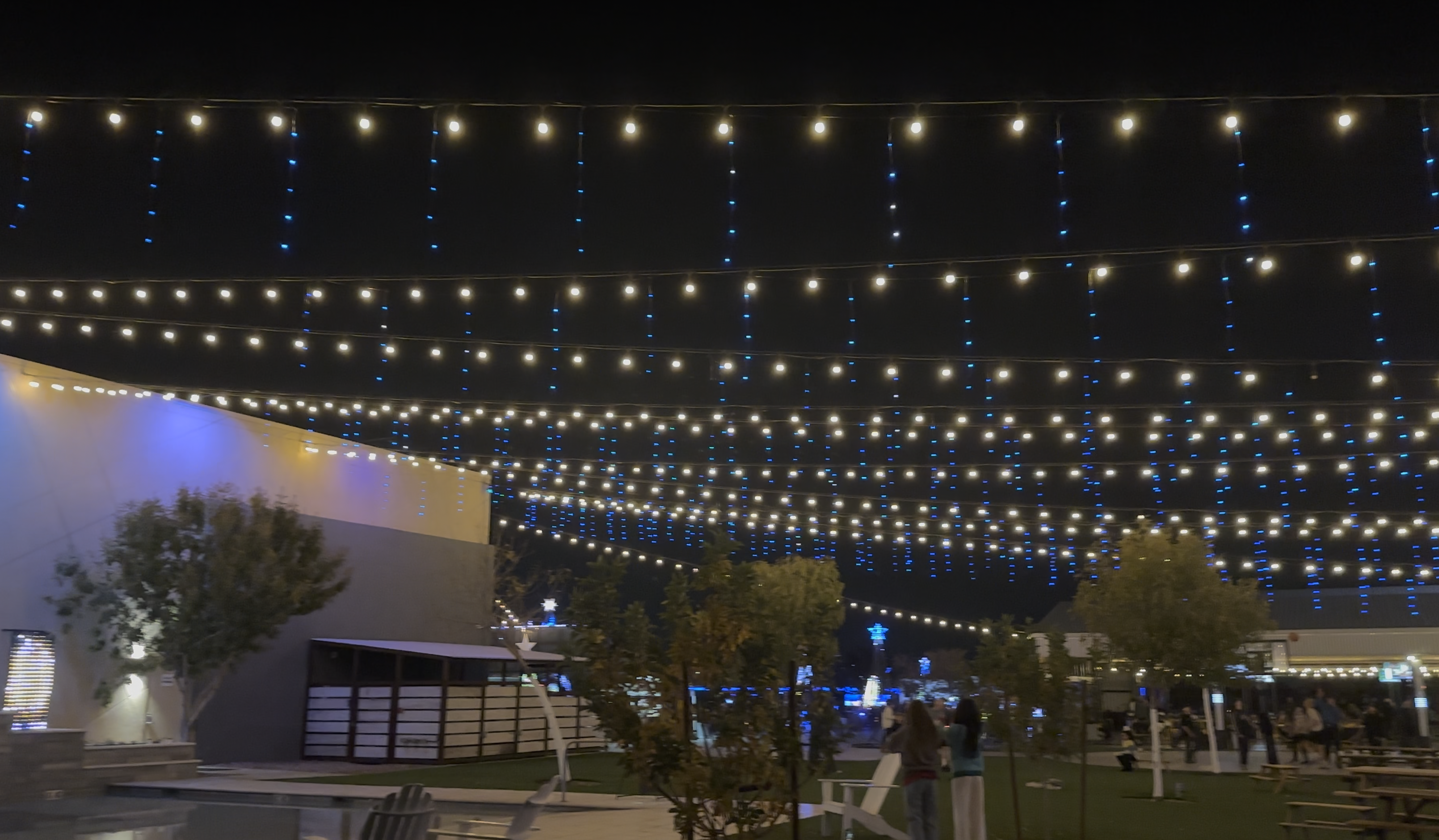

Reference Photos image 1 for controller K4A

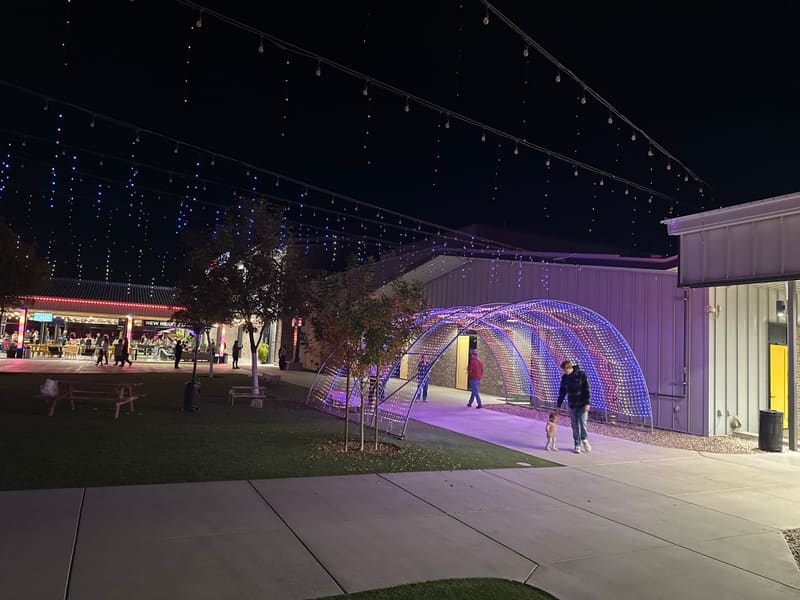

Reference Photos image 2 for controller K4A

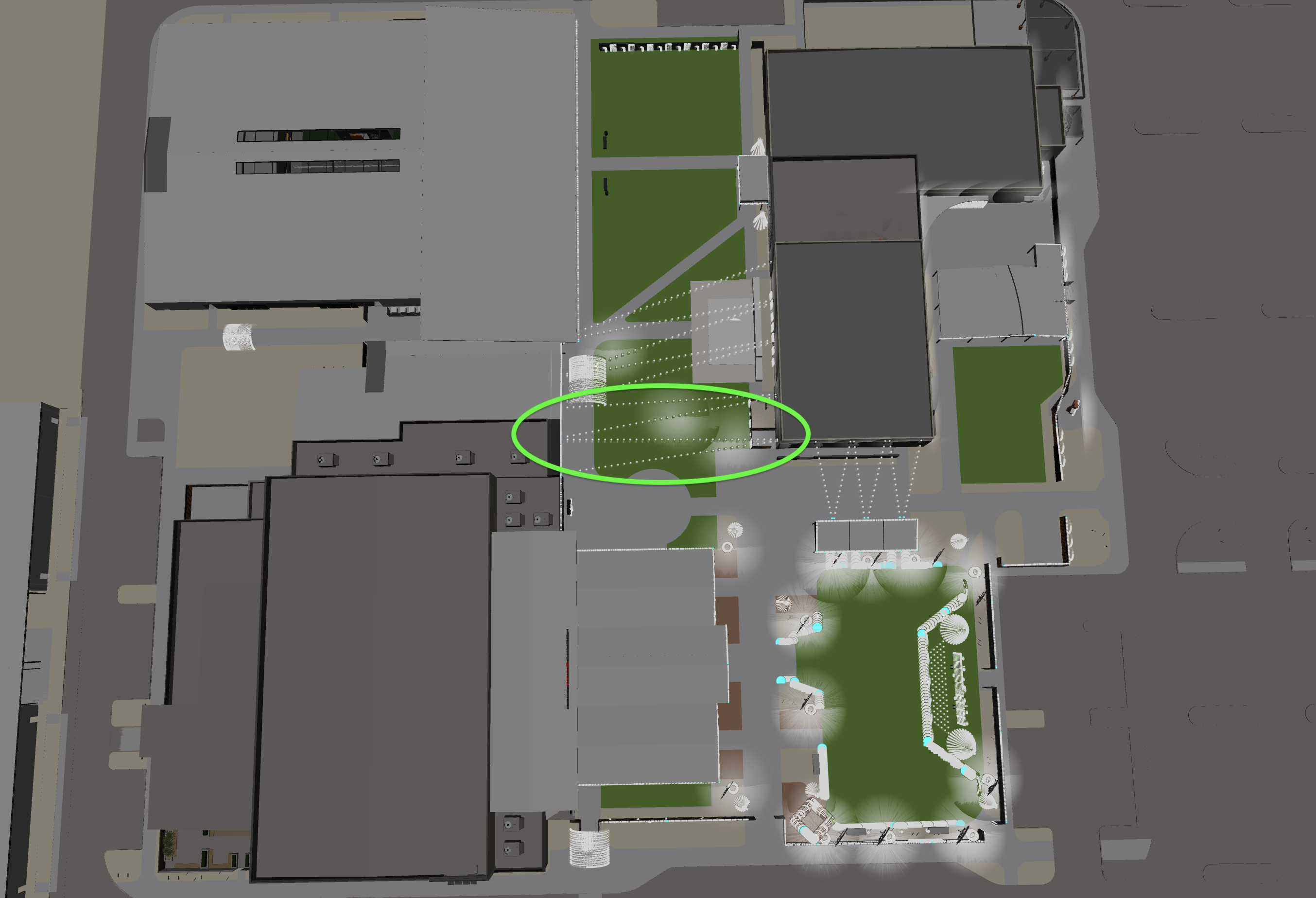

Site Map image 1 for controller K4A

Roof 06

4 data pigtails

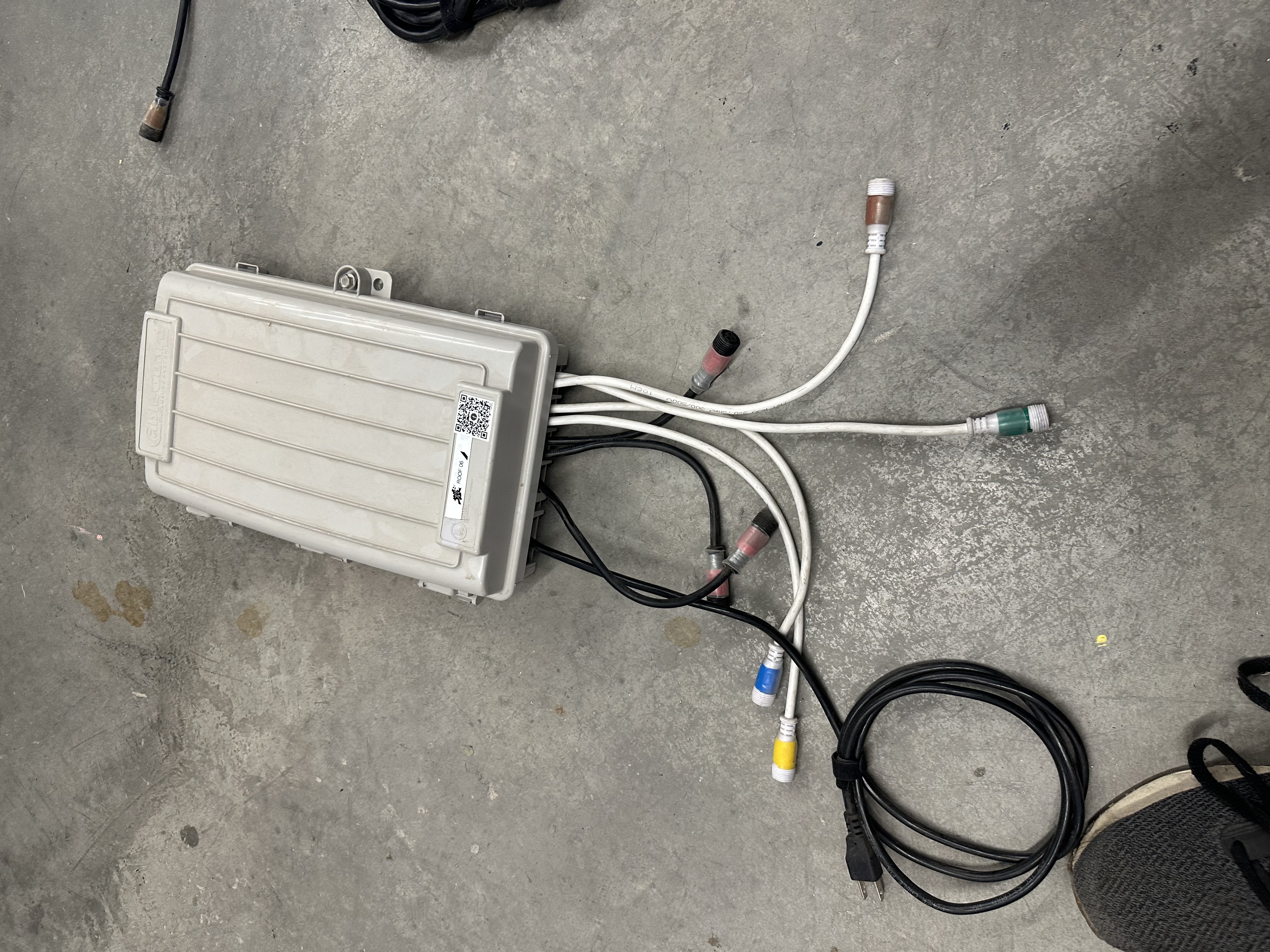

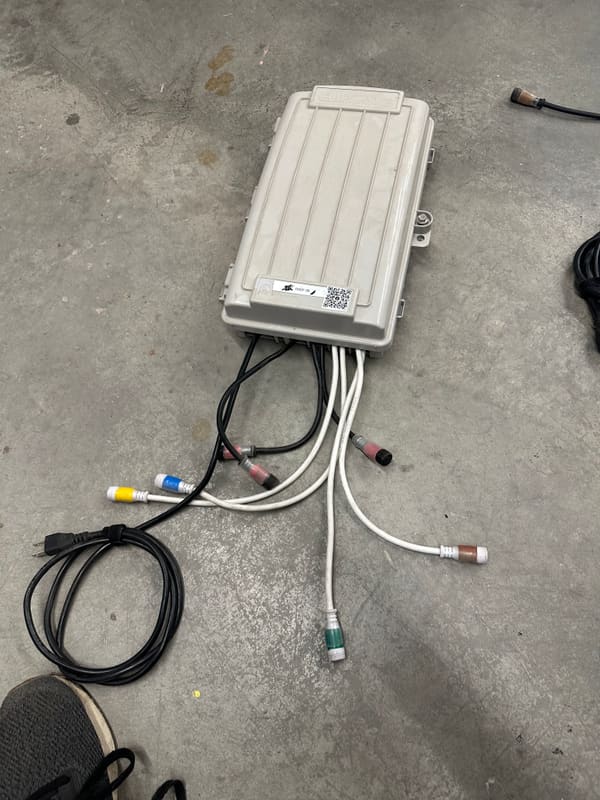

Controller Photos image 1 for controller K4A

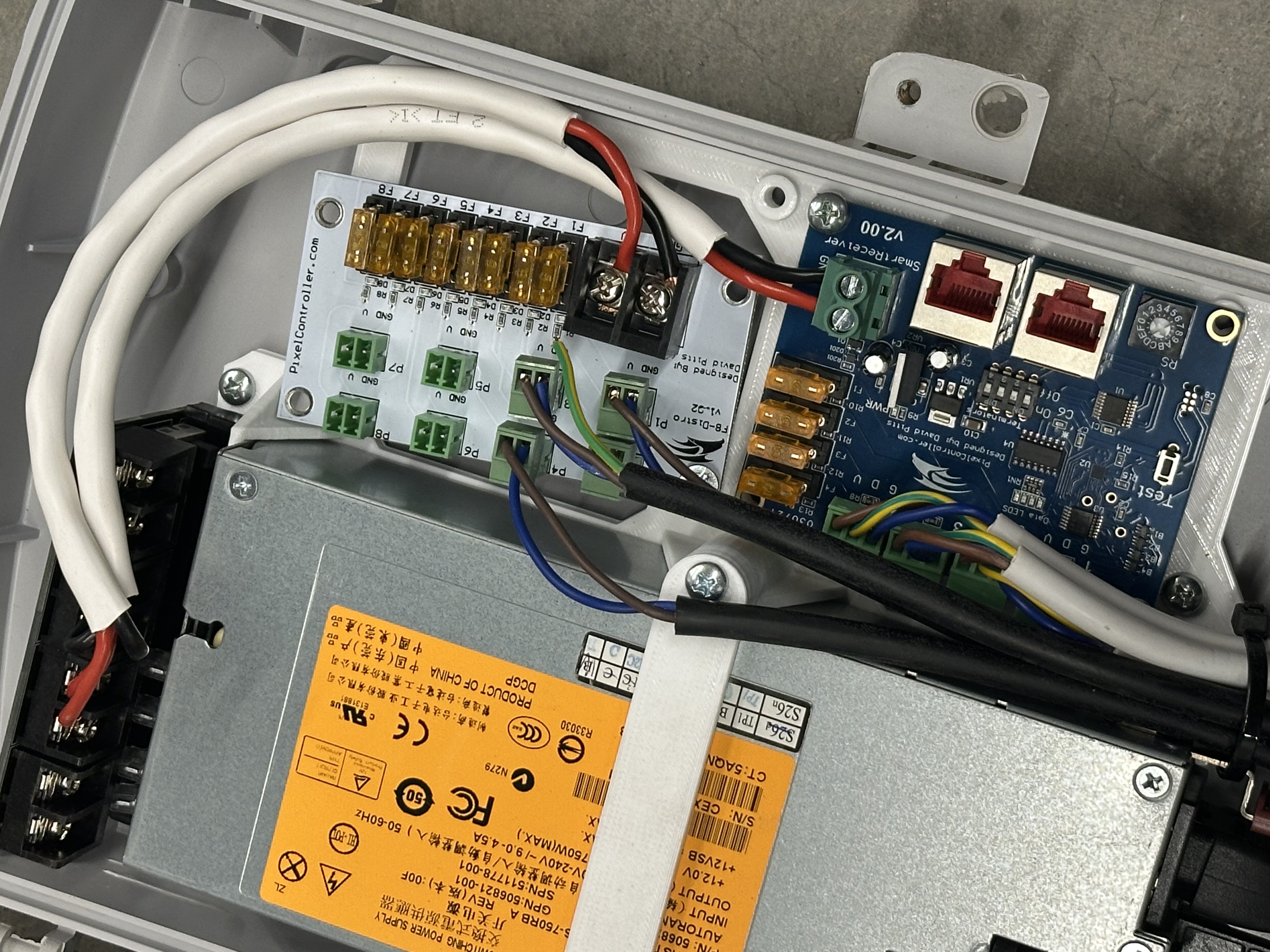

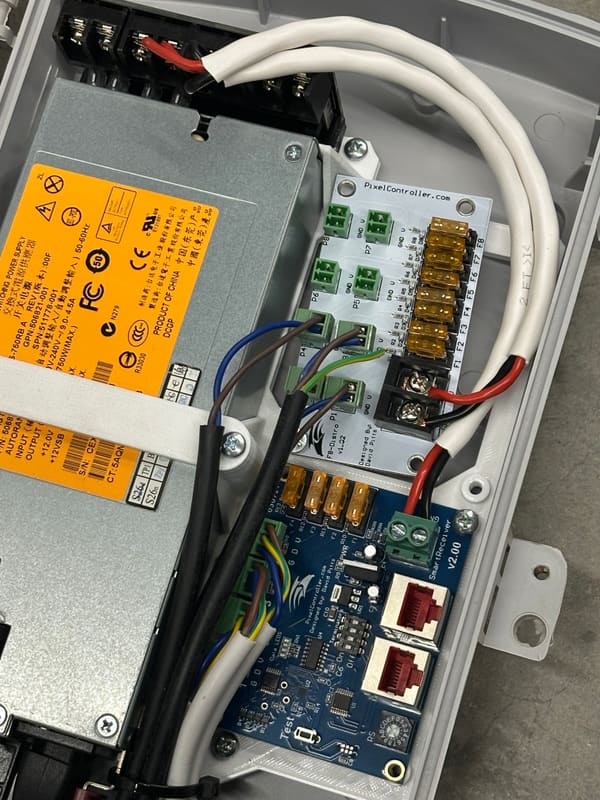

Controller Photos image 2 for controller K4A

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)
K40D.K	13	13A	K4A	4		K4A		E45	640	525	175	115	K4A	12	750	0.1	50	8.75	41.25	Roof 06	7	Drop String 11	175
K40D.K	14	14A	K4A	4		K4A			640	525	175	115	K4A	12	750	0.1	50	8.75		Roof 06	23	Drop String 12	175
K40D.K	15	15A	K4A	4		K4A			640	352	175	288	K4A	12	750	0.1	50	8.75		Roof 06	24.5	Drop String 13	175
K40D.K	16	16A	K4A	4		K4A			640	177	2	463	K4A	12	750	10	75	15		Roof 06	10	10w Flood 032	1	8.5	10w Flood 033	1

Controllers

1 box available

Show details

4 data pigtails

Controller Role

K40D.K

Pigtails

4 Data

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
