Controller H3A~H3B

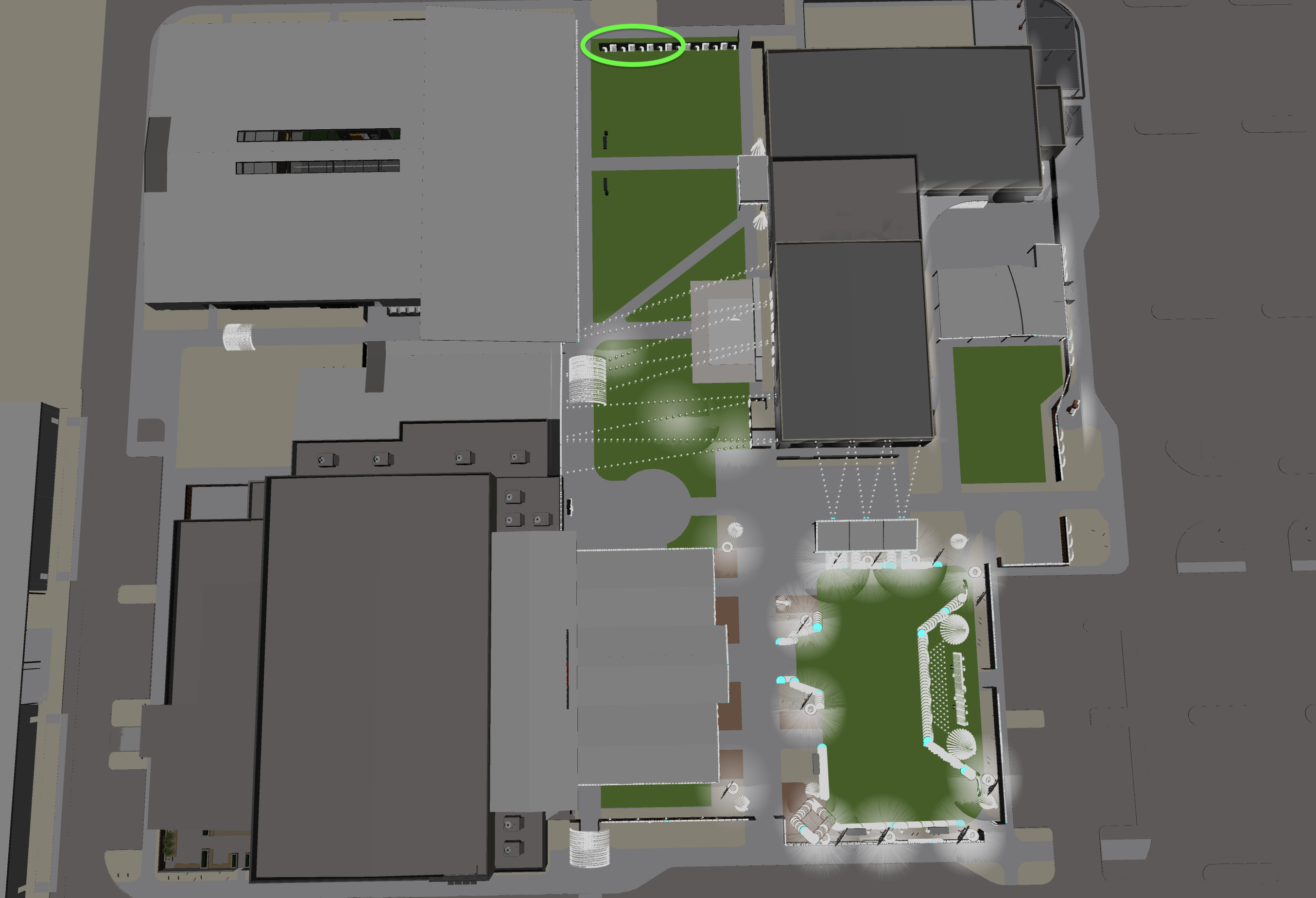

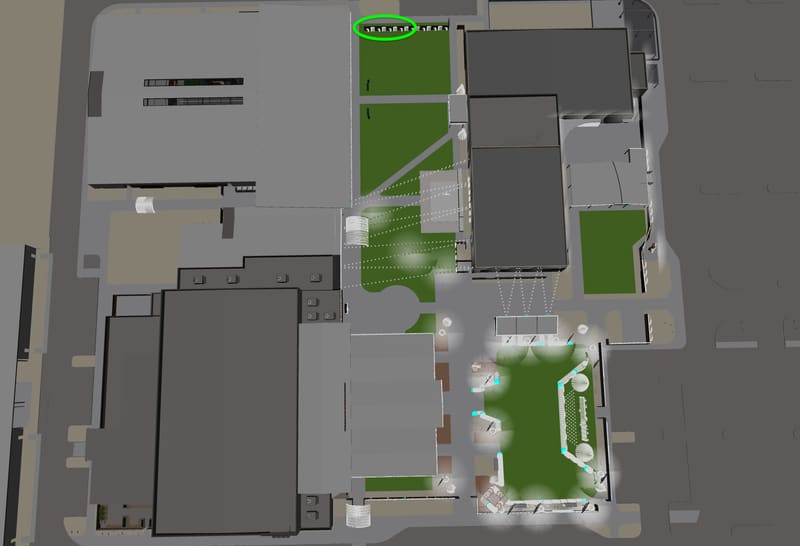

Location: Fence 06

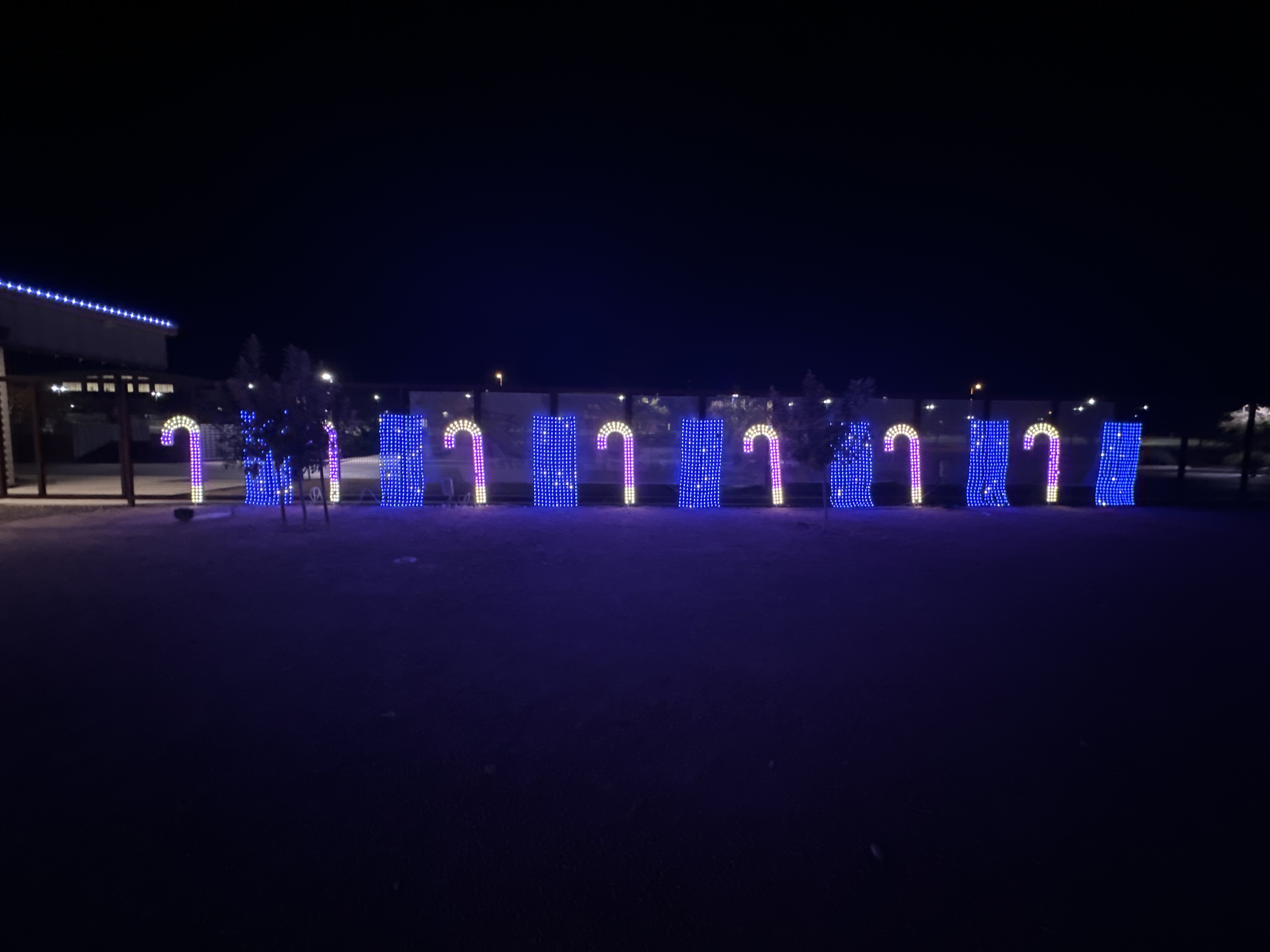

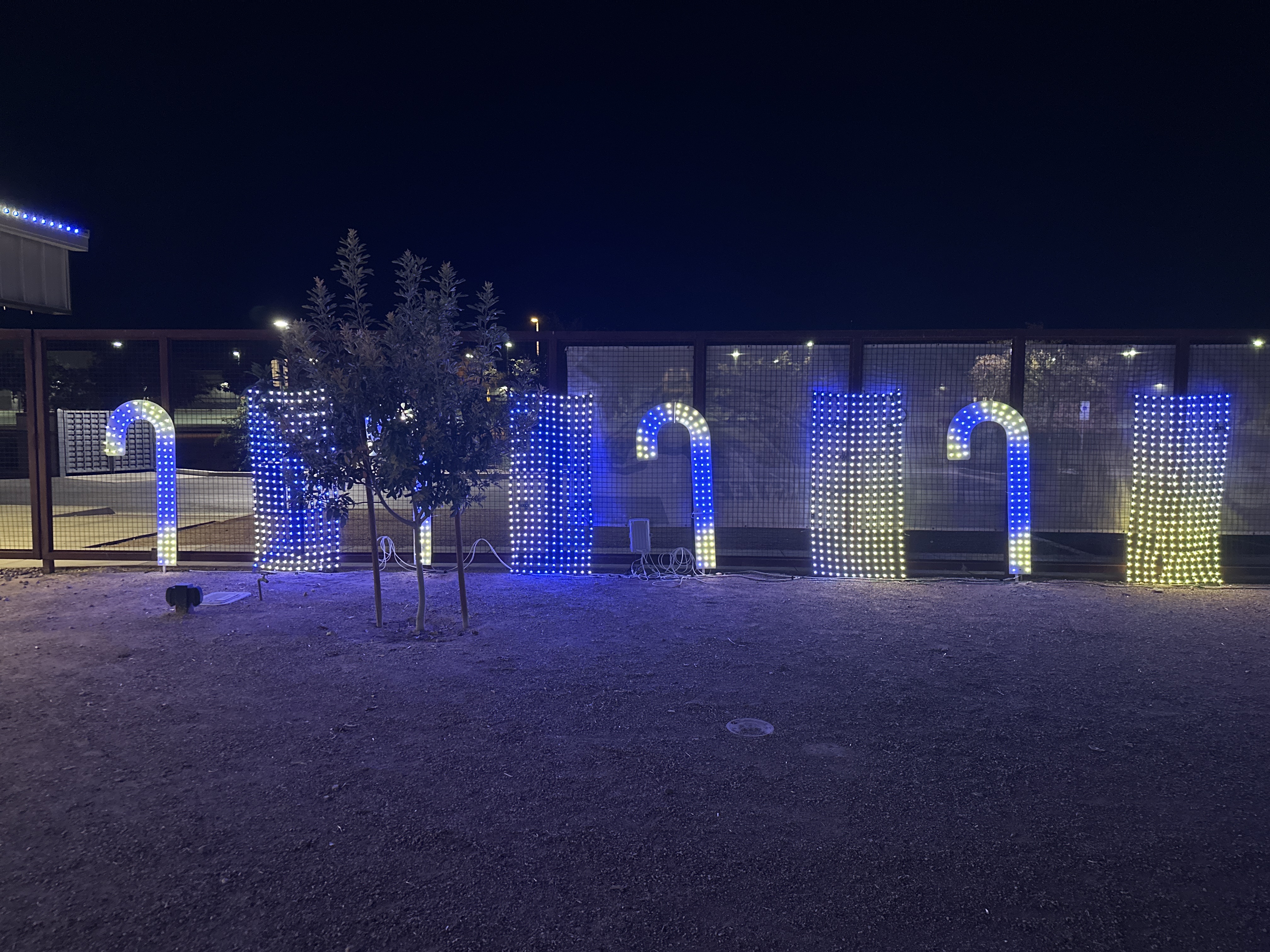

Gallery

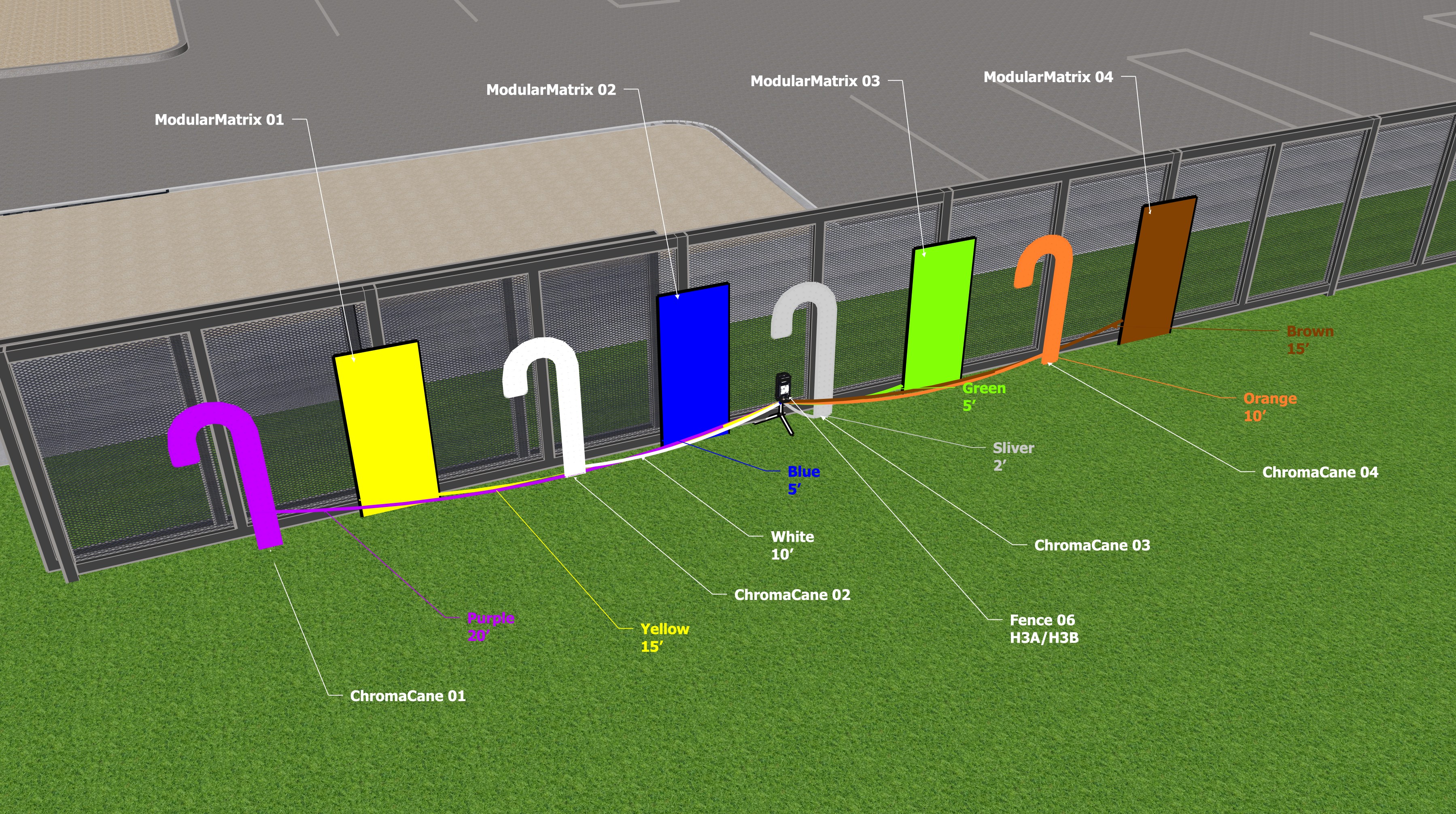

Cable Schedule

Control box Fence 06

Cable What is on it, in order
Yellow
  1. 25′
  2. ModularMatrix 04.1 100 px
  3. ModularMatrix 04.2 100 px
  4. Power Inject
  5. ModularMatrix 04.3 100 px
Blue
  1. 10′
  2. ModularMatrix 05.1 100 px
  3. ModularMatrix 05.2 100 px
  4. Power Inject
  5. ModularMatrix 05.3 100 px
Green
  1. 10′
  2. ModularMatrix 06.1 100 px
  3. ModularMatrix 06.2 100 px
  4. Power Inject
  5. ModularMatrix 06.3 100 px
Brown
  1. 25′
  2. ModularMatrix 07.1 100 px
  3. ModularMatrix 07.2 100 px
  4. Power Inject
  5. ModularMatrix 07.3 100 px
Purple
  1. 25′
  2. ChromaCane 05 99 px
White
  1. 10′
  2. ChromaCane 06 99 px
Silver
  1. 10′
  2. ChromaCane 07 99 px
Orange
  1. 25′
  2. ChromaCane 08 99 px

Controllers

1 box available

Show details

Fence 06

# Gallery

8 data pigtails · 4 power pigtails

Controller Role

K8PB.H

Pigtails

  • 8 Data
  • 4 Power Injection

Build Checklist
