Controller G3B

Location: Canopy YTH 01

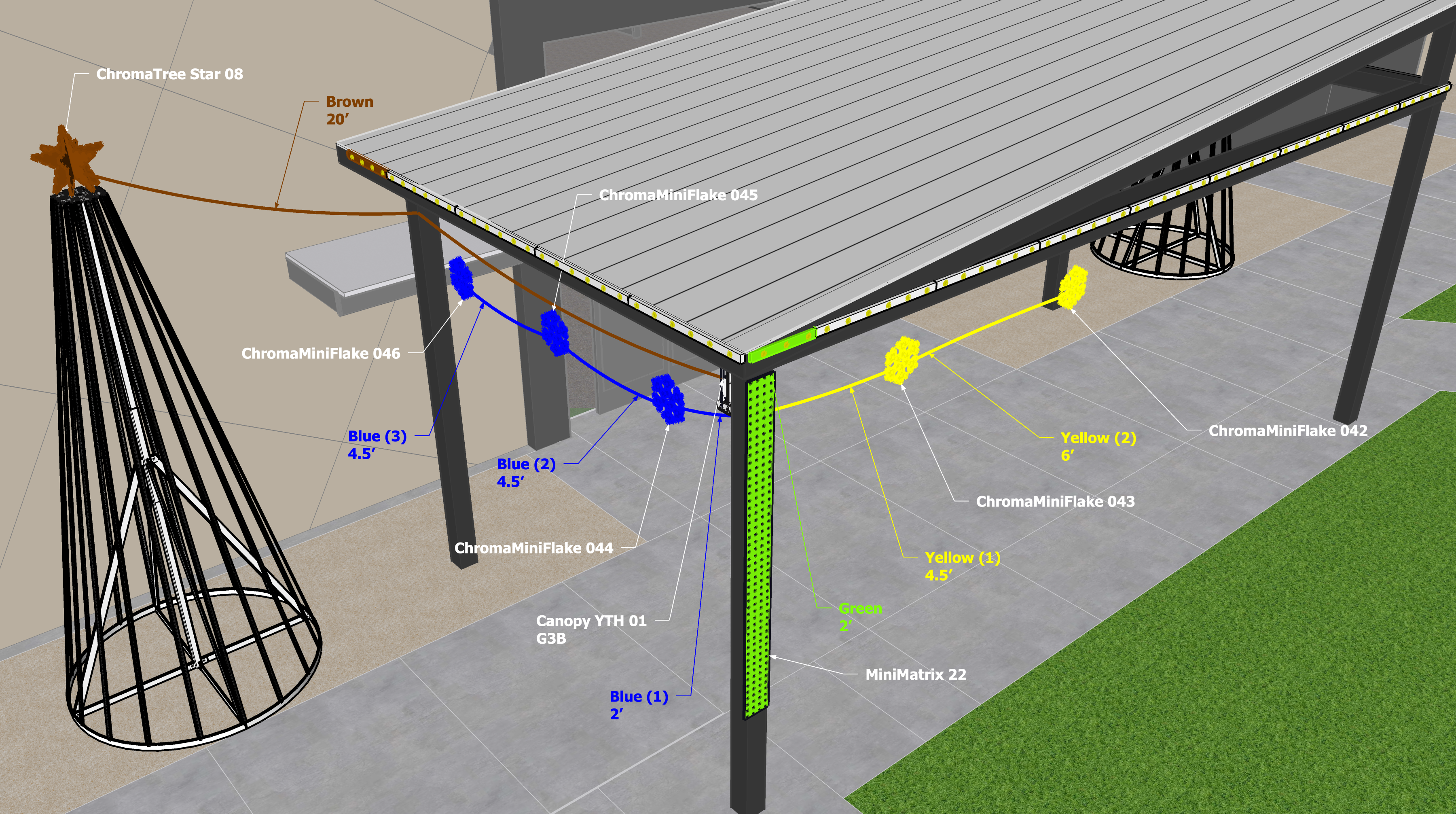

Gallery

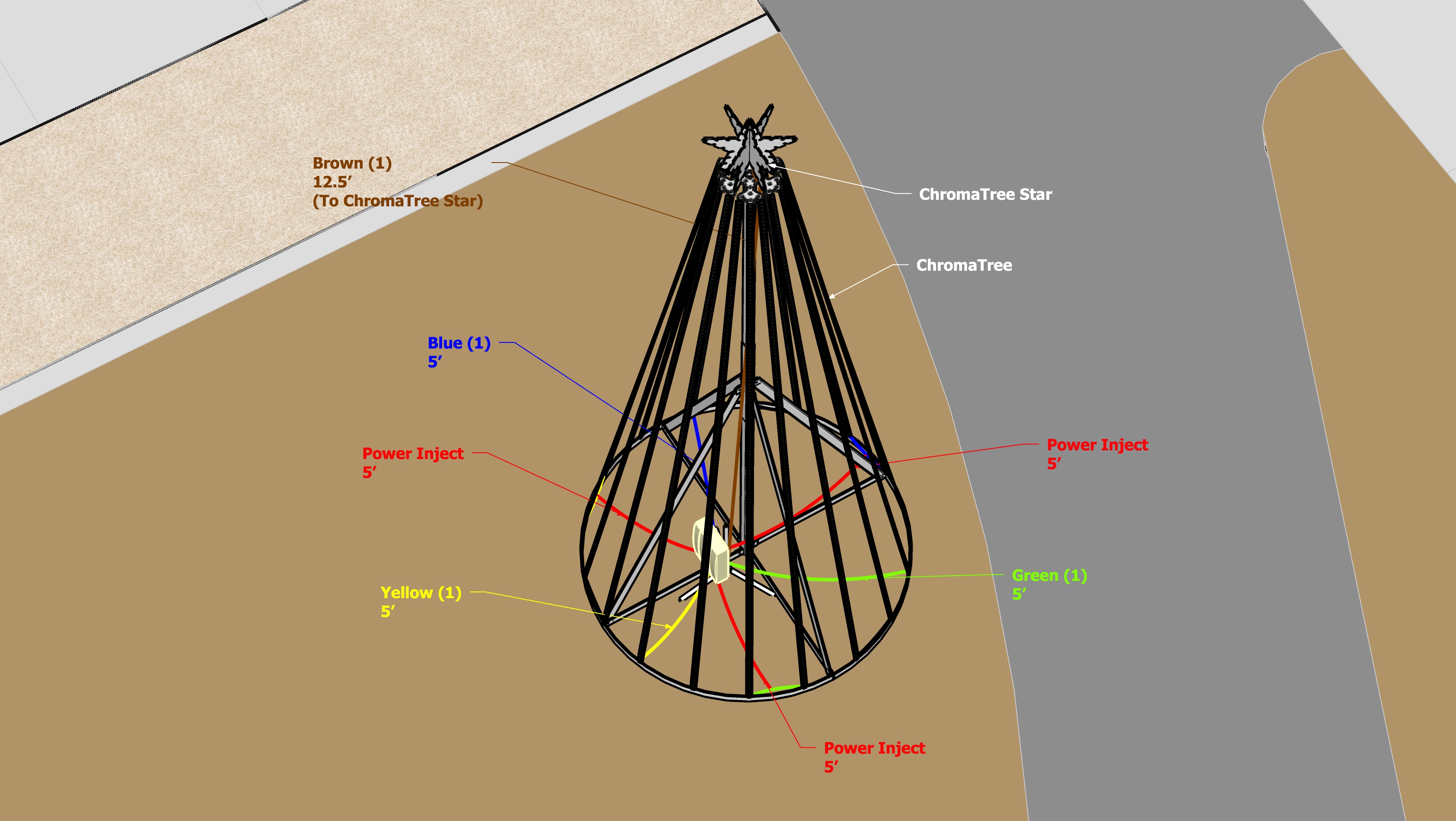

Setup Photos image 1 for controller G3B

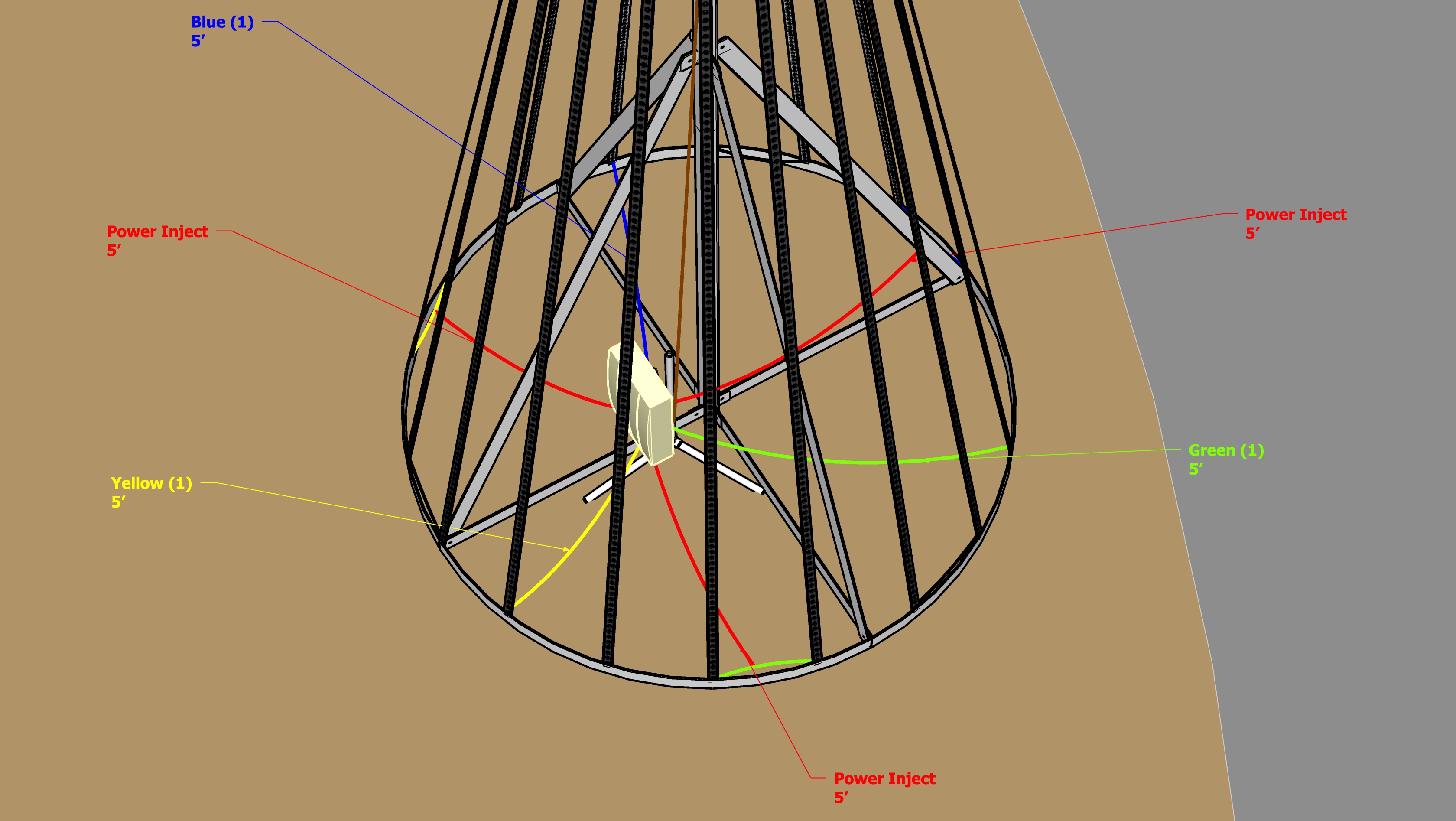

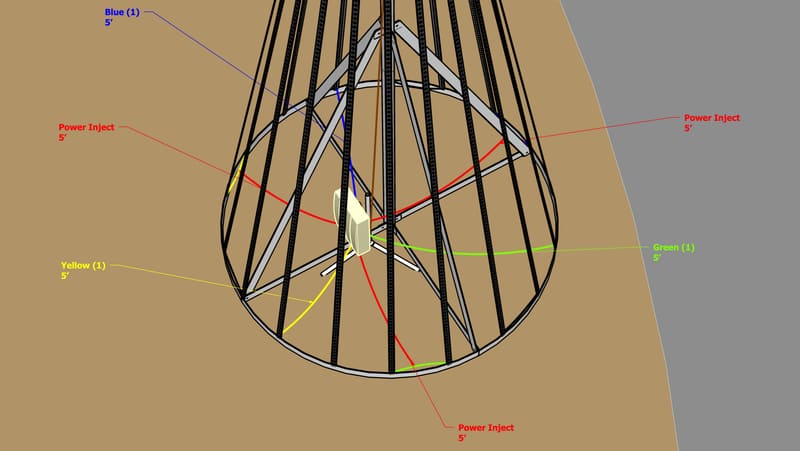

Setup Photos image 2 for controller G3B

Setup Photos image 3 for controller G3B

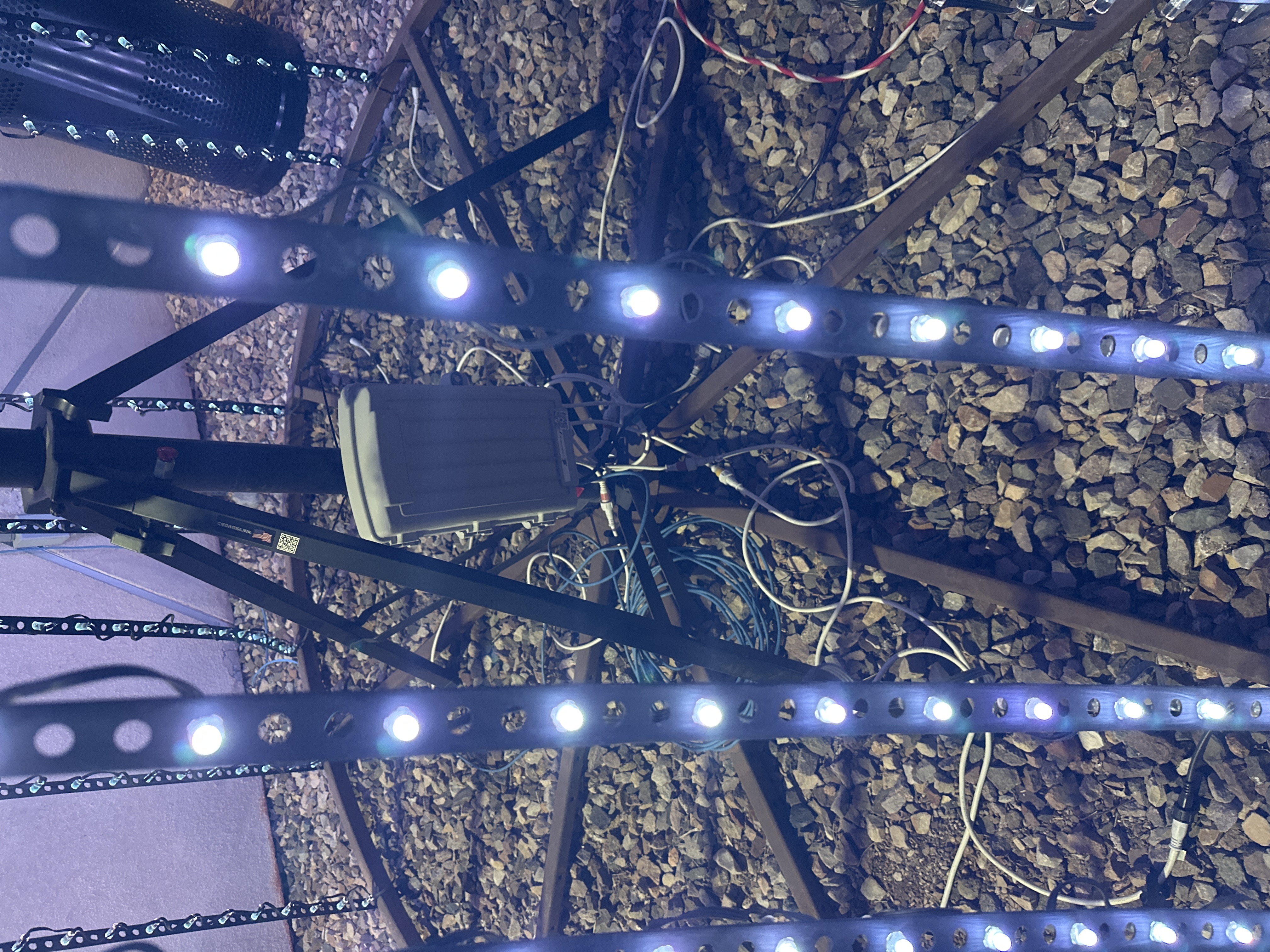

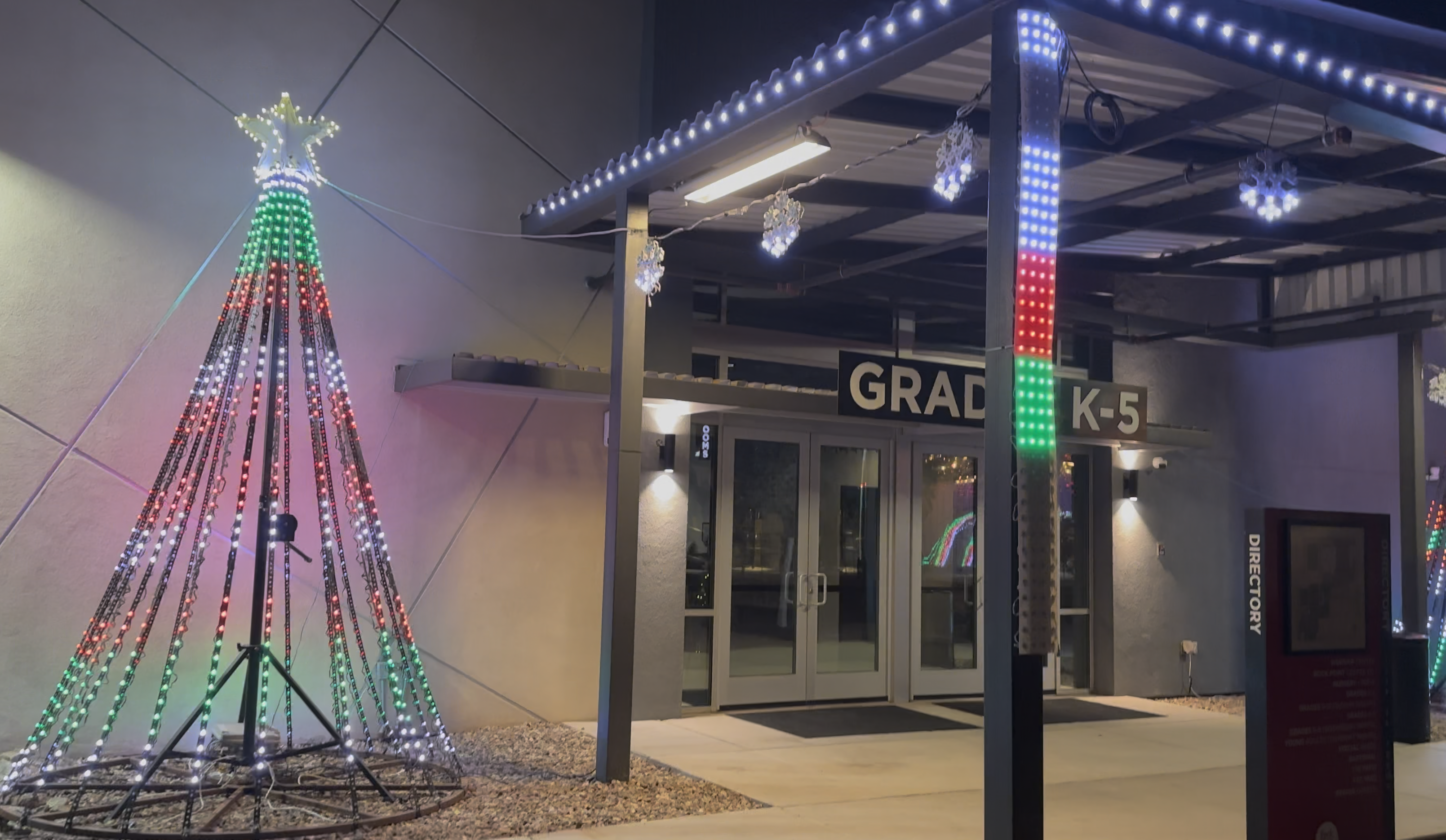

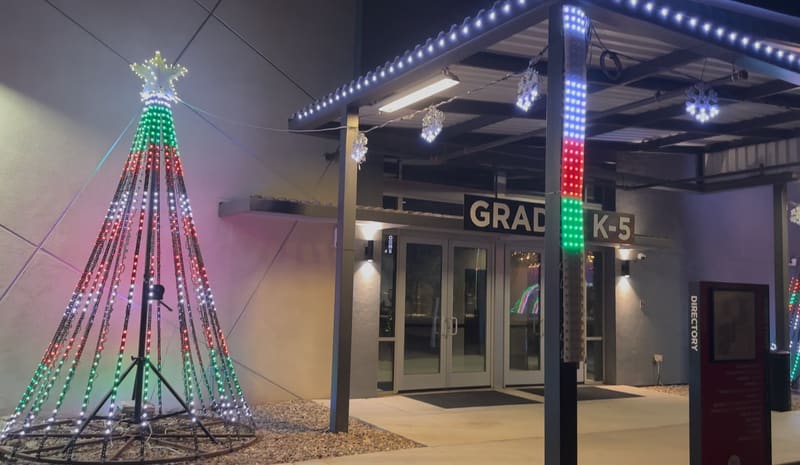

Reference Photos image 1 for controller G3B

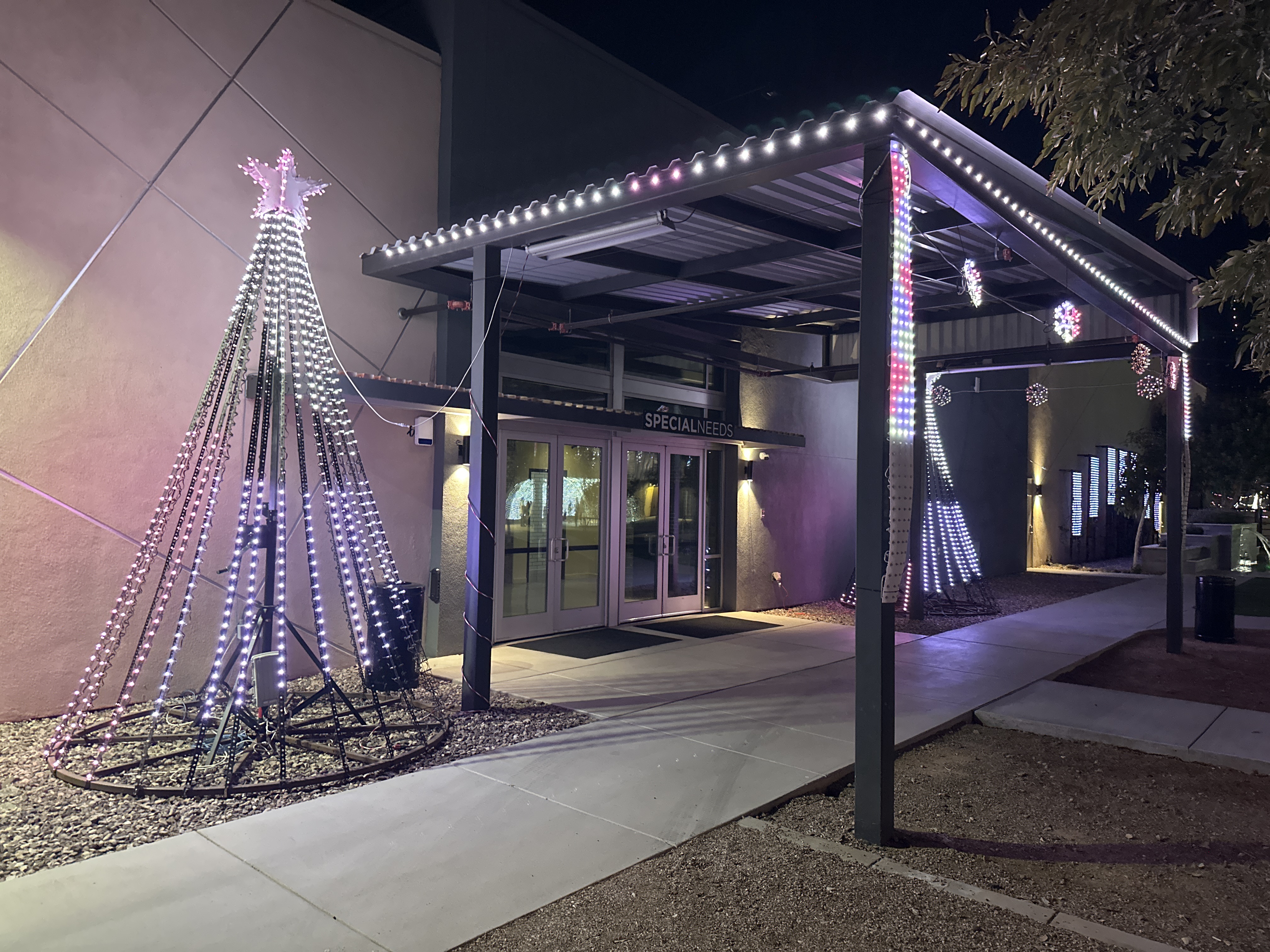

Reference Photos image 2 for controller G3B

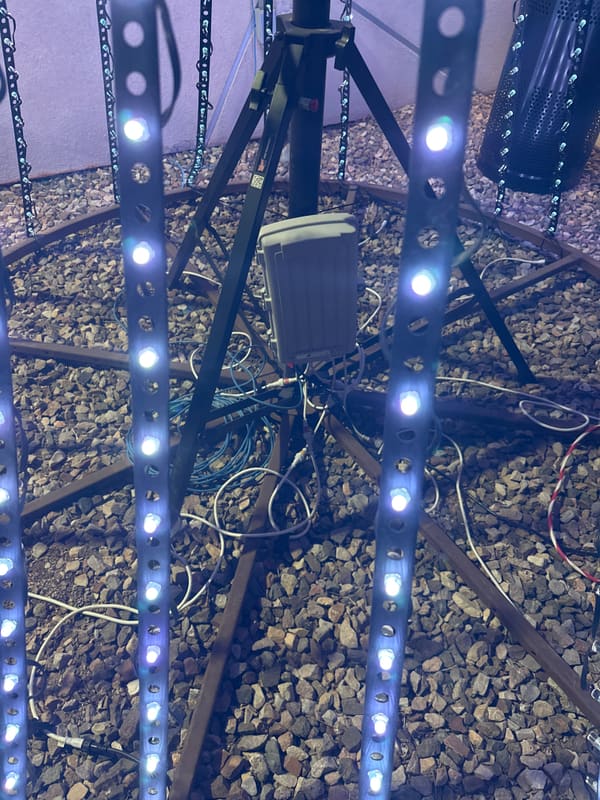

Reference Photos image 3 for controller G3B

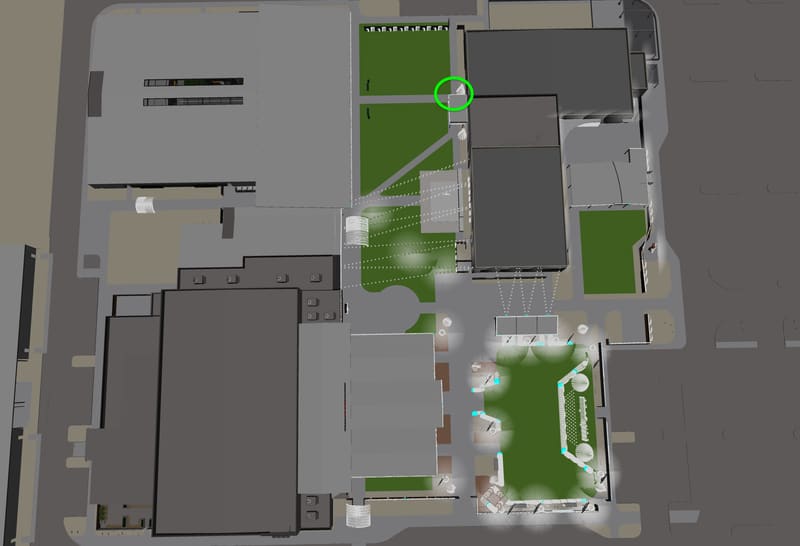

Site Map image 1 for controller G3B

Canopy YTH 01

4 data pigtails

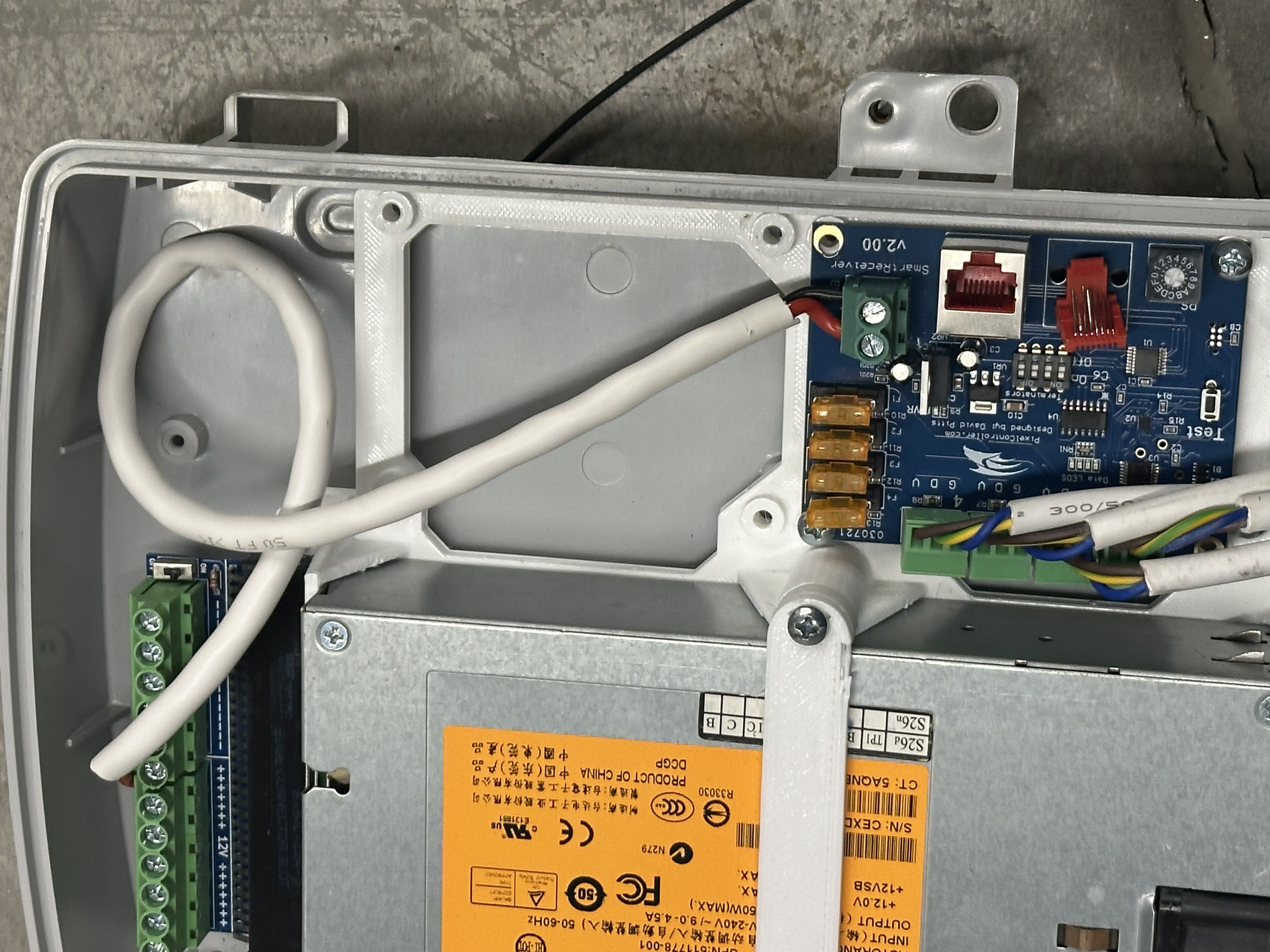

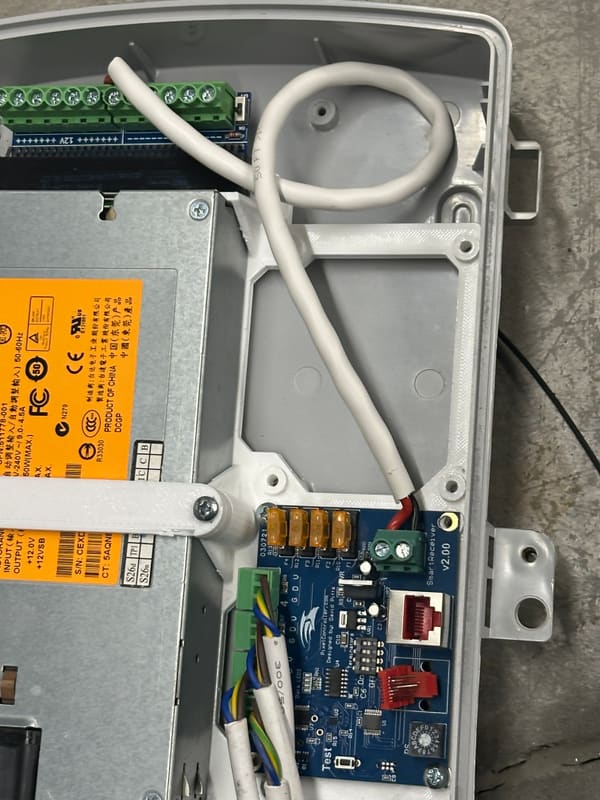

Controller Photos image 1 for controller G3B

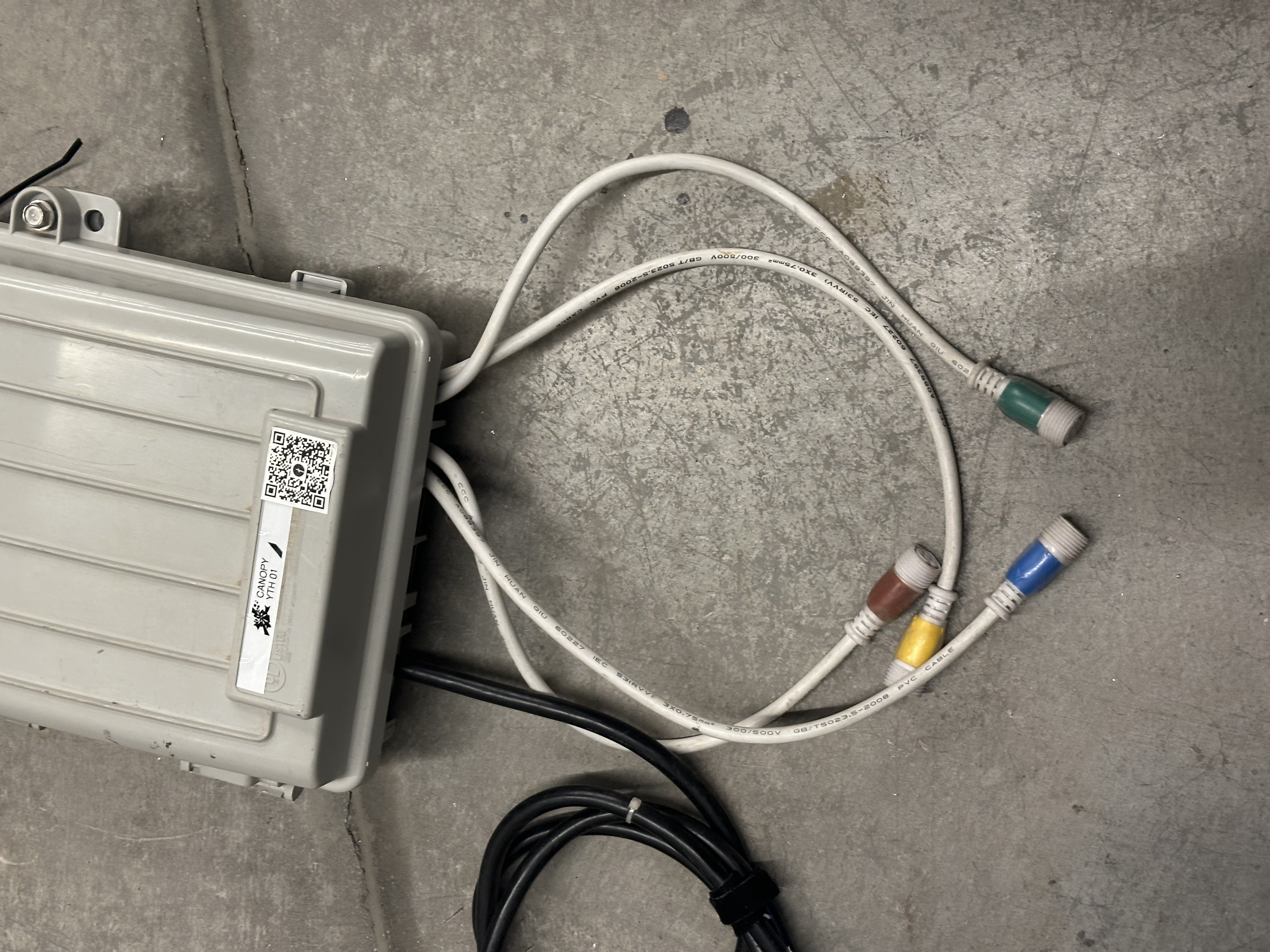

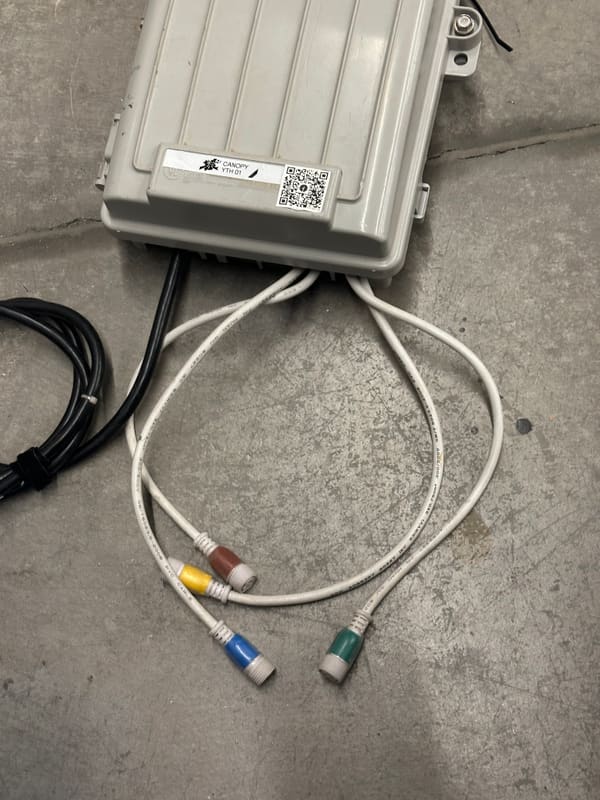

Controller Photos image 2 for controller G3B

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)	Cable Length (3)	Prop 3 Name	Px Count (3)
K8PB.G	9	9B	G3B	3		G3B			640	72	72	568	G3B	12	750	0.6	50	21.6	129.6	Canopy YTH 01	4.5	ChromaMiniFlake 043	36	6	ChromaMiniFlake 042	36
K8PB.G	10	10B	G3B	3		G3B			640	108	108	532	G3B	12	750	0.6	50	32.4		Canopy YTH 01	2	ChromaMiniFlake 044	36	4.5	ChromaMiniFlake 045	36	4.5	ChromaMiniFlake 046	36
K8PB.G	11	11B	G3B	3		G3B			640	168	168	472	G3B	12	750	0.6	50	50.4		Canopy YTH 01	2	MiniMatrix 31	168
K8PB.G	12	12B	G3B	3		G3B			640	84	84	556	G3B	12	750	0.6	50	25.2		Canopy YTH 01	20	ChromaTree Star 08.1	28	0	ChromaTree Star 08.2	28	0	ChromaTree Star 08.3	28

Controllers

1 box available

Show details

4 data pigtails

Controller Role

K8PB.G

Pigtails

4 Data

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
