Controller F10~F11

Location: MegaArch 01

Gallery

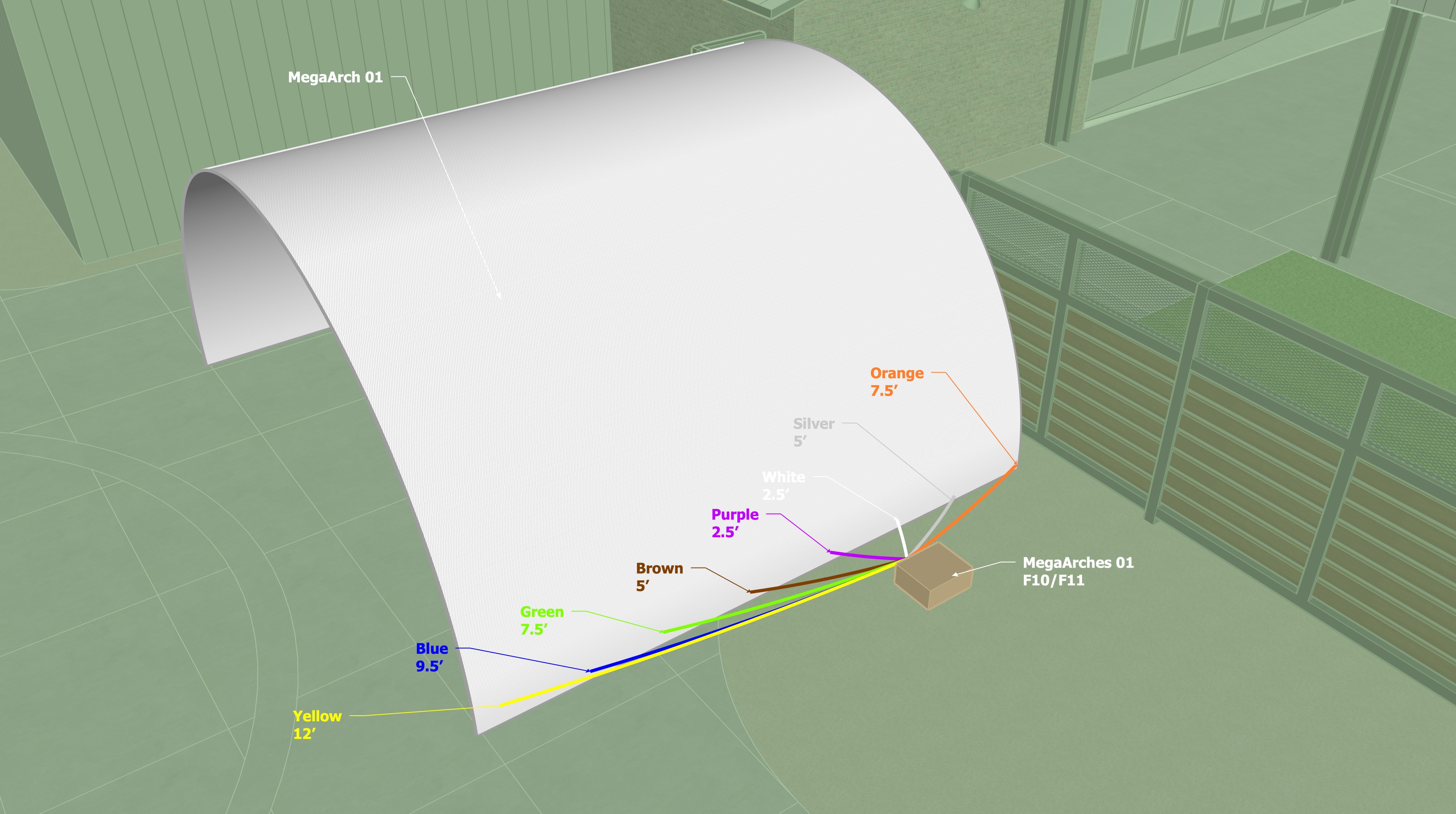

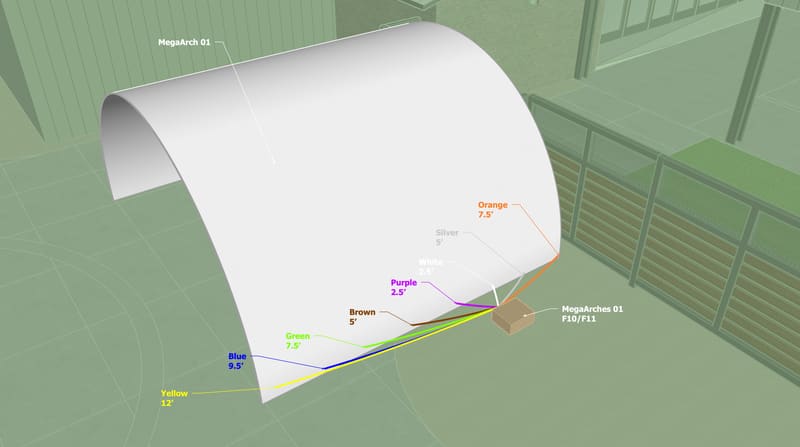

Setup Photos image 1 for controller F10~F11

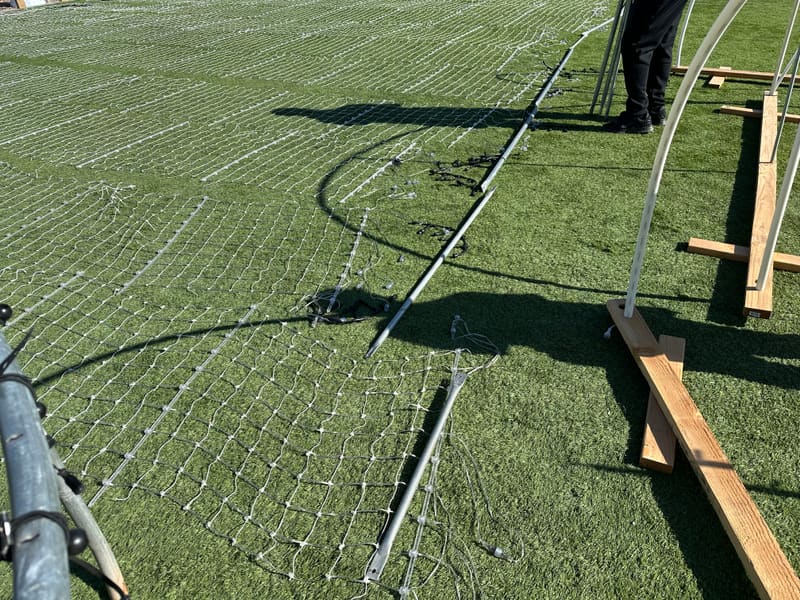

Reference Photos image 1 for controller F10~F11

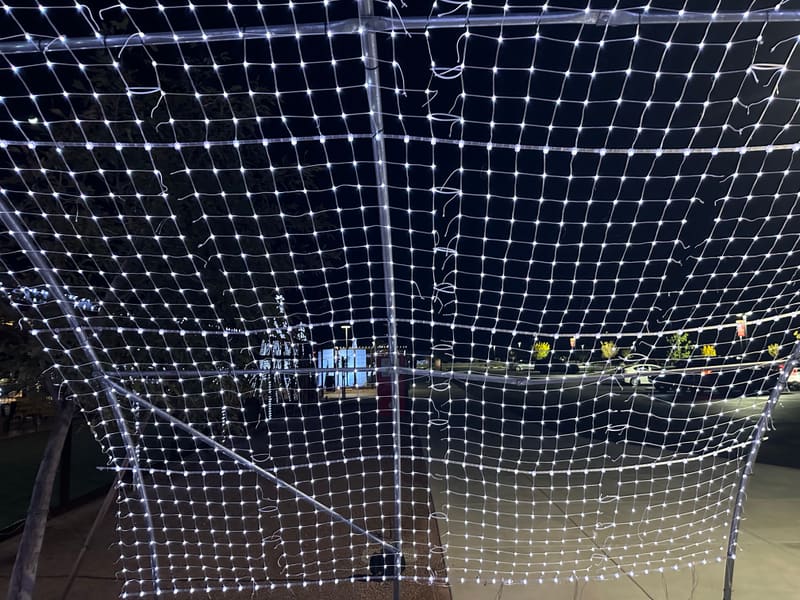

Reference Photos image 2 for controller F10~F11

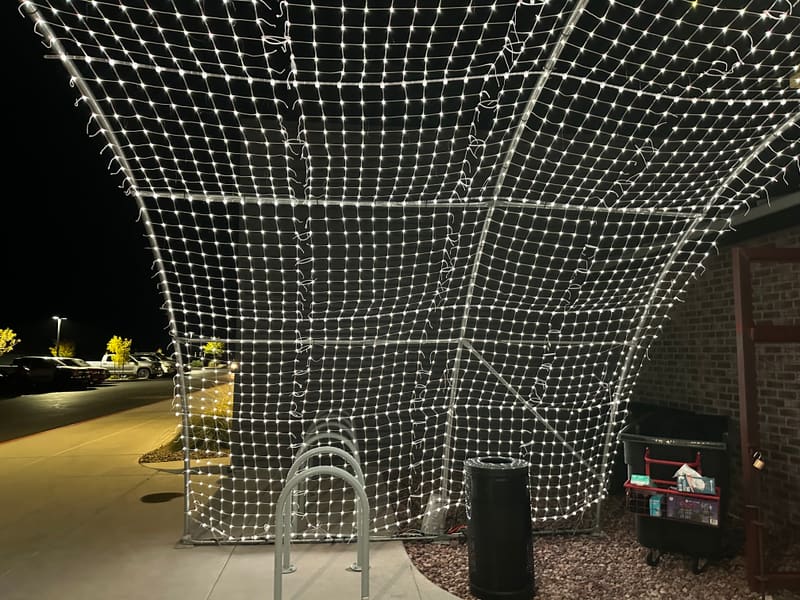

Reference Photos image 3 for controller F10~F11

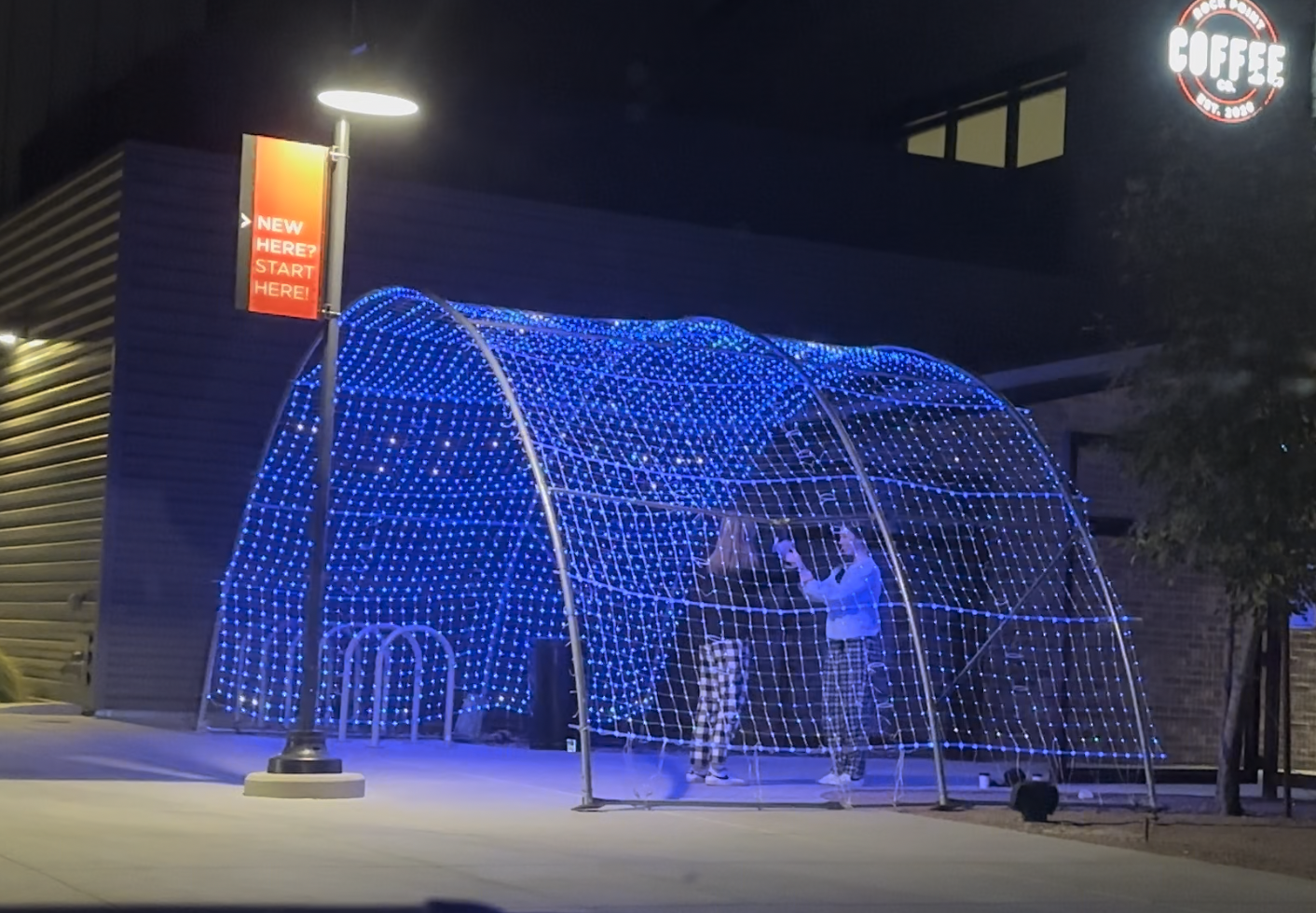

Reference Photos image 4 for controller F10~F11

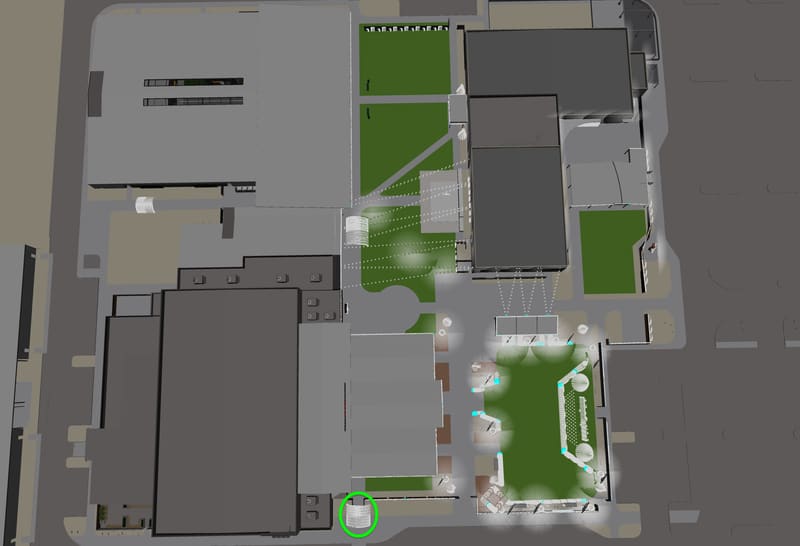

Site Map image 1 for controller F10~F11

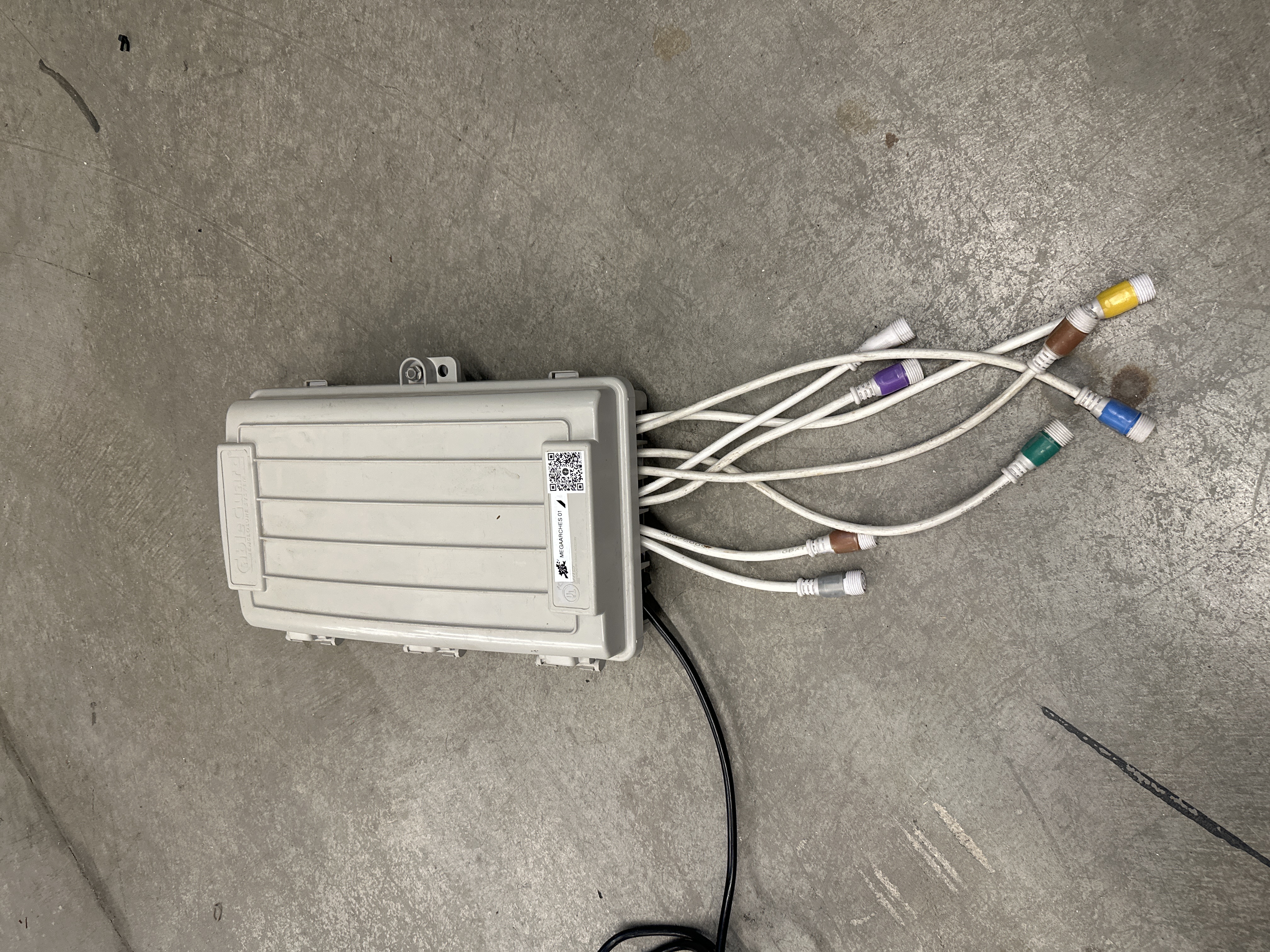

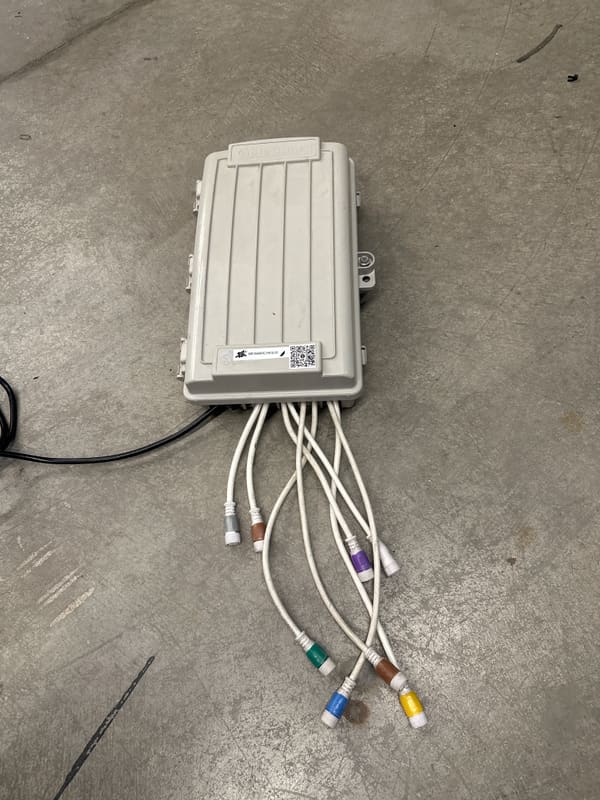

Controller Photos image 1 for controller F10~F11

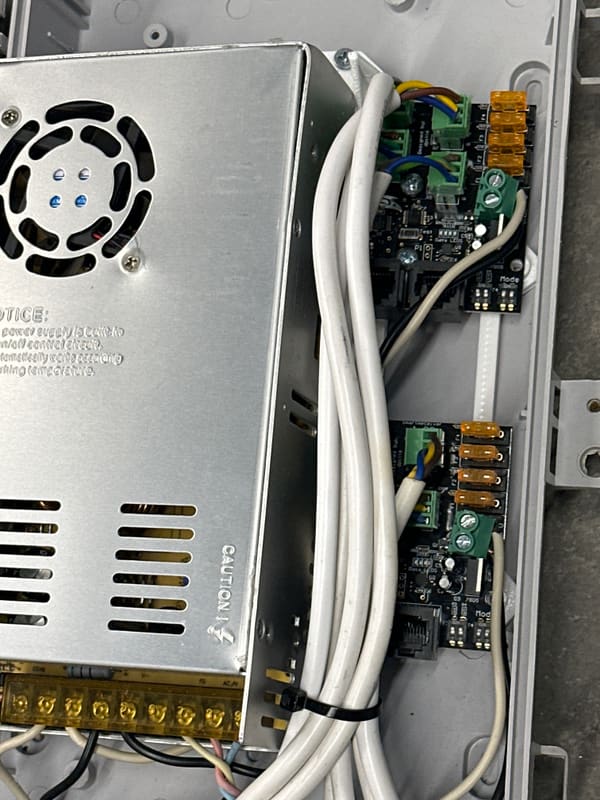

Controller Photos image 2 for controller F10~F11

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)	Cable Length (3)	Prop 3 Name	Px Count (3)	Cable Length (4)	Prop 4 Name	Px Count (4)	Cable Length (5)	Prop 5 Name	Px Count (5)	Cable Length (6)	Prop 6 Name	Px Count (6)	Cable Length (7)	Prop 7 Name	Px Count (7)
K8PB.F	13	13		10	F10			K8PB.F	640	500	500	140	F10	12	750	0.6	50	150	600	MegaArches 01	12	MegaArch 01.1.1	100	0	MegaArch 01.1.2	100	0	Power Balanced		0	MegaArch 01.1.3	100	0	MegaArch 01.1.4	100	0	Power Balanced		0	MegaArch 01.1.5	100
K8PB.F	14	14		10	F10				640	500	500	140	F10	12	750	0.6	50	150		MegaArches 01	9.5	MegaArch 01.2.1	100	0	MegaArch 01.2.2	100	0	Power Balanced		0	MegaArch 01.2.3	100	0	MegaArch 01.2.4	100	0	Power Balanced		0	MegaArch 01.2.5	100
K8PB.F	15	15		10	F10				640	500	500	140	F10	12	750	0.6	50	150		MegaArches 01	7.5	MegaArch 01.3.1	100	0	MegaArch 01.3.2	100	0	Power Balanced		0	MegaArch 01.3.3	100	0	MegaArch 01.3.4	100	0	Power Balanced		0	MegaArch 01.3.5	100
K8PB.F	16	16		10	F10				640	500	500	140	F10	12	750	0.6	50	150		MegaArches 01	5	MegaArch 01.4.1	100	0	MegaArch 01.4.2	100	0	Power Balanced		0	MegaArch 01.4.3	100	0	MegaArch 01.4.4	100	0	Power Balanced		0	MegaArch 01.4.5	100
K8PB.F	17	17		11	F11			K8PB.F	640	500	500	140	F11	12	750	0.6	50	150	870	MegaArches 01	2.5	MegaArch 01.5.1	100	0	MegaArch 01.5.2	100	0	Power Balanced		0	MegaArch 01.5.3	100	0	MegaArch 01.5.4	100	0	Power Balanced		0	MegaArch 01.5.5	100
K8PB.F	18	18		11	F11				640	500	500	140	F11	12	750	0.6	50	150		MegaArches 01	2.5	MegaArch 01.6.1	100	0	MegaArch 01.6.2	100	0	Power Balanced		0	MegaArch 01.6.3	100	0	MegaArch 01.6.4	100	0	Power Balanced		0	MegaArch 01.6.5	100
K8PB.F	19	19		11	F11				640	500	500	140	F11	12	750	0.6	50	150		MegaArches 01	5	MegaArch 01.7.1	100	0	MegaArch 01.7.2	100	0	Power Balanced		0	MegaArch 01.7.3	100	0	MegaArch 01.7.4	100	0	Power Balanced		0	MegaArch 01.7.5	100
K8PB.F	20	20		11	F11				640	500	500	140	F11	12	750	0.6	50	150		MegaArches 01	7.5	MegaArch 01.8.1	100	0	MegaArch 01.8.2	100	0	Power Balanced		0	MegaArch 01.8.3	100	0	MegaArch 01.8.4	100	0	Power Balanced		0	MegaArch 01.8.5	100

Controllers

1 box available

Show details

8 data pigtails

Controller Role

K8PB.F

Pigtails

8 Data

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
