Controller E3B~E3C

Location: BB Cross

Gallery

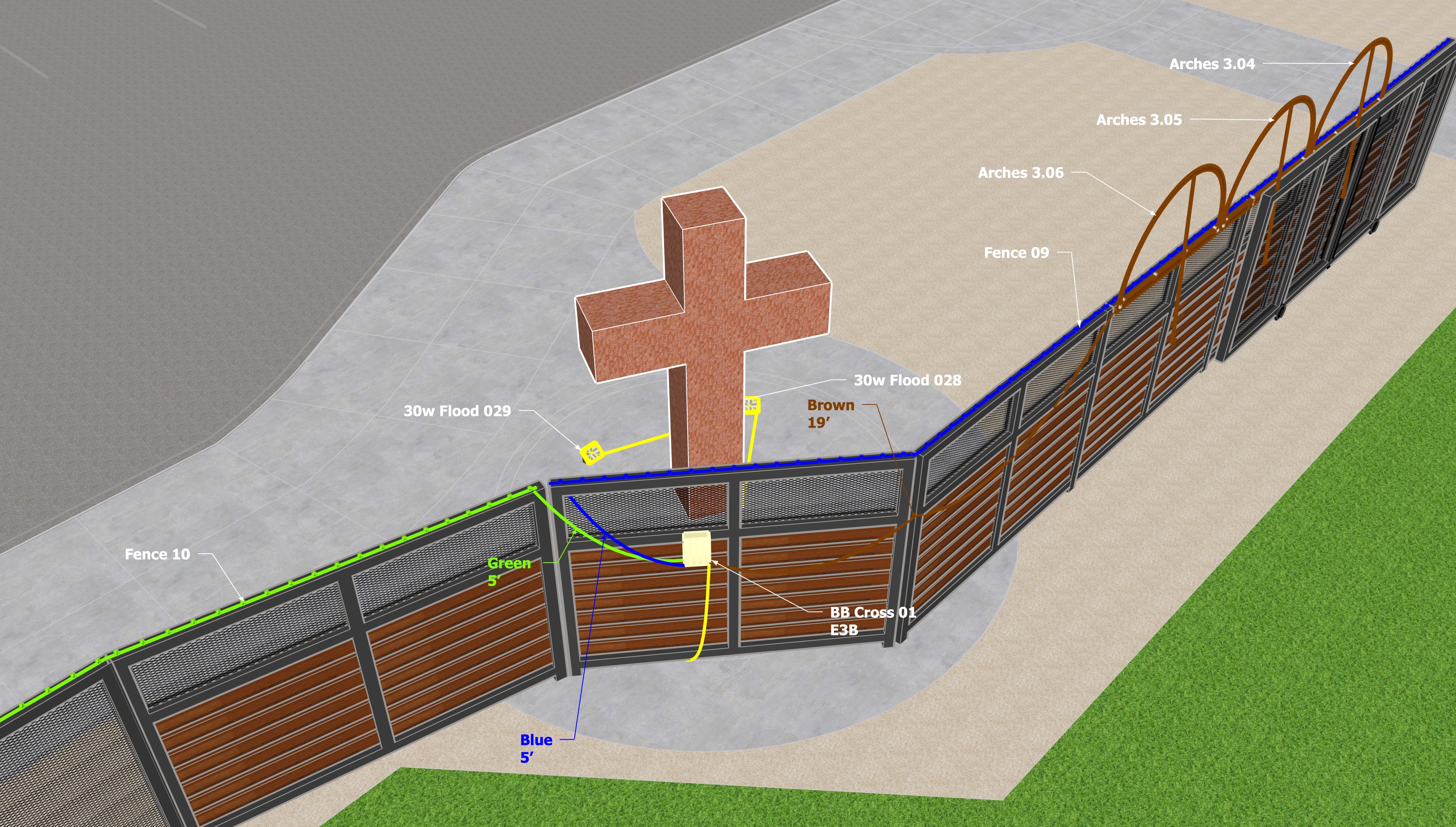

Setup Photos image 1 for controller E3B~E3C

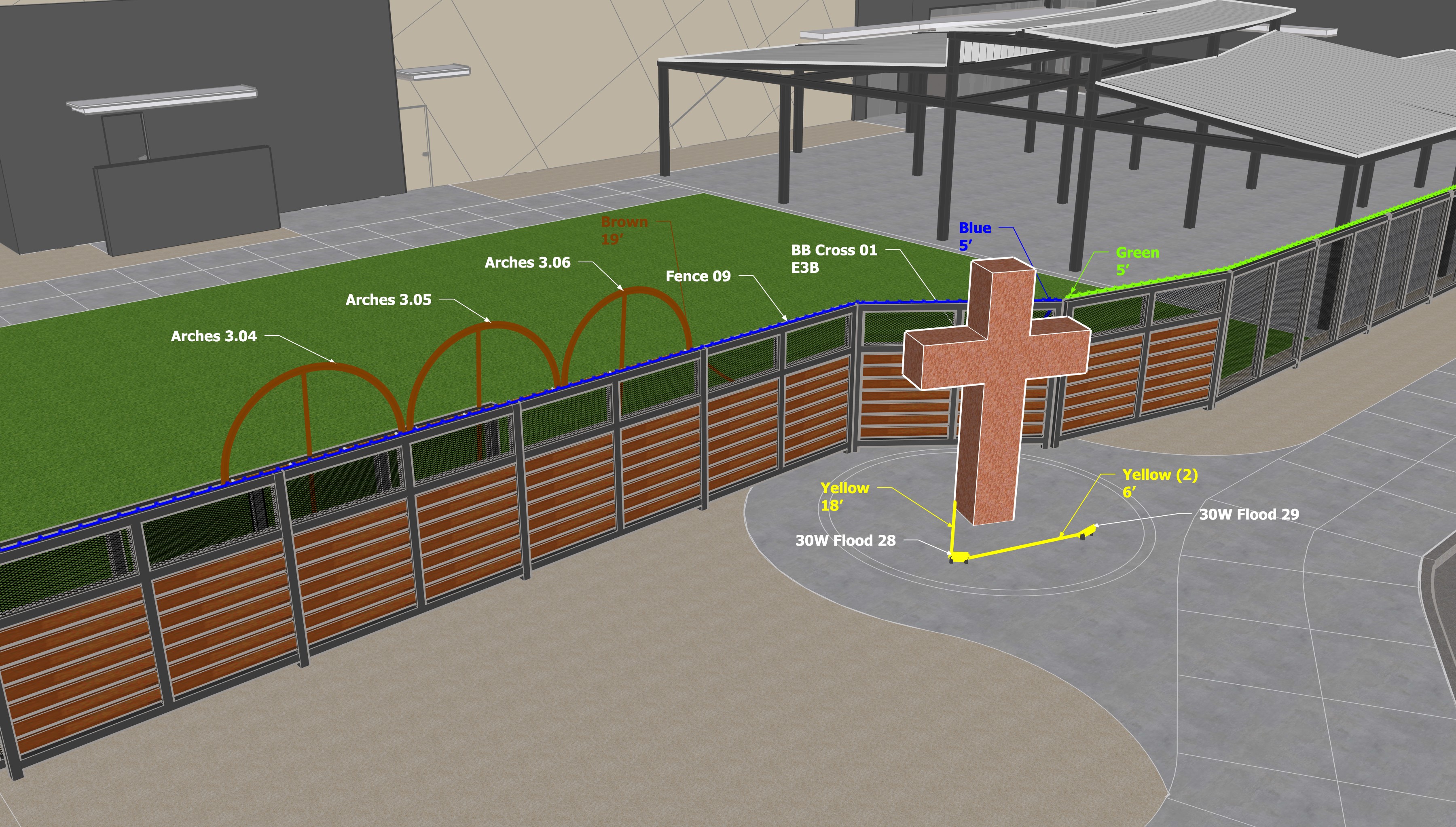

Setup Photos image 2 for controller E3B~E3C

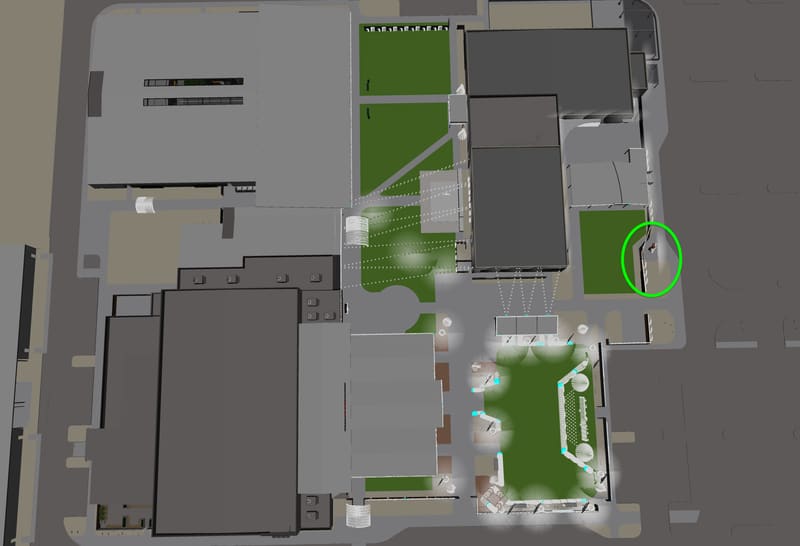

Site Map image 1 for controller E3B~E3C

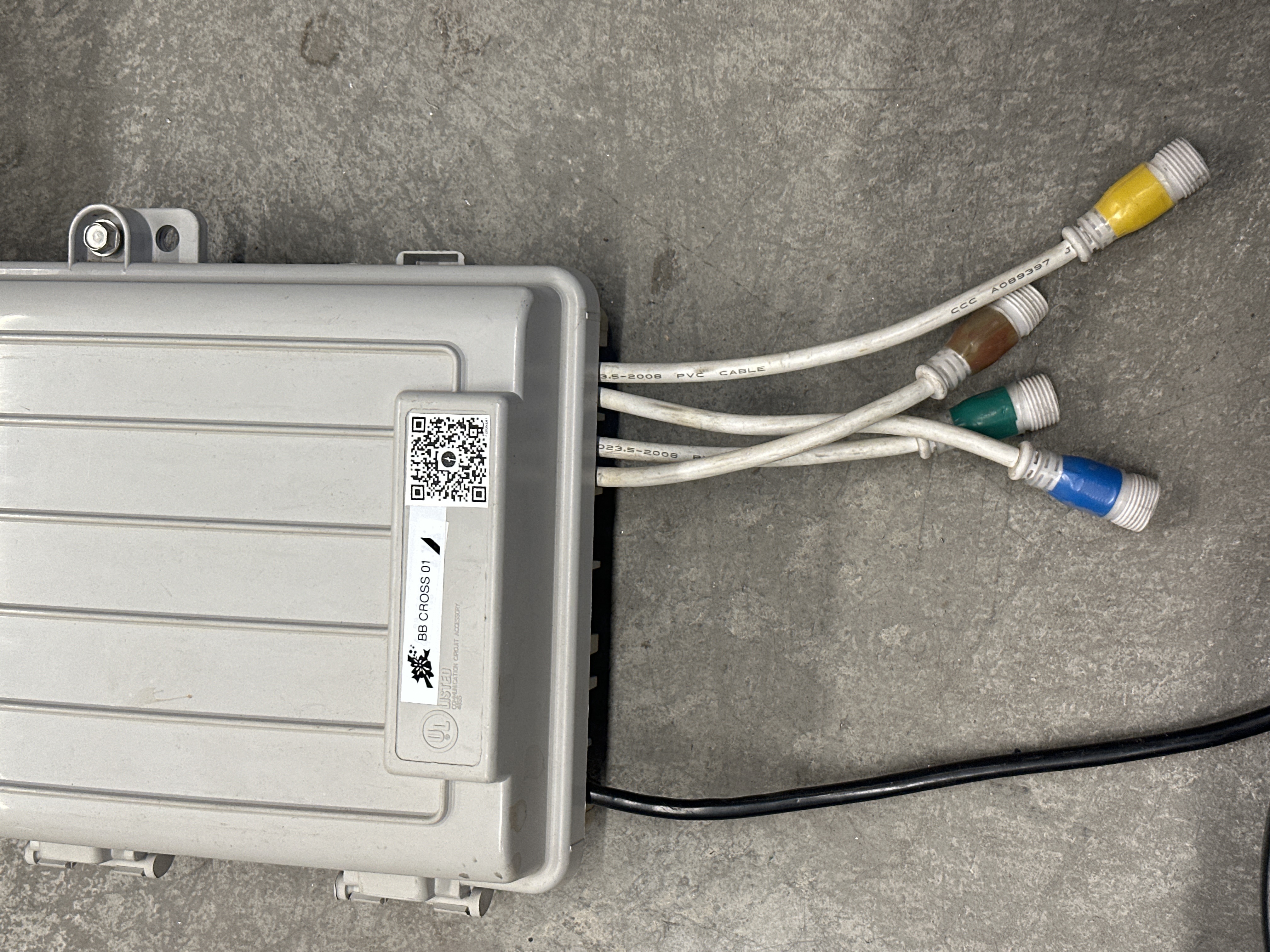

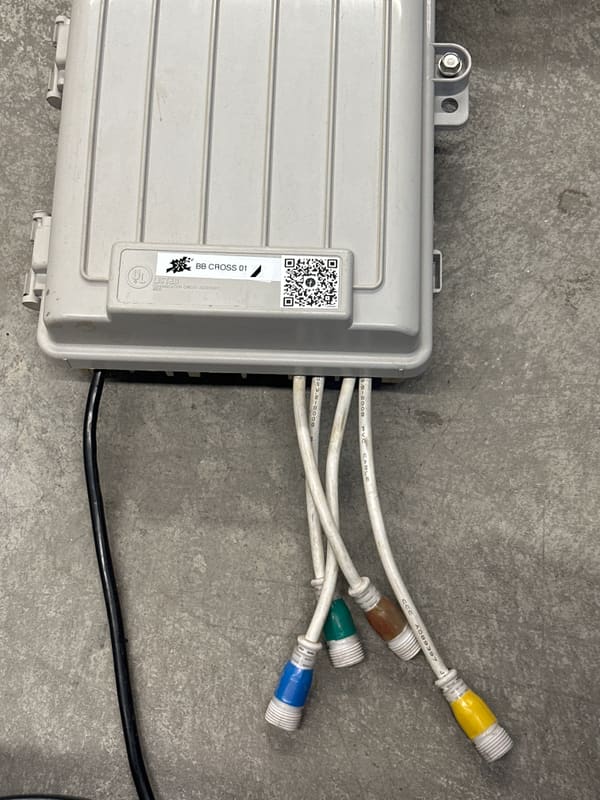

Controller Photos image 1 for controller E3B~E3C

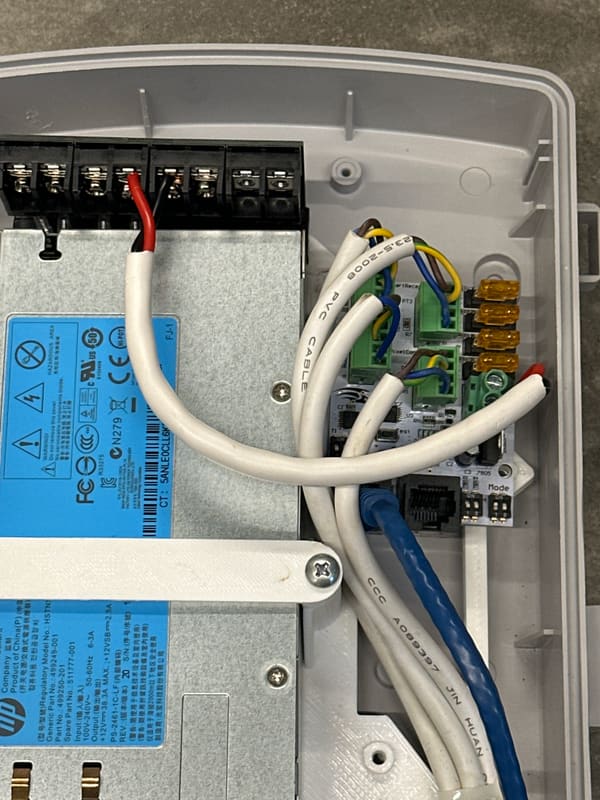

Controller Photos image 2 for controller E3B~E3C

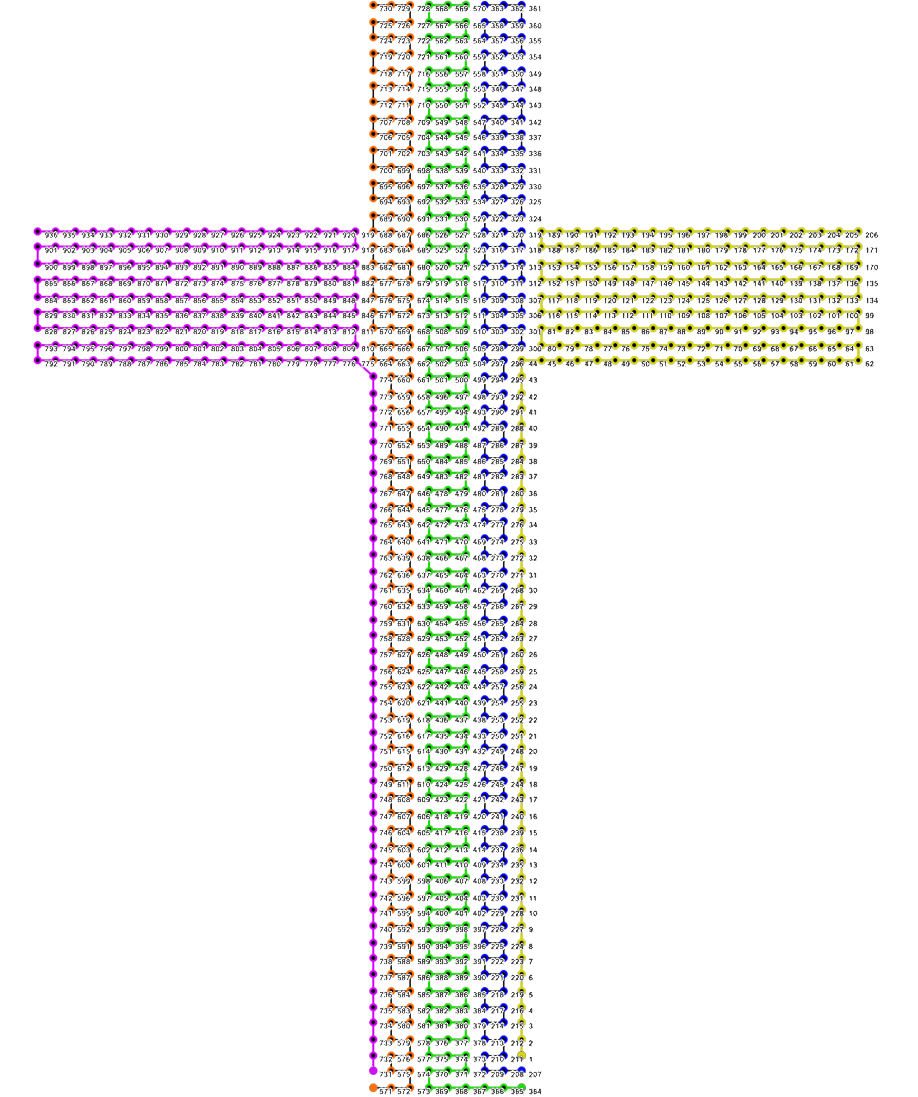

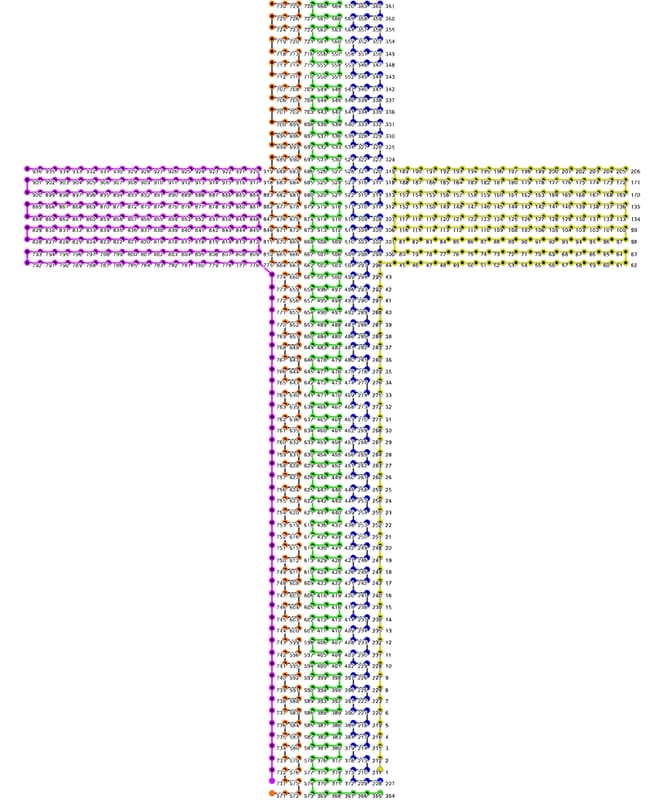

Additional Photos image 1 for controller E3B~E3C

Additional Photos image 2 for controller E3B~E3C

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)	Cable Length (3)	Prop 3 Name	Px Count (3)
K8PB.E	17	17B	E3B	3		E3B		E3A	640	420	142	220	E3B	12	750	10	75	1065	4042.3	BB Cross 01	5	Cross 02.1	142
K8PB.E	18	18B	E3B	3		E3B			640	375	122	265	E3B	12	750	0.6	50	36.6		BB Cross 01	5	Cross 02.2	122
K8PB.E	19	19B	E3B	3		E3B			640	391	119	249	E3B	12	750	0.6	50	35.7		BB Cross 01	5	Cross 02.3	119
K8PB.E	20	20B	E3B	3		E3B			640	367	142	273	E3B	12	750	10	75	1065		BB Cross 01	5	Cross 02.4	142
K8PB.E	17	17C	E3C	3		E3C		E3B	640	420	206	220	E3B	12	750	10	50	1030		BB Cross 01	5	Cross 02.5	206
K8PB.E	18	18C	E3C	3		E3C			640	375	100	265	E3B	12	750	0.6	50	30		BB Cross 01	5	Fence 09	100
K8PB.E	19	19C	E3C	3		E3C			640	391	50	249	E3B	12	750	0.6	50	15		BB Cross 01	5	Fence 10	50
K8PB.E	20	20C	E3C	3		E3C			640	367	153	273	E3B	12	750	10	50	765		BB Cross 01	5	Arch 03.06	51	0	Arch 03.05	51	0	Arch 03.04	51

Controllers

1 box available

Show details

8 data pigtails

Controller Role

K8PB.E

Pigtails

8 Data

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
