Controller E1A

Location: BB Canopy 02

Gallery

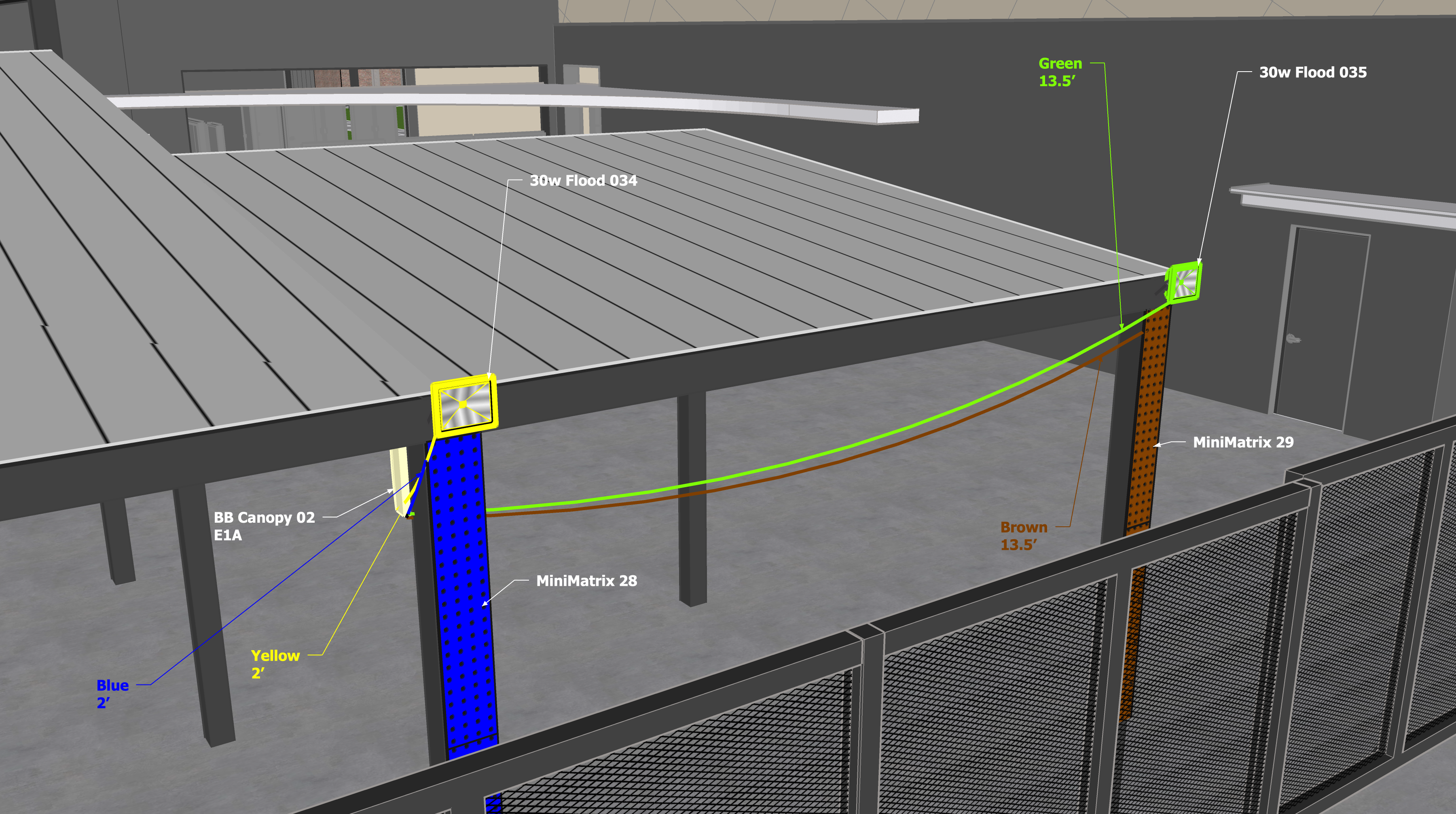

Setup Photos image 1 for controller E1A

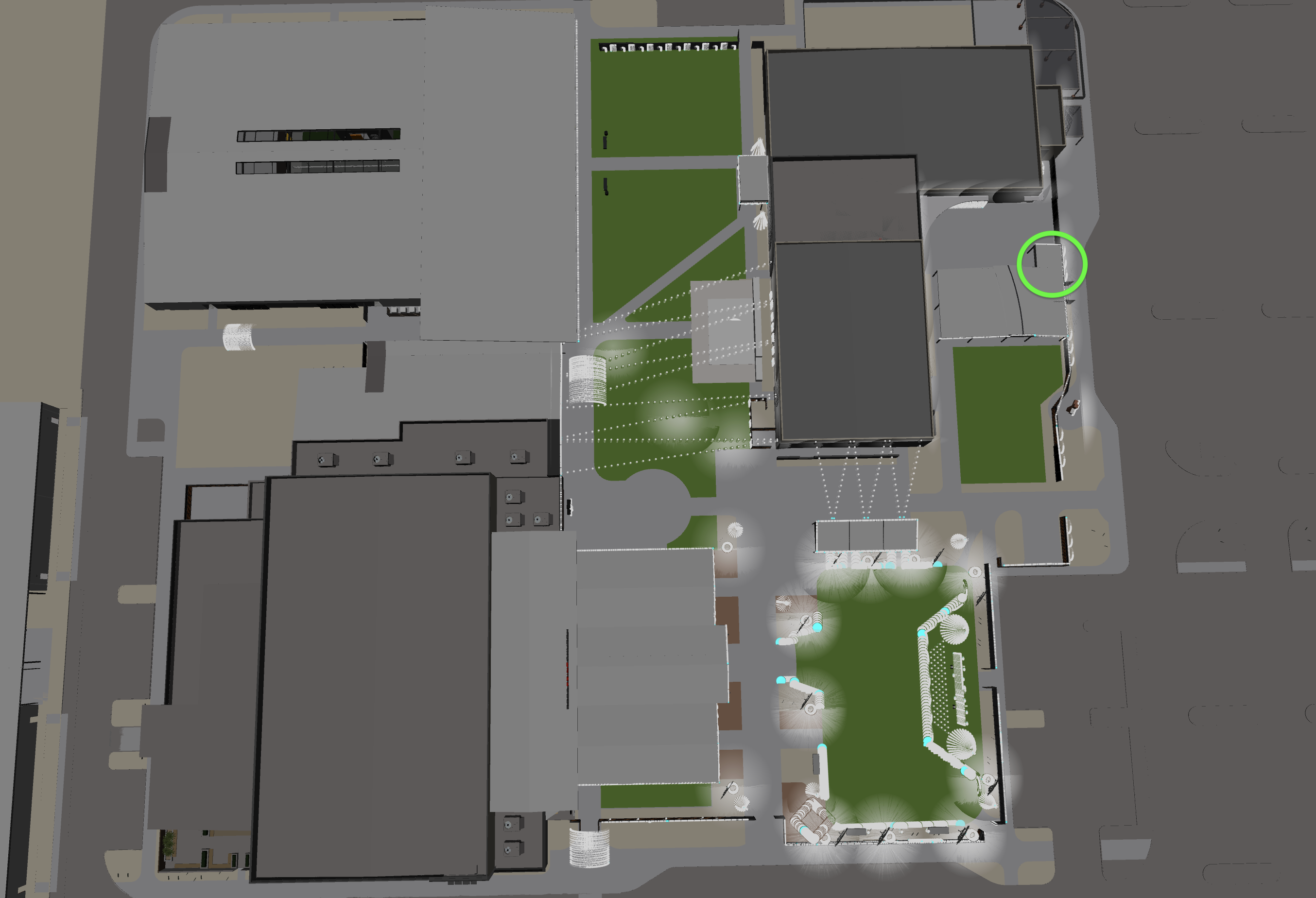

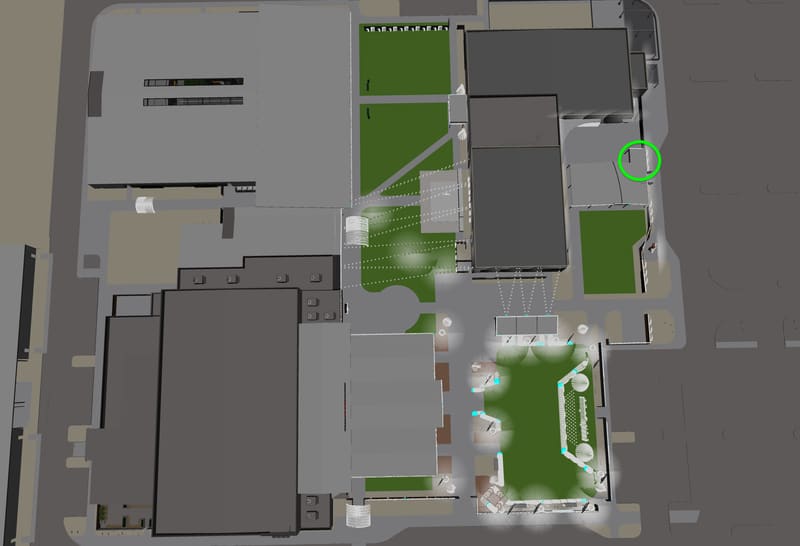

Site Map image 1 for controller E1A

BB Canopy 02

4 data pigtails

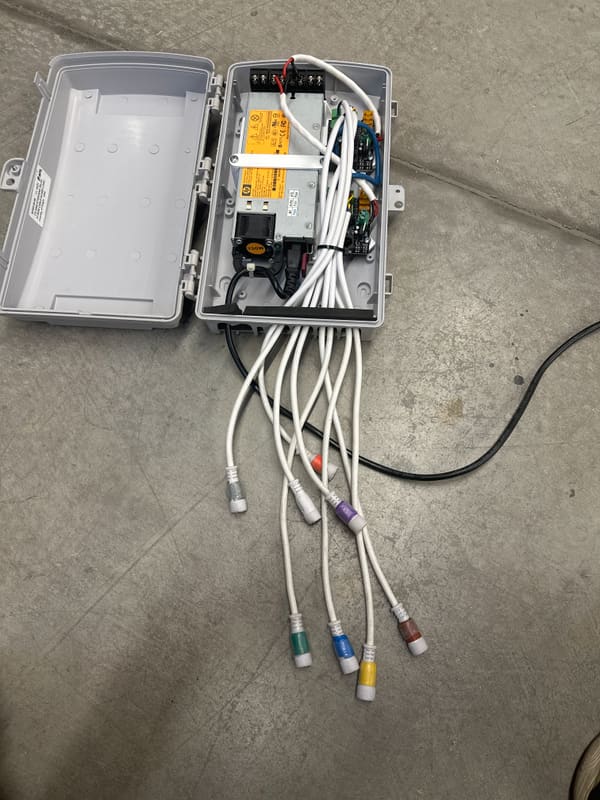

Controller Photos image 1 for controller E1A

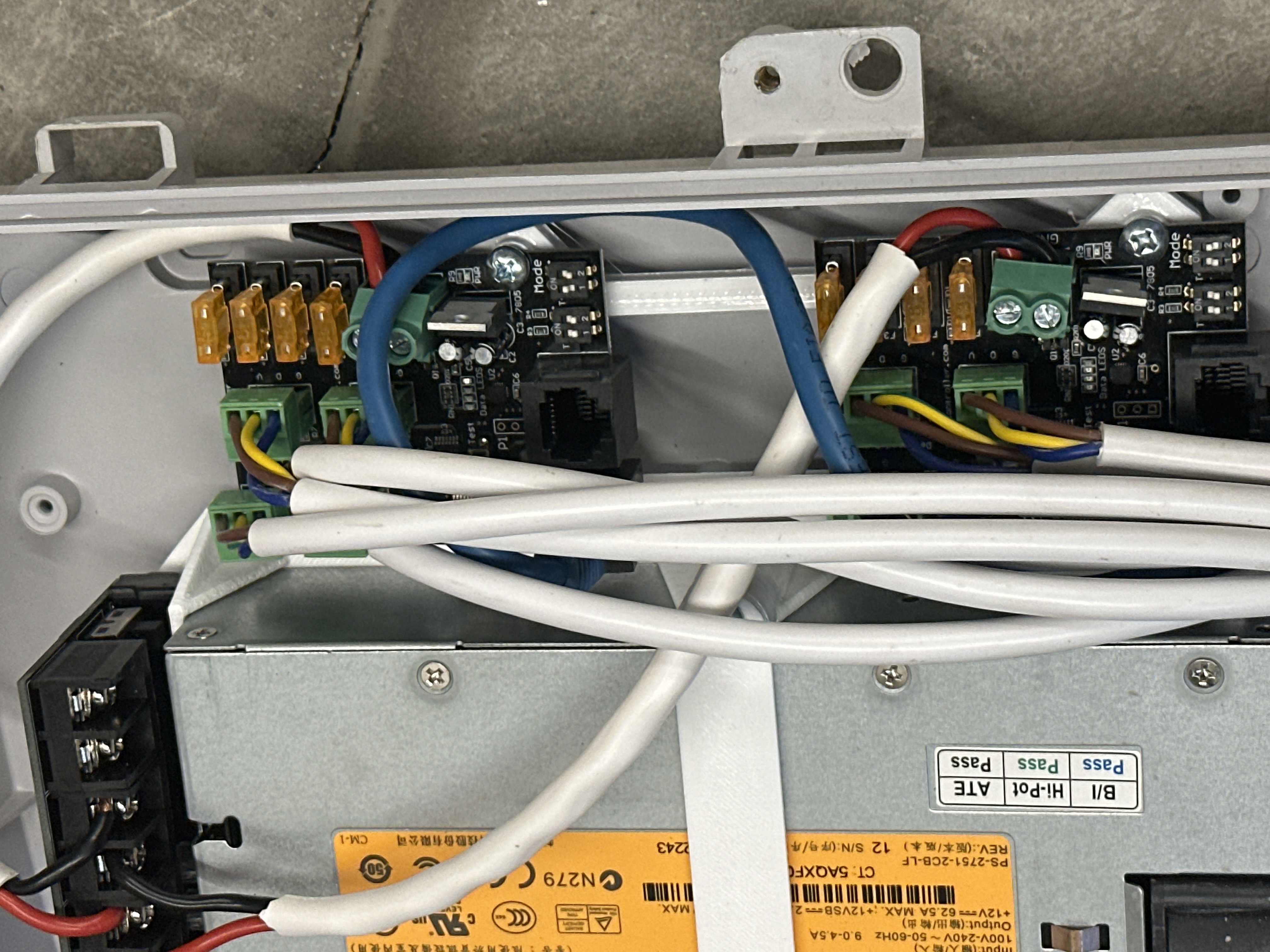

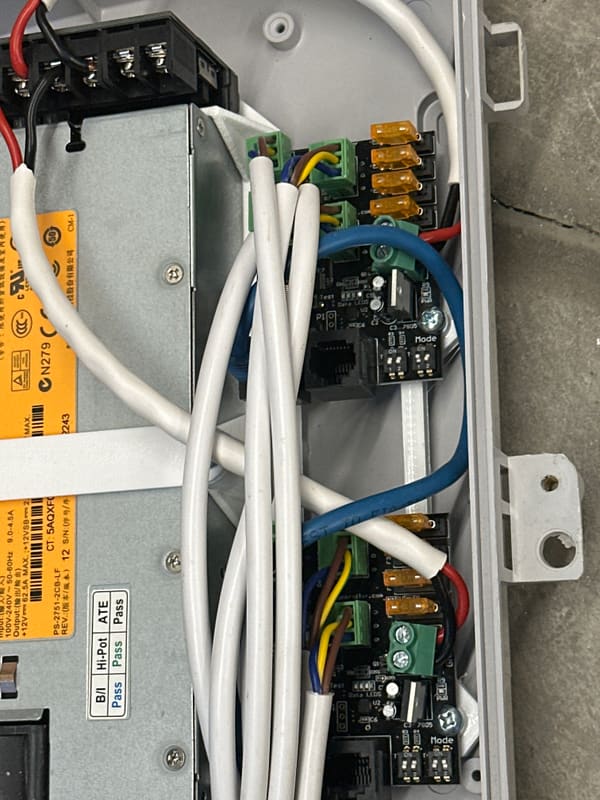

Controller Photos image 2 for controller E1A

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)
K8PB.E	9	9A	E1A	1		E1A		K8PB.E	640	1	1	639	E1A	12	750	10	75	7.5	115.8	BB Canopy 02	2	30w Flood 034	1
K8PB.E	10	10A	E1A	1		E1A			640	168	168	472	E1A	12	750	0.6	50	50.4		BB Canopy 02	2	MiniMatrix 28.2	84	0	MiniMatrix 28.1	84
K8PB.E	11	11A	E1A	1		E1A			640	1	1	639	E1A	12	750	10	75	7.5		BB Canopy 02	13.5	30w Flood 035	1
K8PB.E	12	12A	E1A	1		E1A			640	168	168	472	E1A	12	750	0.6	50	50.4		BB Canopy 02	13.5	MiniMatrix 29.2	84		MiniMatrix 29.1	84

Controllers

1 box available

Show details

4 data pigtails

Controller Role

K8PB.E

Pigtails

4 Data

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
