Controller ChromaTrees

Location: ChromaTrees 07-08

Gallery

Setup Photos image 1 for controller ChromaTrees

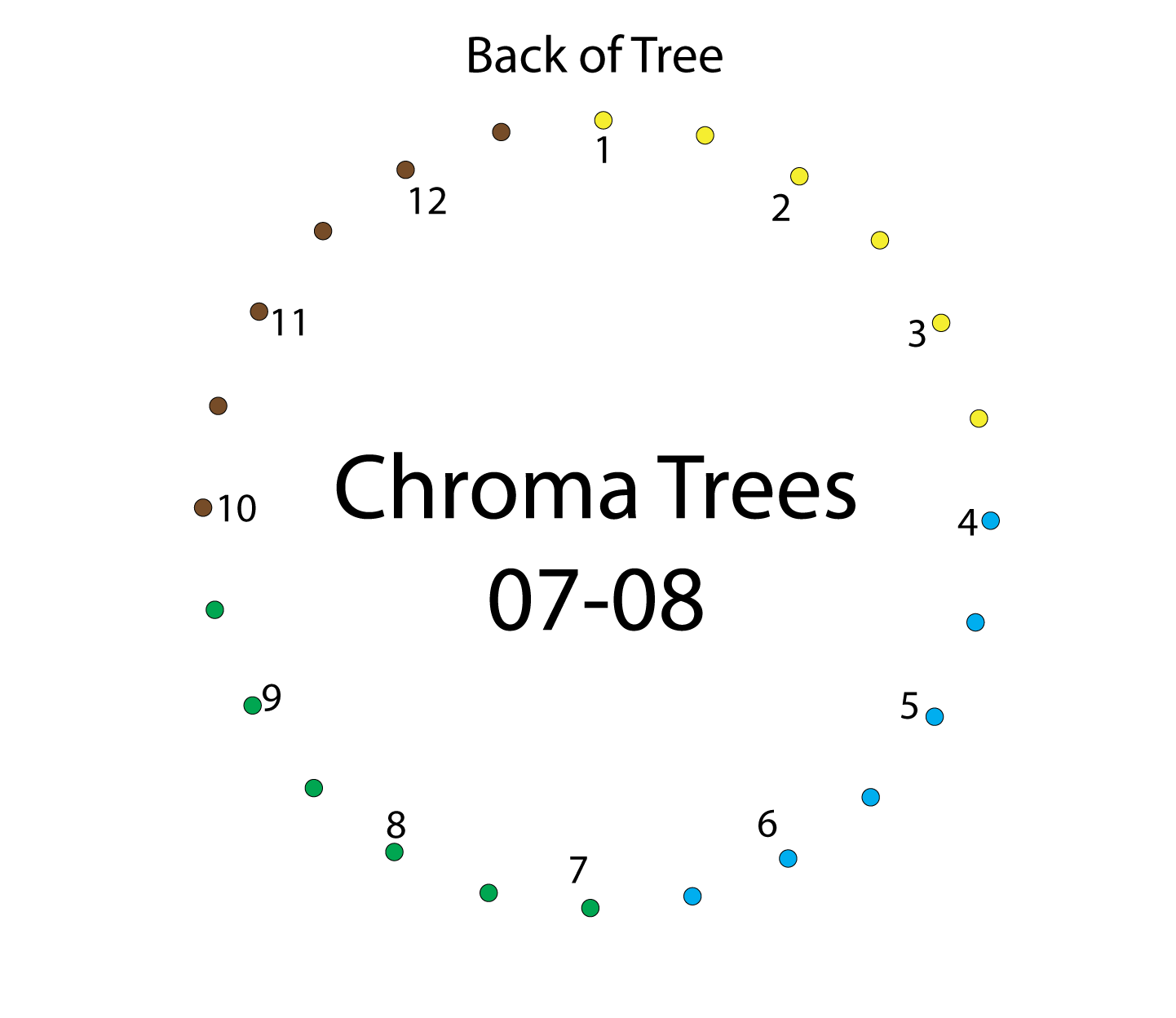

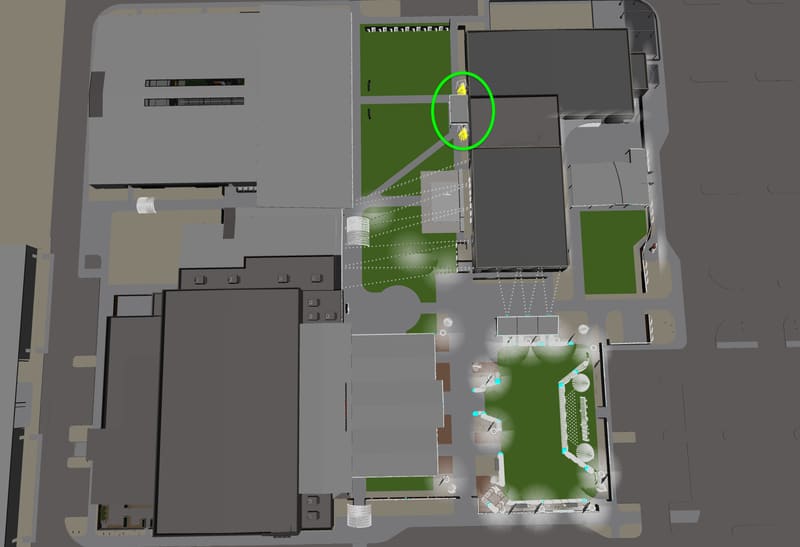

Site Map image 1 for controller ChromaTrees

ChromaTree 07

4 data pigtails · 4 power pigtails

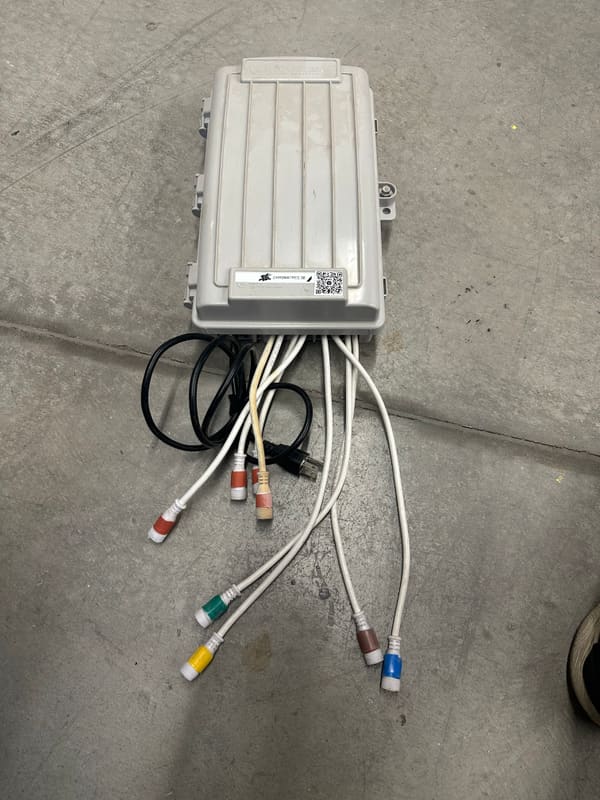

Controller Photos image 1 for controller ChromaTrees

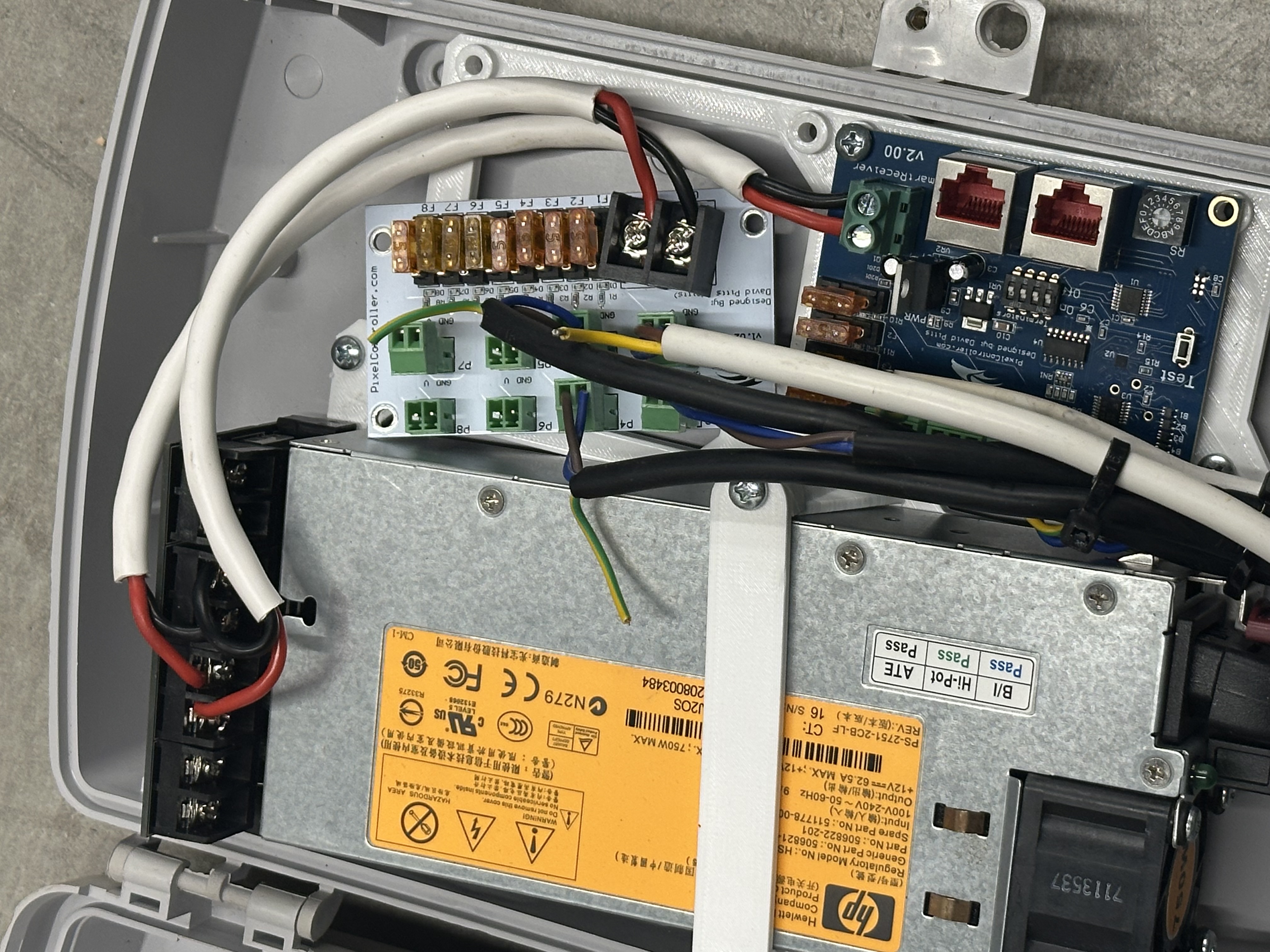

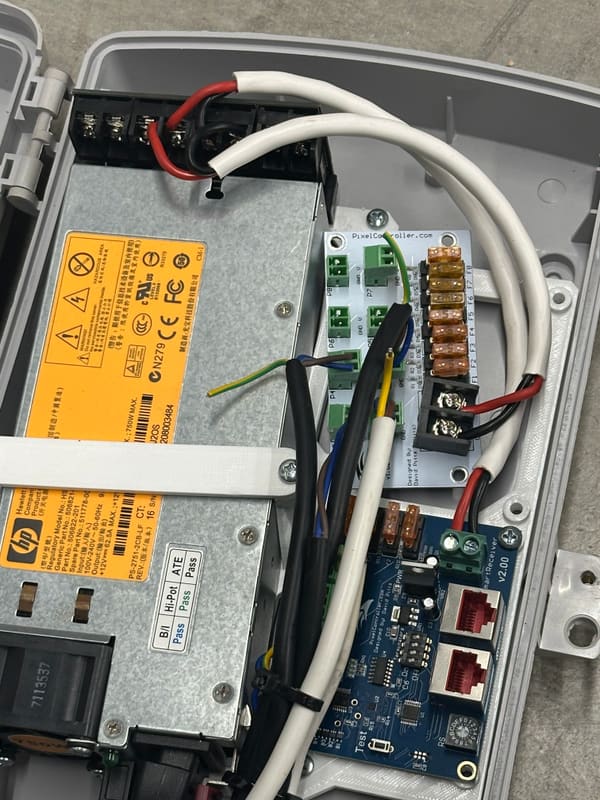

Controller Photos image 2 for controller ChromaTrees

ChromaTree 08

4 data pigtails · 4 power pigtails

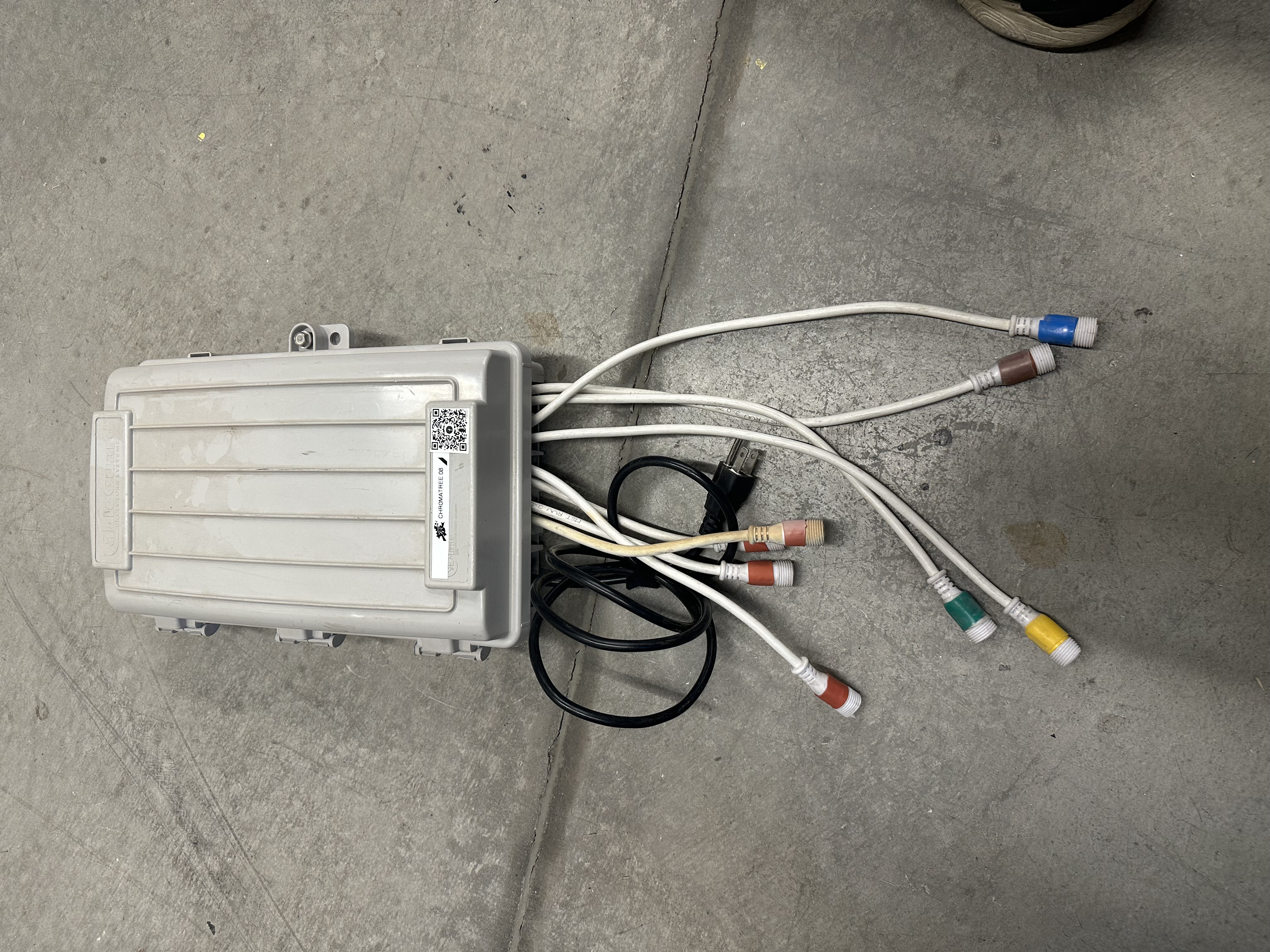

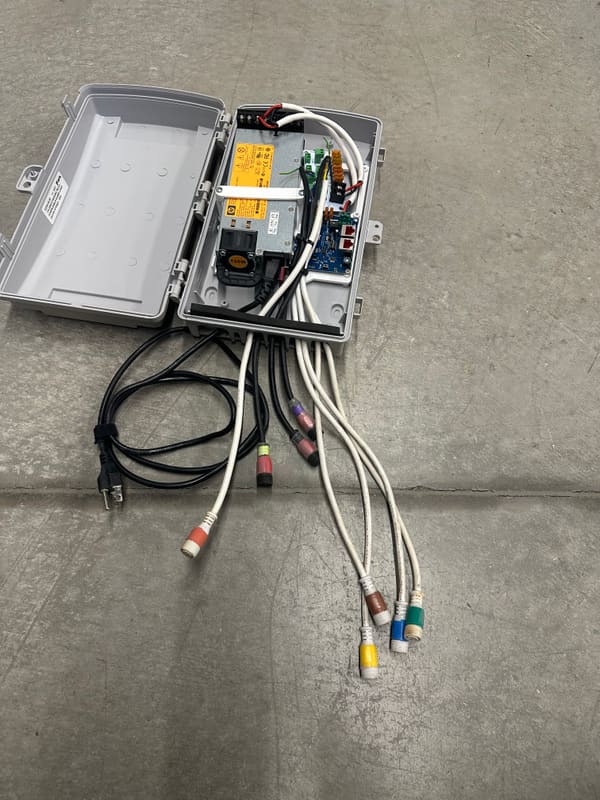

Controller Photos image 1 for controller ChromaTrees

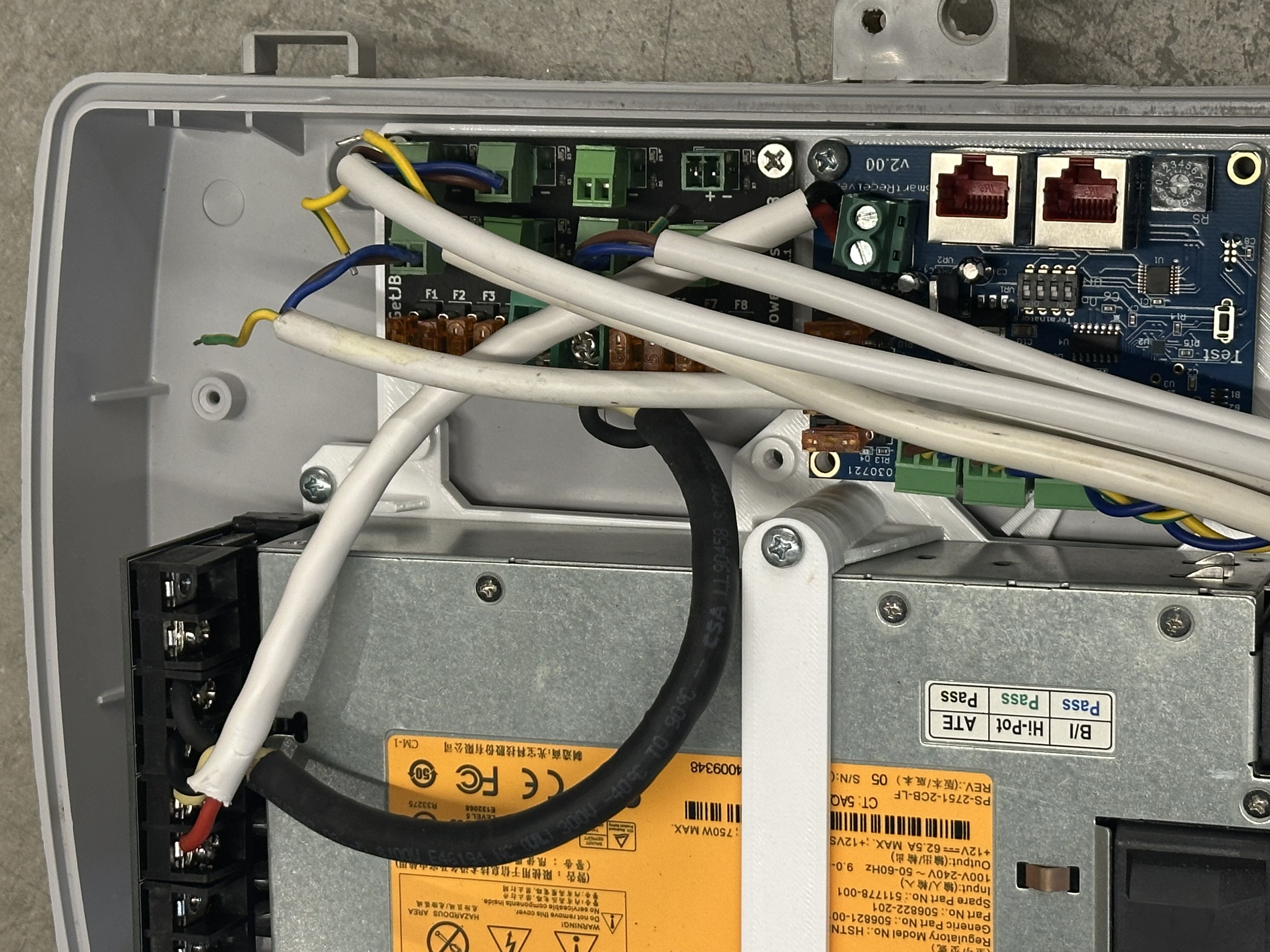

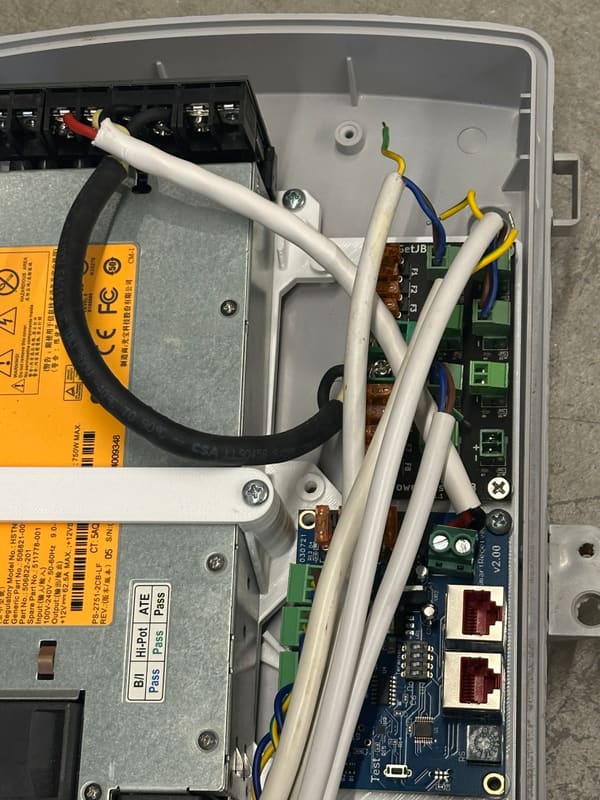

Controller Photos image 2 for controller ChromaTrees

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)	Cable Length (3)	Prop 3 Name	Px Count (3)	Cable Length (4)	Prop 4 Name	Px Count (4)	Cable Length (5)	Prop 5 Name	Px Count (5)	Cable Length (6)	Prop 6 Name	Px Count (6)	Cable Length (7)	Prop 7 Name	Px Count (7)	Cable Length (8)	Prop 8 Name
K8PB.G	9	9A	G3A	3		G3A			640	300	300	340	G3A	12	750	0.6	50	90	360	ChromaTree 07	5	ChromaTree 07.1.1	100	0	ChromaTree 07.1.2	100	0	Power Inject	0	0	ChromaTree 07.1.3	100
K8PB.G	10	10A	G3A	3		G3A			640	300	300	340	G3A	12	750	0.6	50	90		ChromaTree 07	5	ChromaTree 07.2.1	100	0	ChromaTree 07.2.2	100	0	Power Inject	0	0	ChromaTree 07.2.3	100
K8PB.G	11	11A	G3A	3		G3A			640	300	300	340	G3A	12	750	0.6	50	90		ChromaTree 07	5	ChromaTree 07.3.1	100	0	ChromaTree 07.3.2	100	0	Power Inject	0	0	ChromaTree 07.3.3	100
K8PB.G	12	12A	G3A	3		G3A			640	300	300	340	G3A	12	750	0.6	50	90		ChromaTree 07	5	ChromaTree 07.4.1	100	0	ChromaTree 07.4.2	100	0	Power Inject	0	0	ChromaTree 07.4.3	100
K8PB.G	13	13A	G4A	4		G4A			640	300	300	340	G4A	12	750	0.6	50	90	360	ChromaTree 08	5	ChromaTree 08.1.1	100	0	ChromaTree 08.1.2	100	0	Power Inject	0	0	ChromaTree 08.1.3	100
K8PB.G	14	14A	G4A	4		G4A			640	300	300	340	G4A	12	750	0.6	50	90		ChromaTree 08	5	ChromaTree 08.2.1	100	0	ChromaTree 08.2.2	100	0	Power Inject	0	0	ChromaTree 08.2.3	100
K8PB.G	15	15A	G4A	4		G4A			640	300	300	340	G4A	12	750	0.6	50	90		ChromaTree 08	5	ChromaTree 08.3.1	100	0	ChromaTree 08.3.2	100	0	Power Inject	0	0	ChromaTree 08.3.3	100
K8PB.G	16	16A	G4A	4		G4A			640	300	300	340	G4A	12	750	0.6	50	90		ChromaTree 08	5	ChromaTree 08.4.1	100	0	ChromaTree 08.4.2	100	0	Power Inject	0	0	ChromaTree 08.4.3	100

Controllers

2 boxes available

Show details

4 data pigtails · 4 power pigtails

Pigtails

4 Data
4 Power Injection

4 data pigtails · 4 power pigtails

Pigtails

4 Data
4 Power Injection

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
