ChromaTree 01
7 data pigtails · 6 power pigtails

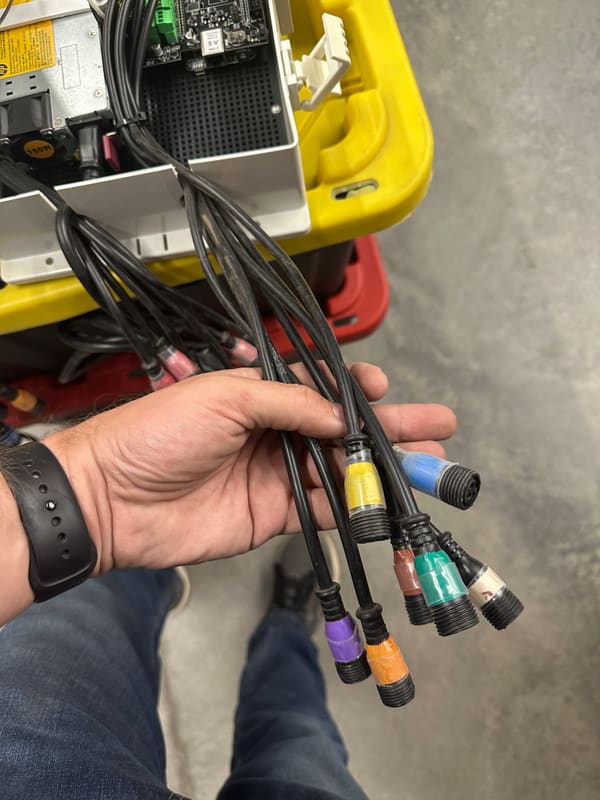

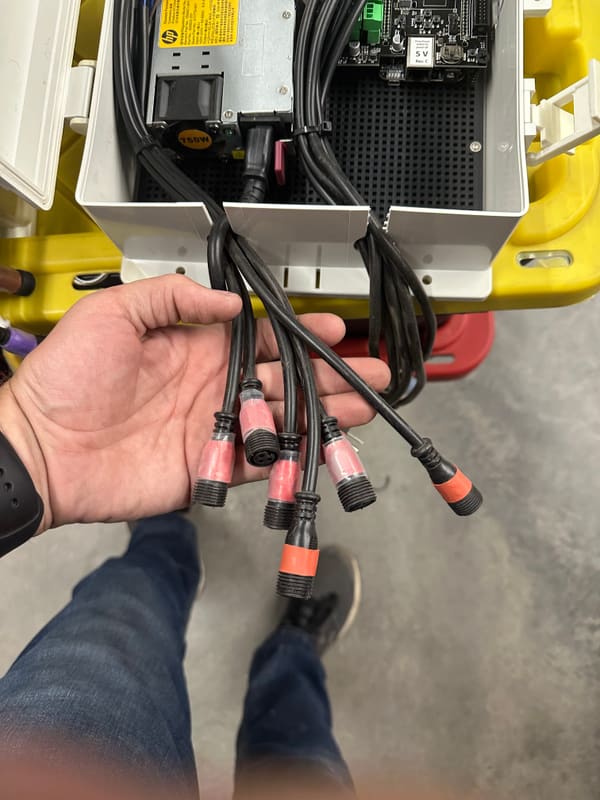

Pigtails
- 7 Data
- 6 Power Injection
Controller ChromaTrees
Location: ChromaTrees 01-06
Gallery

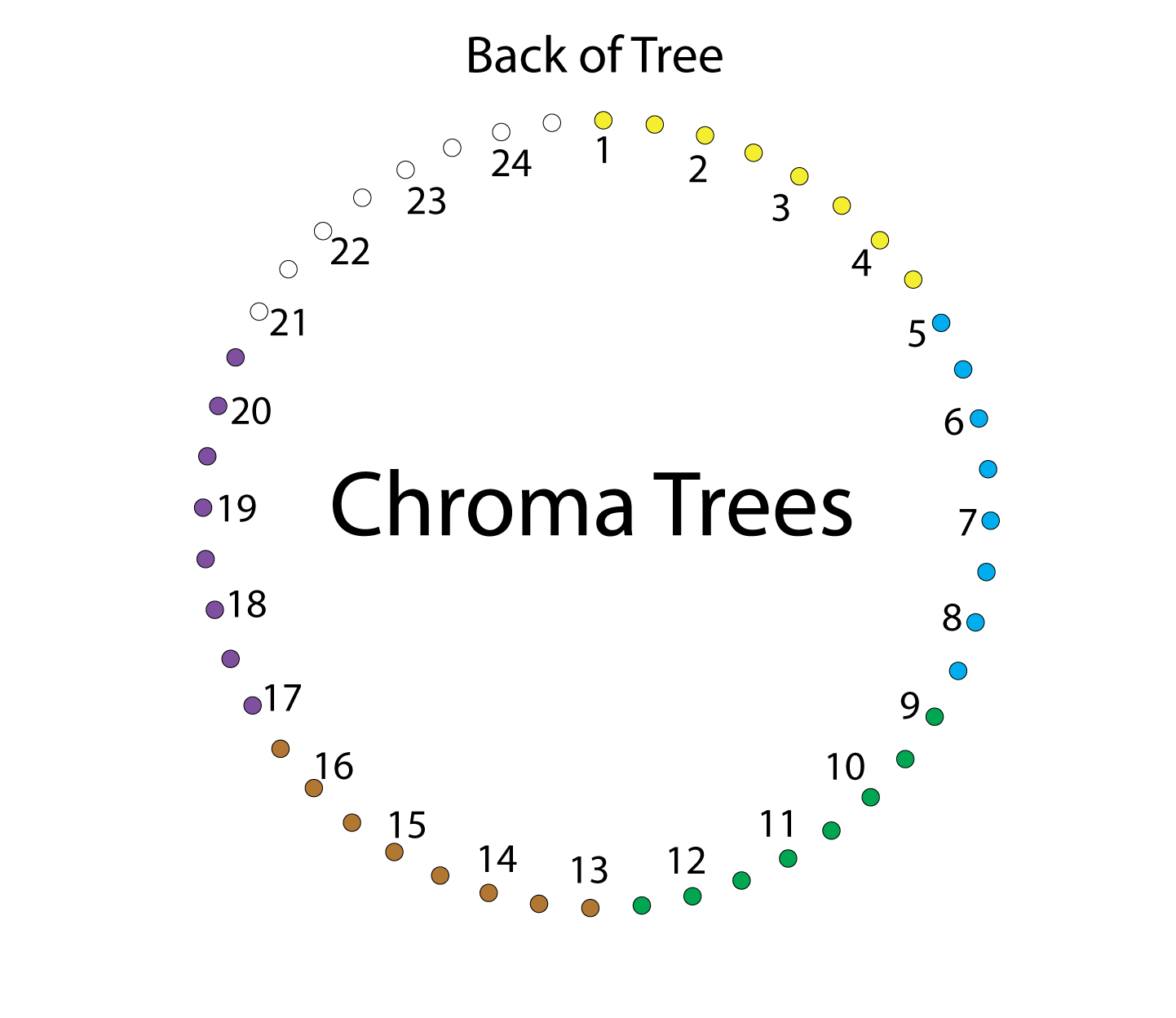

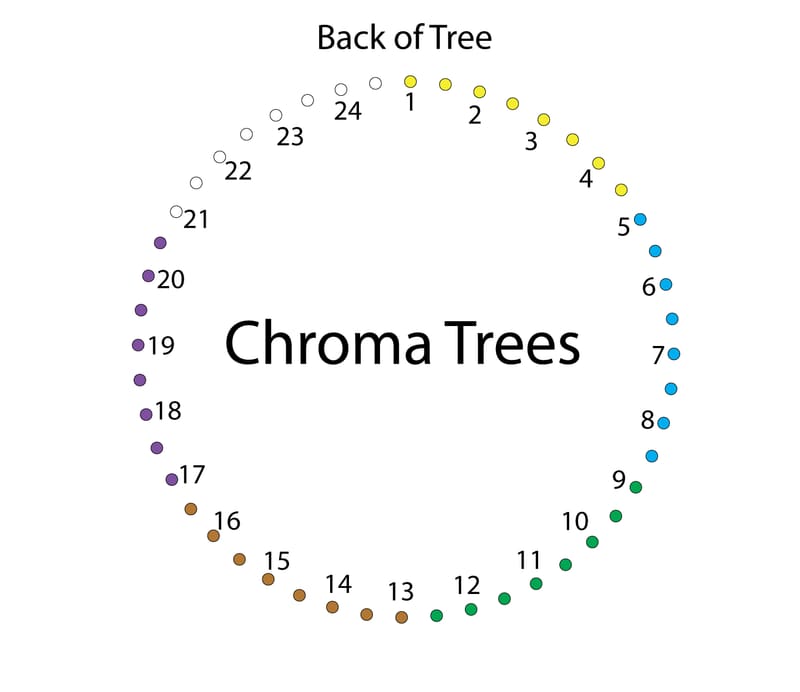

Setup Photos

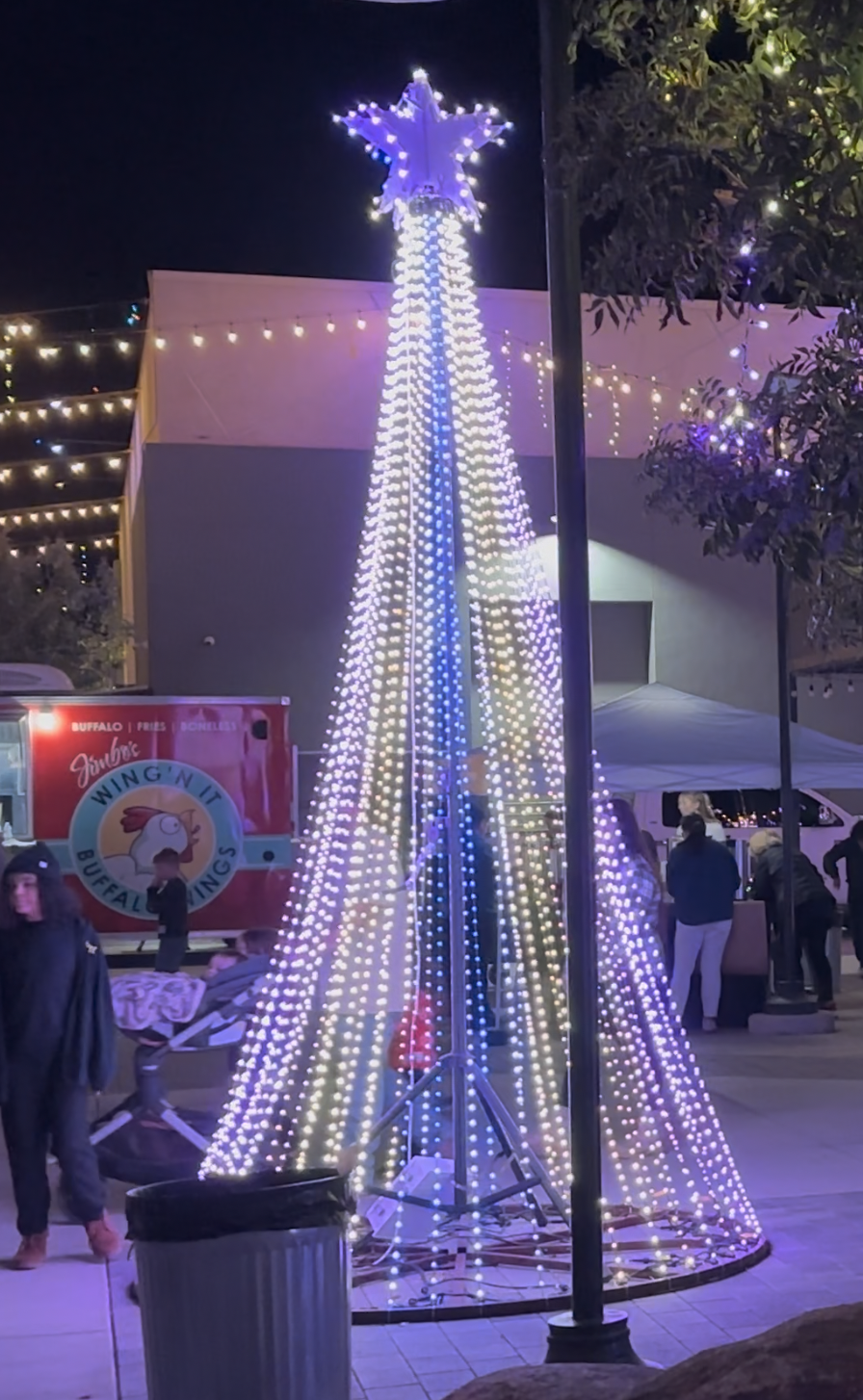

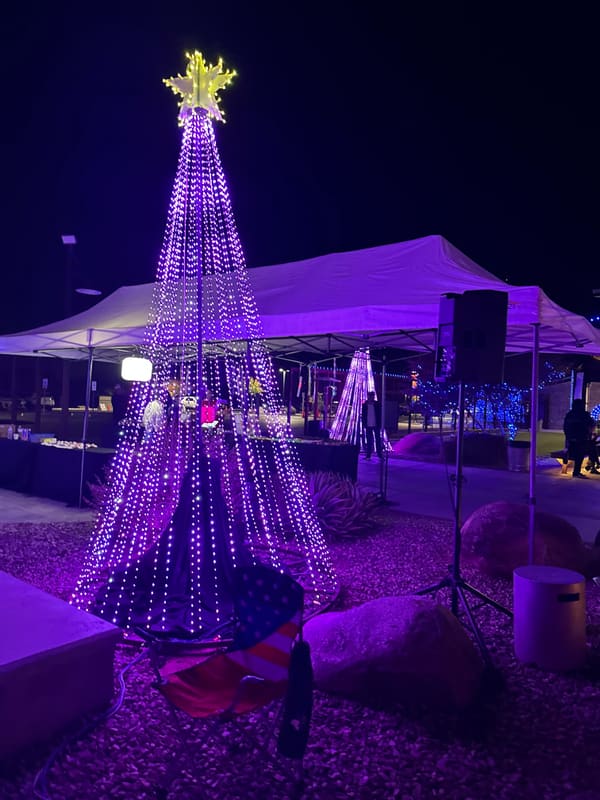

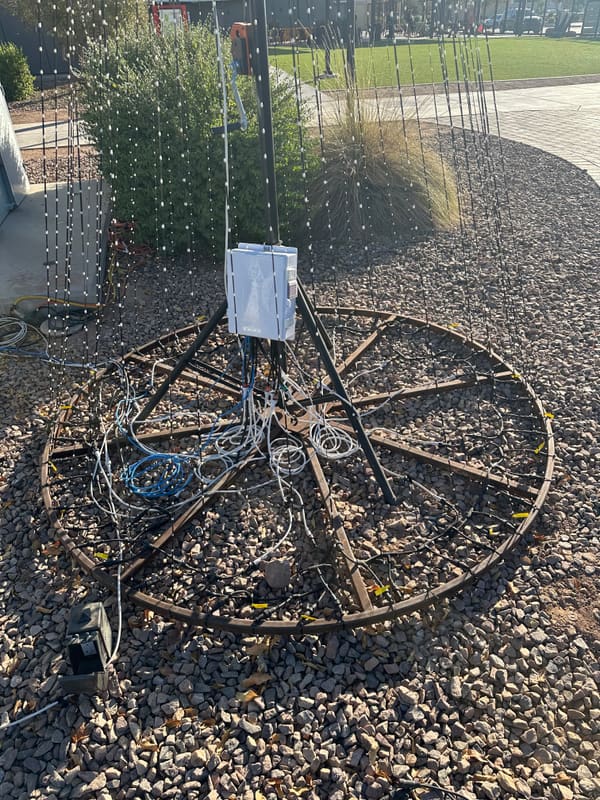

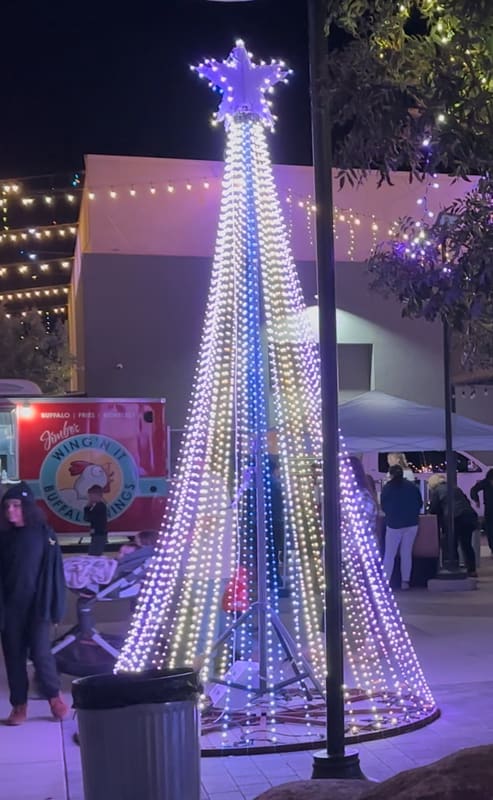

Reference Photos

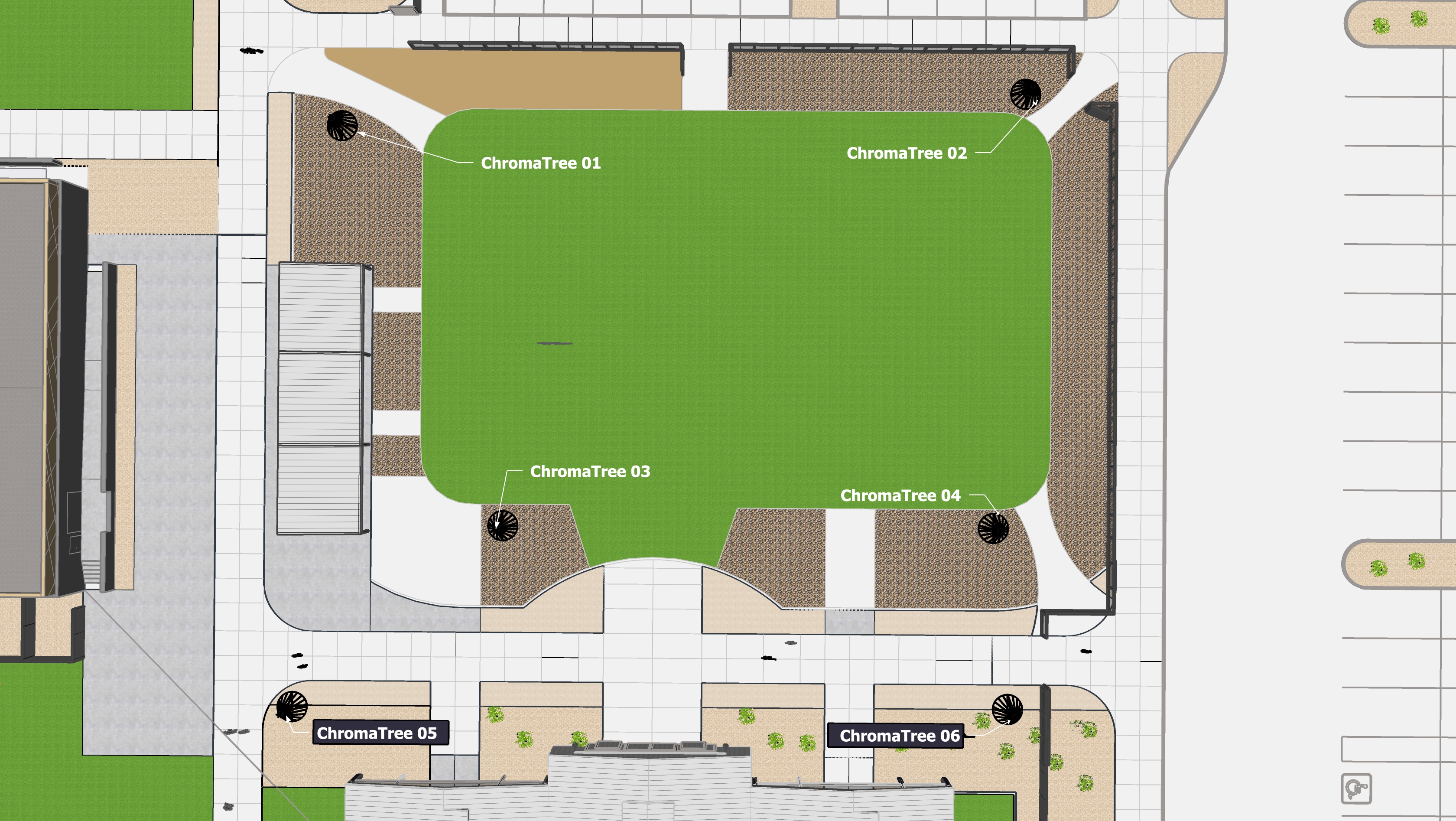

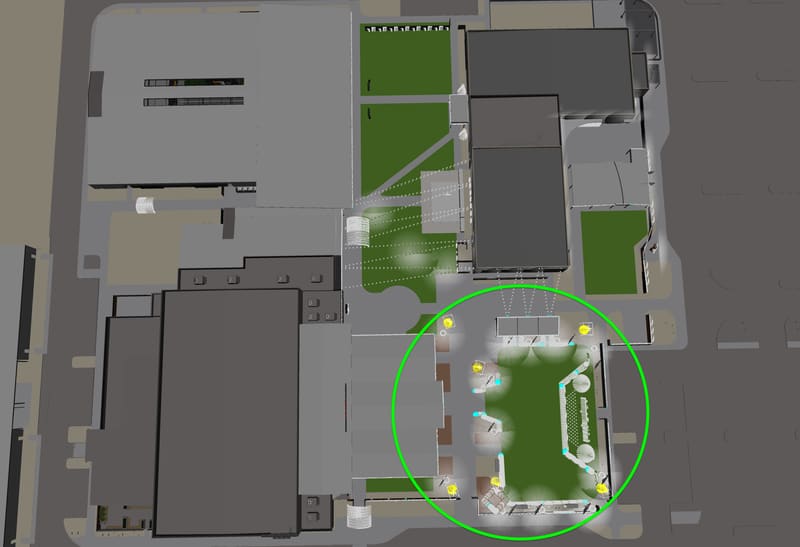

Site Map
ChromaTree 01
7 data pigtails · 6 power pigtails

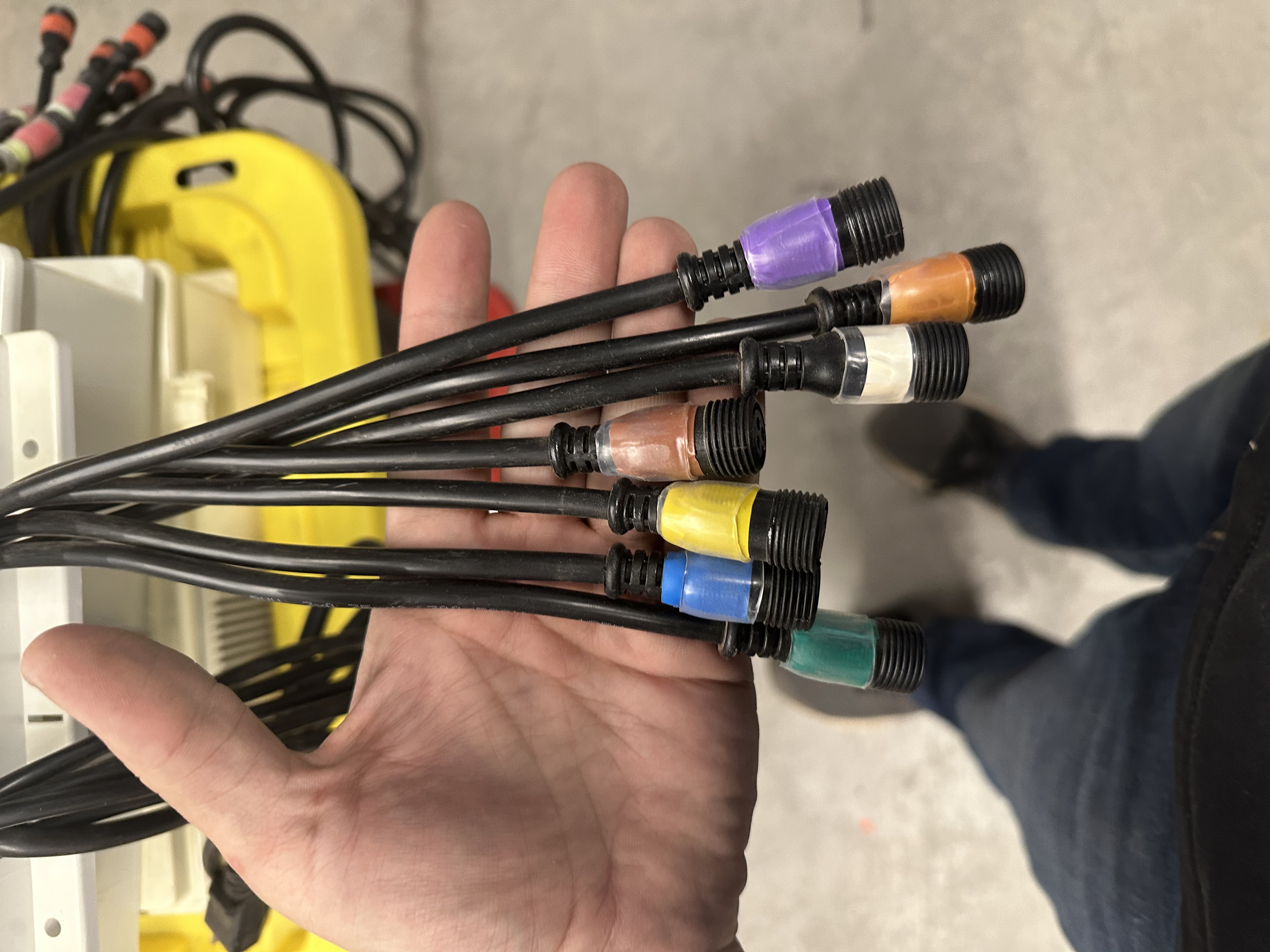

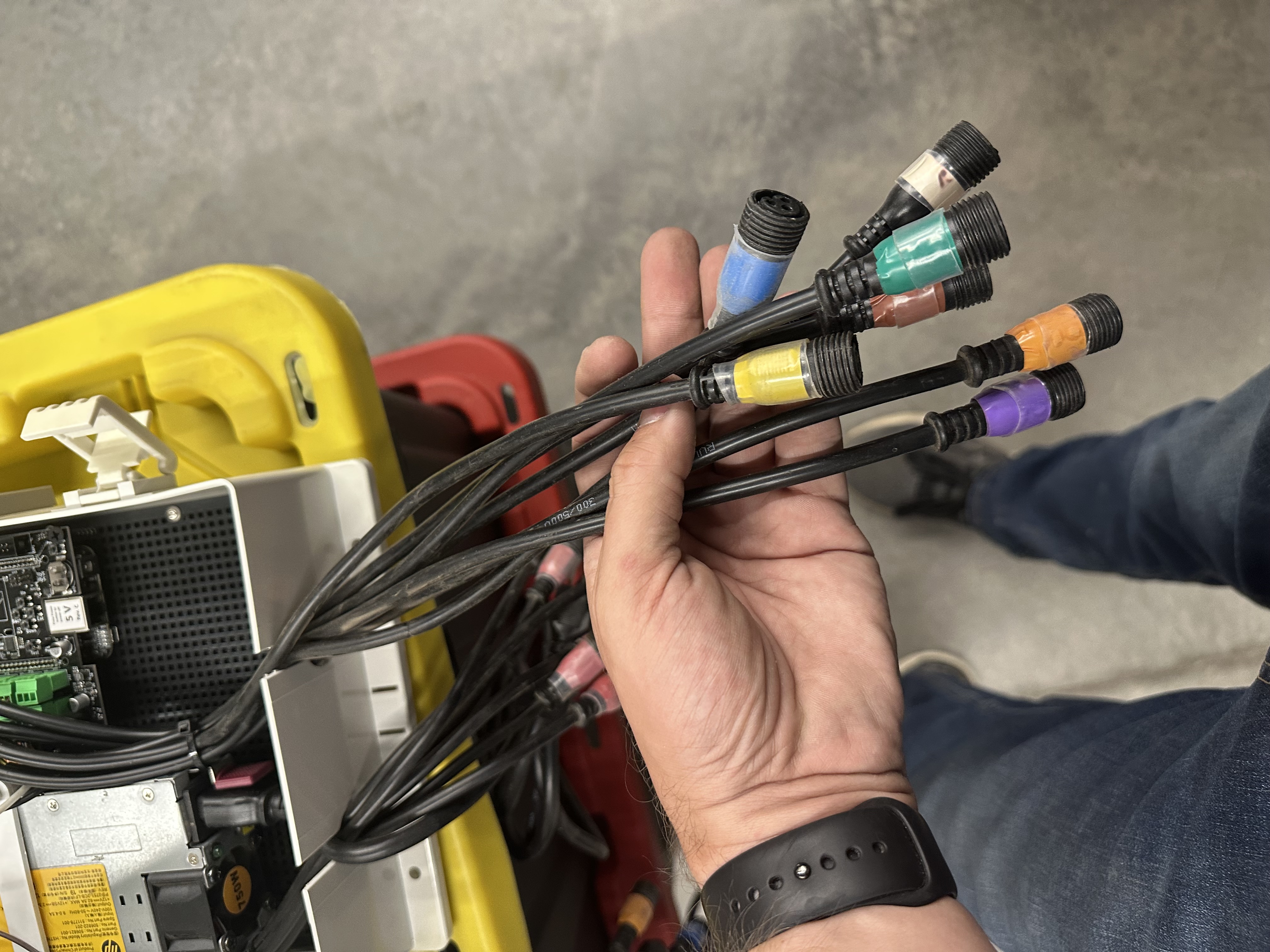

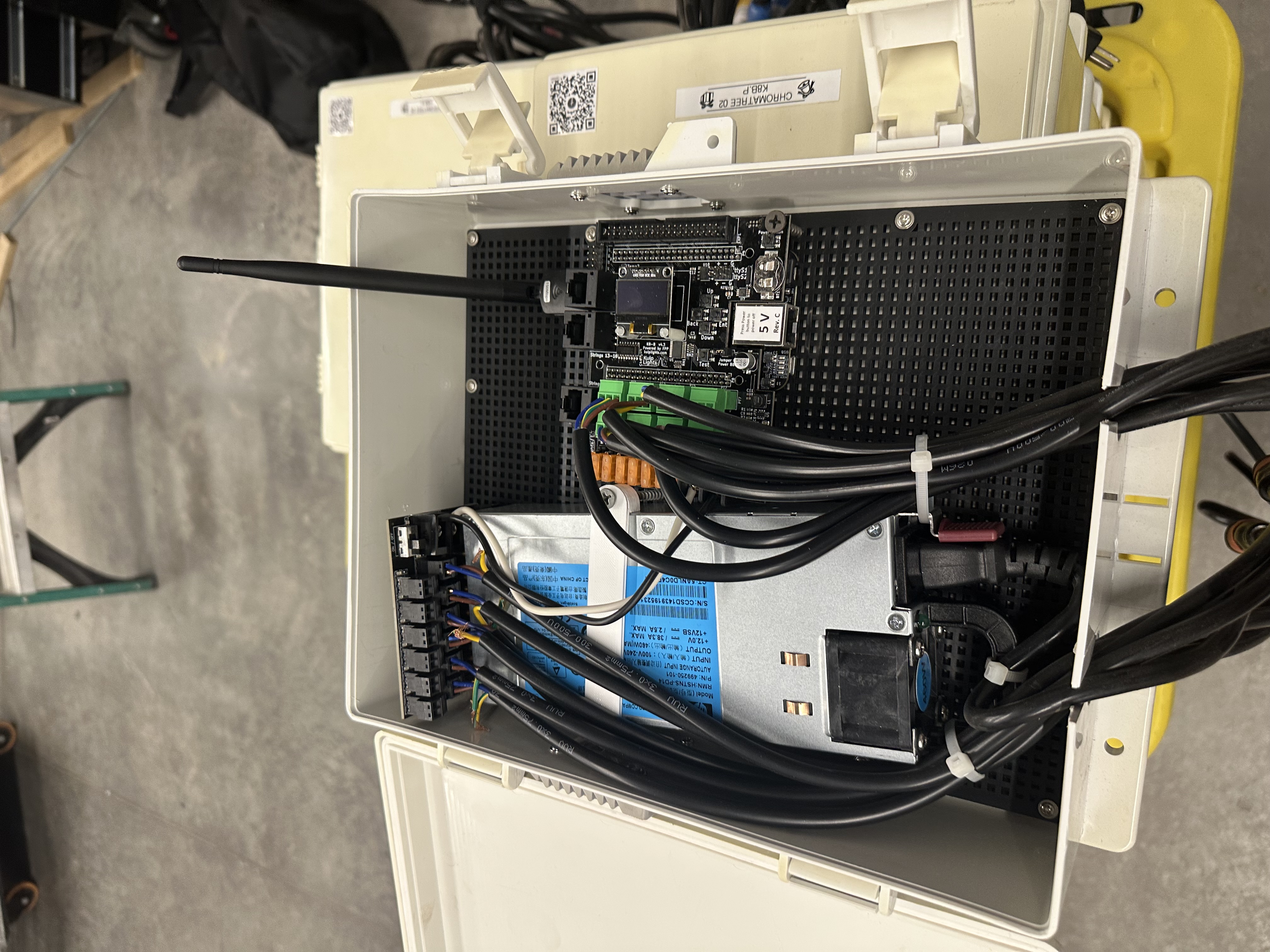

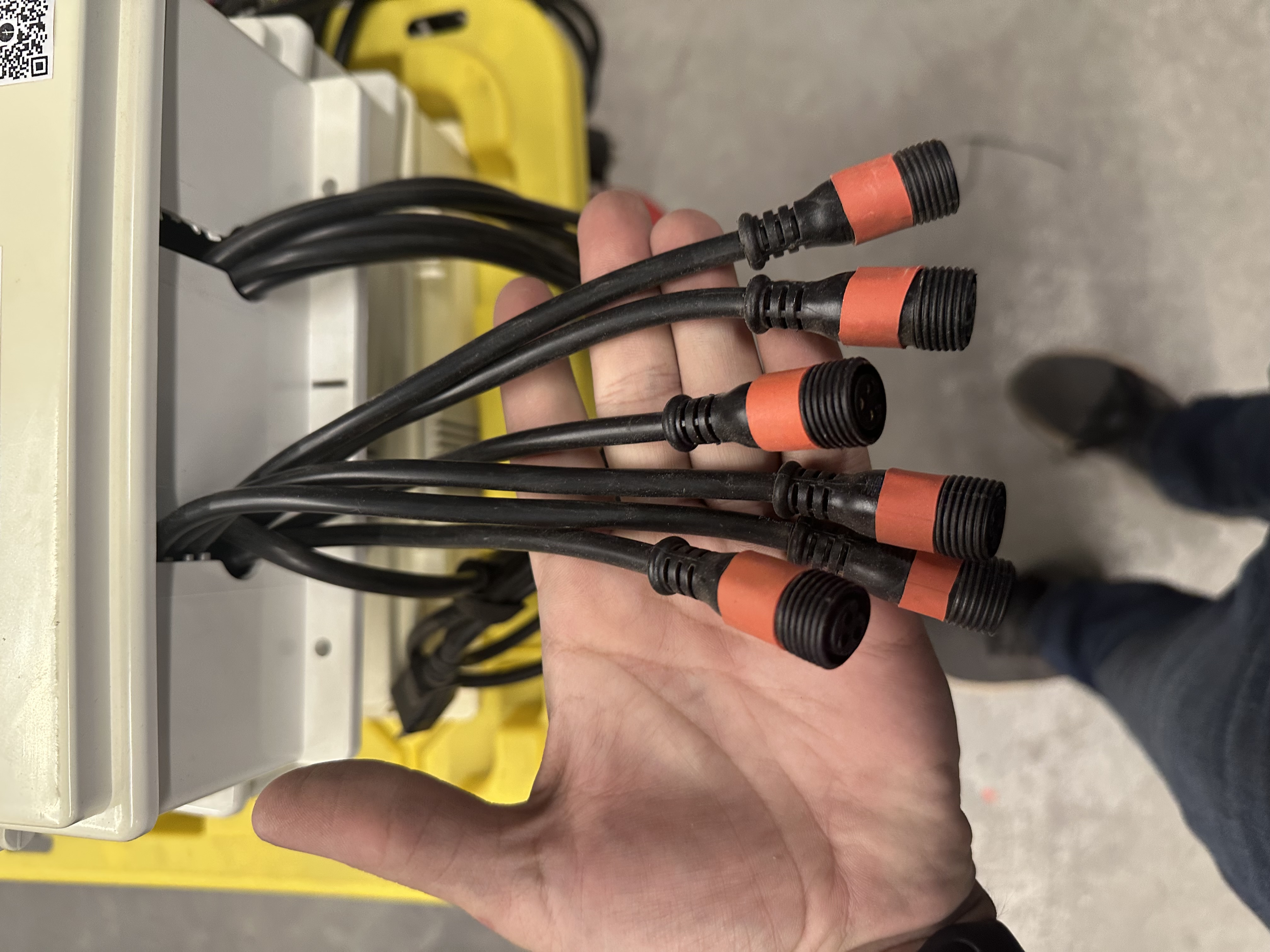

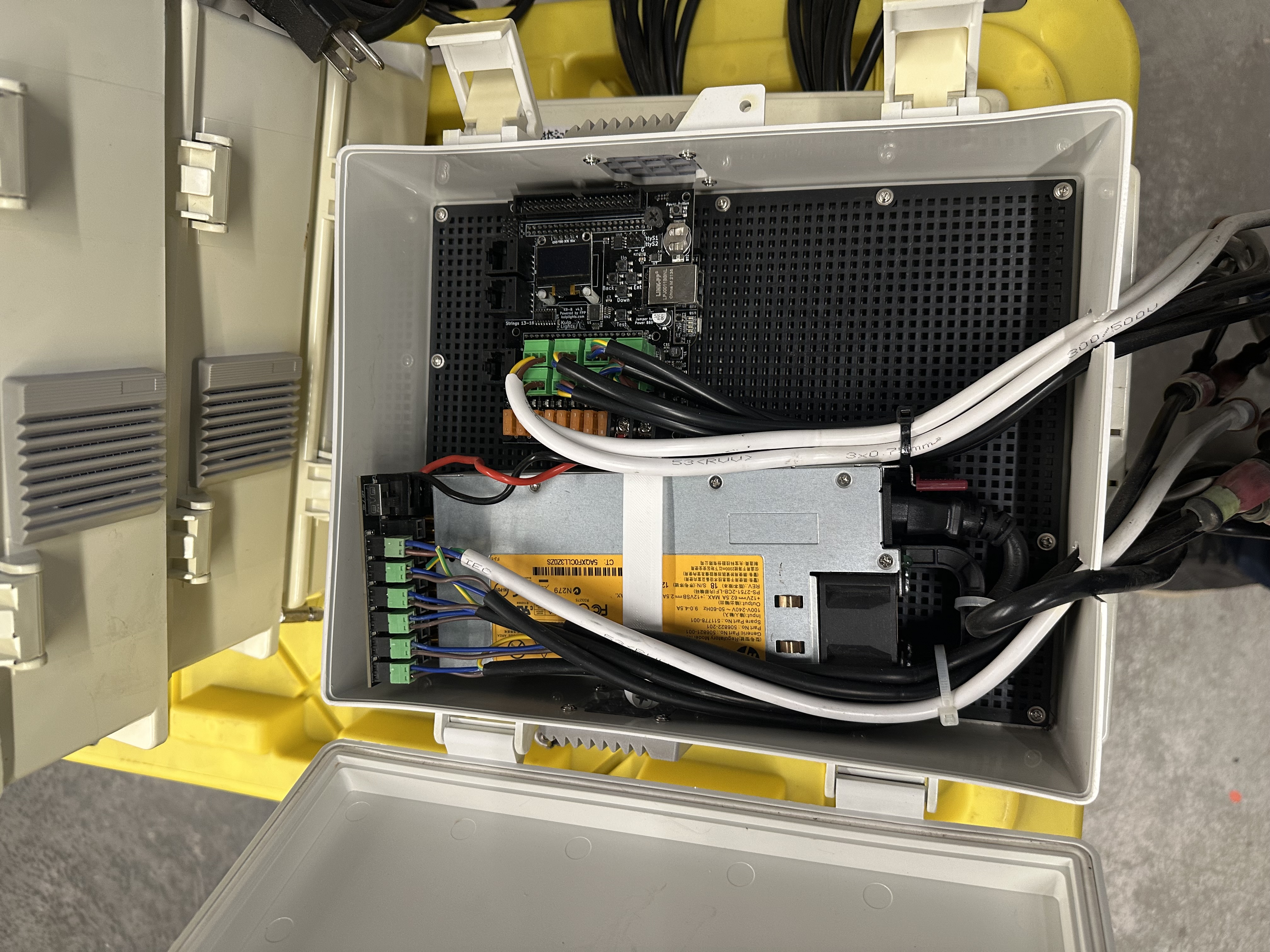

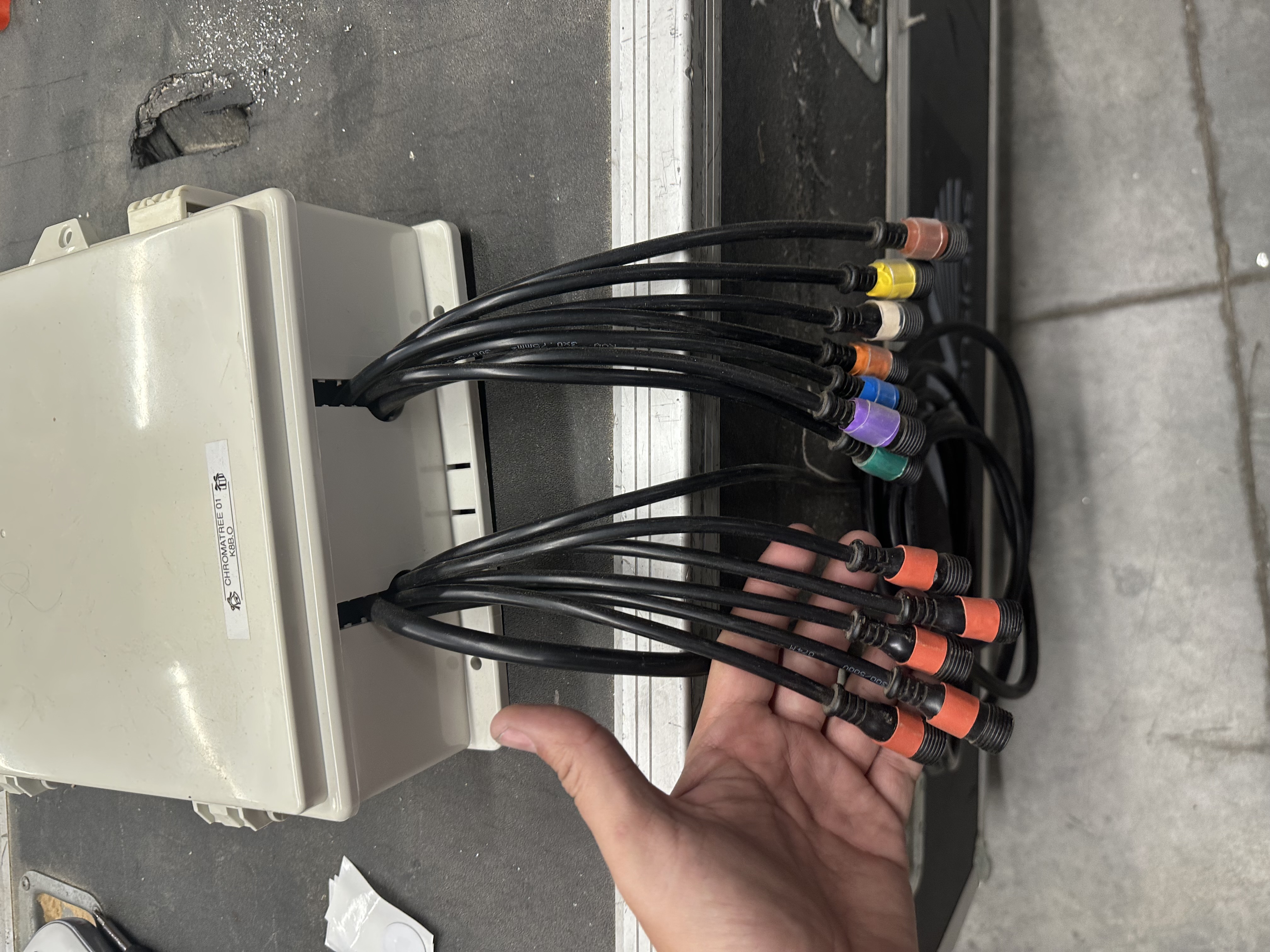

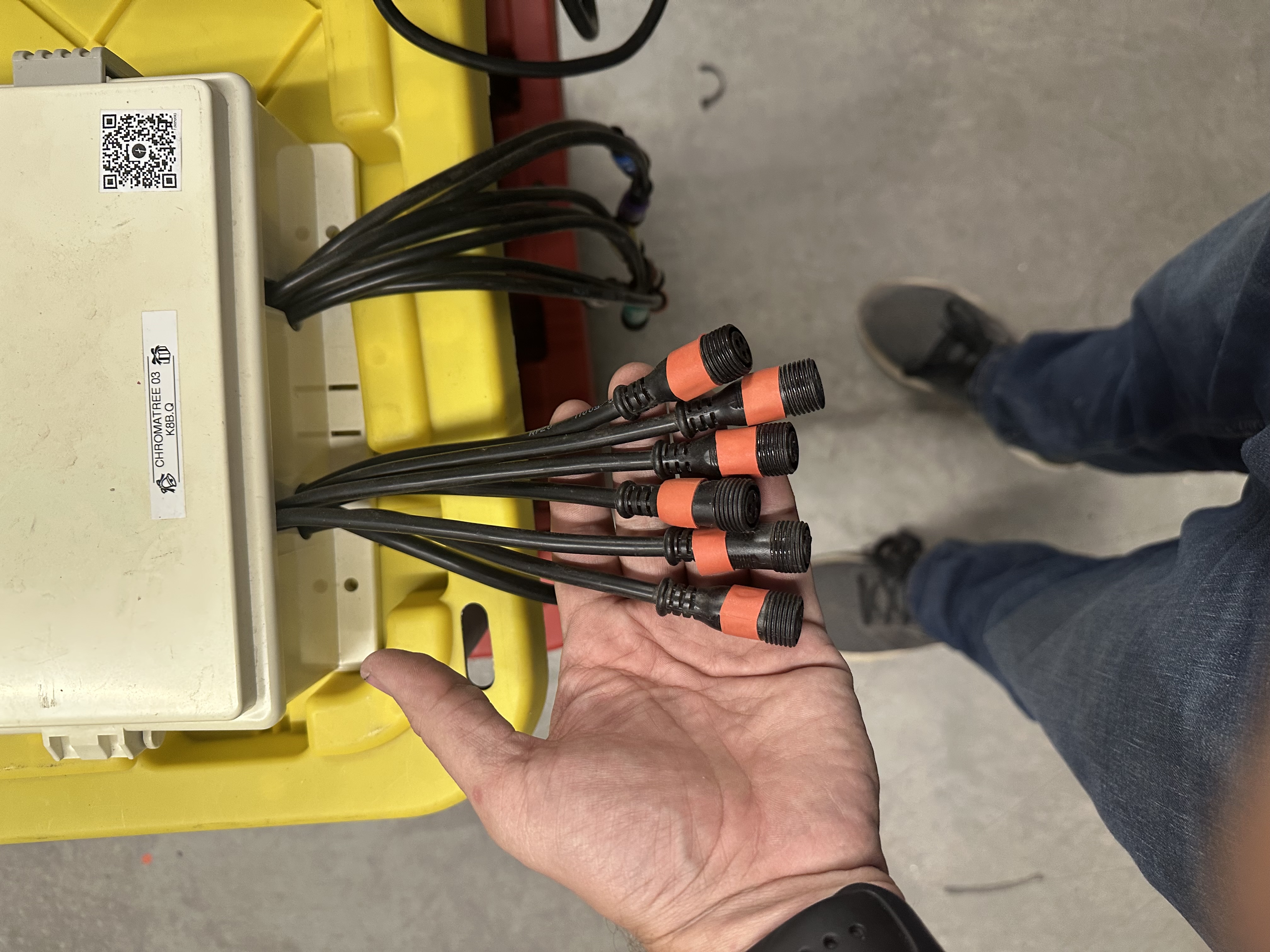

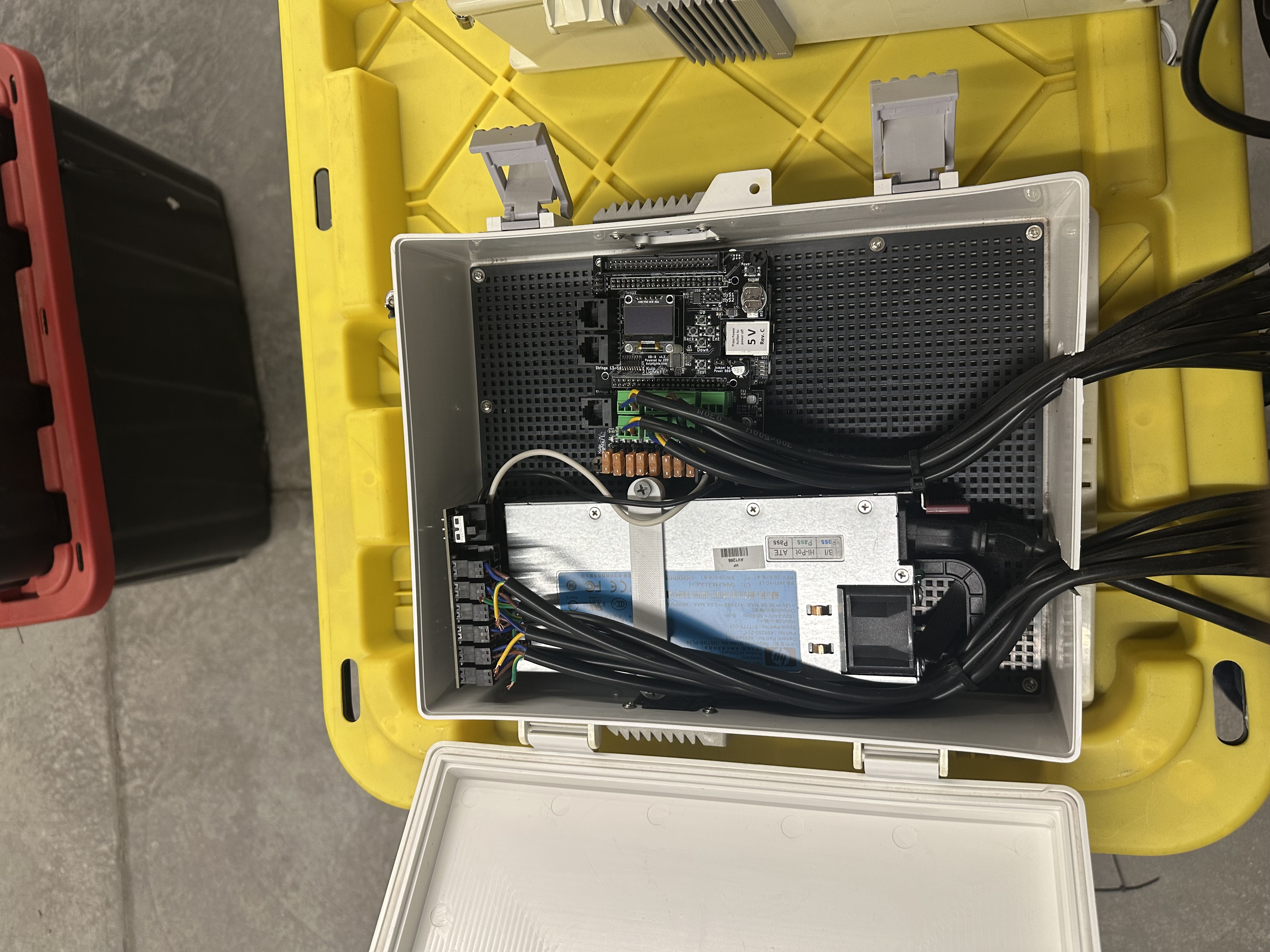

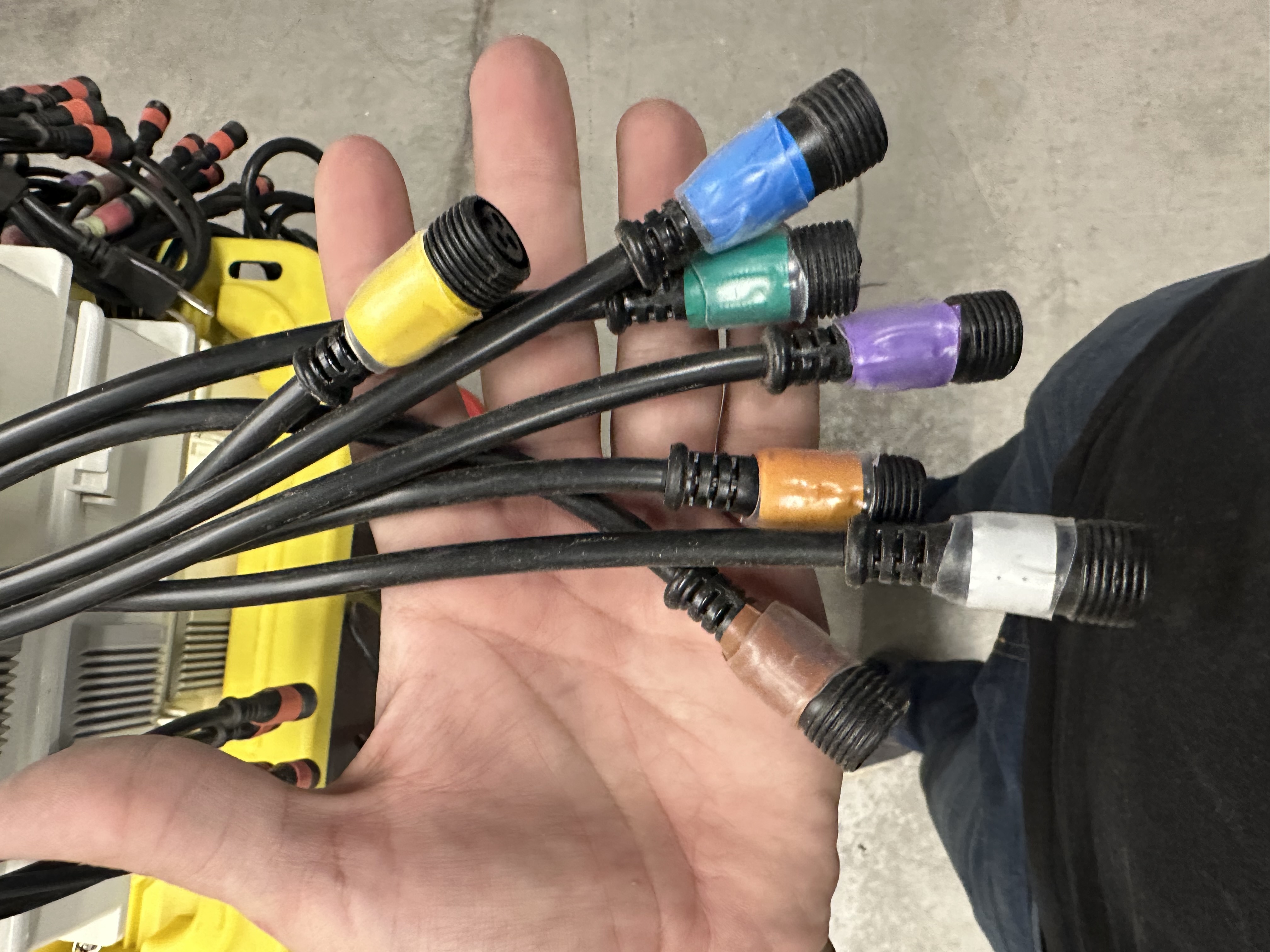

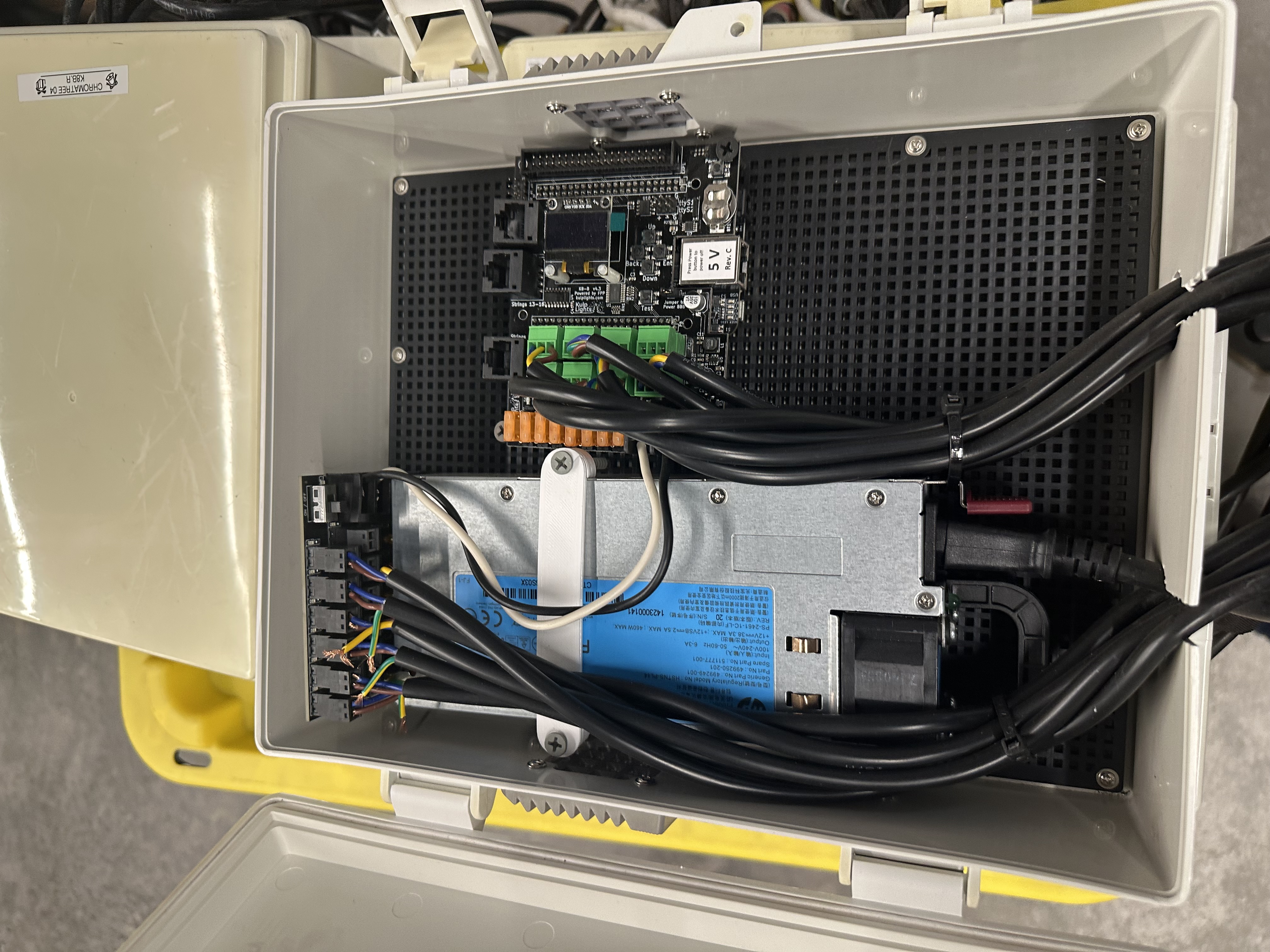

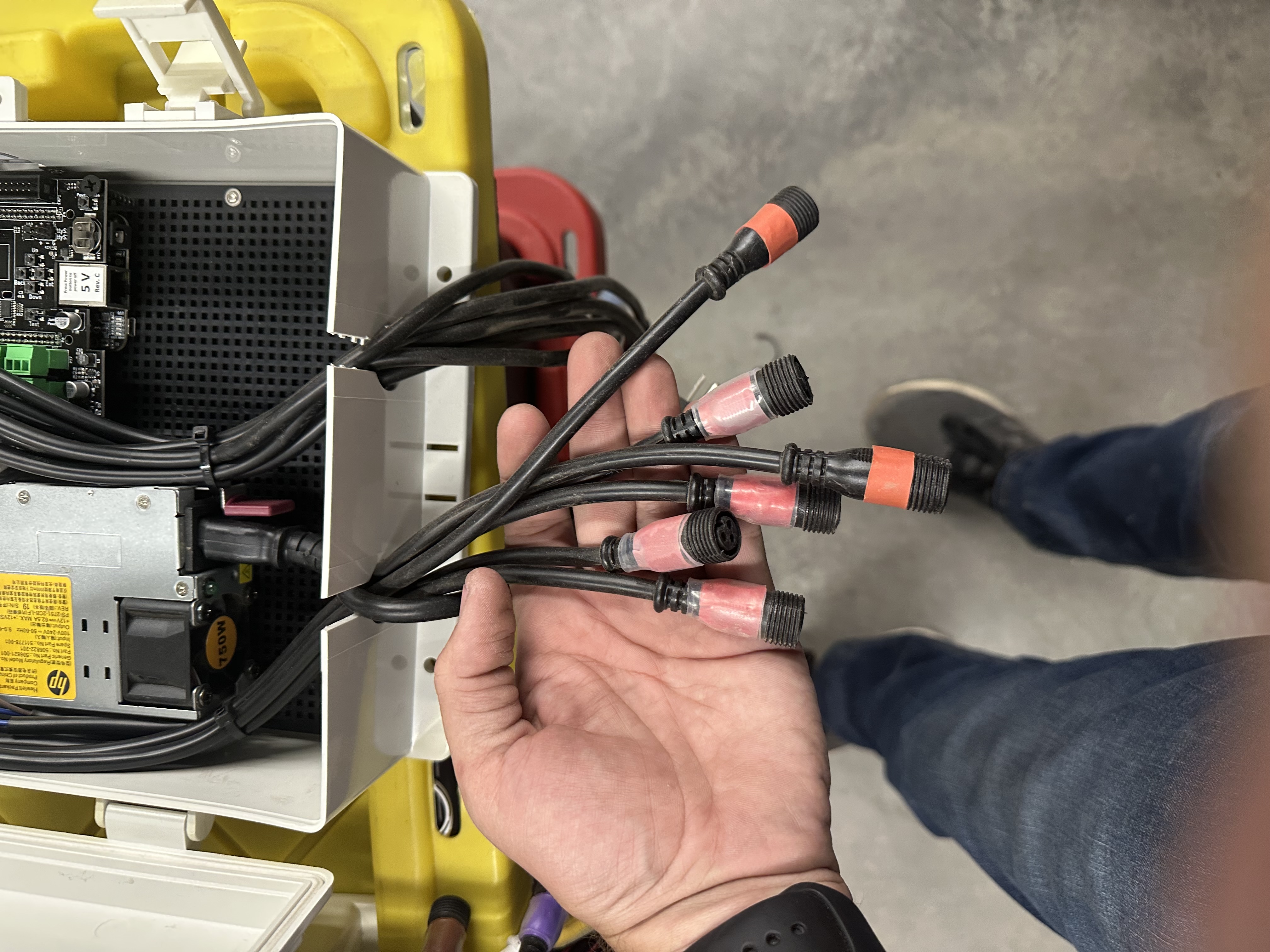

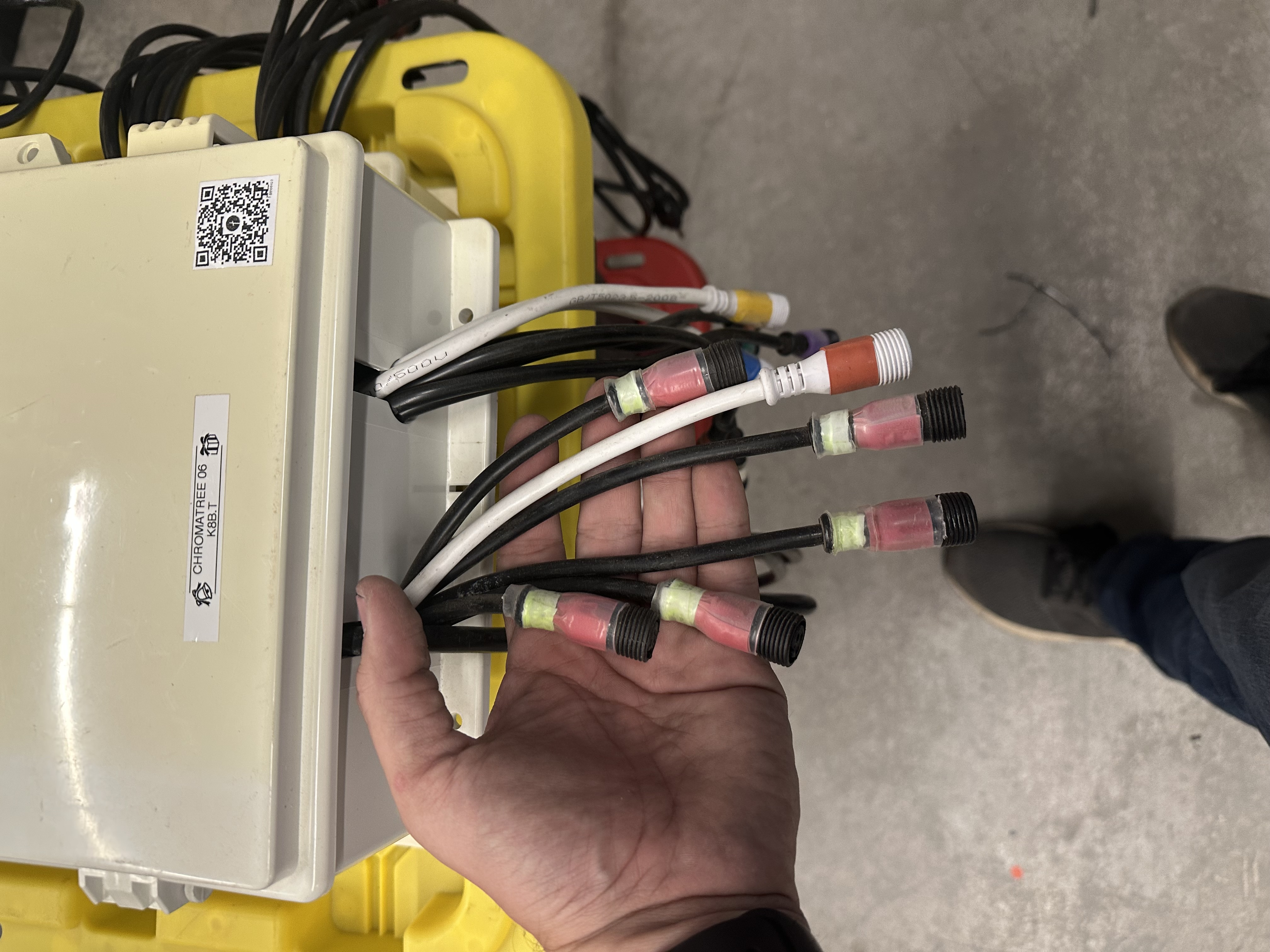

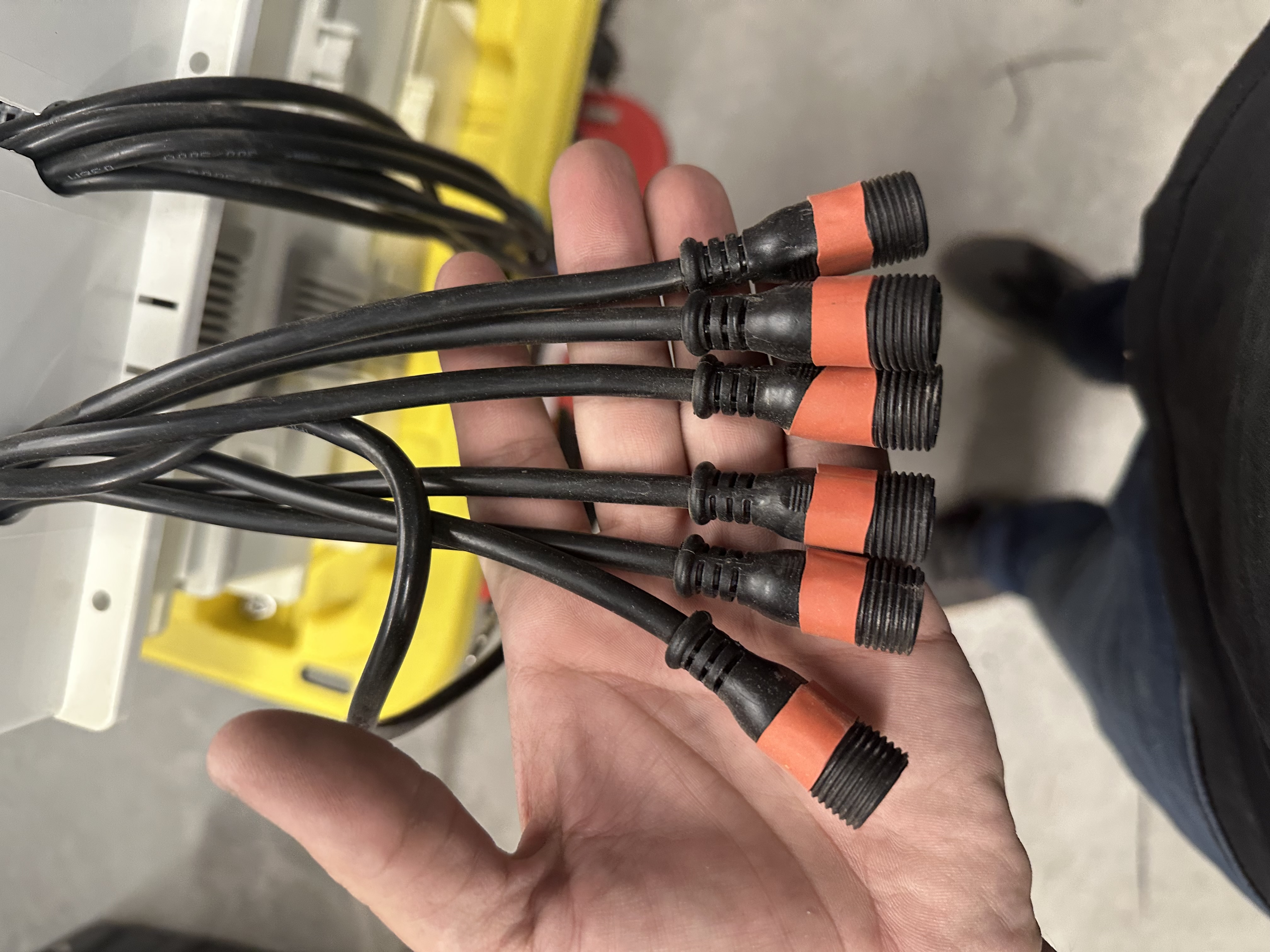

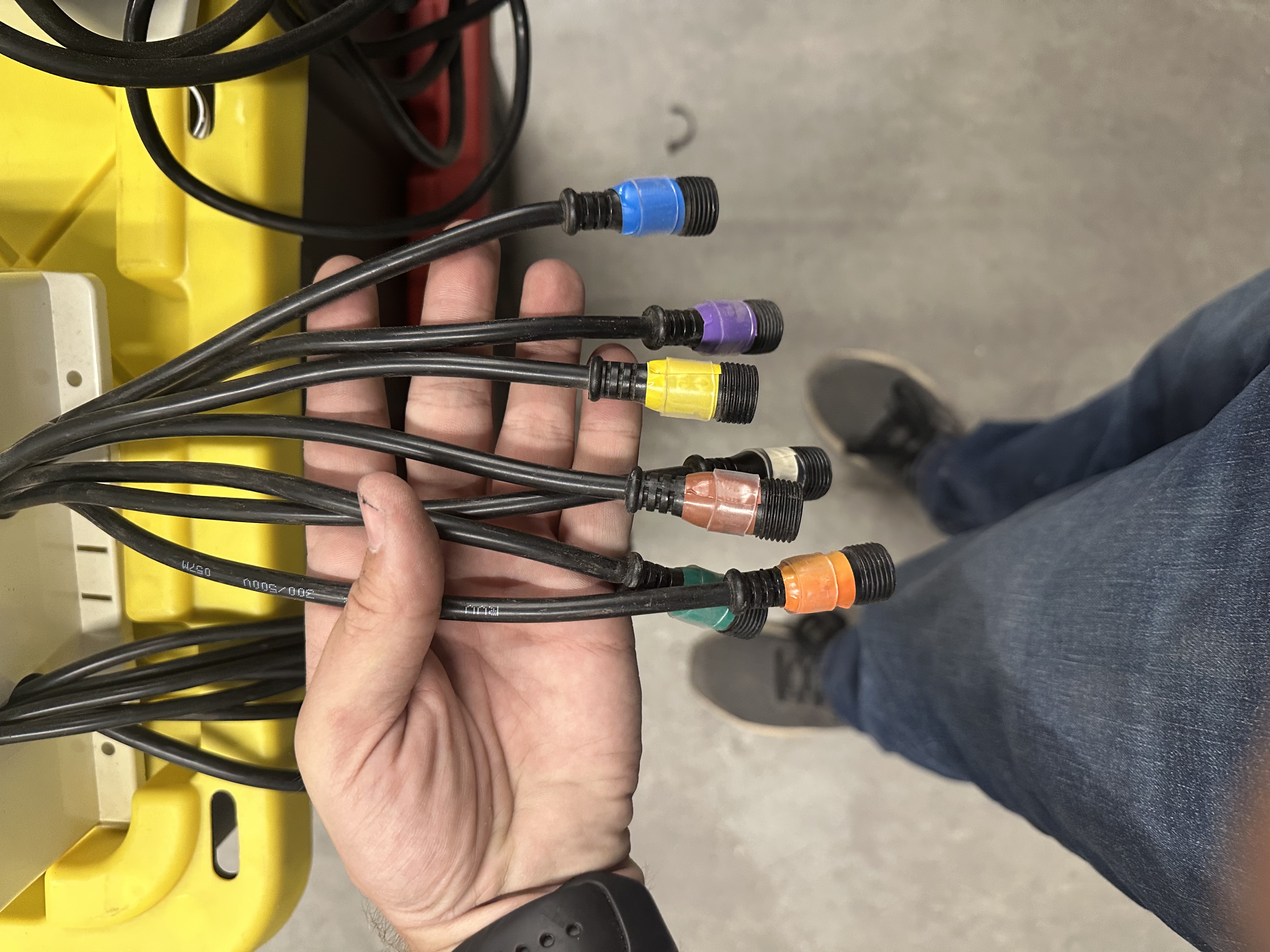

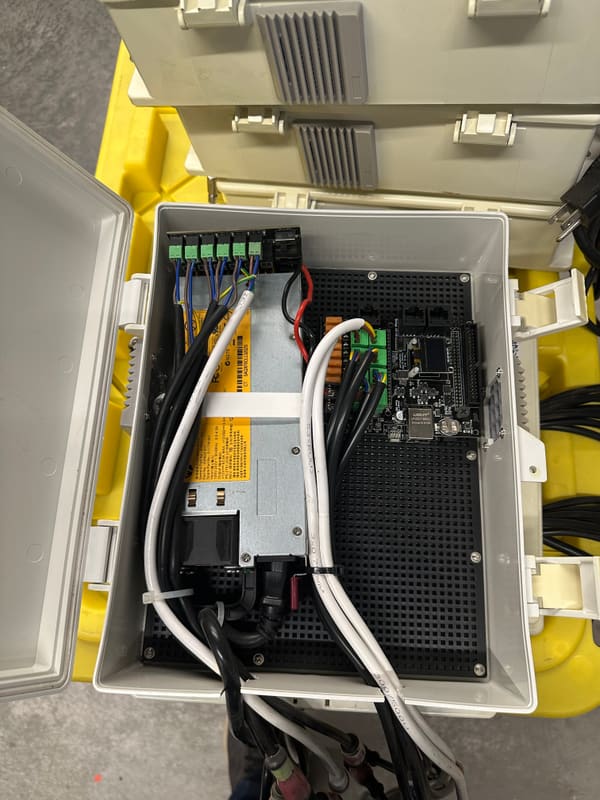

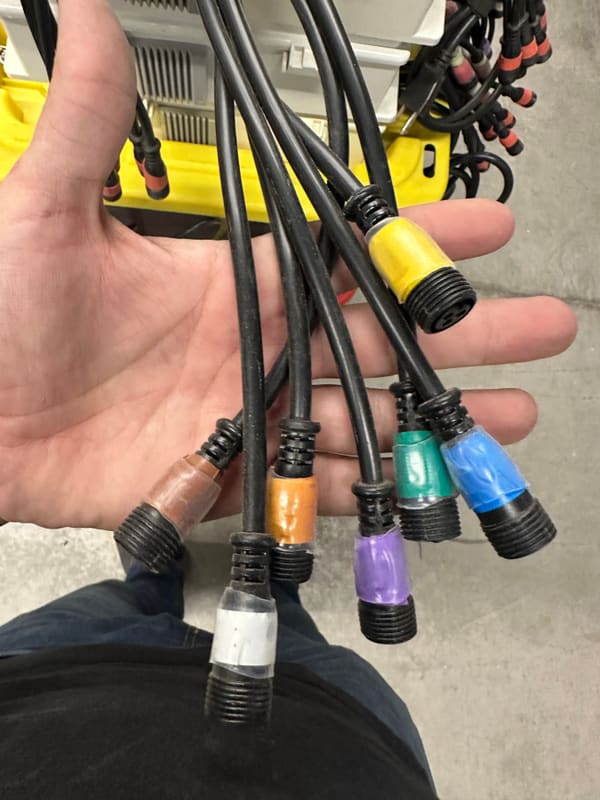

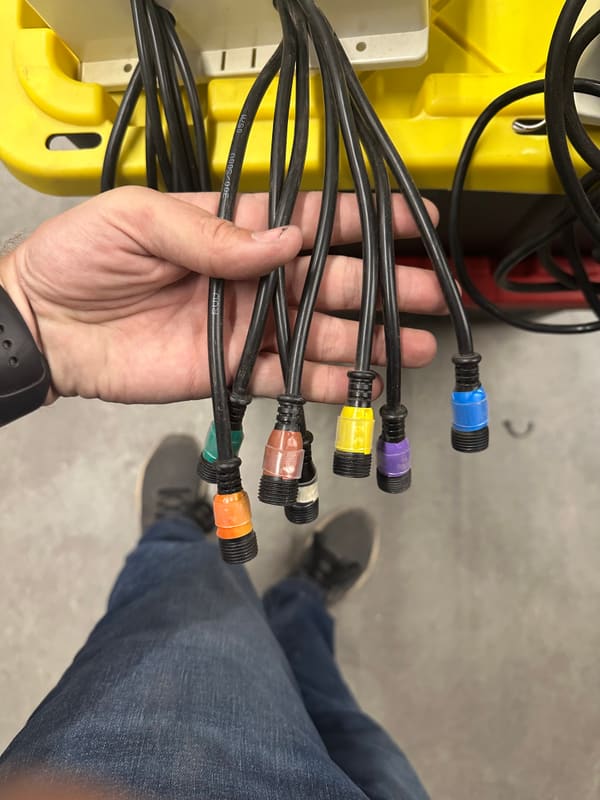

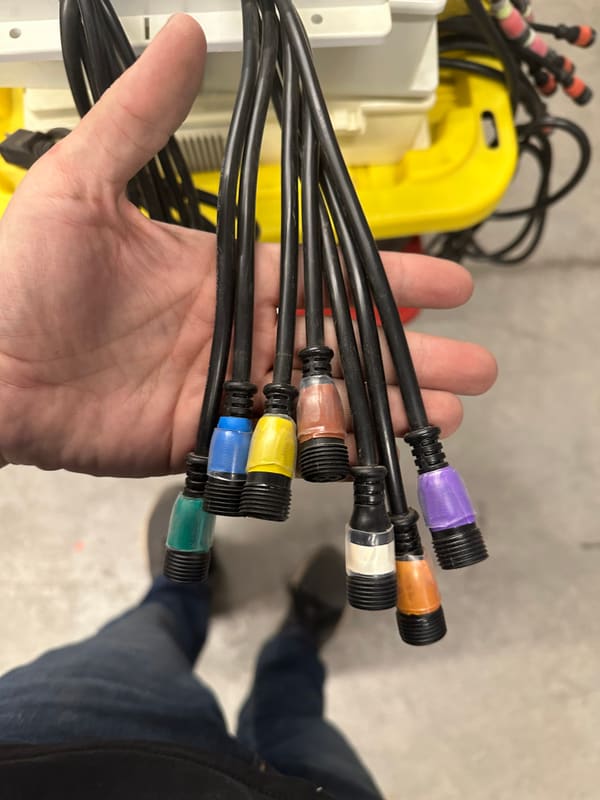

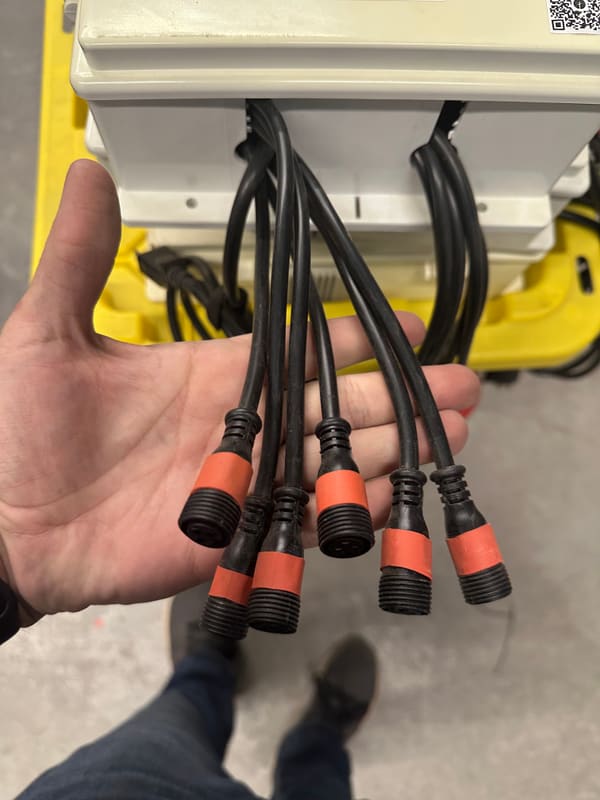

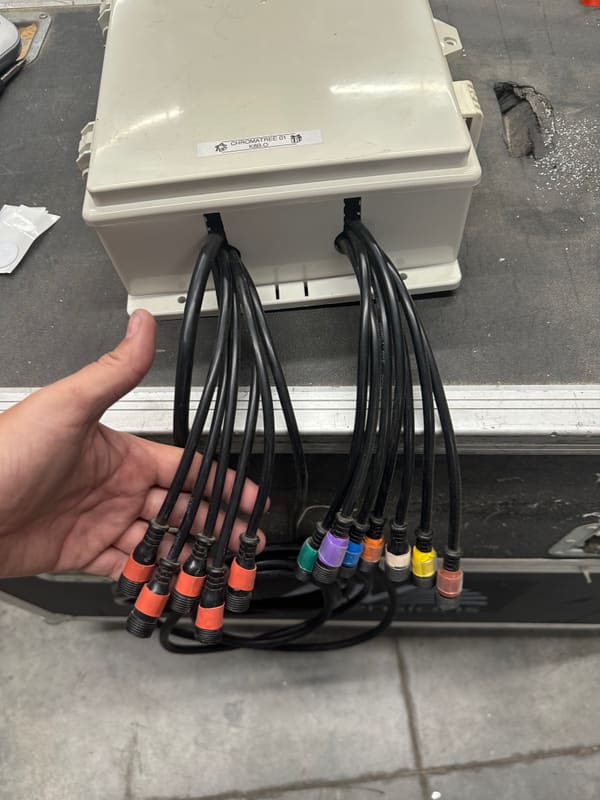

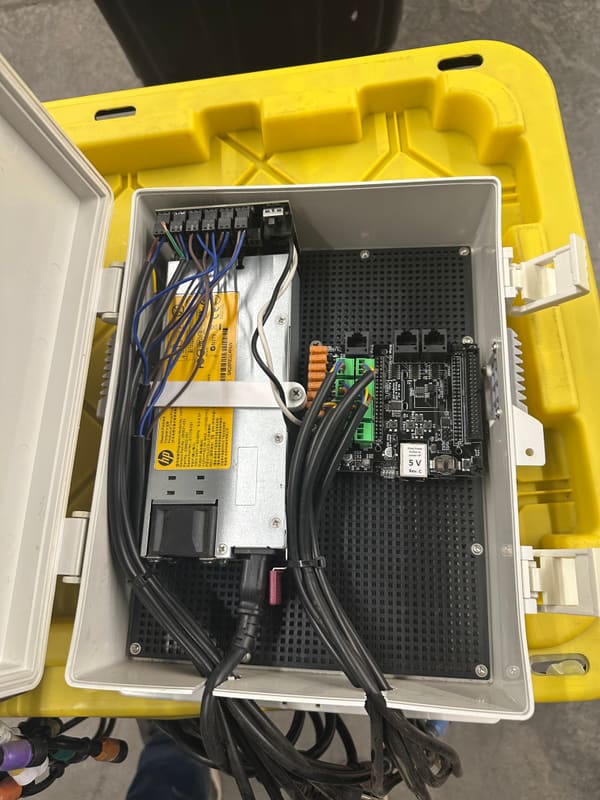

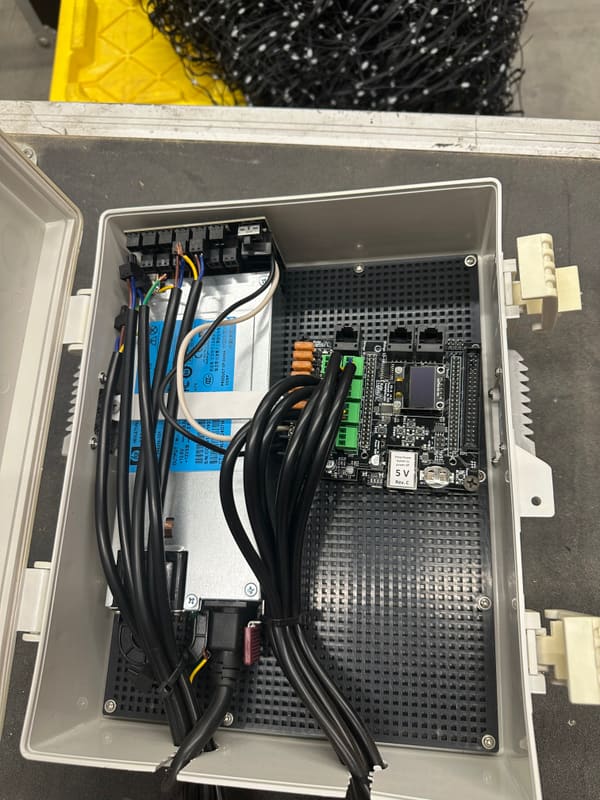

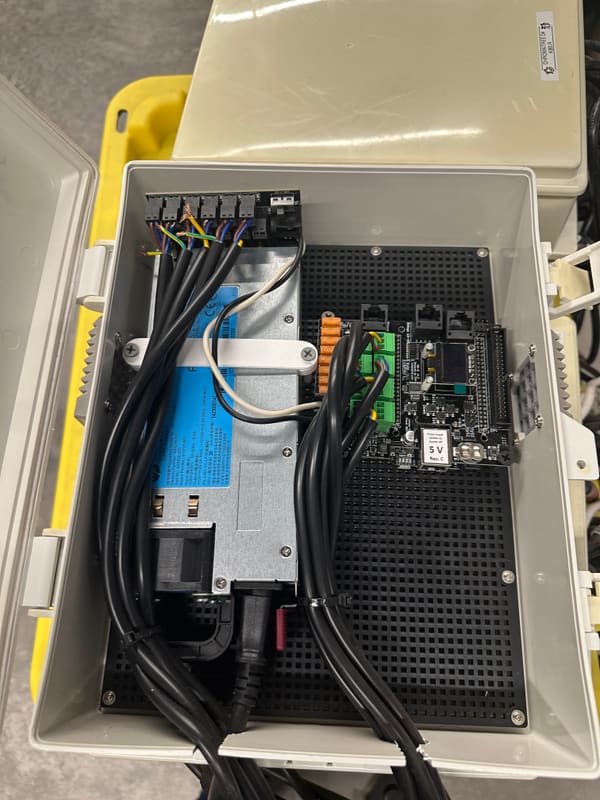

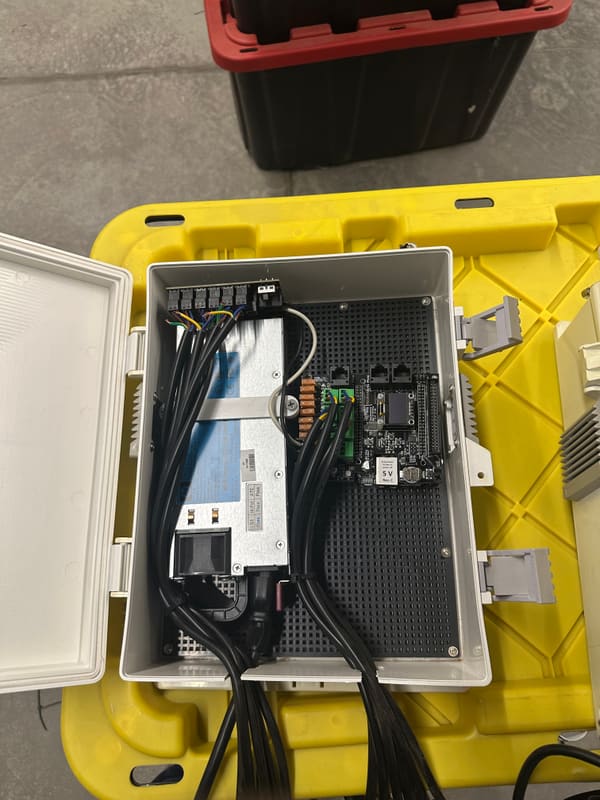

Controller Photos
ChromaTree 02
7 data pigtails · 6 power pigtails

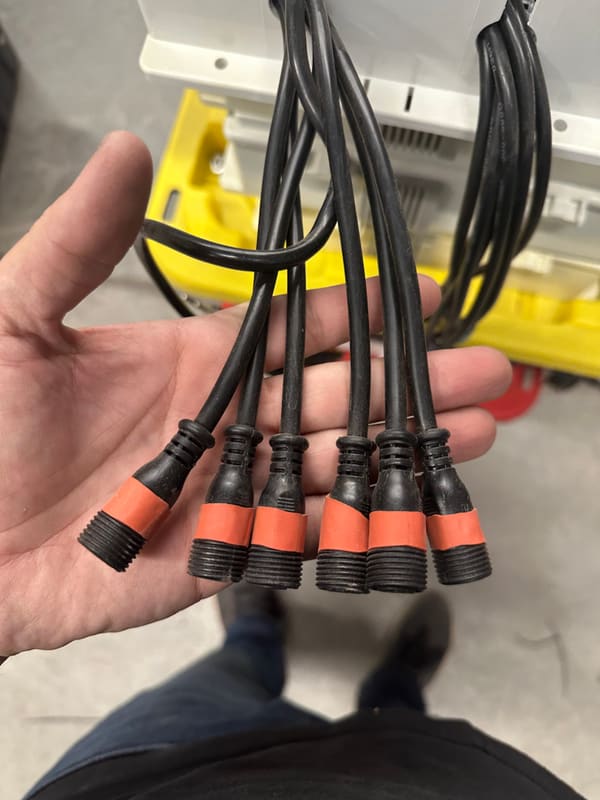

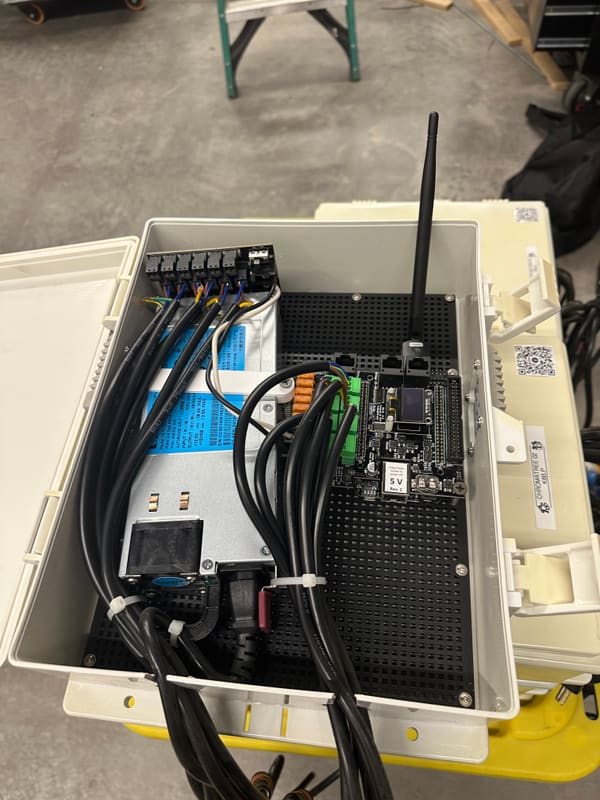

Controller Photos
ChromaTree 03
7 data pigtails · 6 power pigtails

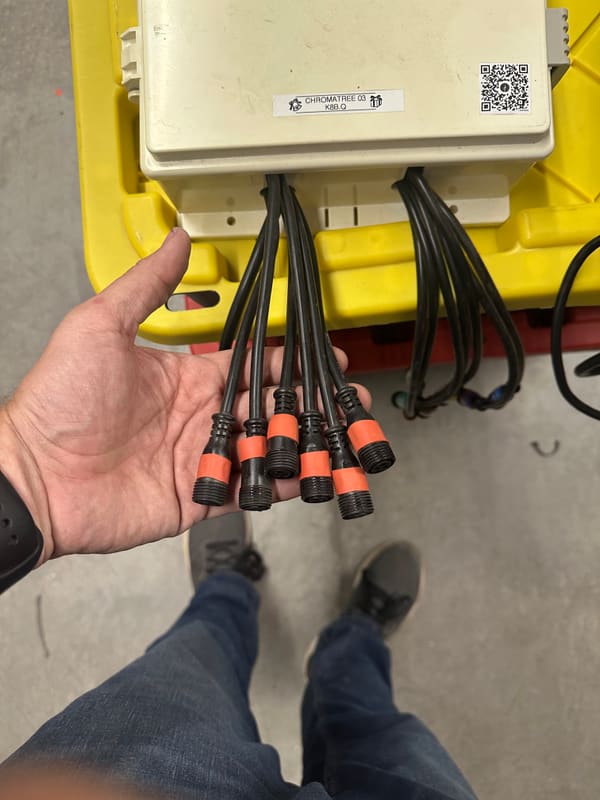

Controller Photos
ChromaTree 04
7 data pigtails · 6 power pigtails
Controller Photos
ChromaTree 05
7 data pigtails · 6 power pigtails
Controller Photos
ChromaTree 06
7 data pigtails · 6 power pigtails
Controller Photos
Props
| Control Box Name | Cable Length | Prop 1 Name | Px Count | Cable Length (2) | Prop 2 Name | Px Count (2) | Cable Length (3) | Prop 3 Name | Px Count (3) | Cable Length (4) | Prop 4 Name | Px Count (4) | Cable Length (5) | Prop 5 Name | Px Count (5) | Cable Length (6) | Prop 6 Name | Px Count (6) | Cable Length (7) | Prop 7 Name | Px Count (7) | Cable Length (8) | Prop 8 Name |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ChromaTree 01 | 5 | ChromaTree 01.1.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 01.1.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 01.1.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 01.1.4 | 150 | 5 | Power End |
| ChromaTree 01 | 5 | ChromaTree 01.2.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 01.2.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 01.2.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 01.2.4 | 150 | 5 | Power End |
| ChromaTree 01 | 5 | ChromaTree 01.3.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 01.3.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 01.3.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 01.3.4 | 150 | 5 | Power End |
| ChromaTree 01 | 5 | ChromaTree 01.4.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 01.4.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 01.4.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 01.4.4 | 150 | 5 | Power End |
| ChromaTree 01 | 5 | ChromaTree 01.5.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 01.5.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 01.5.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 01.5.4 | 150 | 5 | Power End |
| ChromaTree 01 | 5 | ChromaTree 01.6.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 01.6.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 01.6.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 01.6.4 | 150 | 5 | Power End |
| ChromaTree 01 | |||||||||||||||||||||||
| ChromaTree 01 | 12.5 | Chromastar 01.1 | 28 | 0 | Chromastar 01.2 | 28 | 0 | Chromastar 01.3 | 28 | ||||||||||||||
| ChromaTree 02 | 5 | ChromaTree 02.1.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 02.1.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 02.1.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 02.1.4 | 150 | 5 | Power End |
| ChromaTree 02 | 5 | ChromaTree 02.2.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 02.2.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 02.2.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 02.2.4 | 150 | 5 | Power End |
| ChromaTree 02 | 5 | ChromaTree 02.3.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 02.3.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 02.3.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 02.3.4 | 150 | 5 | Power End |
| ChromaTree 02 | 5 | ChromaTree 02.4.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 02.4.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 02.4.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 02.4.4 | 150 | 5 | Power End |
| ChromaTree 02 | 5 | ChromaTree 02.5.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 02.5.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 02.5.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 02.5.4 | 150 | 5 | Power End |
| ChromaTree 02 | 5 | ChromaTree 02.6.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 02.6.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 02.6.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 02.6.4 | 150 | 5 | Power End |
| ChromaTree 02 | |||||||||||||||||||||||
| ChromaTree 02 | 12.5 | Chromastar 02.1 | 28 | 0 | Chromastar 02.2 | 28 | 0 | Chromastar 02.3 | 28 | ||||||||||||||
| ChromaTree 03 | 5 | ChromaTree 03.1.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 03.1.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 03.1.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 03.1.4 | 150 | 5 | Power End |
| ChromaTree 03 | 5 | ChromaTree 03.2.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 03.2.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 03.2.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 03.2.4 | 150 | 5 | Power End |
| ChromaTree 03 | 5 | ChromaTree 03.3.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 03.3.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 03.3.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 03.3.4 | 150 | 5 | Power End |
| ChromaTree 03 | 5 | ChromaTree 03.4.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 03.4.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 03.4.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 03.4.4 | 150 | 5 | Power End |
| ChromaTree 03 | 5 | ChromaTree 03.5.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 03.5.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 03.5.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 03.5.4 | 150 | 5 | Power End |
| ChromaTree 03 | 5 | ChromaTree 03.6.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 03.6.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 03.6.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 03.6.4 | 150 | 5 | Power End |
| ChromaTree 03 | |||||||||||||||||||||||
| ChromaTree 03 | 12.5 | Chromastar 03.1 | 28 | 0 | Chromastar 03.2 | 28 | 0 | Chromastar 03.3 | 28 | ||||||||||||||
| ChromaTree 04 | 5 | ChromaTree 04.1.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 04.1.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 04.1.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 04.1.4 | 150 | 5 | Power End |
| ChromaTree 04 | 5 | ChromaTree 04.2.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 04.2.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 04.2.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 04.2.4 | 150 | 5 | Power End |
| ChromaTree 04 | 5 | ChromaTree 04.3.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 04.3.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 04.3.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 04.3.4 | 150 | 5 | Power End |
| ChromaTree 04 | 5 | ChromaTree 04.4.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 04.4.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 04.4.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 04.4.4 | 150 | 5 | Power End |
| ChromaTree 04 | 5 | ChromaTree 04.5.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 04.5.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 04.5.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 04.5.4 | 150 | 5 | Power End |
| ChromaTree 04 | 5 | ChromaTree 04.6.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 04.6.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 04.6.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 04.6.4 | 150 | 5 | Power End |
| ChromaTree 04 | |||||||||||||||||||||||
| ChromaTree 04 | 12.5 | Chromastar 04.1 | 28 | 0 | Chromastar 04.2 | 28 | 0 | Chromastar 04.3 | 28 | ||||||||||||||
| ChromaTree 05 | 5 | ChromaTree 05.1.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 05.1.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 05.1.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 05.1.4 | 150 | 5 | Power End |
| ChromaTree 05 | 5 | ChromaTree 05.2.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 05.2.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 05.2.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 05.2.4 | 150 | 5 | Power End |
| ChromaTree 05 | 5 | ChromaTree 05.3.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 05.3.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 05.3.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 05.3.4 | 150 | 5 | Power End |
| ChromaTree 05 | 5 | ChromaTree 05.4.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 05.4.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 05.4.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 05.4.4 | 150 | 5 | Power End |
| ChromaTree 05 | 5 | ChromaTree 05.5.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 05.5.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 05.5.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 05.5.4 | 150 | 5 | Power End |
| ChromaTree 05 | 5 | ChromaTree 05.6.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 05.6.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 05.6.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 05.6.4 | 150 | 5 | Power End |
| ChromaTree 05 | |||||||||||||||||||||||
| ChromaTree 05 | 12.5 | Chromastar 05.1 | 28 | 0 | Chromastar 05.2 | 28 | 0 | Chromastar 05.3 | 28 | ||||||||||||||
| ChromaTree 06 | 5 | ChromaTree 06.1.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 06.1.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 06.1.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 06.1.4 | 150 | 5 | Power End |
| ChromaTree 06 | 5 | ChromaTree 06.2.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 06.2.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 06.2.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 06.2.4 | 150 | 5 | Power End |
| ChromaTree 06 | 5 | ChromaTree 06.3.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 06.3.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 06.3.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 06.3.4 | 150 | 5 | Power End |
| ChromaTree 06 | 5 | ChromaTree 06.4.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 06.4.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 06.4.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 06.4.4 | 150 | 5 | Power End |
| ChromaTree 06 | 5 | ChromaTree 06.5.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 06.5.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 06.5.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 06.5.4 | 150 | 5 | Power End |
| ChromaTree 06 | 5 | ChromaTree 06.6.1 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 06.6.2 | 150 | 0 | Power Inject | 0 | 0 | ChromaTree 06.6.3 | 150 | 0 | Power Balanced | 0 | 0 | ChromaTree 06.6.4 | 150 | 5 | Power End |
| ChromaTree 06 | |||||||||||||||||||||||
| ChromaTree 06 | 12.5 | Chromastar 06.1 | 28 | 0 | Chromastar 06.2 | 28 | 0 | Chromastar 06.3 | 28 |
Controllers
6 boxes available
Show details
Controllers
6 boxes available
ChromaTree 02
7 data pigtails · 6 power pigtails
Pigtails
- 7 Data
- 6 Power Injection
ChromaTree 03
7 data pigtails · 6 power pigtails
Pigtails
- 7 Data
- 6 Power Injection
ChromaTree 04
7 data pigtails · 6 power pigtails
Pigtails
- 7 Data
- 6 Power Injection
ChromaTree 05
7 data pigtails · 6 power pigtails
Pigtails
- 7 Data
- 6 Power Injection
ChromaTree 06
7 data pigtails · 6 power pigtails
Pigtails
- 7 Data
- 6 Power Injection
