Controller B9A

Location: MegaTree 02

Gallery

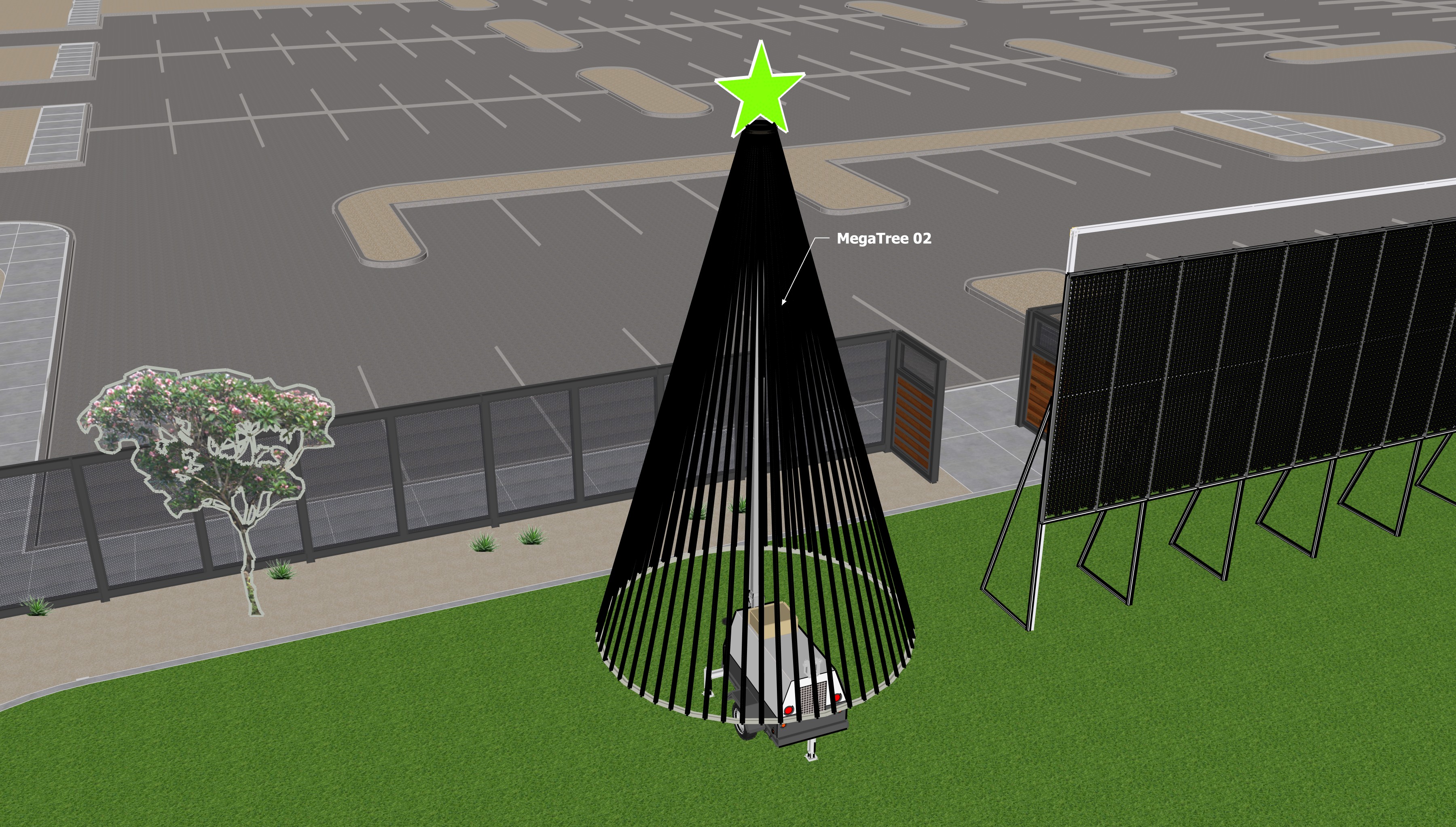

Setup Photos image 1 for controller B9A

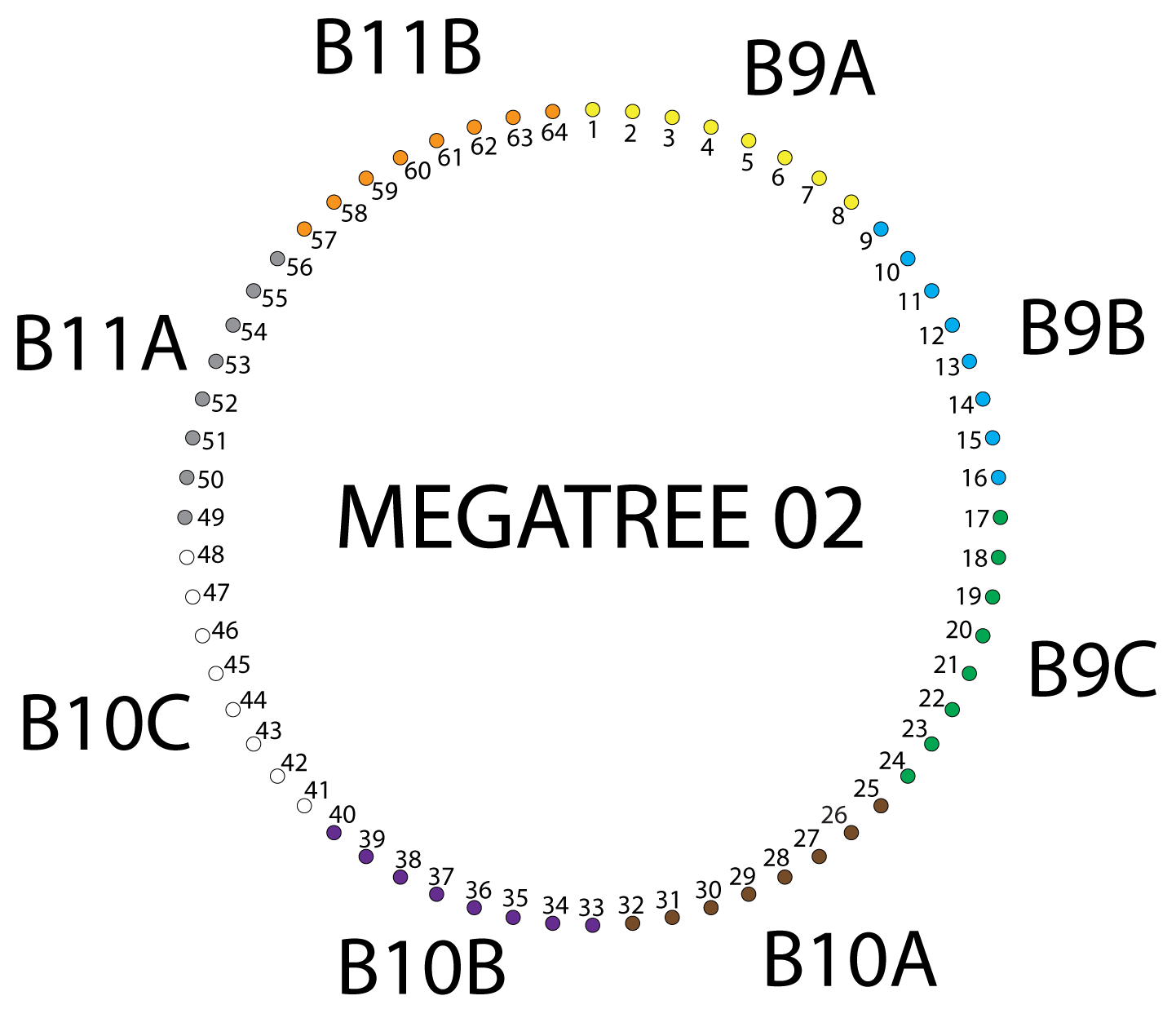

Setup Photos image 2 for controller B9A

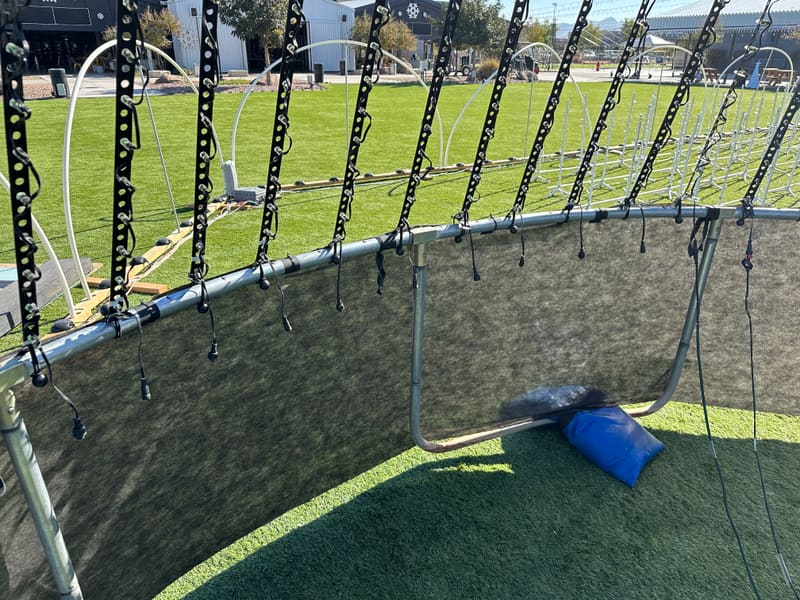

Reference Photos image 1 for controller B9A

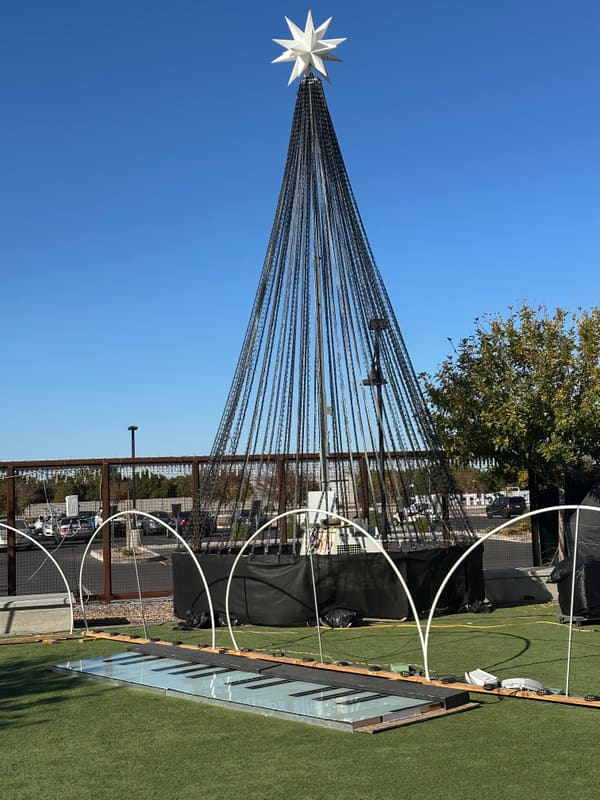

Reference Photos image 2 for controller B9A

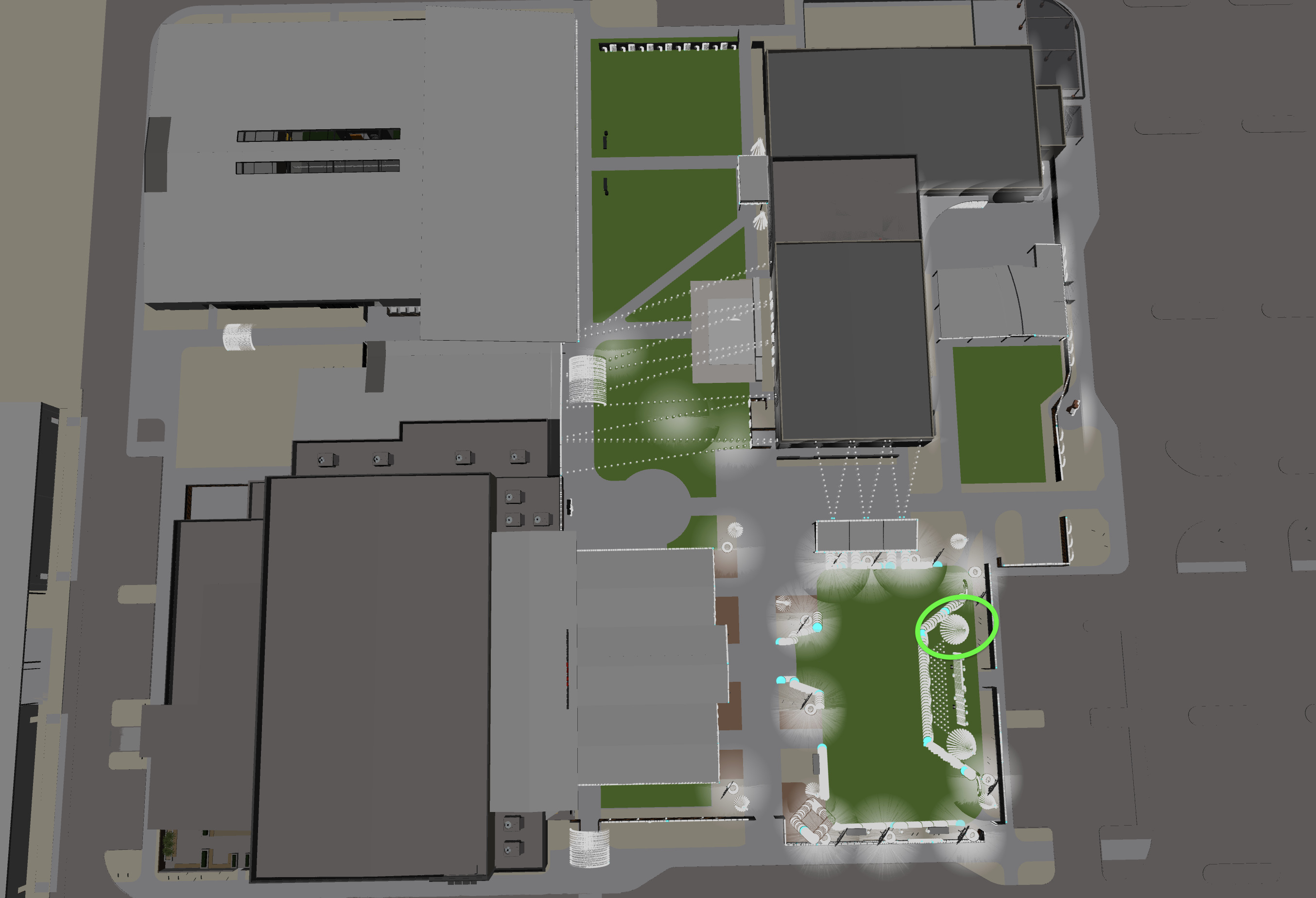

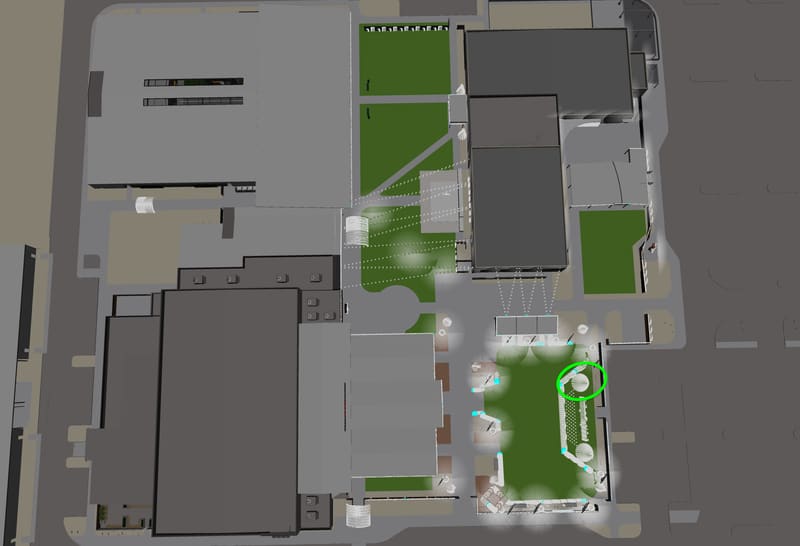

Site Map image 1 for controller B9A

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)	Cable Length (3)	Prop 3 Name	Px Count (3)	Cable Length (4)	Prop 4 Name
K8PB.B	9	9A	B9A	9		B9A		K8PB.B	640	600	200	40	B9A	12	750	10	50	1000	2360	MegaTree 02.01	10	MegaTree 02-str-1.1	100	0	Power Cut		0	MegaTree 02-str-1.2	100	10	Power End
K8PB.B	10	10A	B9A	9		B9A			640	600	200	40	B9A	12	750	10	50	1000		MegaTree 02.01	10	MegaTree 02-str-2.1	100	0	Power Cut		0	MegaTree 02-str-2.2	100	10	Power End
K8PB.B	11	11A	B9A	9		B9A			640	600	200	40	B9A	12	750	0.6	50	60		MegaTree 02.01	10	MegaTree 02-str-3.1	100	0	Power Cut		0	MegaTree 02-str-3.2	100	10	Power End
K8PB.B	12	12A	B9A	9		B9A			640	600	200	40	B9A	12	750	0.6	50	60		MegaTree 02.01	10	MegaTree 02-str-4.1	100	0	Power Cut		0	MegaTree 02-str-4.2	100	10	Power End
K8PB.B	9	9B	B9B	9		B9B		B9A	640	600	200	40	B9A	12	750	0.6	50	60		MegaTree 02.01	10	MegaTree 02-str-5.1	100	0	Power Cut		0	MegaTree 02-str-5.2	100	10	Power End
K8PB.B	10	10B	B9B	9		B9B			640	600	200	40	B9A	12	750	0.6	50	60		MegaTree 02.01	10	MegaTree 02-str-6.1	100	0	Power Cut		0	MegaTree 02-str-6.2	100	10	Power End
K8PB.B	11	11B	B9B	9		B9B			640	600	200	40	B9A	12	750	0.6	50	60		MegaTree 02.01	10	MegaTree 02-str-7.1	100	0	Power Cut		0	MegaTree 02-str-7.2	100	10	Power End
K8PB.B	12	12B	B9B	9		B9B			640	600	200	40	B9A	12	750	0.6	50	60		MegaTree 02.01	10	MegaTree 02-str-8.1	100	0	Power Cut		0	MegaTree 02-str-8.2	100	10	Power End
K8PB.B	9	9C	B9C	9		B9C		B9B	640	600	200	40	B9C	12	750	0.6	50	60	240	MegaTree 02.01	10	MegaTree 02-str-9.1	100	0	Power Cut		0	MegaTree 02-str-9.2	100	10	Power End
K8PB.B	10	10C	B9C	9		B9C			640	600	200	40	B9C	12	750	0.6	50	60		MegaTree 02.01	10	MegaTree 02-str-10.1	100	0	Power Cut		0	MegaTree 02-str-10.2	100	10	Power End
K8PB.B	11	11C	B9C	9		B9C			640	600	200	40	B9C	12	750	0.6	50	60		MegaTree 02.01	10	MegaTree 02-str-11.1	100	0	Power Cut		0	MegaTree 02-str-11.2	100	10	Power End
K8PB.B	12	12C	B9C	9		B9C			640	600	200	40	B9C	12	750	0.6	50	60		MegaTree 02.01	10	MegaTree 02-str-12.1	100	0	Power Cut		0	MegaTree 02-str-12.2	100	10	Power End
K8PB.B	13	13A	B10A	10		B10A		K8PB.B	640	600	200	40	B10B	12	750	0.6	50	60	480	MegaTree 02.01	10	MegaTree 02-str-13.1	100	0	Power Cut		0	MegaTree 02-str-13.2	100	10	Power End
K8PB.B	14	14A	B10A	10		B10A			640	600	200	40	B10B	12	750	0.6	50	60		MegaTree 02.01	10	MegaTree 02-str-14.1	100	0	Power Cut		0	MegaTree 02-str-14.2	100	10	Power End
K8PB.B	15	15A	B10A	10		B10A			640	600	200	40	B10B	12	750	0.6	50	60		MegaTree 02.01	10	MegaTree 02-str-15.1	100	0	Power Cut		0	MegaTree 02-str-15.2	100	10	Power End
K8PB.B	16	16A	B10A	10		B10A			640	600	200	40	B10B	12	750	0.6	50	60		MegaTree 02.01	10	MegaTree 02-str-16.1	100	0	Power Cut		0	MegaTree 02-str-16.2	100	10	Power End
K8PB.B	13	13B	B10B	10		B10B		B10A	640	600	200	40	B10B	12	750	0.6	50	60		MegaTree 02.01	10	MegaTree 02-str-17.1	100	0	Power Cut		0	MegaTree 02-str-17.2	100	10	Power End
K8PB.B	14	14B	B10B	10		B10B			640	600	200	40	B10B	12	750	0.6	50	60		MegaTree 02.01	10	MegaTree 02-str-18.1	100	0	Power Cut		0	MegaTree 02-str-18.2	100	10	Power End
K8PB.B	15	15B	B10B	10		B10B			640	600	200	40	B10B	12	750	0.6	50	60		MegaTree 02.01	10	MegaTree 02-str-19.1	100	0	Power Cut		0	MegaTree 02-str-19.2	100	10	Power End
K8PB.B	16	16B	B10B	10		B10B			640	600	200	40	B10B	12	750	0.6	50	60		MegaTree 02.01	10	MegaTree 02-str-20.1	100	0	Power Cut		0	MegaTree 02-str-20.2	100	10	Power End
K8PB.B	13	13C	B10C	10		B10C		B10B	640	600	200	40	B10C	12	750	0.6	50	60	240	MegaTree 02.01	10	MegaTree 02-str-21.1	100	0	Power Cut		0	MegaTree 02-str-21.2	100	10	Power End
K8PB.B	14	14C	B10C	10		B10C			640	600	200	40	B10C	12	750	0.6	50	60		MegaTree 02.01	10	MegaTree 02-str-22.1	100	0	Power Cut		0	MegaTree 02-str-22.2	100	10	Power End
K8PB.B	15	15C	B10C	10		B10C			640	600	200	40	B10C	12	750	0.6	50	60		MegaTree 02.01	10	MegaTree 02-str-23.1	100	0	Power Cut		0	MegaTree 02-str-23.2	100	10	Power End
K8PB.B	16	16C	B10C	10		B10C			640	600	200	40	B10C	12	750	0.6	50	60		MegaTree 02.01	10	MegaTree 02-str-24.1	100	0	Power Cut		0	MegaTree 02-str-24.2	100	10	Power End
K8PB.B	17	17A	B11A	11		B11A		K8PB.B	640	400	200	240	B11A	12	750	0.6	50	60	480	MegaTree 02.02	10	MegaTree 02-str-25.1	100	0	Power Cut		0	MegaTree 02-str-25.2	100	10	Power End
K8PB.B	18	18A	B11A	11		B11A			640	400	200	240	B11A	12	750	0.6	50	60		MegaTree 02.02	10	MegaTree 02-str-26.1	100	0	Power Cut		0	MegaTree 02-str-26.2	100	10	Power End
K8PB.B	19	19A	B11A	11		B11A			640	400	200	240	B11A	12	750	0.6	50	60		MegaTree 02.02	10	MegaTree 02-str-27.1	100	0	Power Cut		0	MegaTree 02-str-27.2	100	10	Power End
K8PB.B	20	20A	B11A	11		B11A			640	440	200	200	B11A	12	750	0.6	50	60		MegaTree 02.02	10	MegaTree 02-str-28.1	100	0	Power Cut		0	MegaTree 02-str-28.2	100	10	Power End
K8PB.B	17	17B	B11B	11		B11B		B11A	640	400	200	240	B11A	12	750	0.6	50	60		MegaTree 02.02	10	MegaTree 02-str-29.1	100	0	Power Cut		0	MegaTree 02-str-29.2	100	10	Power End
K8PB.B	18	18B	B11B	11		B11B			640	400	200	240	B11A	12	750	0.6	50	60		MegaTree 02.02	10	MegaTree 02-str-30.1	100	0	Power Cut		0	MegaTree 02-str-30.2	100	10	Power End
K8PB.B	19	19B	B11B	11		B11B			640	400	200	240	B11A	12	750	0.6	50	60		MegaTree 02.02	10	MegaTree 02-str-31.1	100	0	Power Cut		0	MegaTree 02-str-31.2	100	10	Power End
K8PB.B	20	20B	B11B	11		B11B			640	440	200	200	B11A	12	750	0.6	50	60		MegaTree 02.02	10	MegaTree 02-str-32.1	100	0	Power Cut		0	MegaTree 02-str-32.2	100	10	Power End

Controllers

2 boxes available

Show details

24 data pigtails · 24 power pigtails

Controller Role

K8PB.B

Pigtails

24 Data
24 Power Injection

8 data pigtails · 8 power pigtails

Controller Role

K8PB.B

Pigtails

8 Data
8 Power Injection

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
