Controller A9C

Location: Fence 09

Gallery

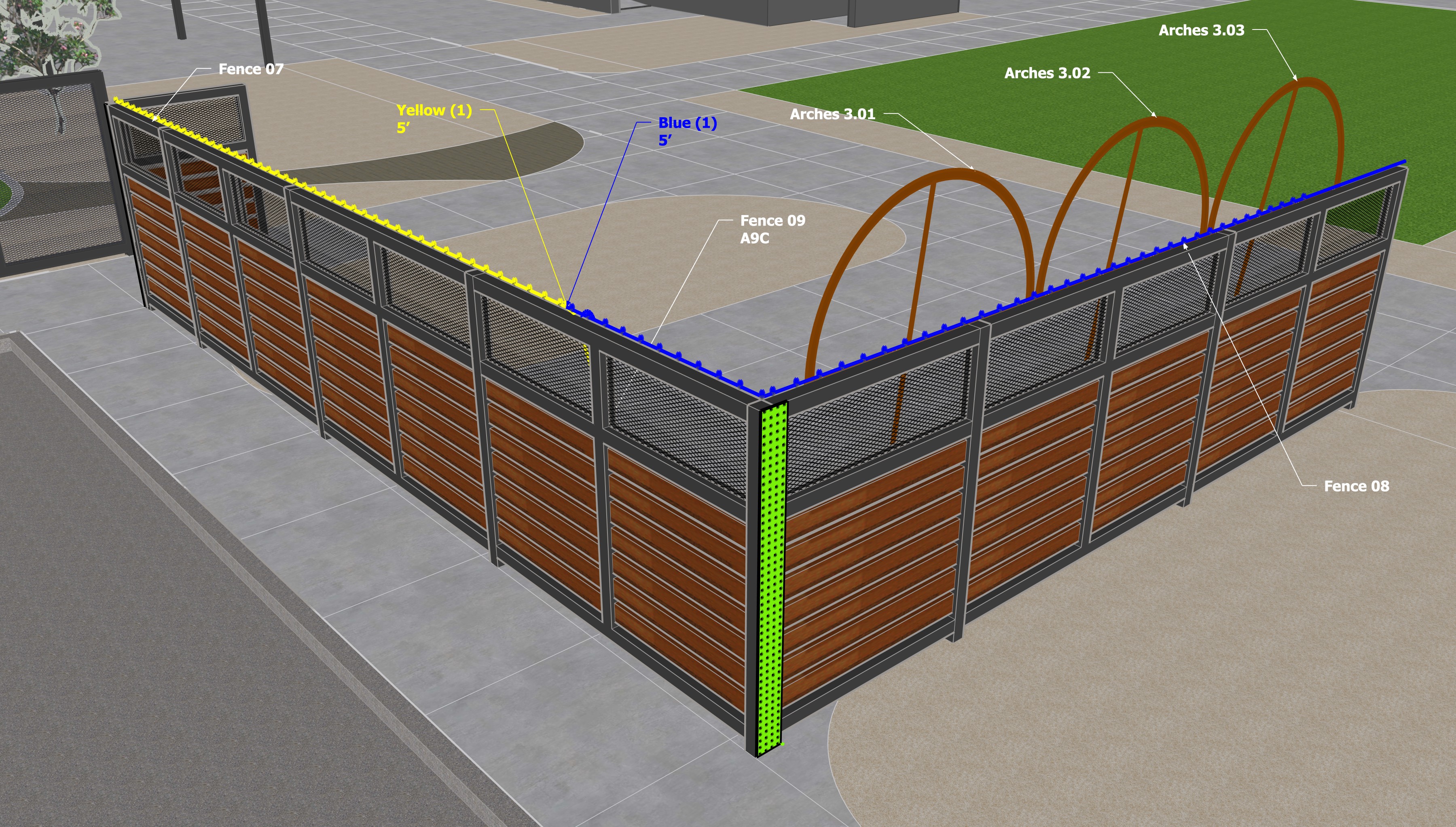

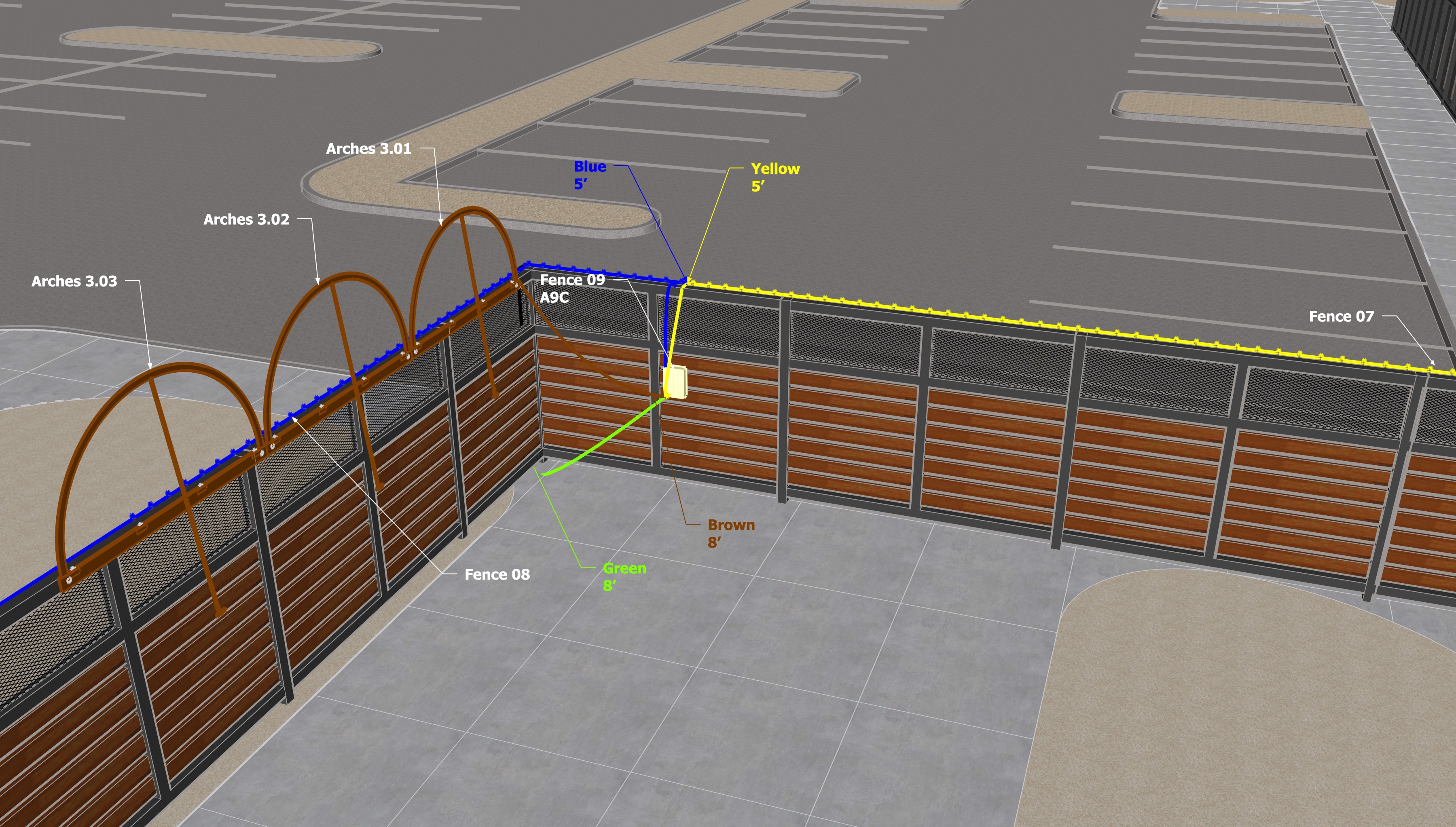

Setup Photos image 1 for controller A9C

Setup Photos image 2 for controller A9C

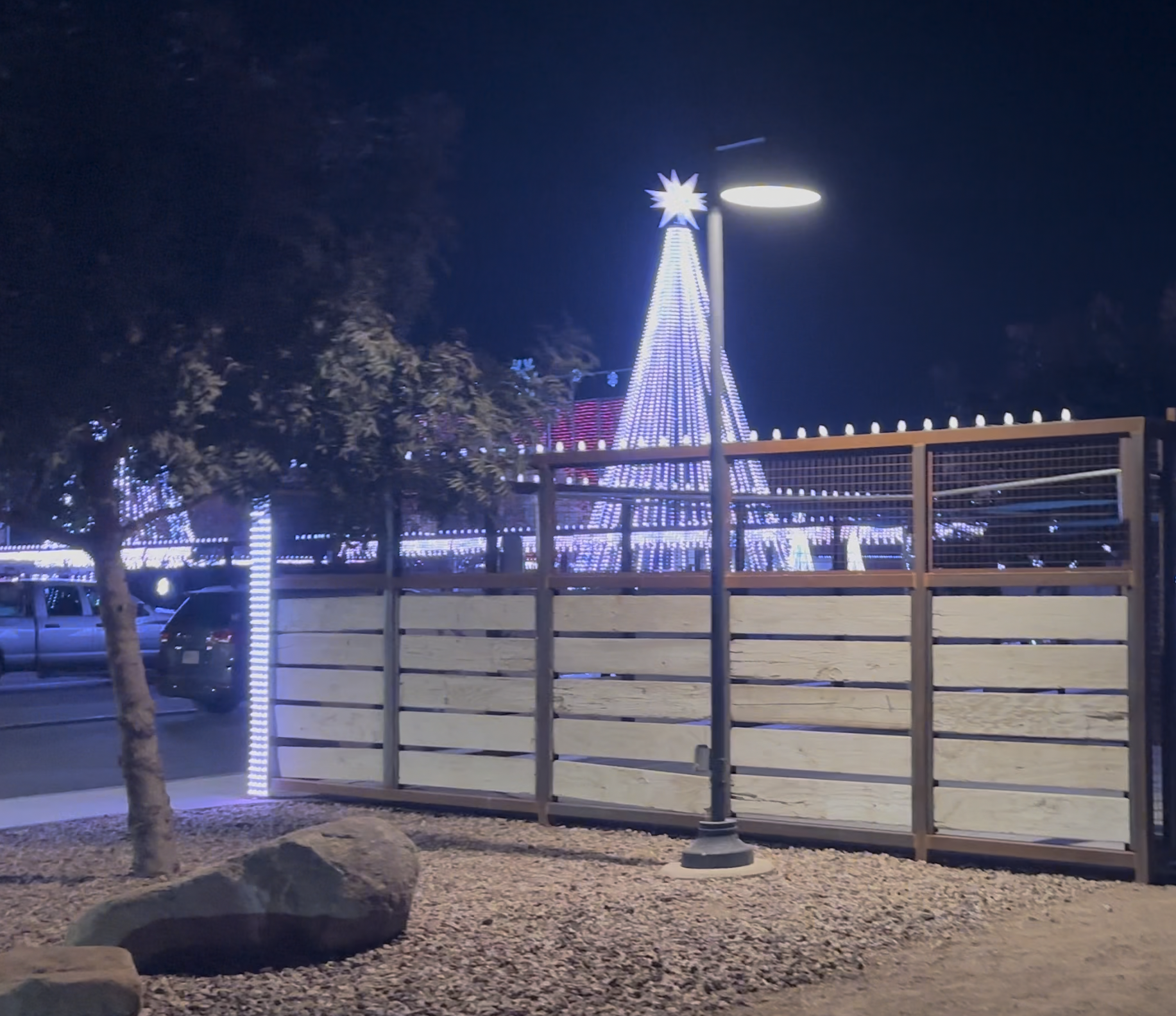

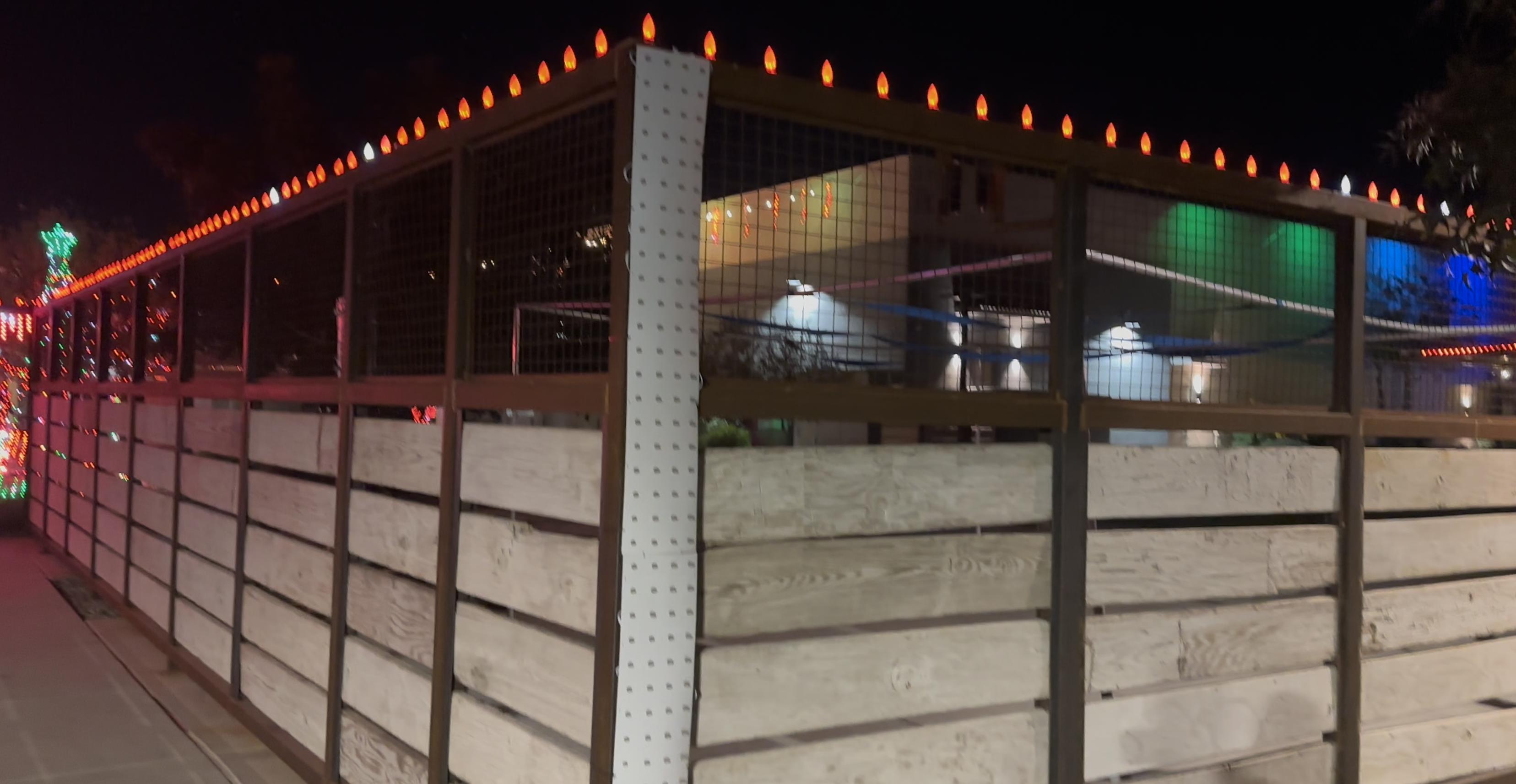

Reference Photos image 1 for controller A9C

Reference Photos image 2 for controller A9C

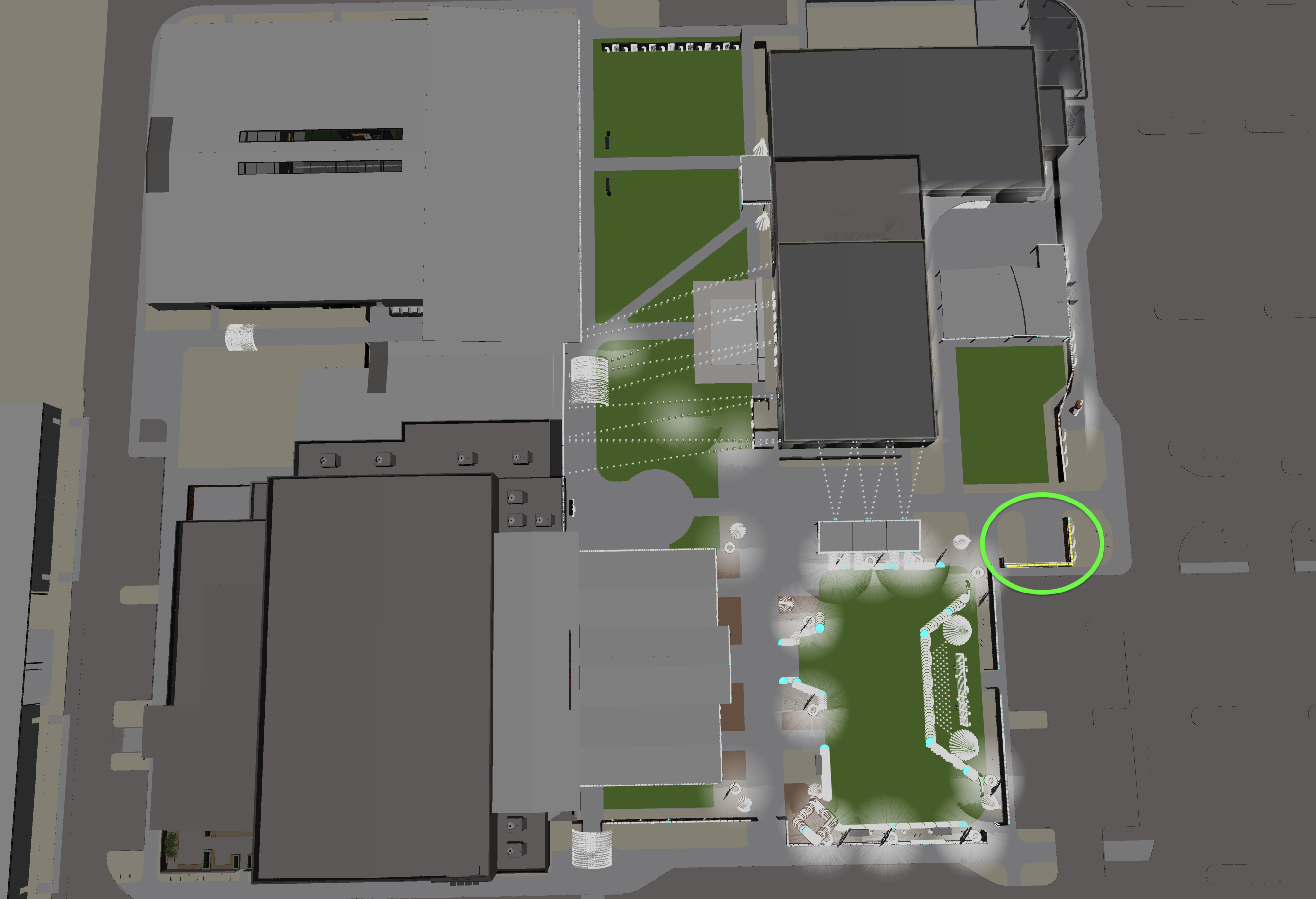

Site Map image 1 for controller A9C

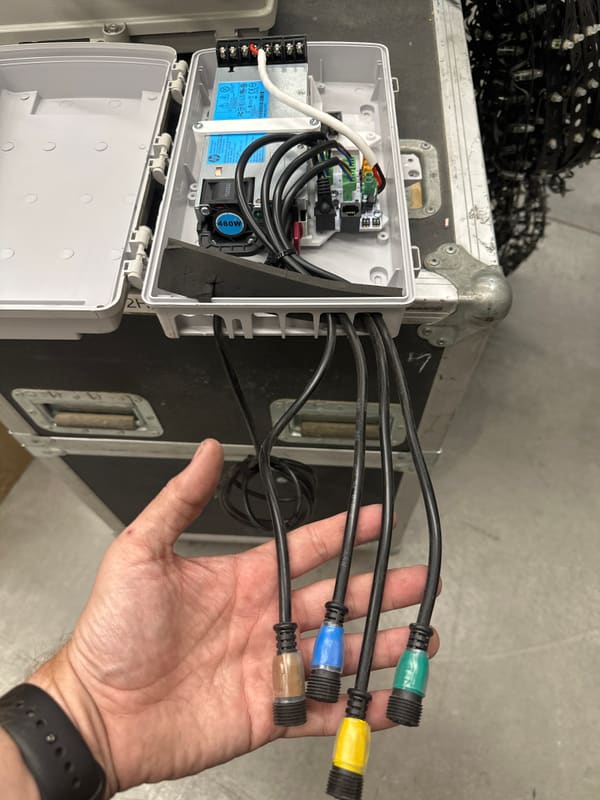

Controller Photos image 1 for controller A9C

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)	Cable Length (3)	Prop 3 Name	Px Count (3)
K8PB.A	9	9C	A9C	9		A9C		A9B	640	420	50	220	A9C	12	750	0.6	50	15	126.3	Fence 09	5	Fence 07	50
K8PB.A	10	10C	A9C	9		A9C			640	520	50	120	A9C	12	750	0.6	50	15		Fence 09	5	Fence 08	50
K8PB.A	11	11C	A9C	9		A9C			640	508	168	132	A9C	12	750	0.6	50	50.4		Fence 09	8	MiniMatrix 25.1	84	0	MiniMatrix 25.2	84
K8PB.A	12	12C	A9C	9		A9C			640	225	153	415	A9C	12	750	0.6	50	45.9		Fence 09	5	Arch 03.01	51	0	Arch 03.02	51	0	Arch 03.03	51

Controllers

1 box available

Show details

12 system · 4 data pigtails

Controller Role

K8PB.A

Contents

4× Data Pigtails

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
