Controller A9B

Location: Fence 03

Gallery

Setup Photos image 1 for controller A9B

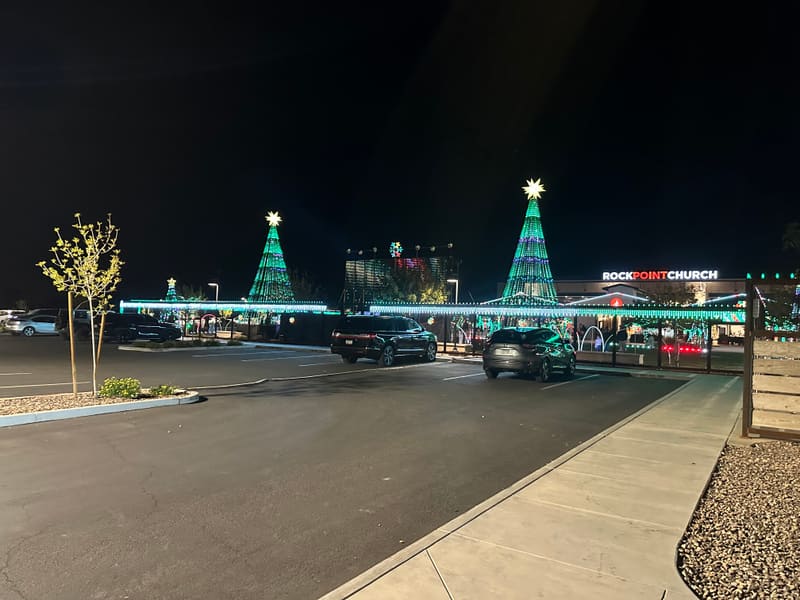

Reference Photos image 1 for controller A9B

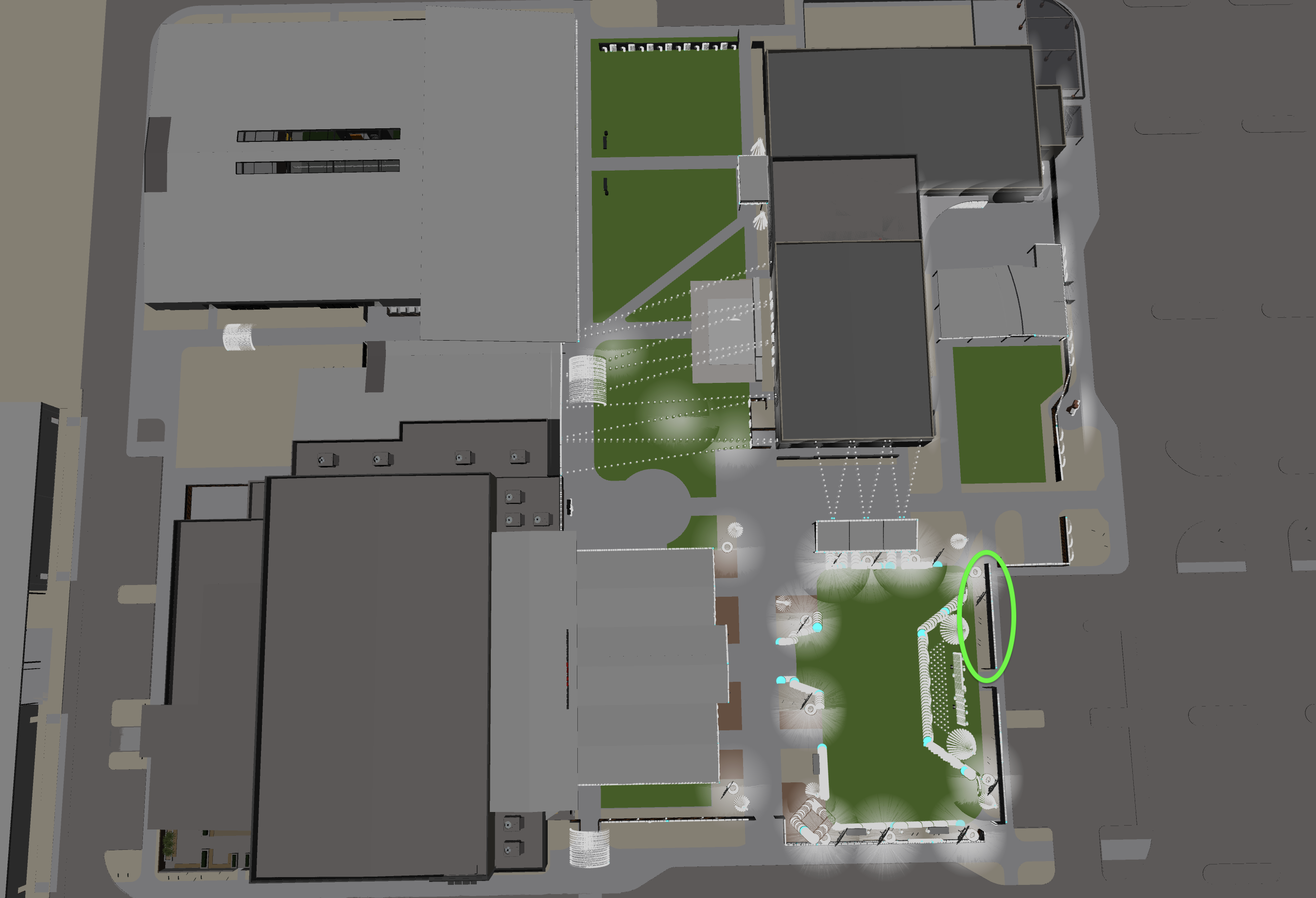

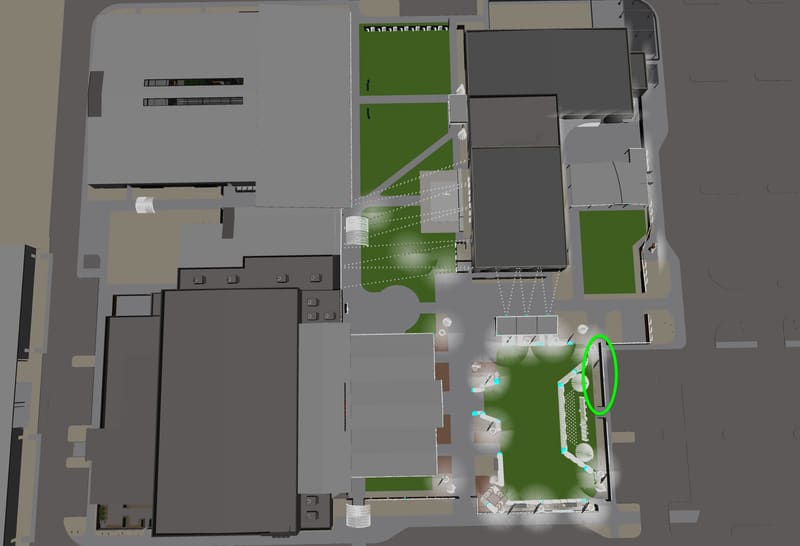

Site Map image 1 for controller A9B

Additional Photos image 1 for controller A9B

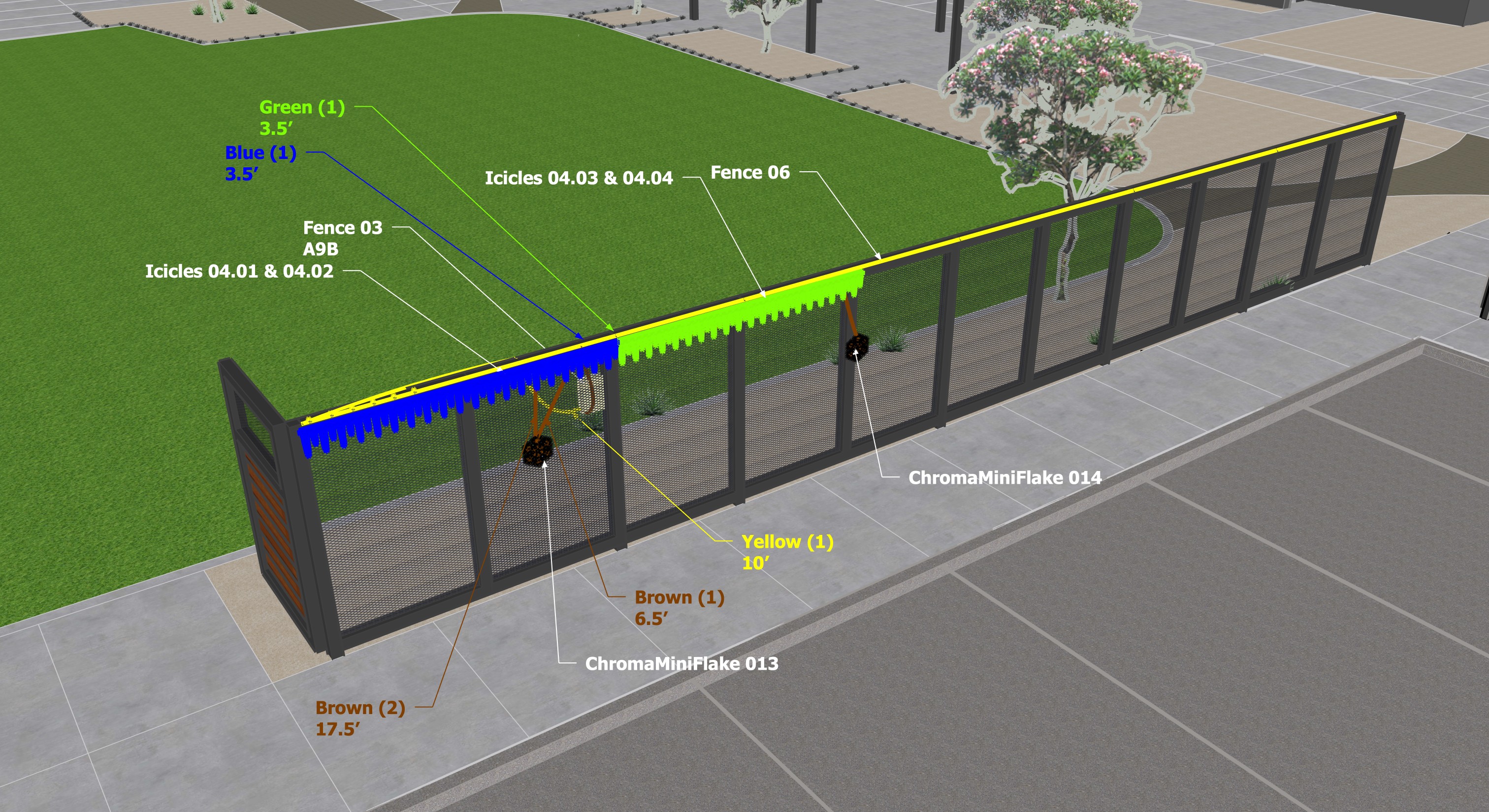

Fence 03

4 data pigtails

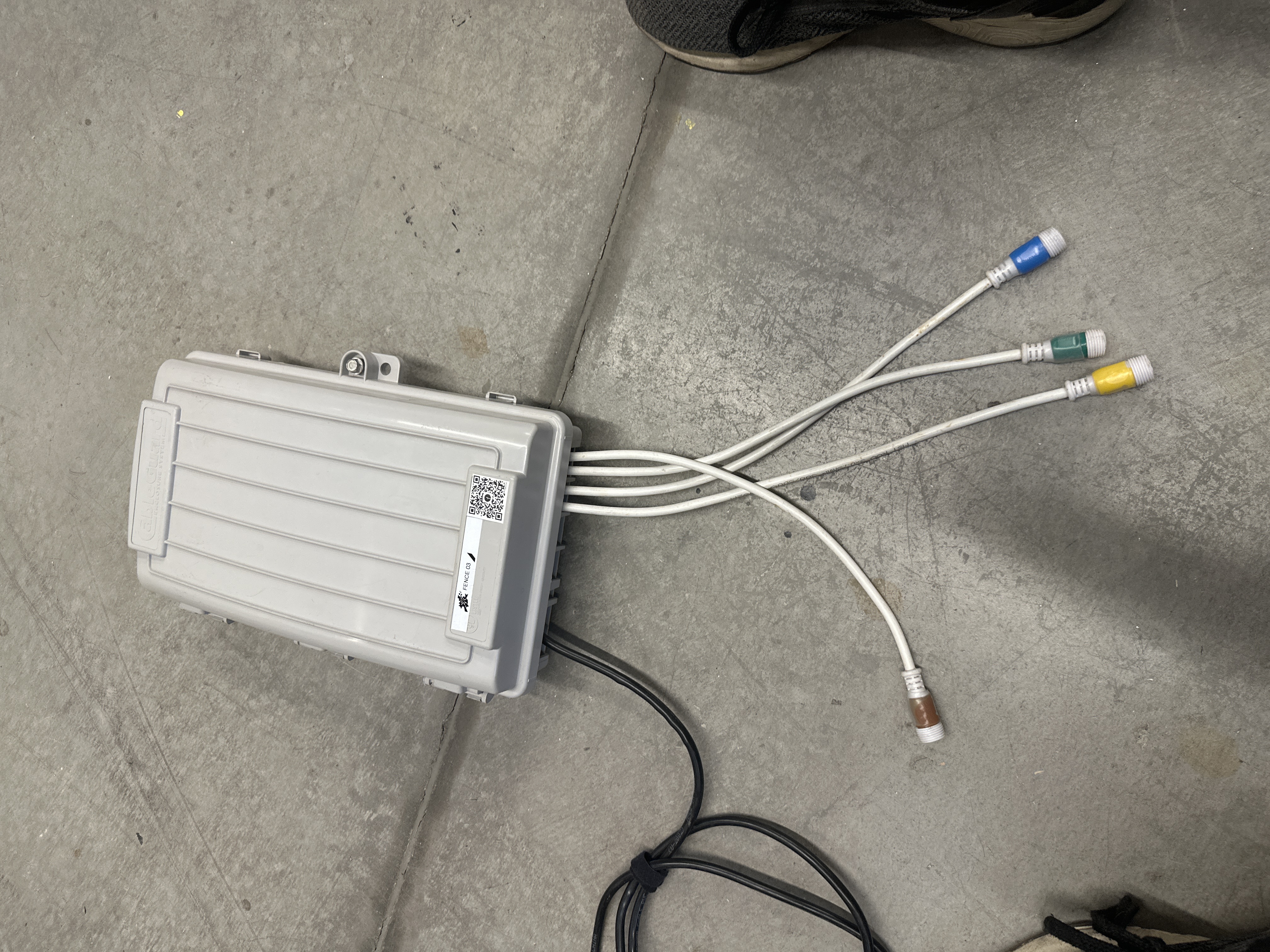

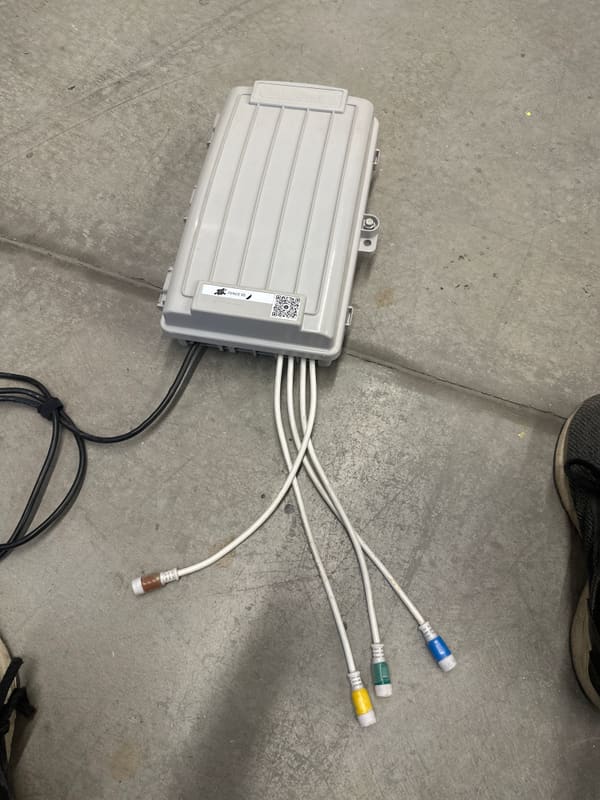

Controller Photos image 1 for controller A9B

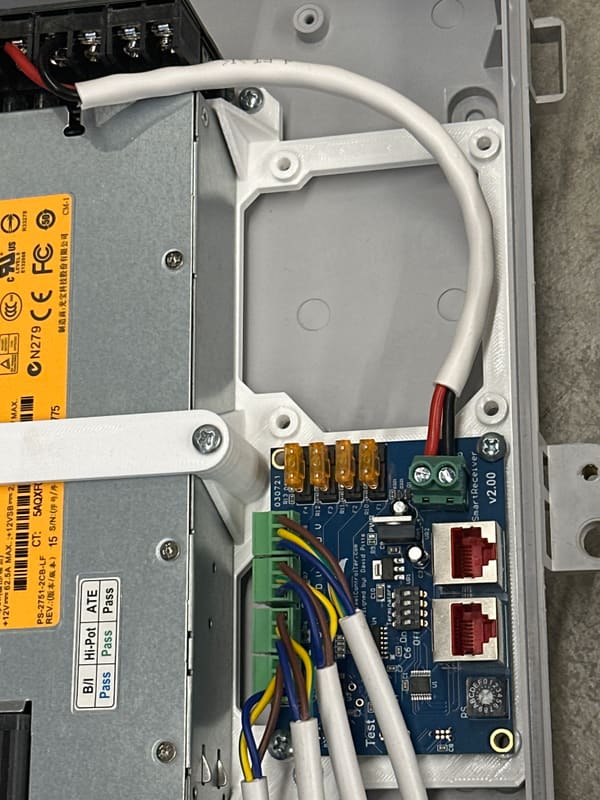

Controller Photos image 2 for controller A9B

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)
K8PB.A	9	9B	A9B	9		A9B		A9A	640	420	100	220	A9B	12	750	0.6	50	30	171.6	Fence 03	10	Fence 06	100
K8PB.A	10	10B	A9B	9		A9B			640	520	200	120	A9B	12	750	0.6	50	60		Fence 03	3.5	Icicles 04.02 (Right)	100	0	Icicles 04.01 (Right)	100
K8PB.A	11	11B	A9B	9		A9B			640	508	200	132	A9B	12	750	0.6	50	60		Fence 03	3.5	Icicles 04.03 (Left)	100	0	Icicles 04.04 (Left)	100
K8PB.A	12	12B	A9B	9		A9B			640	225	72	415	A9B	12	750	0.6	50	21.6		Fence 03	6.5	ChromaMiniFlake 013	36	17.5	ChromaMiniFlake 014	36

Controllers

1 box available

Show details

4 data pigtails

Controller Role

K8PB.A

Pigtails

4 Data

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
