Controller A9A

Location: Arches 05

Gallery

Setup Photos image 1 for controller A9A

Site Map image 1 for controller A9A

Arches 05

4 data pigtails

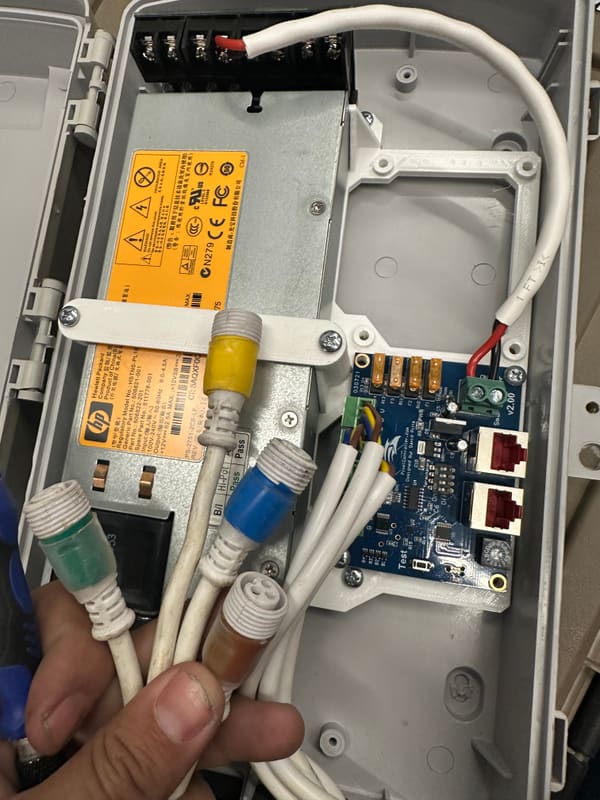

Controller Photos image 1 for controller A9A

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)	Cable Length (3)	Prop 3 Name	Px Count (3)	Cable Length (4)	Prop 4 Name	Px Count (4)
K8PB.A	9	9A	A9A	9		A9A		K8PB.A	640	420	270	220	A9A	12	750	10	75	2025	4092	Arches 05	11.5	Arches-Front 03.3	135	0	Arches-Front 03.3.2	90	0	Power Balanced			Arches-Front 03.3.3	45
K8PB.A	10	10A	A9A	9		A9A			640	520	270	120	A9A	12	750	10	75	2025		Arches 05	19.5	Arches-Front 03.4	135		Arches-Front 03.4.2	90	0	Power Balanced			Arches-Front 03.4.3	45
K8PB.A	11	11A	A9A	9		A9A			640	508	140	132	A9A	12	750	0.6	50	42		Arches 05	25	Star 02	140
K8PB.A	12	12A	A9A	9		A9A			640	225	0	415	A9A	12	750	0.6	50	0		Arches 05

Controllers

1 box available

Show details

4 data pigtails

Controller Role

K8PB.A

Pigtails

4 Data

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
