Controller A11A~A11B

Location: Arches 01

Gallery

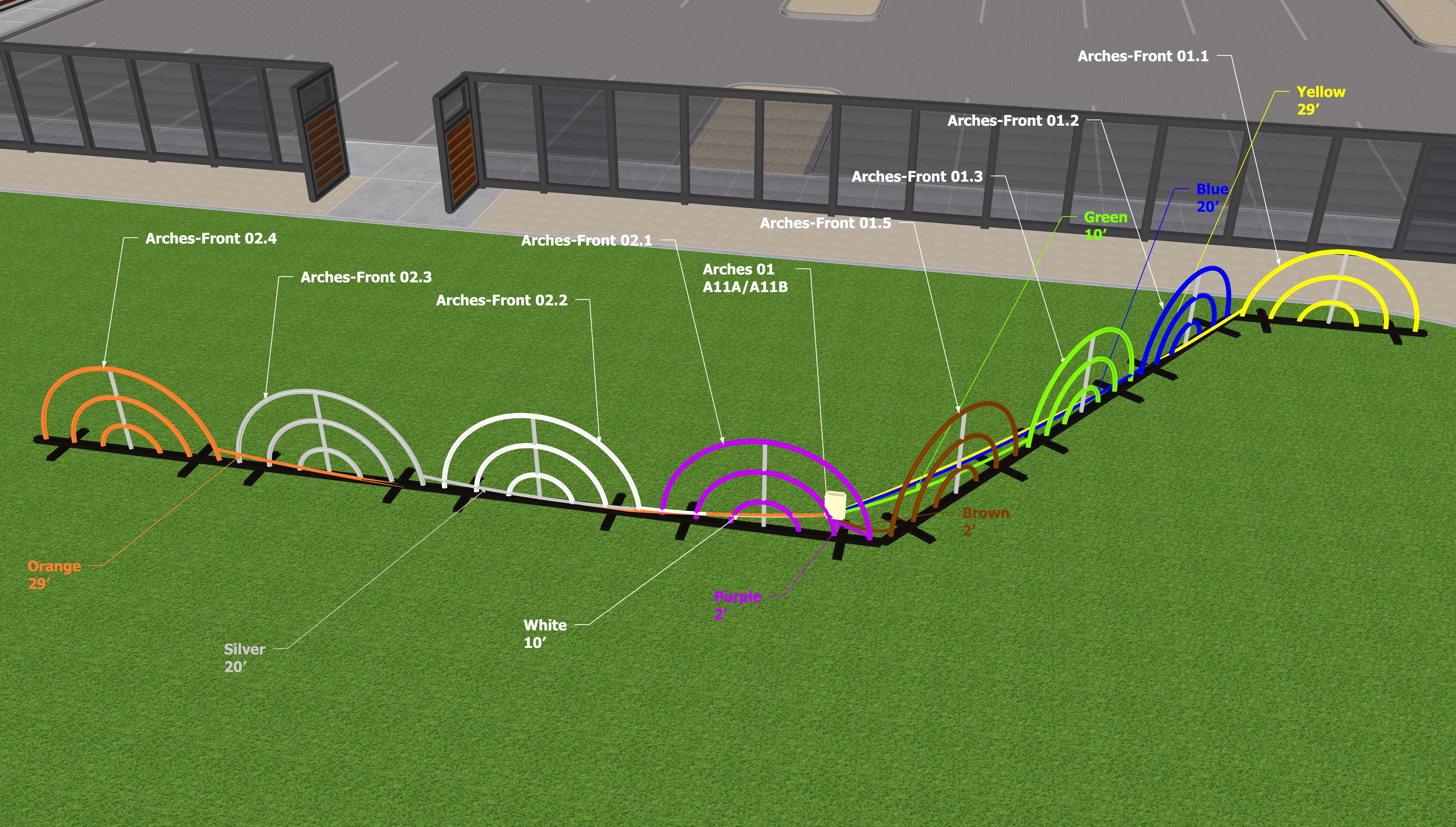

Setup Photos image 1 for controller A11A~A11B

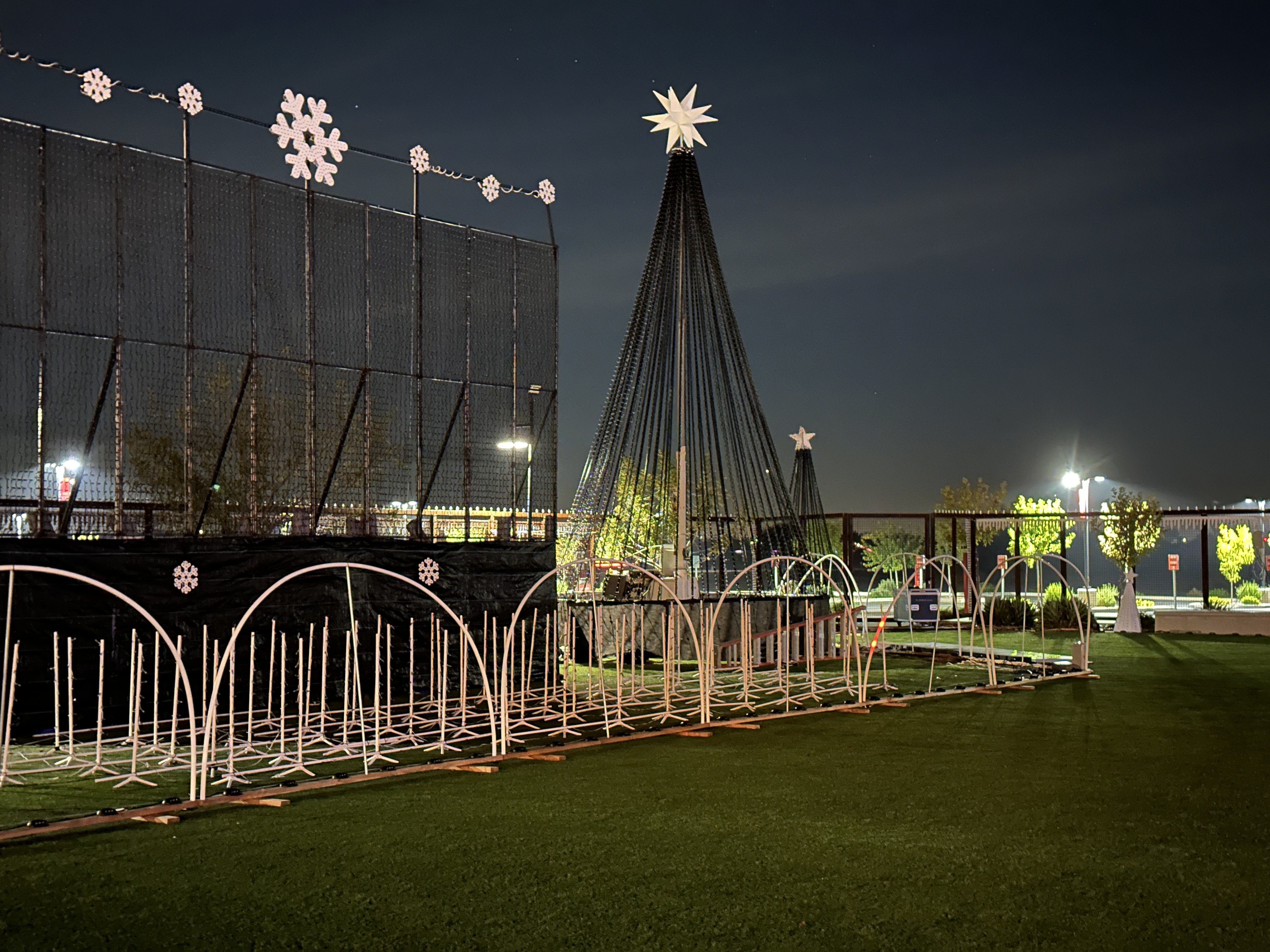

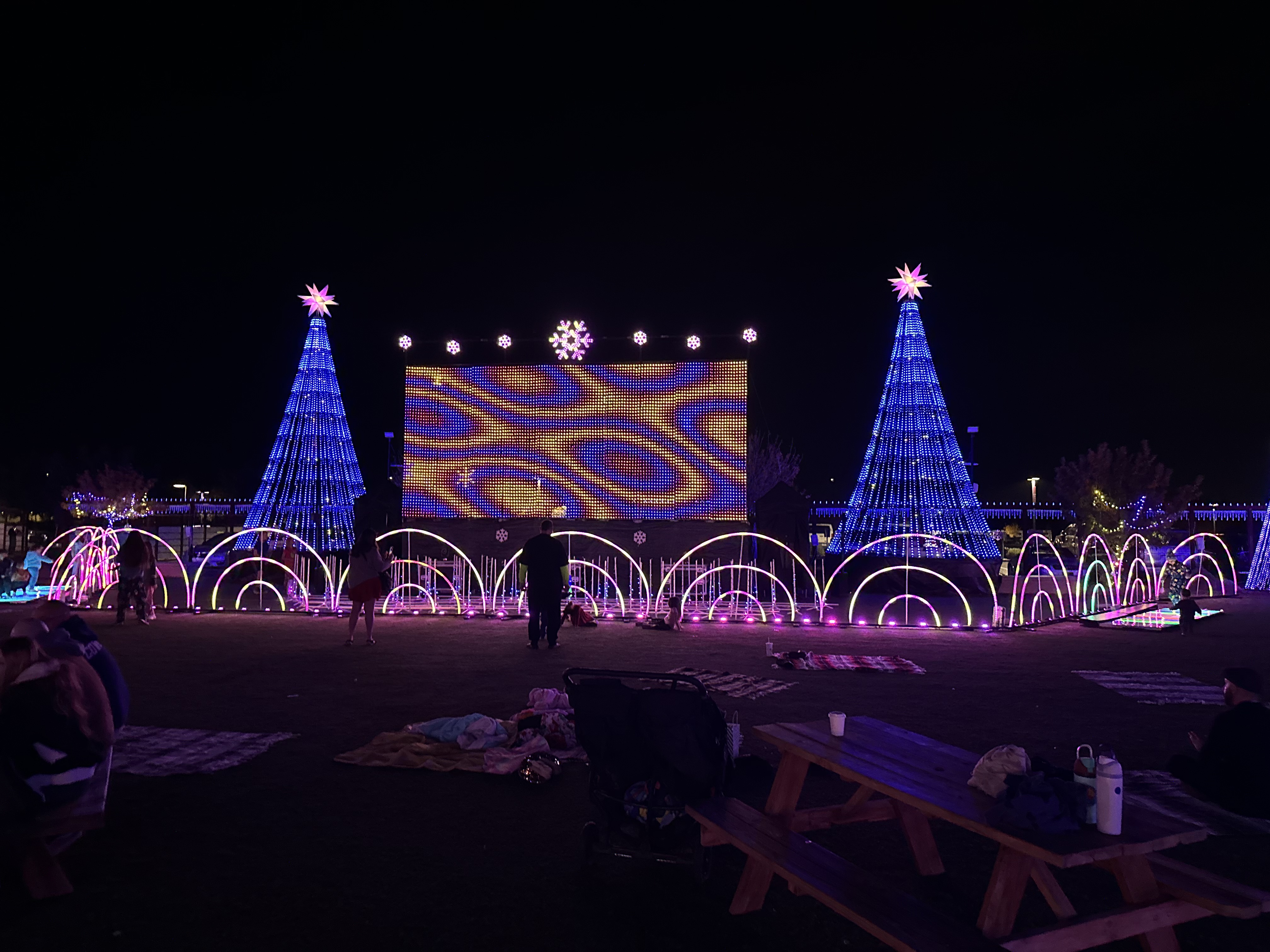

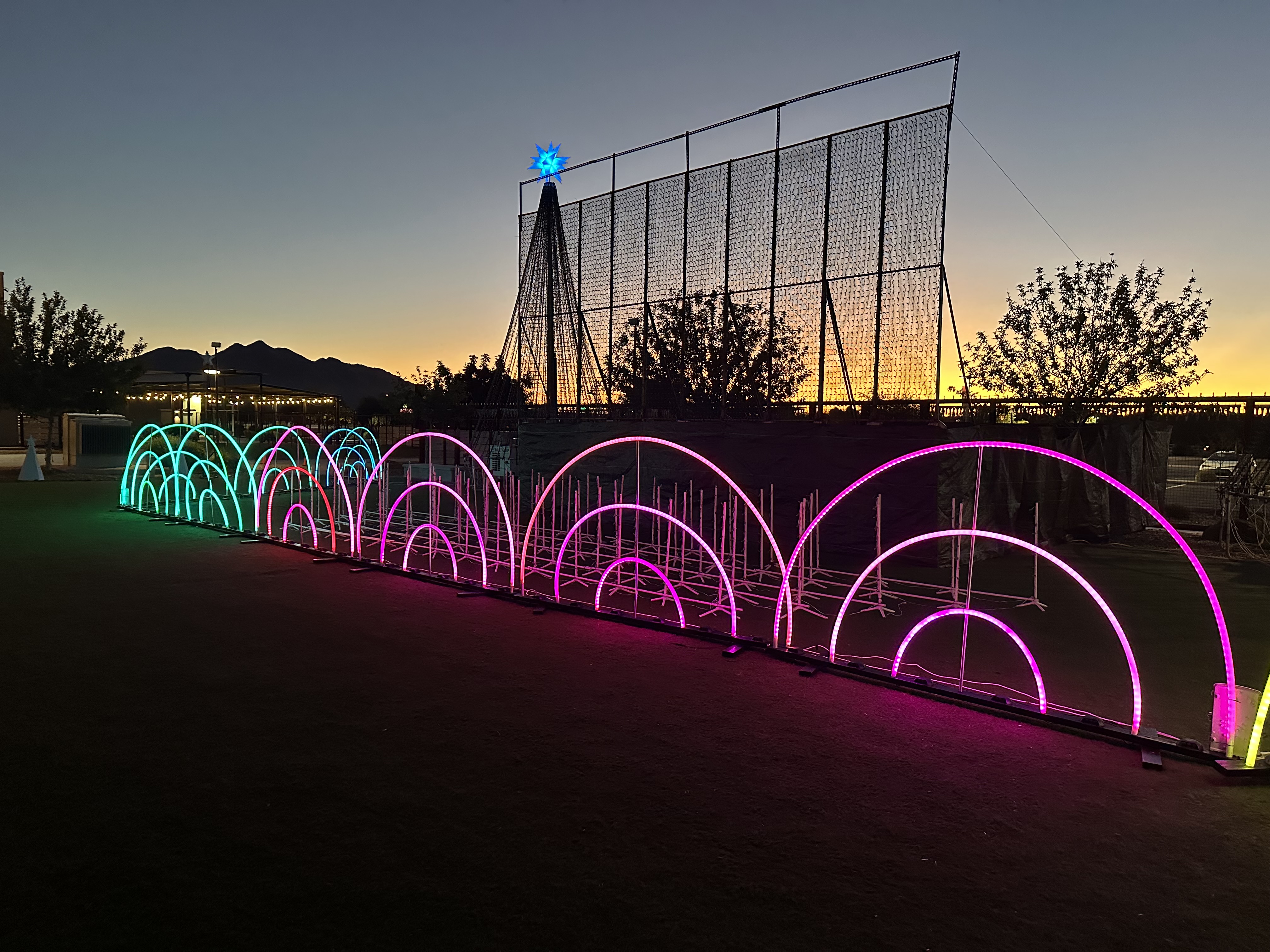

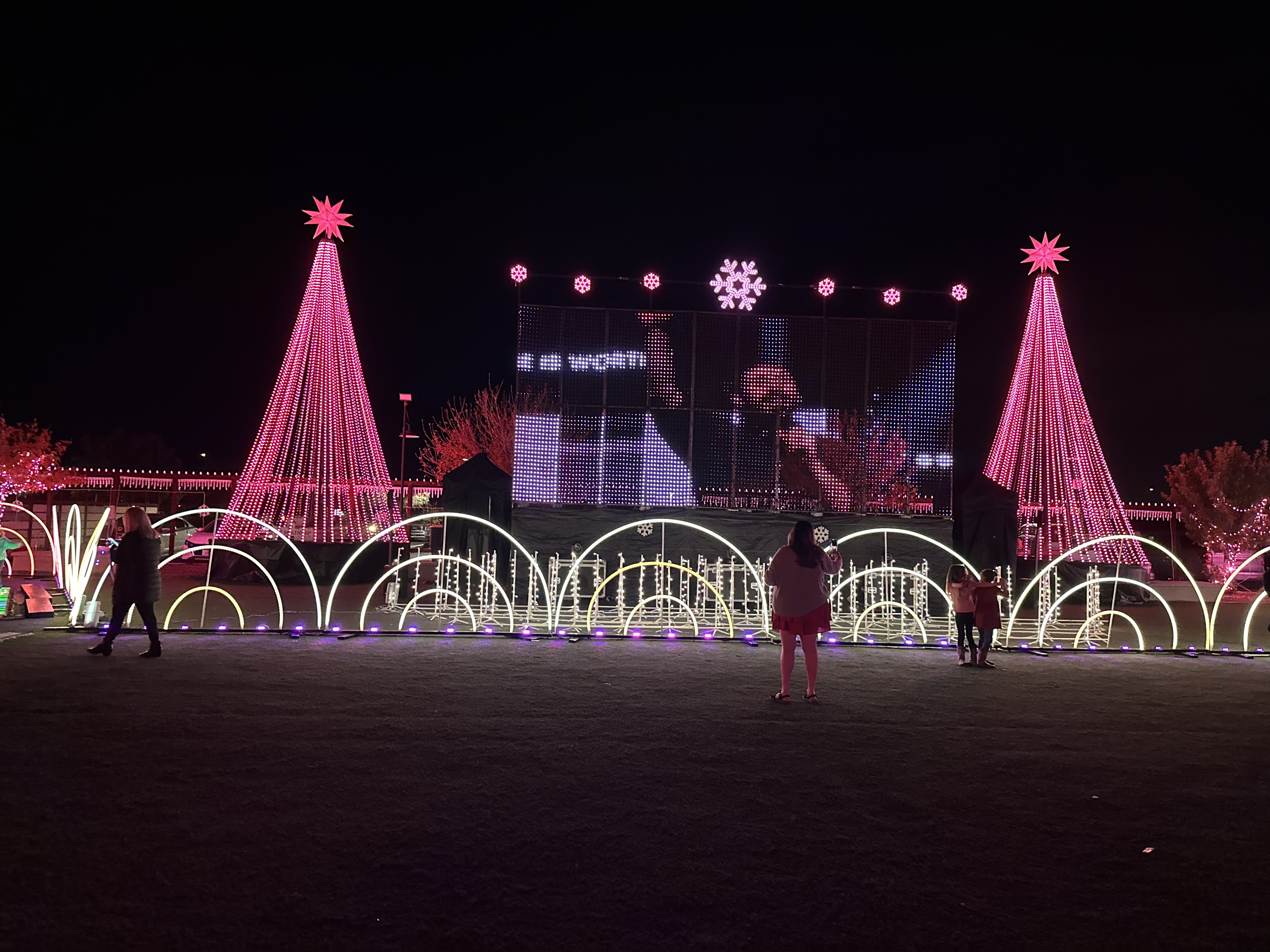

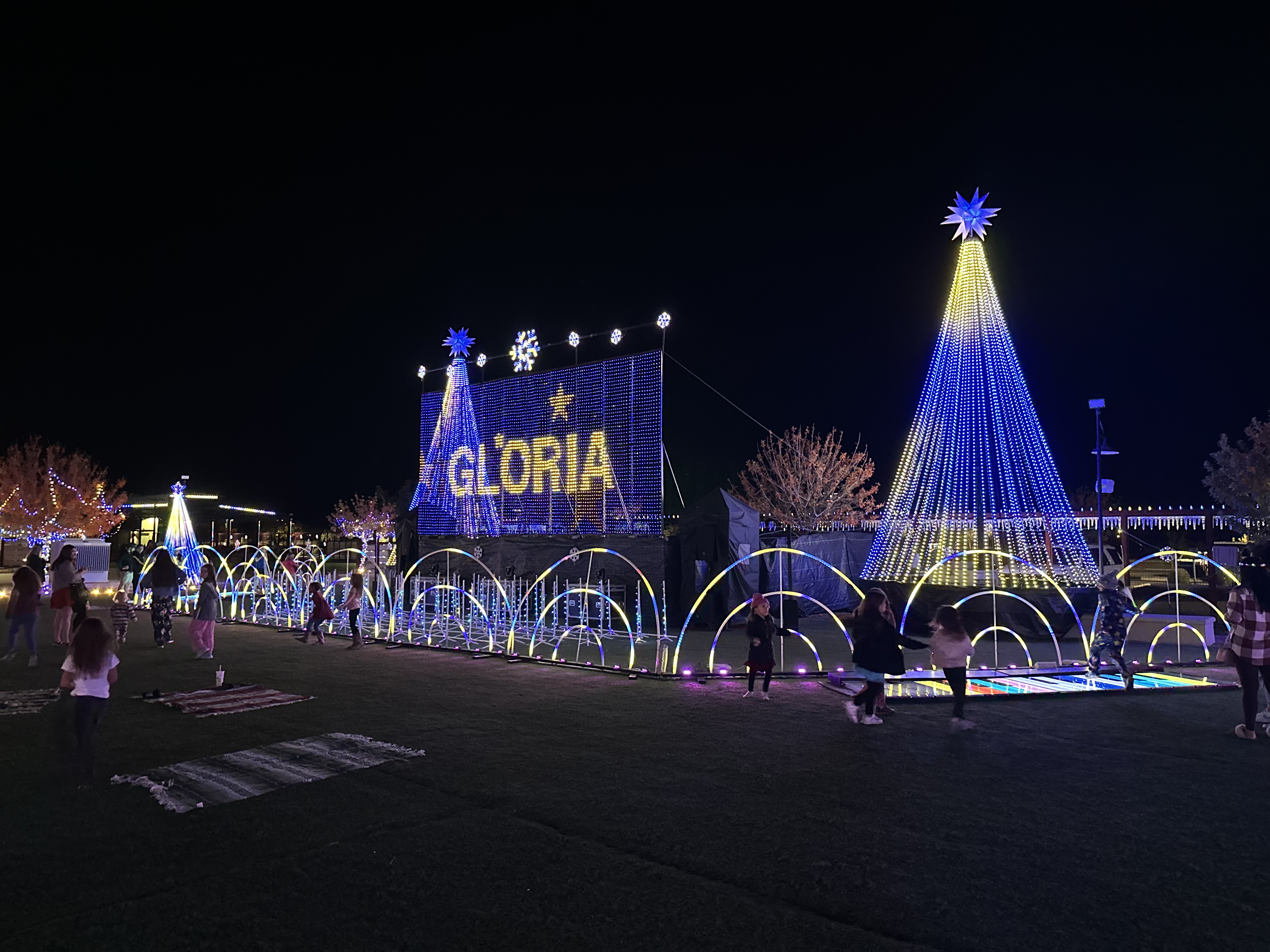

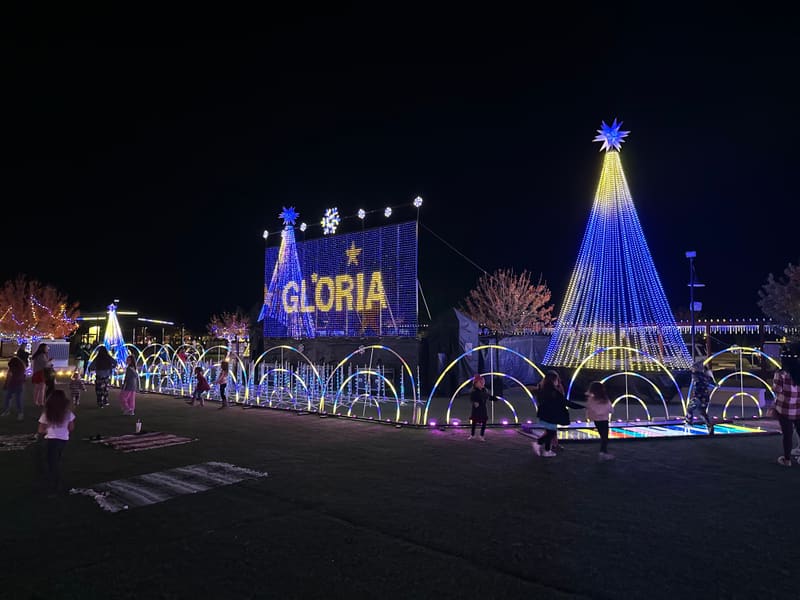

Reference Photos image 1 for controller A11A~A11B

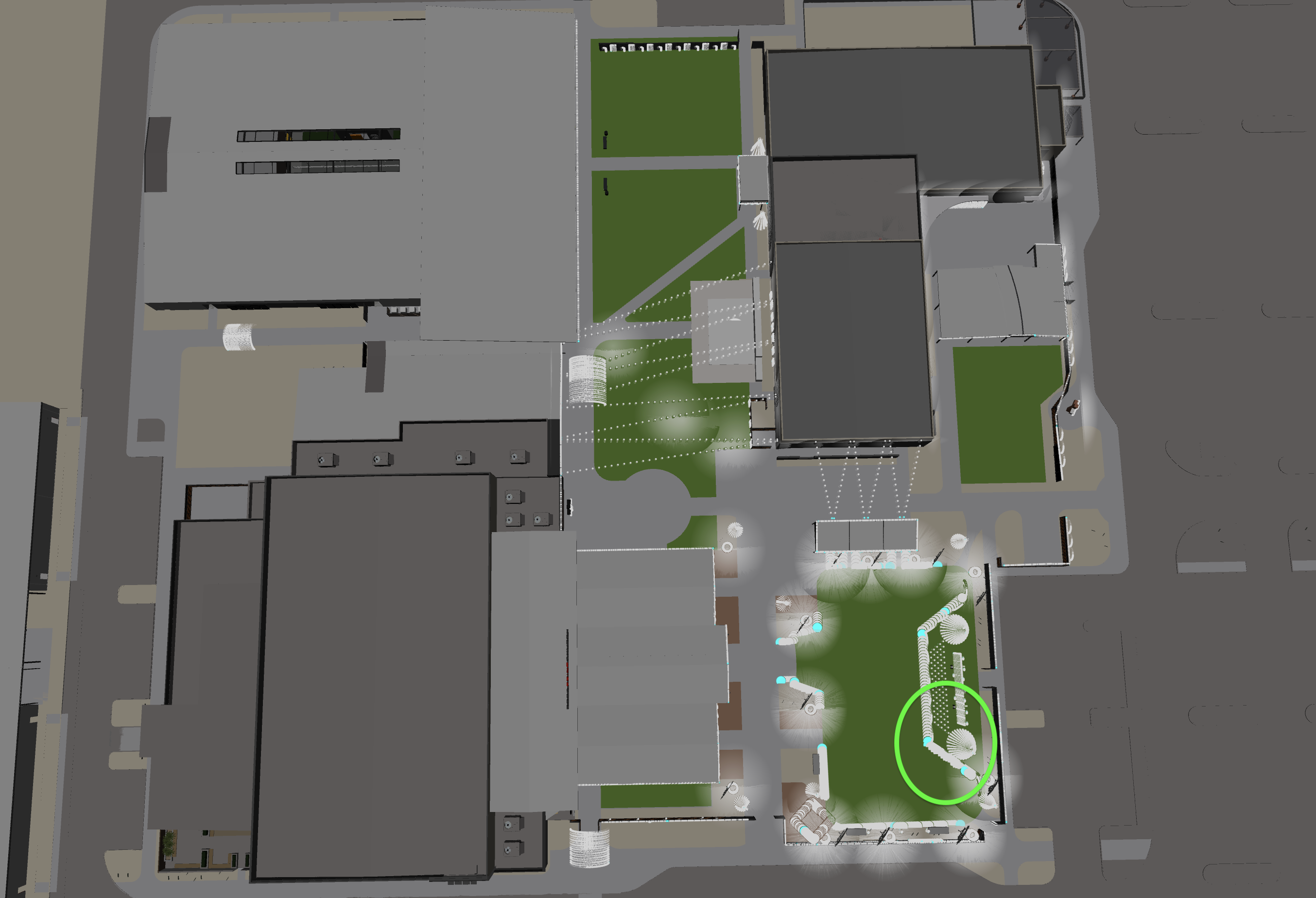

Site Map image 1 for controller A11A~A11B

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)	Cable Length (3)	Prop 3 Name	Px Count (3)	Cable Length (4)	Prop 4 Name	Px Count (4)
K8PB.A	17	17A	A11A	11		A11A		K8PB.A	640	540	270	100	A11A	12	750	0.6	75	121.5	972	Arches 01	29	Arches-Front 01.1	135		Arches-Front 01.1.2	90		Power Balanced			Arches-Front 01.1.3	45
K8PB.A	18	18A	A11A	11		A11A			640	540	270	100	A11A	12	750	0.6	75	121.5		Arches 01	20	Arches-Front 01.2	135		Arches-Front 01.2.2	90		Power Balanced			Arches-Front 01.2.3	45
K8PB.A	19	19A	A11A	11		A11A			640	540	270	100	A11A	12	750	0.6	75	121.5		Arches 01	10	Arches-Front 01.3	135		Arches-Front 01.3.2	90		Power Balanced			Arches-Front 01.3.3	45
K8PB.A	20	20A	A11A	11		A11A			640	540	270	100	A11A	12	750	0.6	75	121.5		Arches 01	2	Arches-Front 01.4	135		Arches-Front 01.4.2	90		Power Balanced			Arches-Front 01.4.3	45
K8PB.A	17	17B	A11B	11		A11B		A11A	640	540	270	100	A11A	12	750	0.6	75	121.5		Arches 01	2	Arches-Front 02.1	135		Arches-Front 02.1.2	90		Power Balanced			Arches-Front 02.1.3	45
K8PB.A	18	18B	A11B	11		A11B			640	540	270	100	A11A	12	750	0.6	75	121.5		Arches 01	10	Arches-Front 02.2	135		Arches-Front 02.2.2	90		Power Balanced			Arches-Front 02.2.3	45
K8PB.A	19	19B	A11B	11		A11B			640	540	270	100	A11A	12	750	0.6	75	121.5		Arches 01	20	Arches-Front 02.3	135		Arches-Front 02.3.2	90		Power Balanced			Arches-Front 02.3.3	45
K8PB.A	20	20B	A11B	11		A11B			640	540	270	100	A11A	12	750	0.6	75	121.5		Arches 01	29	Arches-Front 02.4	135		Arches-Front 02.4.2	90		Power Balanced			Arches-Front 02.4.3	45

Controllers

1 box available

Show details

8 data pigtails

Controller Role

K8PB.A

Pigtails

8 Data

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
