Controller A10B

Location: Arches 04

Gallery

Setup Photos image 1 for controller A10B

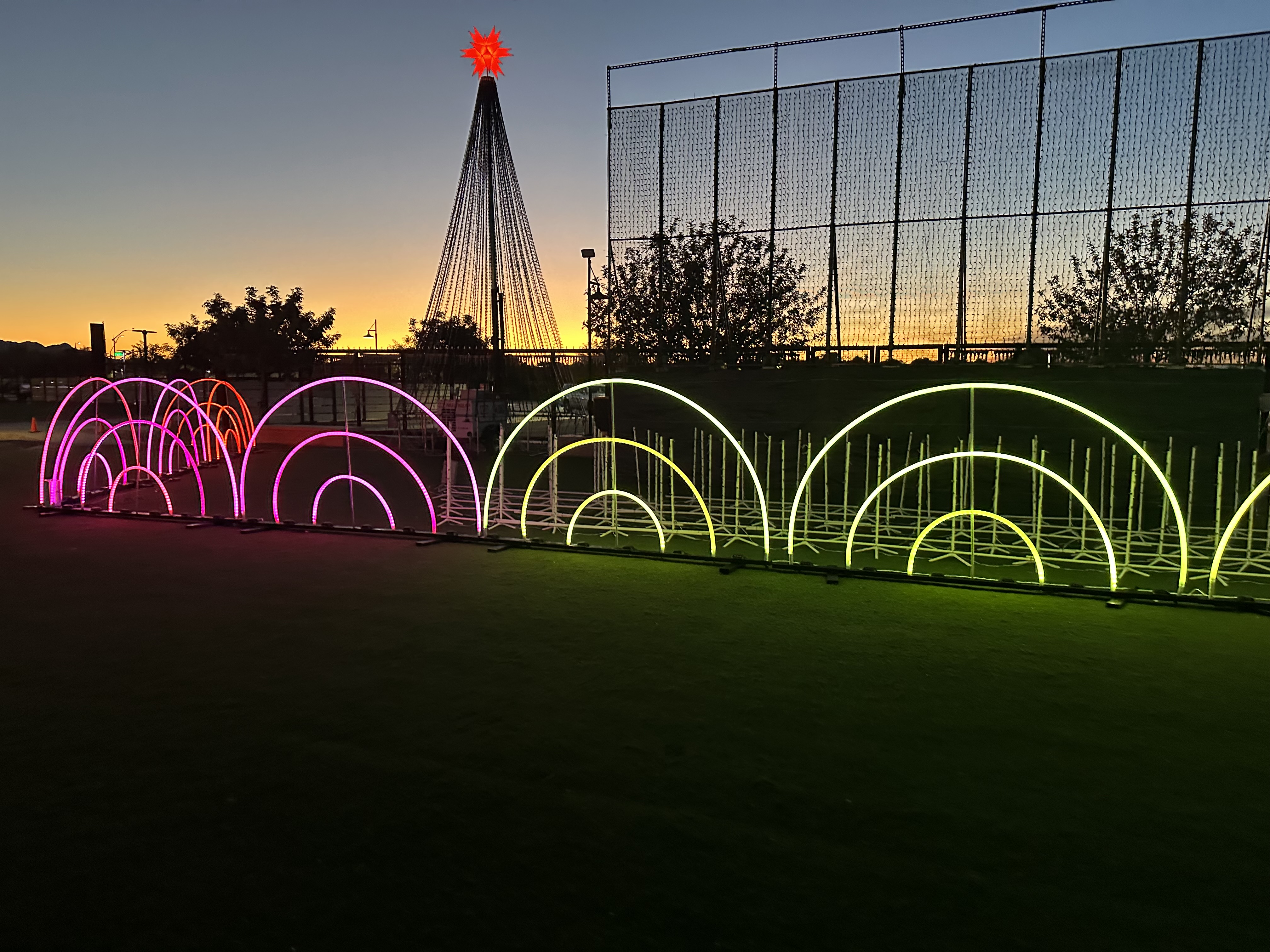

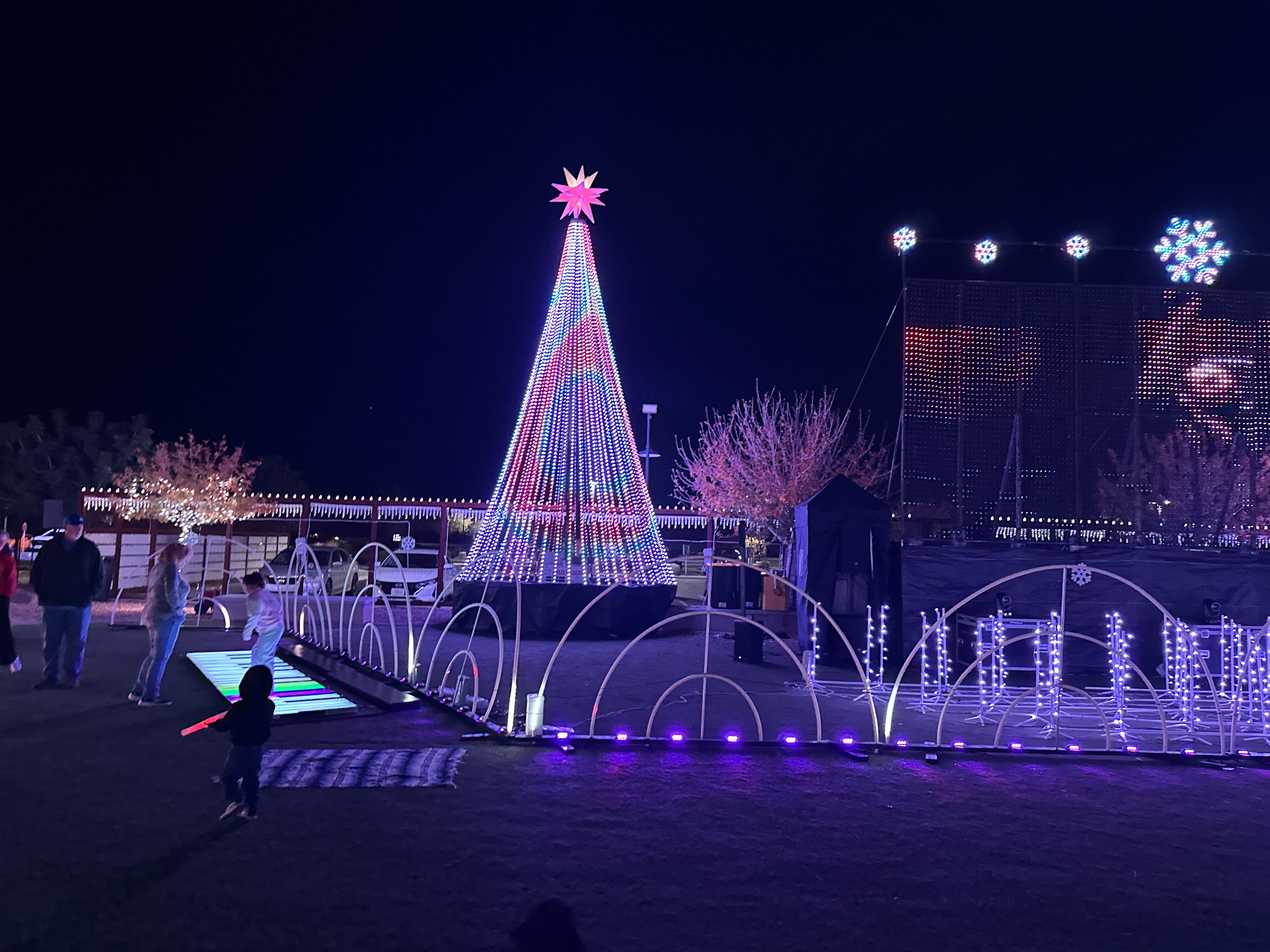

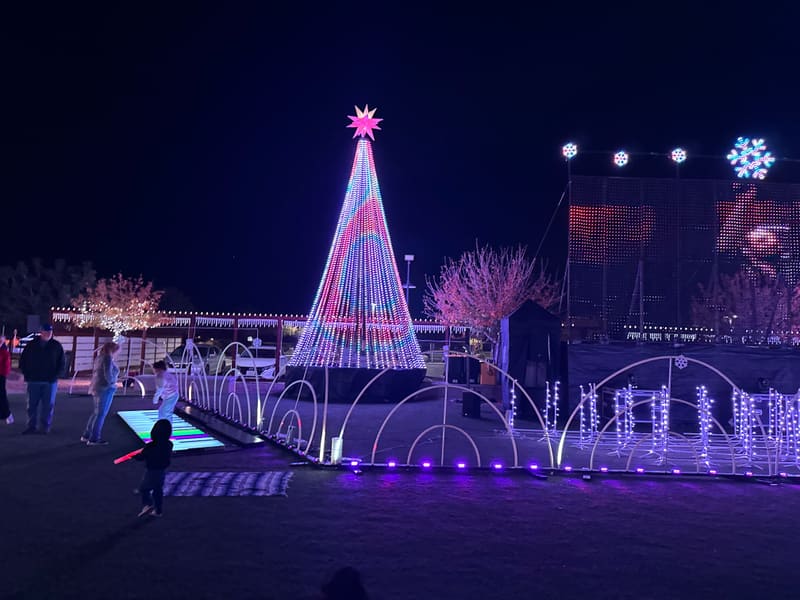

Reference Photos image 1 for controller A10B

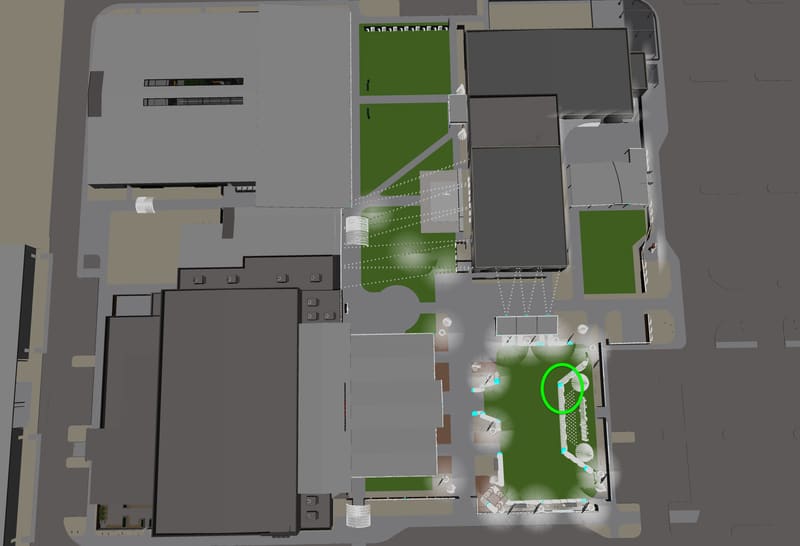

Site Map image 1 for controller A10B

Arches 04

8 data pigtails

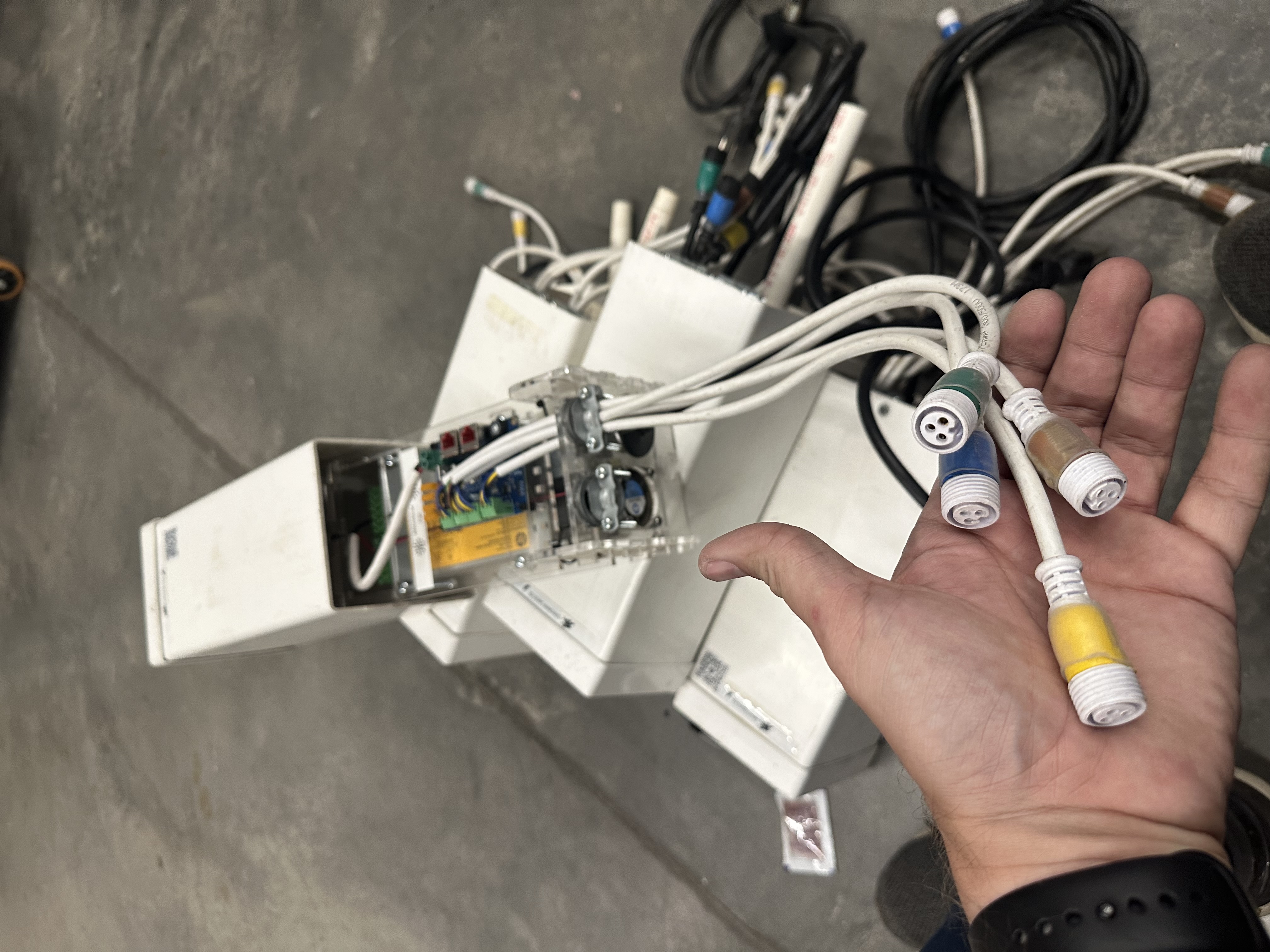

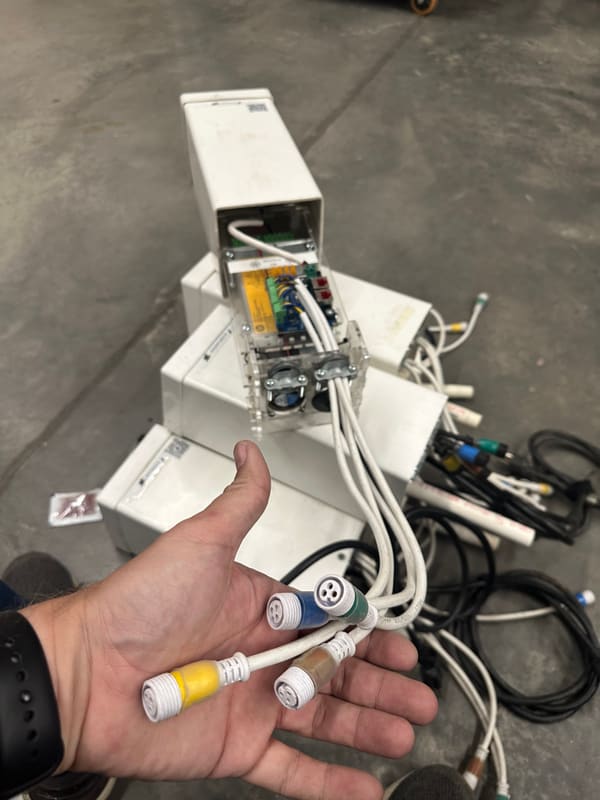

Controller Photos image 1 for controller A10B

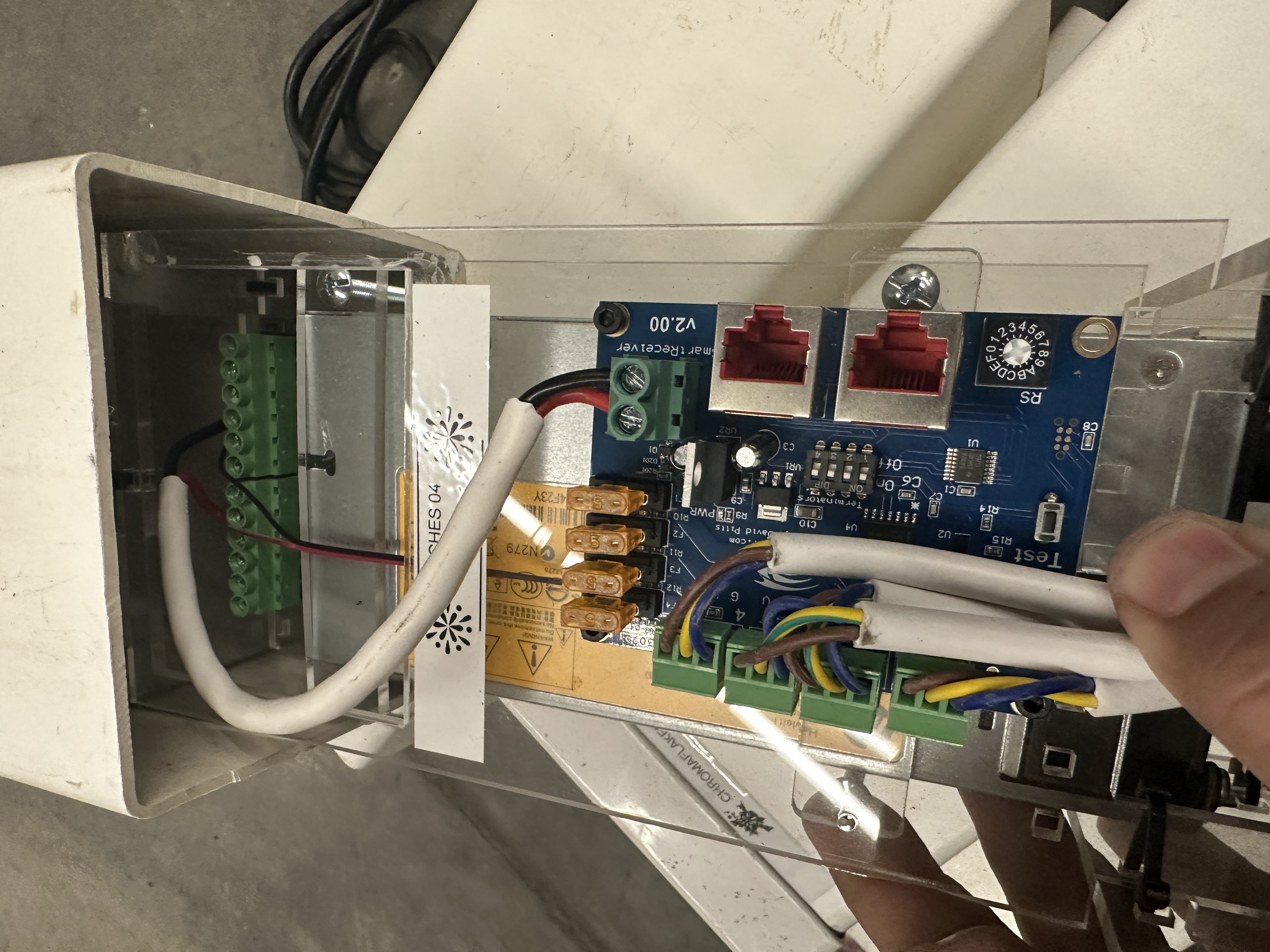

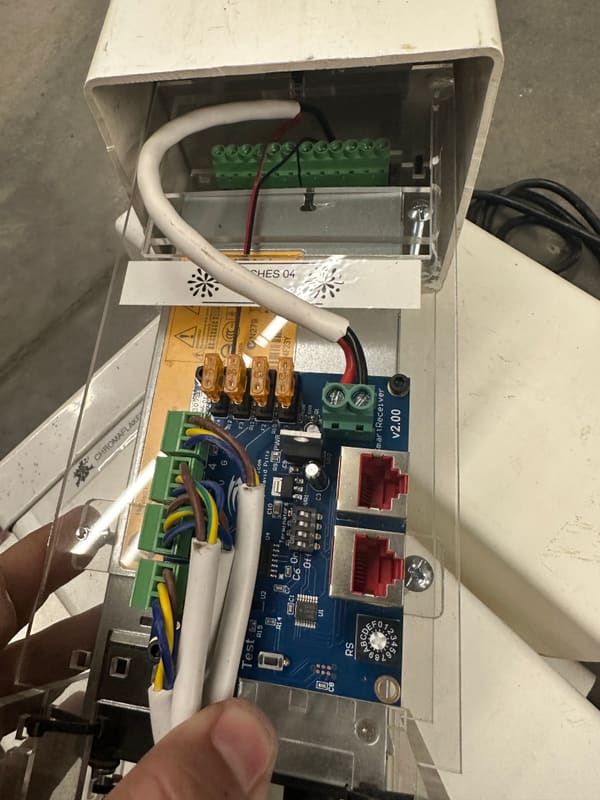

Controller Photos image 2 for controller A10B

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)	Cable Length (3)	Prop 3 Name	Px Count (3)	Cable Length (4)	Prop 4 Name	Px Count (4)
K8PB.A	13	13B	A10B	10		A10B		A10A	640	470	270	170	A10B	12	750	0.6	75	121.5	486	Arches 04	10	Arches-Front 02.5	135	0	Arches-Front 02.5	90		Power Balanced			Arches-Front 02.5	45
K8PB.A	14	14B	A10B	10		A10B			640	470	270	170	A10B	12	750	0.6	75	121.5		Arches 04	2	Arches-Front 02.6	135	0	Arches-Front 02.6	90		Power Balanced			Arches-Front 02.6	45
K8PB.A	15	15B	A10B	10		A10B			640	470	270	170	A10B	12	750	0.6	75	121.5		Arches 04	2	Arches-Front 03.1	135	0	Arches-Front 03.1	90		Power Balanced			Arches-Front 03.1	45
K8PB.A	16	16B	A10B	10		A10B			640	470	270	170	A10B	12	750	0.6	75	121.5		Arches 04	10	Arches-Front 03.2	135	0	Arches-Front 03.2	90		Power Balanced			Arches-Front 03.2	45
K8PB.A	13	13B	A10B	10		A10B		A10A	640	470	270	170	A10B	12	750	0.6	75	121.5	486	Arches 04	10	Arches-Front 02.5	135	0	Arches-Front 02.5	90		Power Balanced			Arches-Front 02.5	45
K8PB.A	14	14B	A10B	10		A10B			640	470	270	170	A10B	12	750	0.6	75	121.5		Arches 04	2	Arches-Front 02.6	135	0	Arches-Front 02.6	90		Power Balanced			Arches-Front 02.6	45
K8PB.A	15	15B	A10B	10		A10B			640	470	270	170	A10B	12	750	0.6	75	121.5		Arches 04	2	Arches-Front 03.1	135	0	Arches-Front 03.1	90		Power Balanced			Arches-Front 03.1	45
K8PB.A	16	16B	A10B	10		A10B			640	470	270	170	A10B	12	750	0.6	75	121.5		Arches 04	10	Arches-Front 03.2	135	0	Arches-Front 03.2	90		Power Balanced			Arches-Front 03.2	45

Controllers

1 box available

Show details

8 data pigtails

Controller Role

K8PB.A

Pigtails

8 Data

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
