Controller A10A

Location: Stakes 01

Gallery

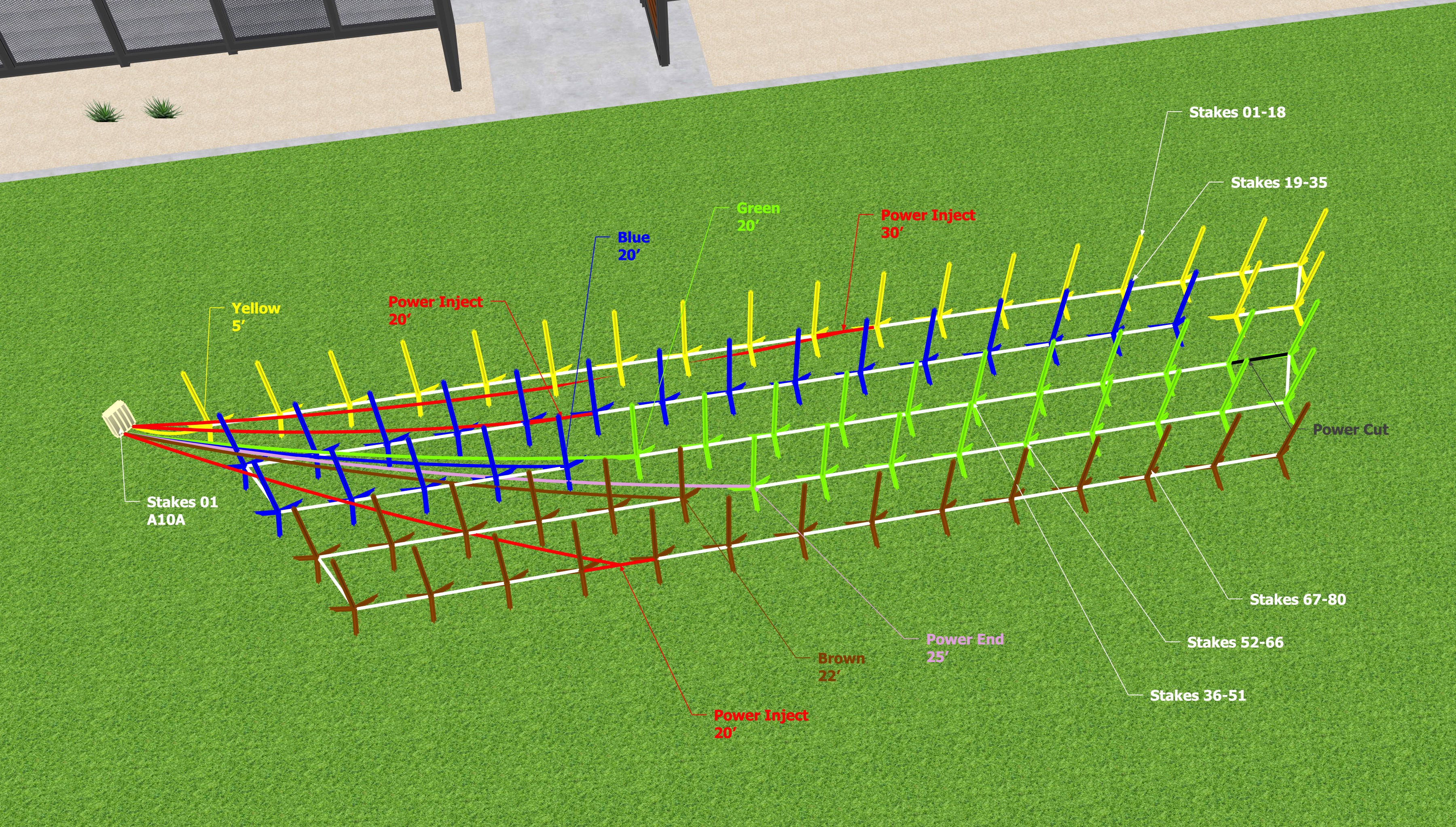

Setup Photos image 1 for controller A10A

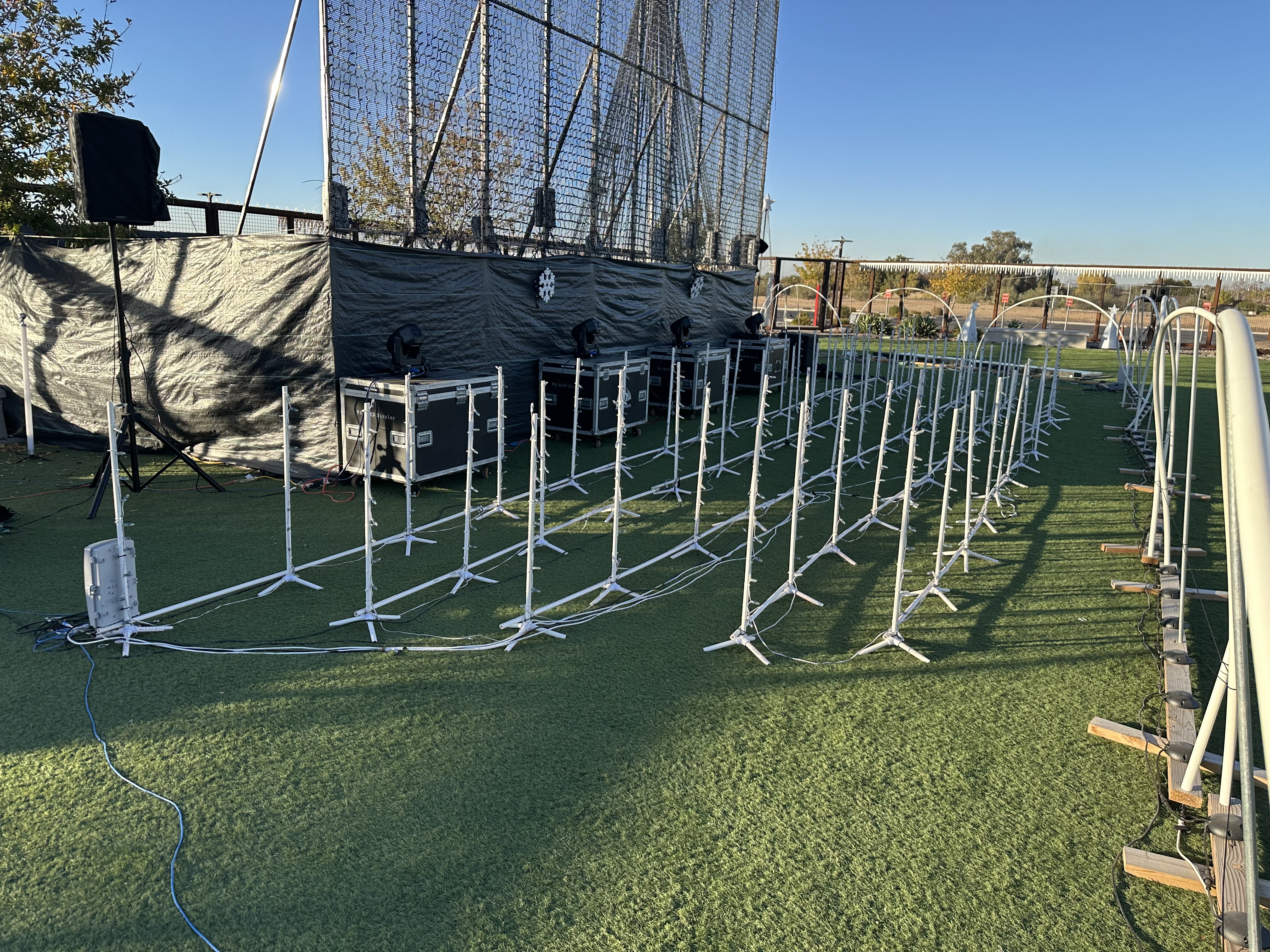

Reference Photos image 1 for controller A10A

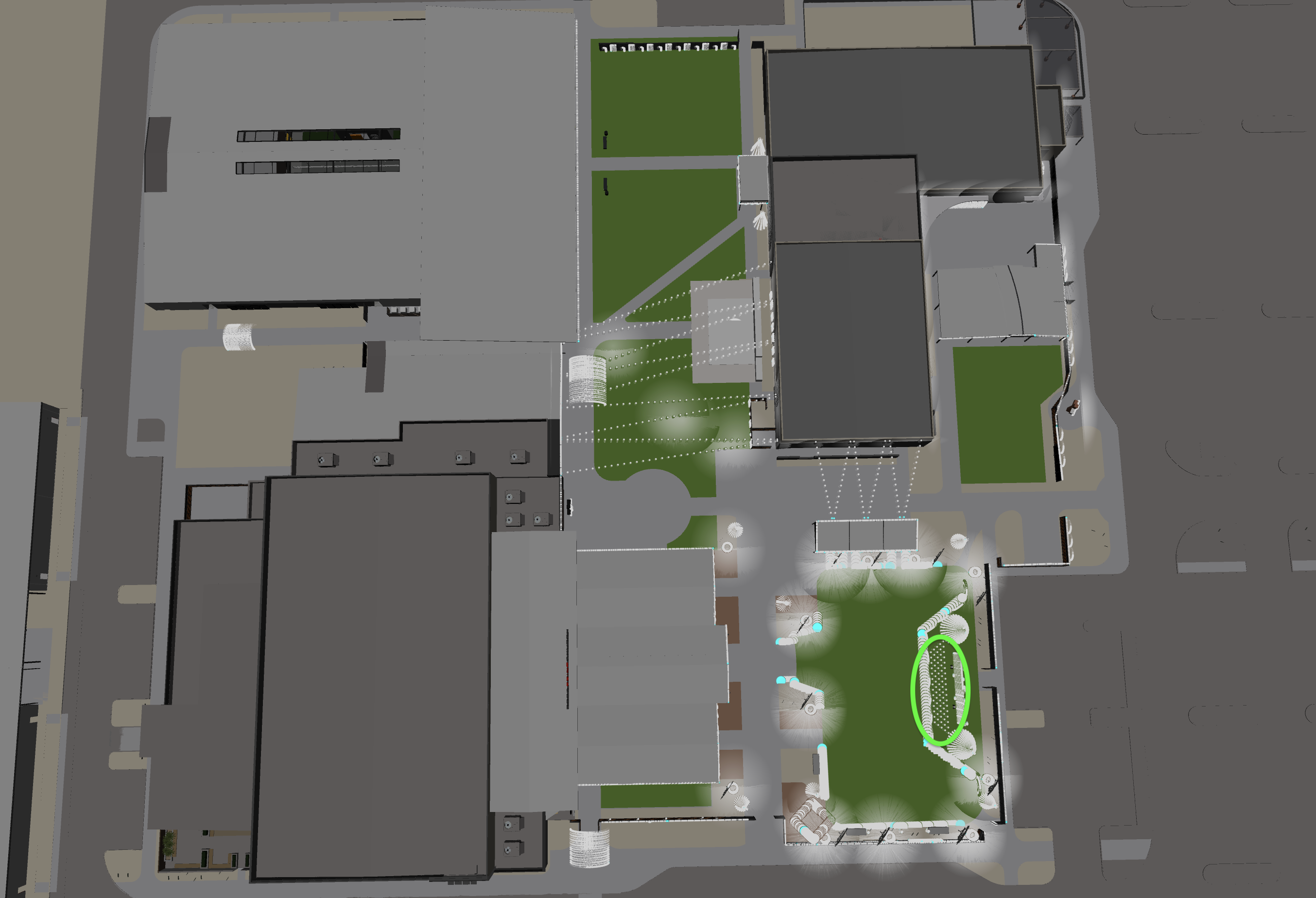

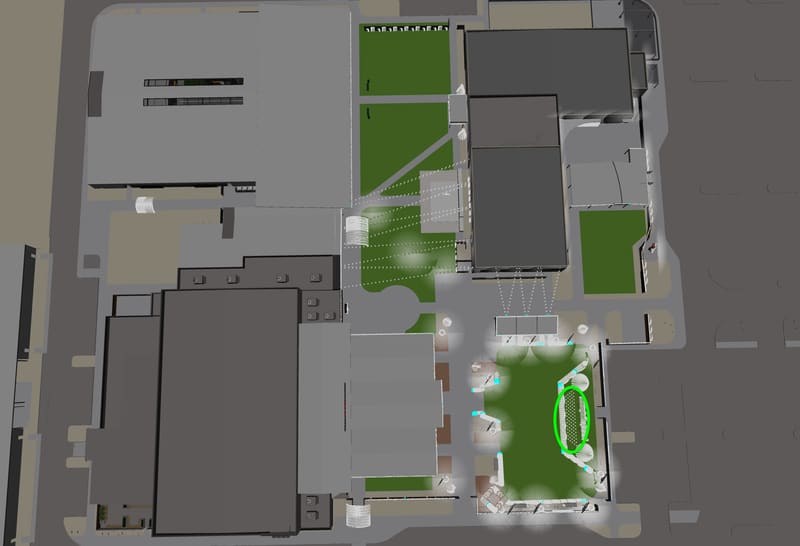

Site Map image 1 for controller A10A

Stakes 01

8 data pigtails · 8 power pigtails

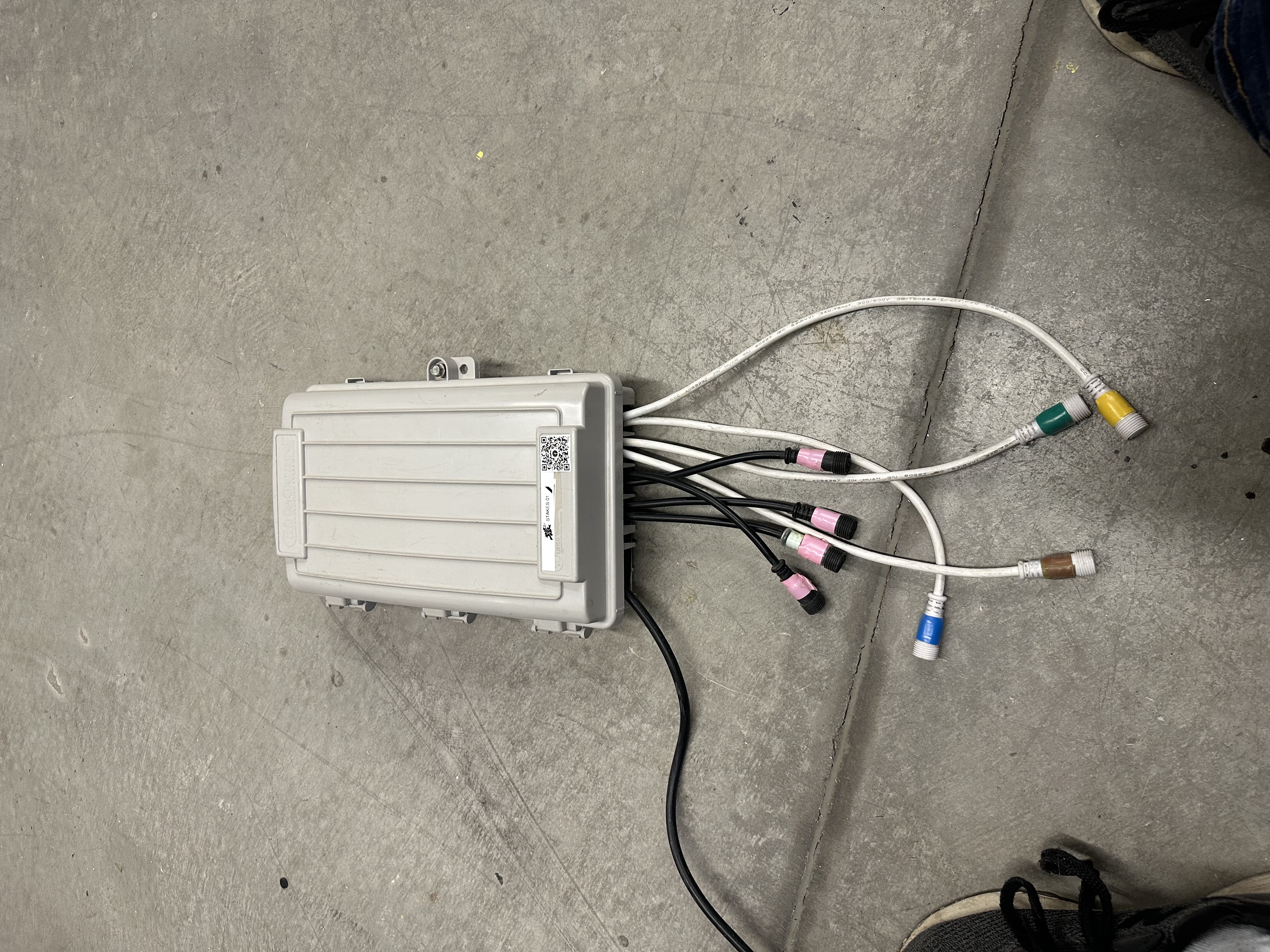

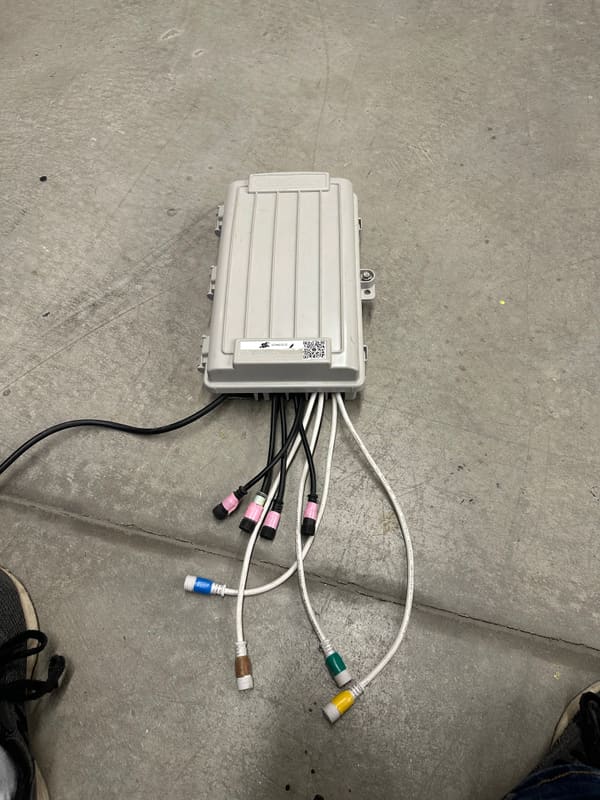

Controller Photos image 1 for controller A10A

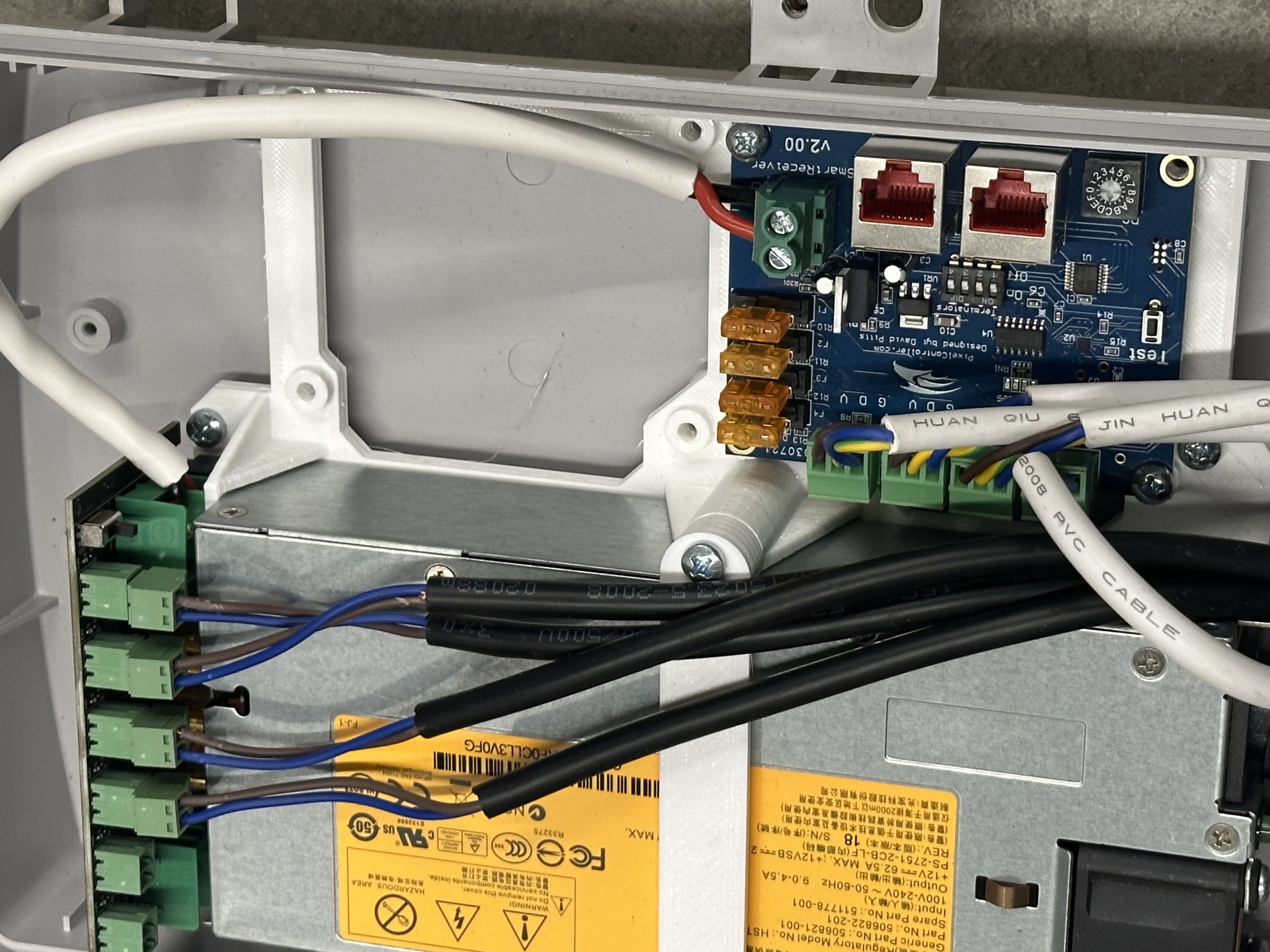

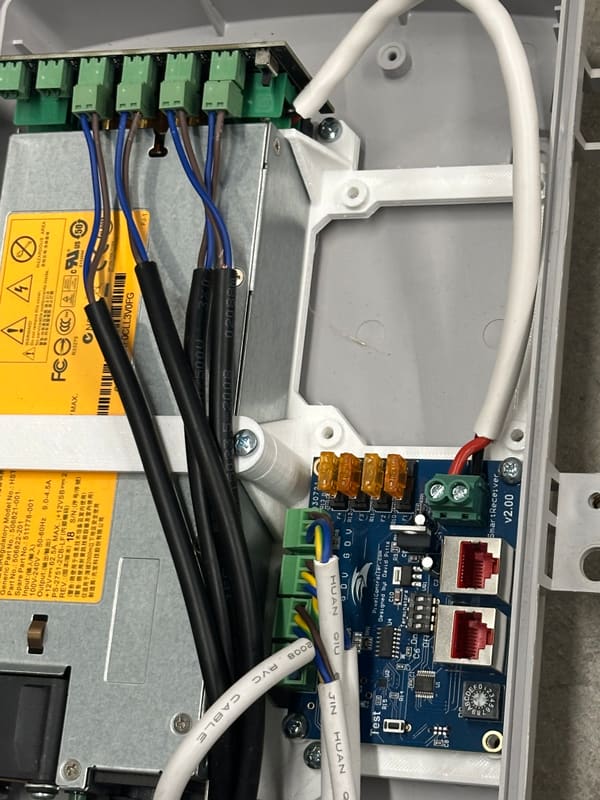

Controller Photos image 2 for controller A10A

Props

Controller	Controller Port	Mode	Receiver	Controller Output	Dumb Receiver	Smart Receiver	Box Type	Network Path	Max Px/Port	Pixels on Port	Pixels Used	Pixels Left	Power Supply	Voltage	Max Wattage	Watts/ Node	Brightness Percentage	Watts/ Port	Watts Drawn	Control Box Name	Cable Length	Prop 1 Name	Px Count	Cable Length (2)	Prop 2 Name	Px Count (2)	Cable Length (3)	Prop 3 Name	Px Count (3)	Cable Length (4)	Prop 4 Name	Px Count (4)
K8PB.A	13	13A	A10A	10		A10A		K8PB.A	640	470	200	170	A10A	12	750	0.6	50	60	240	Stakes 01	5	Stakes 01-10	100	30	Power Inject		0	Stakes 11-18, 35-34	100
K8PB.A	14	14A	A10A	10		A10A			640	470	200	170	A10A	12	750	0.6	50	60		Stakes 01	20	Stakes 40-36, 19-23	100	20	Power Inject		0	Stakes 24-33	100
K8PB.A	15	15A	A10A	10		A10A			640	470	200	170	A10A	12	750	0.6	50	60		Stakes 01	20	Stakes 41-50	100		Power Cut		0	Stakes 51, 66-58	100	25	Power End
K8PB.A	16	16A	A10A	10		A10A			640	470	200	170	A10A	12	750	0.6	50	60		Stakes 01	22	Stakes 57-52, 67-70	100	20	Power Inject		0	Stakes 71-80	100
K8PB.A	13	13A	A10A	10		A10A		K8PB.A	640	470	200	170	A10A	12	750	0.6	50	60	240	Stakes 01	5	Stakes 01-10	100	30	Power Inject		0	Stakes 11-18, 35-34	100
K8PB.A	14	14A	A10A	10		A10A			640	470	200	170	A10A	12	750	0.6	50	60		Stakes 01	20	Stakes 40-36, 19-23	100	20	Power Inject		0	Stakes 24-33	100
K8PB.A	15	15A	A10A	10		A10A			640	470	200	170	A10A	12	750	0.6	50	60		Stakes 01	20	Stakes 41-50	100		Power Cut		0	Stakes 51, 66-58	100	25	Power End
K8PB.A	16	16A	A10A	10		A10A			640	470	200	170	A10A	12	750	0.6	50	60		Stakes 01	22	Stakes 57-52, 67-70	100	20	Power Inject		0	Stakes 71-80	100

Controllers

1 box available

Show details

8 data pigtails · 8 power pigtails

Controller Role

K8PB.A

Pigtails

8 Data
8 Power Injection

Build Checklist

Control Box Created
Props Placed
Control Box Mounted
Props Wired (Data/Power)
120V Power Connected
Data Link (Ethernet/RS485)
Tested
Zip-tied / Cables Cleaned
